Theranostics 2023; 13(5):1716-1744. doi:10.7150/thno.80529 This issue Cite

Review

Recent advances in fluorescent probes of peroxynitrite: Structural, strategies and biological applications

Jiarao Sun¹, Xiaoli Cao², Wenjuan Lu¹, Yongchun Wei¹, Lingxiu Kong¹, Wei Chen¹, Xintian Shao^3, , Yanfeng Wang^1,

1. Institute of Materia Medica, Shandong First Medical University & Shandong Academy of Medical Sciences, Jinan 250000, Shandong Province, China
2. Jinan Municipal Center for Disease Control and Prevention, Jinan 250021, Shandong, China
3. School of Life Sciences, Medical Science and Technology Innovation Center, Shandong First Medical University & Shandong Academy of Medical Sciences, Jinan 250062, Shandong, China

✉ Corresponding authors: Y. F. Wang and X.T. Shao, Email: wangyanfengedu.cn (Y. F. Wang); shaoxintianedu.cn (X.T. Shao).

Abstract

Peroxynitrite (ONOO^-), owing to its high oxidative and nitrating stress, is associated with several physiological processes in addition to various pathological processes, including those related to neurodegenerative diseases and cancer. Detection of ONOO^- at the cellular level is of great significance to understand its pathogenesis. To this end, a variety of fluorescent probes based on small molecules and nanoparticles (NPs) have been engineered and applied as excellent tools for imaging of ONOO^- in cells as well as in their diverse biological applications. In this review, we highlight representative cases of fluorescent probes based on recognition mechanism and emphasize their response type (ratiometric, two-photon, long-wavelength/near-infrared, and targeting) in ONOO^- detection in the last five years. We further discuss their design strategy, sensing mechanism, and application in bio-imaging and describe NP-based probes according to diverse nanoplatforms.

Keywords: peroxynitrite, fluorescent probes, nanoparticles, response mechanisms, bio-imaging

Introduction

Intracellular reactive nitrogen species (RNS) are a class of substances primarily originated from nitric oxide (NO) through electron transfer reactions, including nitric oxide free radicals (NO•), nitrogen dioxide free radicals (NO₂•), hyponitric acid (HNO), nitrite ion (NO₂^-), and peroxynitrite (ONOO^-) [1, 2]. Among them, ONOO^- attracts special attention as its level changes are closely associated with various physiological and pathological processes in biological systems. In 1990, ONOO^- was first reported to be an endogenous oxidant [3]. As depicted in Figure 1, ONOO^- is generated by NO and superoxide anion radical (O₂^•-) through a radical coupling reaction. ONOO^- as a nucleophile can react with carbon dioxide (CO₂) to generate an unstable intermediate (ONOOCO₂^-). This intermediate later decomposes and produces carbonate (CO₃^2-), which that can result in apoptosis and programmed cell death. Furthermore, the protonated form of ONOO^- (ONOOH, pKa = 6.8) can decompose into •OH and NO₂•, which are considered deleterious in most cases owing to their high reactivity. Thus, ONOO^- acts as a signaling molecule in vivo for a number of pathways.

Although ONOO^- often plays protective roles in cells and organisms, such as the bactericidal effect, it has been reported to be deleterious in most cases owing to its high reactivity [4]. It can be involved in cell death by oxidation of biological targets such as lipids [5], proteins [6] and DNA [7]. Abnormal ONOO^- levels are closely linked to the diversity of human diseases; for instance, ONOO^- was found as a direct indicator of acute liver injury (ALI) associated with overdosage of analgesic/antipyretic drugs, as they undergo enzymatic biotransformation in the liver to generate ONOO^- through a cascade of oxidation reactions [8]. Epilepsy is a chronic neurodegenerative disease, and its pathological progression is closely associated with ONOO^- [9]. Furthermore, the outburst of ONOO^- takes place in the inflammatory processes, and the overproduction of ONOO^- was found to be proportional to the developing progression of inflammation [10]. Moreover, abnormal ONOO^- levels are closely linked to the diversity of human diseases, such as neurodegenerative disorders [11], stroke [12], and drug-caused acute kidney injury (AKI) [13], among others. Therefore, developing highly sensitive and selective detecting tools for ONOO^- in biosystems is of significant importance.

Compared with traditional colorimetric analysis and electrochemical analysis, fluorescence analysis has been acknowledged by the scientific community as a more efficacious detection tool in living systems owing to its strong selectivity, high sensitivity, operational and structural modification simplicity, and visualization. [14-17] With the development of fluorescence analysis technology, the number of fluorescent probes used to detect ONOO^- gradually increased. Due to the important role in ONOO^- in vivo, many ONOO^- fluorescent probes have been developed and applied in living cells. [18, 19] In terms of imaging technology, super-resolution fluorescence microscopy techniques successfully overcome the limitation of traditional optical microscopes, which cannot obtain spatial resolution below 200 nm. Furthermore, the former can be used for real-time observation of changes in the sub-organelles before and after response with ONOO^-. This review is anticipated to make tremendous contributions in further understanding the role of ONOO^- in the biological and pathological processes.

 Figure 1

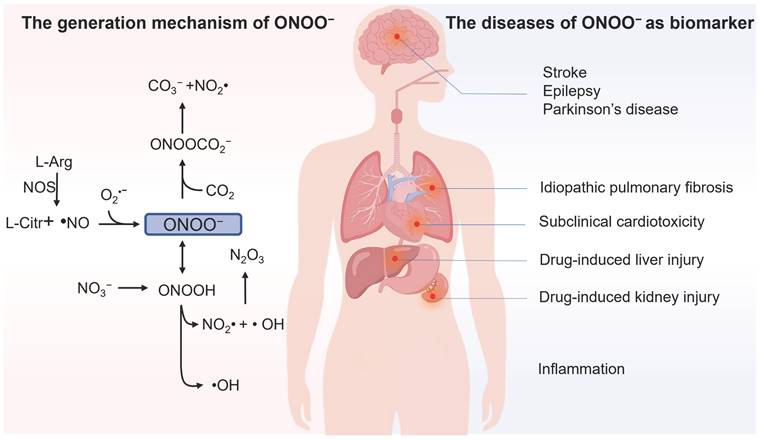

Illustration of the generation mechanism / metabolism of ONOO^- and the diseases of ONOO^- as biomarker.

Fluorescent probes for ONOO^- detection that have been applied in bio-imaging in the past five years are reported herein. We discuss small molecule-based fluorescent probes, in regard to recognition mechanism, response type (ratiometric, two-photon, long-wavelength/near-infrared [NIR], and targeting) (Figure 2), design strategy, sensing mechanism and application in biological imaging. We describe nanoparticle (NP)-based probes according to diverse nanoplatforms. Finally, we present our perspective on the development of new probes for the imaging of ONOO^- in living systems. We hope that this review is helpful to researchers interested in designing new probes for detecting ONOO^-.

Small-molecule-based fluorescent probes for detection of ONOO^-

Probes based on boronates (boronic acids/boronic esters)

When fluorescent probes contain boronic acid or boronic ester moiety, they are generally believed to produce a specific response to hydrogen peroxide (H₂O₂). That is, the boronic acid or boronic ester group is generally considered to be a specific response site of H₂O₂. However, studies have demonstrated that boronic acid or boronic ester groups can react with ONOO^- millions of times faster than they react with H₂O₂ owing to the former's greater nucleophilicity ₍k_(ONOO^- ~10⁶ M^-1s^-1, k_(H2O2) ~1 M^-1s^-1) [20]. When designing the probe, in addition to directly connecting the boronate ester / boric acid group to the fluorophore, benzene or other linkers can be introduced between them (Figure 3). Fluorescent probes have been widely used for ONOO^- detection designed using this strategy. Moreover, we found that the fluorescent probes with boronic ester as the response site have shorter response time and higher selectivity when responding to ONOO^-, which may be ascribed to the lower redox potential of borate ester [21, 22].

In 2017, utilizing reaction-based indicator displacement assay (RIA) mechanism, Han et al. developed fluorescent probe 1 for detecting ONOO^- (Figure 4) [23]. 1 was synthesized by introducing a boronic acid site into DCM (4-dicyanomethylene-2-methyl-6-[4-(dimethylamino) styryl]-4Hpyran), a laser dye. It had negligible fluorescence due to the photoinduced electron transfer (PET) effect. After binding with lactulose to form a complex, the PET effect was prohibited, and the fluorescence was restored. Upon addition of ONOO^-, lactulose was dissociated from the complex, and the fluorescence was dramatically reduced owing to the recovery of the PET effect. The complex had better selectivity for ONOO^- than other reactive oxygen species (ROS) /RNS tested and demonstrated good imaging ability for exogenous ONOO^- in HepG-2 cells.

 Figure 2

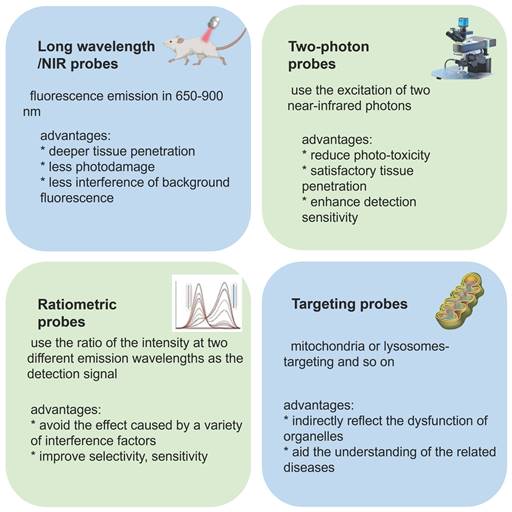

Different features of probes and their advantages.

Similar to lactulose, 2-(2', 3' -bihydroxyphenyl)benzothiazole (BHBT) can provide two adjacent hydroxyl groups that react with boric acid to form a fluorescent borate ester. Xu et al. obtained a novel ONOO^- probe 2 by means of the self-assembly comprising BHBT and 2-formylphenyl-borbonic acid (Figure 4) [24]. 2 was a typical “turn-on” type fluorescent probe, which was more suitable for biological imaging and overcame the disadvantage of the “turn-off” type fluorescent probe of being susceptible to autofluorescence interference. 2 has undergone integration, release, and recombination processes. After specific responses with ONOO^-, the released product salicylaldehyde triggers cross-linking to fixed BHBT through hydrogen bond, enhancing the detection signal and improving the sensitivity. To explore the application of ONOO^- probes in the medical domain, James et al. prepared probes 3a and 3b (Figure 4) [25]. In their study, coumarin was a fluorophore linker that separately conjugated cancer drugs chlorambucil and indomethacin with an ONOO^- trigger. The results demonstrated that 3a and 3b were non-fluorescent; however, the authors noted a strong increase in emission at 460 nm for both probes with the increasing concentrations of the biological oxidant ONOO^-, which provided a potential platform for monitoring ONOO^--mediated drug release in cancer cell lines. With iminocoumarin-benzothiazole as a fluorophore, Wang et al. reported turn-on probe 4 (Figure 4) [26]. The fluorescent intensity of 4 at 530 nm was found to have a good linear relationship with the concentration of ONOO^- in the range of 0-10 μM. Drug-induced hepatotoxicity represents critical challenge for safety in drug development. The production of ONOO^- has been proposed as an early sign in the progression of drug-induced hepatotoxicity. After successfully applying probe 4 for imaging ONOO^- in living cells, the studies to detect ONOO^- in drug-damaged liver tissues were conducted. Bright green fluorescence was obtained even when the depth was up to 80 μm in the liver tissues of drug-induced liver injury.

 Figure 3

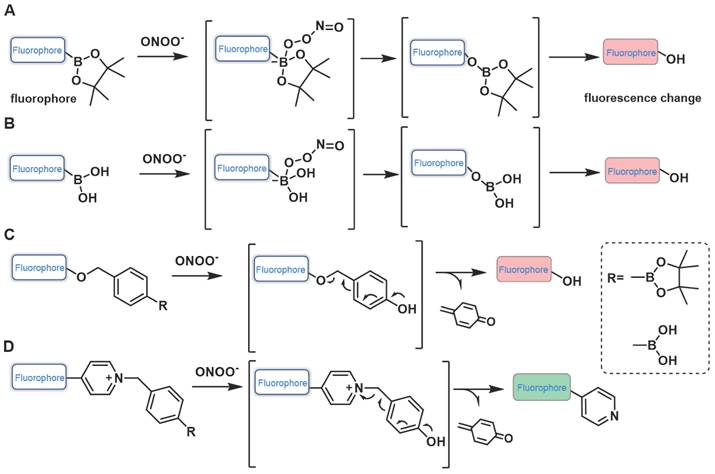

Design strategies based on boronates.

Ratiometric fluorescent probes function by using the ratio of two different emission intensities as detection signals, which can eliminate the interference of environment and instrument parameters, among other factors. Furthermore, owing to the high sensitivity and high selectivity of these probes, they have gained massive attention from the scientific community [27, 28]. Wang et al. reported a ratiometric fluorescent probe 5 using 4-methylumbelliferone as a fluorophore (Figure 4) [28]. The ratio of the emission intensities F_{450 nm}/F_{385 nm} had a good linear relationship with the concentration ONOO^- in the range of 0-10 µM, and the limit of detection (LOD) was calculated to be 29.8 nM. 5 was successfully applied in the fluorescent imaging of endogenous and exogenous ONOO^- in living cells, zebrafish, and live tissues from a high-fat diet-induced obese mouse model. In 2022, Radosław et al. synthesized probe 6 with mitochondrial targeting function by introducing imidazolium into probe 5 (Figure 4) [29]. Compared with 5, the fluorescence emission peaks of 6 showed a certain degree of red shift (F_{450 nm}/F_{385 nm} to F_{481 nm}/F_{405 nm}). Also based on this theory, using coumarin and 4-amino-2-(benzo[d]thiazol-2-yl) phenol (ABAH) as fluorophores, James et al. designed and synthesized probes 7a-c and 8 to detect ONOO^- by introducing different targetable groups (Figure 4) [30, 31].

Lin et al. devised a novel ratiometric probe 9 based on an unconventional fluorescent platform (Figure 4) [32]. 9 was a novel four-armed siloxane containing a Si-O-Si bond as a bridge. Upon reaction with ONOO^-, the hydrolysis of the boronic ester group changed the aggregation state of 9, and the ratio of emission intensities (F_{450 nm}/F_{385 nm)} had a good linear relationship with the concentration of ONOO^- in the range of 4-45 µM. In addition, 9 was used to visualize exogenous and endogenous ONOO^- in cells and zebrafish.

Ratiometric fluorescent probes with long-wavelength emission (λ_em >600 nm) have been attracted more attention from scholars because of their excellent superiorities of deeper tissue penetration, low tissue light damage, and less autofluorescence interference, in addition to the advantages of conventional ratiometric probes. Additionally, mounting evidence has demonstrated that the intramolecular charge transfer (ICT) mechanism is a preferred strategy for designing various ratiometric fluorescent probes. In 2018, Zhu et al. designed and synthesized probe 10 based on the ICT mechanism (Figure 4) [33]. Their experimental results demonstrated that with the addition of ONOO^-, the fluorescent emission of 10 was significantly red-shifted from 560 nm to 630 nm due to the change of the ICT effect. 10 showed outstanding selectivity, excellent sensitivity, fast response (< 5 s), and low LOD for ONOO^- (0.9 nM). Based on these advantages, 10 has been used for fluorescent imaging of endogenous ONOO^- in living cells.

 Figure 4

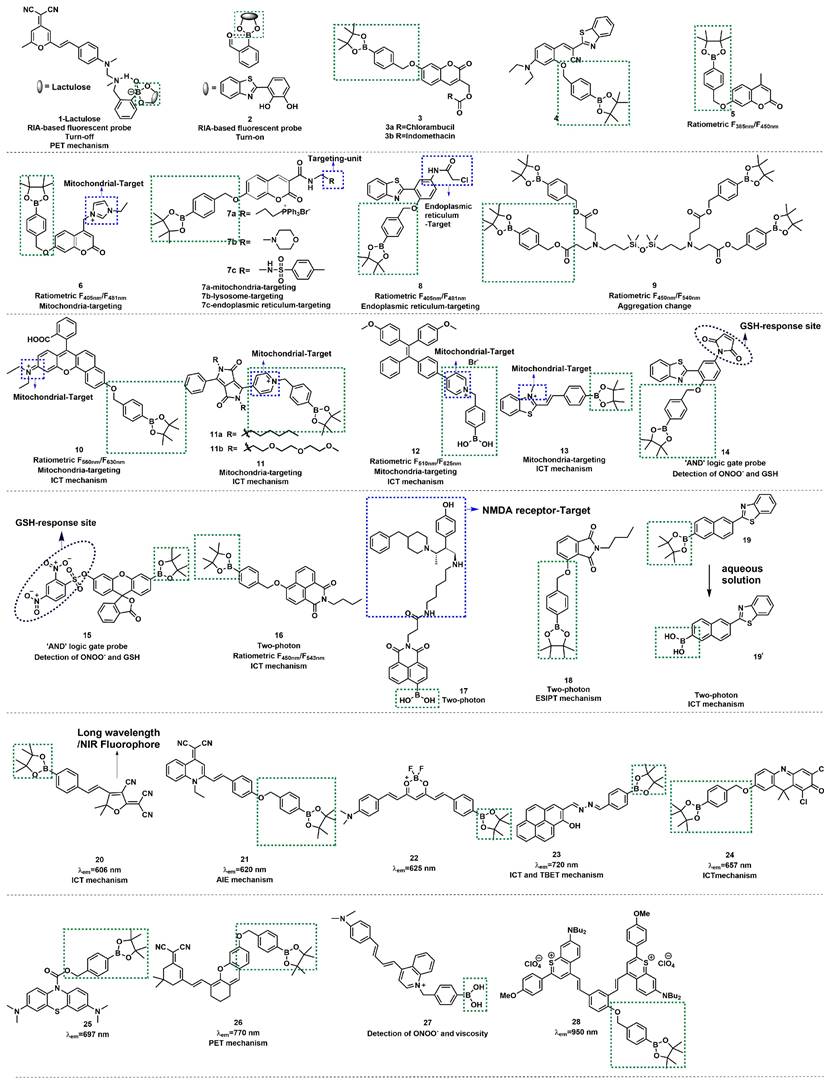

The structures of boronic acid / boronic ester-based fluorescent probes (1-28) for ONOO^- detection. The green boxes indicate the ONOO^- response unit, and the blue boxes indicate the targeting moiety.

Also based on the ICT mechanism, Zhao et al. developed lipid-soluble probe 11a and water-soluble probe 11b (Figure 4) [34]. They achieved excellent ratiometric detection for ONOO^- under physiological simulation conditions. Furthermore, the 11a could originally target lysosomes. After successfully applying probe 11a for imaging of ONOO^- in living cells, the authors further applied 11a to the research of acetaminophen (APAP)-induced liver injury in mice. It is well-known that an overdose of APAP, a commonly household antipyretic and analgesic agent, is the leading cause of hepatotoxicity and even acute liver failure due to the overproduction of RNS. As shown in Figs. 5A(c) and 5A(d), the fluorescence signals of the mice in the experimental groups after administration were concentrated in the yellow channel. This was probably because excessive APAP induced liver damage in mice, leading to an up-regulation of ONOO^- in the liver. In the meantime, the fact that excessive APAP could induce liver damage in mice was proved via hematoxylin and eosin (H&E) staining. In contrast to the normal mice, the liver tissue of mice after administration exhibited obvious damage (Figure 5A(f)). 11a could serve as a promising candidate to reveal the roles of ONOO^- in drug-induced liver injury and its repair. Zhang et al. synthesized a mitochondria-targeted AIEgen fluorescent probe 12 (Figure 4) [35]. Probe 12 had an LOD as low as 0.45 nM.

The above studies indicated that ONOO^- fluorescent probes which could target different sub-organelles, are mainly composed of the following three parts: fluorophores, recognition site, and targetable unit.

Based on this, a large number of fluorescent probes for detecting ONOO^- and targeting sub-organelles such as mitochondria and lysosomes have been reported. The mitochondria membrane matrix has a strong negative potential, i.e., as low as -180 mV. Therefore, the most common method to deliver molecule probes to cellular mitochondria is to use positive charge groups, [36, 37] such as indolium moiety, quaternized pyridine and so on [38]. Besides, fluorophores that possess lipophilic cations are also introduced to achieve mitochondria-targeting, such as cyanine dyes and rhodamine. The probes with these types of positively charged groups can travel through the plasma membrane and eventually accumulate in the mitochondria. Zhang et al. synthesized fluorescent probe 13, containing a positively charged nitrogen heterocyclic, primarily distributed in the mitochondria (Figure 4) [39]. They noted that the probe had a large red-shift of absorption peak accompanied by a distinct color change from colorless to orange after reacting with ONOO^-, and the fluorescence intensity at 569 nm was linearly related with the concentration of ONOO^- (0-10 μM). The authors further applied 13 to monitor fluctuations of endogenous ONOO^- levels in living cells and possible cross-talk between H₂S and ONOO^- in cells.

Fluorescent probe 13 has revealed the interaction of two active substances in the living cells. It is a common phenomenon that the levels of multiple active substances simultaneously change when cells undergo oxidative stress. The molecules that can bind multiple analytes and convert the multiple binding events into measurable outputs are molecular logic gates. James et al. developed a series of fluorescein-based “AND” logic gates, which could detect ONOO^- and GSH or F^- in cells simultaneously. Using the aforementioned ABAH as an ideal ESIPT fluorophore, they developed probe 14 by modifying the hydroxyl and amino groups on it (Figure 4) [40]. The maleimide group and benzyl boronic esters are typical GSH and ONOO^- responsive sites, respectively. Only a small fluorescence increased when ONOO^- or GSH alone was added in 14. However, a significant fluorescence increase was observed following the addition of the second analyte, and the order of addition of ONOO^- and GSH did not affect the final fluorescence intensity. The authors further directed their attention toward the development of longer-wavelength probes for multiple-analytes. In this context, they synthesized probe 15 that could detect ONOO^- and GSH simultaneously (Figure 4) [41].

Two-photon imaging has the advantages of low photo-toxicity, satisfactory tissue penetration, and high detection sensitivity. [42, 43] Recently, two-photon bioimaging has attracted special interest of scientists. Naphthalimide is an outstanding ICT fluorophore with satisfactory two-photon properties. In 2019, Zhu et al. designed and synthesized the first ratiometric two-photon fluorescent probe 16 (Figure 4) [44], which was suitable for fluorescent imaging of ONOO^- in living RAW 264.7 macrophage cells using two-photon microscopy (TPM). Using the same fluorophore and an ifenprodil-like tail as target N-methyl-_D-aspartate (NMDA) receptor, Yoon et al. designed probe 17 (Figure 4) [45], which represented high sensitivity and selectivity for ONOO^-. They employed TPM imaging and demonstrated that 17 could be used to monitor ONOO^- levels near NMDA receptors in fresh rat hippocampal tissues.

James et al. prepared a two-photon fluorescent probe 18 using 4-hydroxyisoindoline-1,3-dione of an ESIPT-based fluorophore (Figure 4), which was applied in exogenous ONOO^- in fresh rat hippocampal slices up to a depth of 110 μm [46]. The authors attempted to ascertain whether probe 18 could be used to detect ONOO^- in mice tissue. Using TPM, the obtained the images of a portion of 18-labeled fresh rat hippocampal slices (Figure 5B). Their experiments at a higher magnification revealed the ONOO^- levels in the individual cells. In the same year, using 6-(1, 3-benzothiazol-2-yl) naphthalen-2-ol as a scaffold, Radosław et al. reported probe 19 and discussed its detection of three inflammatory oxidants, H₂O₂, ONOO^-, and HClO (Figure 4) [47]. After responding to the above three oxidation reagents, the fluorescence spectrum of 19 exhibited similar changes, but peroxynitrite was the fastest oxidizing agent among them.

Because of the ability of longer excitation/emission wavelengths to allow deeper tissue penetration and mitigate photodamage to biological samples and background autofluorescence from proteins, therefore, the development of long-wavelength/NIR probes has been extensively investigated. Probes 20-27 were synthesized using different fluorophores (Figure 4) [48-55]. With the addition of ONOO^-, the boronic esters of these probes were oxidative to generate phenolic hydroxyl group, leading to a gradual increase in the peak intensity in the NIR region.

Probes with emission wavelengths in the visible range and the first NIR window (NIR-I, 650-900 nm) were limited by wavelength-dependent scattering and absorption behaviors, and the photon penetration depth was shallow in biological tissues. Probes with an emission wavelength in the NIR-II (900-1700 nm), were found to benefit from reduced self-absorption and scattering, and achieve deeper penetration depth and thus be better applied to biological tissue imaging. Zhang et al. synthesized probe 28 by introducing phenyl borate group into the benzothiopyrylium cyanines skeleton (Figure 4) [56]. After reacting with ONOO^-, the absorption peak was generated at 850 nm, accompanied by the reduction of the peak at 600 nm. Meanwhile, the emission peak appeared beyond 1000 nm. The ability of probe 28 to visualize the production of ONOO^- in a drug-induced hepatotoxicity model in nude mice was then assayed by comparison with the widely used commercial ONOO^- probe commercial D632 (Figure 5C). After the administration of APAP, the fluorescence intensities of the mice livers displayed gradual increments in a time-dependent manner, indicating the increased generation of ONOO^- after drug treatment. N-acetyl cysteine (NAC) was used as the antidote for APAP overdose. In contrast, no obvious fluorescent intensity augmentation was observed with time in the NAC pretreatment group, suggesting promising efficacy of NAC remediation. In comparison, signal-to-noise ratio (SNR) and relative fluorescent intensity were obtained from probe 28, indicating that probe 28 is more sensitive than commercial D632 for in vivo imaging. The results of nude mice imaging showed that 28 could detect the changes in the ONOO^- level in the APAP-induced liver injury model.

 Figure 5

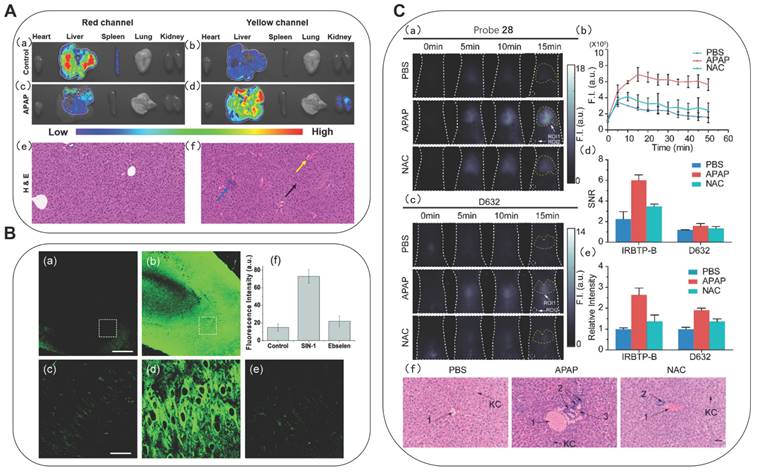

(A) Fluorescence of probe 11a in organs from APAP-induced mice. (a, b) The mice of the control group; (c, d) APAP (300 mg/kg); H&E staining of liver tissues from the above mice. (e) Normal liver tissue. (f) Liver tissue of mice treated with APAP (300 mg/kg) for 12 h. Adapted from [34] with permission. (B) TPM rat hippocampal slice images acquired after incubation of 20 mM probe 18 for 1 h. (a) absence and (b) presence of 50 mM SIN-1. (c-e) Enlarged images show a white box part of panels a and b and were acquired (c) before and (d and e) after the addition of (d) SIN-1 (50 mM) for 20 min, (e) 150 mM ebselen with 50 mM SIN-1 for 40 min. (f) Average TPEF intensity in panels c-e. Adapted from [46] with permission. (C) Fluorescence images of endogenous ONOO^- in the livers of mice during an APAP-induced hepatotoxicity by probe 28 and D632. (a) In vivo imaging of livers of mice from probe 28 treated with various substances: PBS, APAP, and NAC + APAP. (b) Relative fluorescence intensity of livers of mice treated with various substances followed by probe 28 over time. (c) In vivo imaging of livers of mice from D632 treated with various substances. (d) SNR values obtained for probe 28 and D632 from different groups. (e) Relative intensity of livers of mice after injection of probe 28 and D632 in different groups. (f) Representative histology H&E of the livers of mice treated with various substances. Adapted from [56] with permission.

 Figure 6

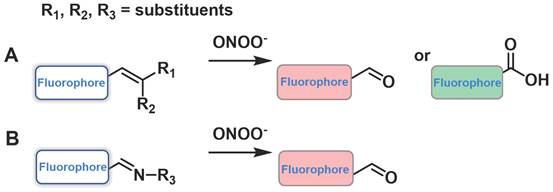

The design strategies based on C=C and C=N.

Probes based on C=C and C=N cleavage mechanism

Another sensing mechanism, the conjugated C=C double bonds and C=N double bonds could be cleaved through oxidation because of the strong oxidizing and nucleophilic ability of ONOO^-, dramatically leading to a change in the fluorescent signal (Figure 6). Examples of this class of probes are presented in Figure 7, and the spectroscopic properties of the products formed are summarized in Table 2.

Based on a triphenylamine-benzoindolecyanine, Ye et al. developed a lipid droplet-targeted fluorescent probe 29 (Figure 7) [57]. The C=C bond in this probe was broken after reaction with ONOO^-, resulting in the destruction of the conjugate structure. The fluorescence was turned on to release benzoindolecyanine. With the increasing concentration of ONOO^-, the absorption peak of 29 at 600-700 nm was gradually weakened; meanwhile, the fluorescence intensity at 456 nm was markedly enhanced and exhibited an excellent linear relationship with ONOO^- concentration in the range from 0 to 30 μM. Cell colocalization experiments with Nile red dye (lipid dye) indicated that 29 could selectively and specifically target lipid droplets. Hu et al. utilized the same mechanism to design a mitochondria-targeted fluorescent probe 30 by conjugating dicyano-vinyl with benzopyran-chromone (Figure 7) [58].

Lysosomes are the circulating centers of cells that catalyzed the decomposition of a variety of waste such as proteins, nucleic acids, carbohydrates, lipids, and cell debris. Zhang et al. designed naphthalimide-hemicyanine-based fluorescent probe 31 for selective sensing of ONOO^- (Figure 7) [59]. Morpholine group was introduced to 31 as a lysosome-targeting unit. Owing to the strong oxidizing and nucleophilic ability of ONOO^-, the C=C double bonds of 31 could be cleaved, and therefore, the fluorescence of 31 at 510 nm was enhanced. The experimental results revealed that 31 exhibited high selectivity over other ROS and RNS. Considering that the hemicyanine unit may respond to the HS^- or HSO₃^-, the authors further verified by selective experiments, and the results demonstrated that HS^- or HSO₃^- did not interfere with the fluorescent intensity of 31. It was noteworthy that the rotation of the double bond was limited with the solution viscosity increasing, and the fluorescence intensity of 31 also increased.

Because of the extensive applications of long-emission-wavelength probes in biological systems, a large number of related probes have been developed. Wang et al. developed a turn-off probe 32 based on benzothiazole-derived cyanine (Figure 7) [60]. Li et al. developed a ratiometric NIR fluorescent probe 33 based on hemicyanine dye, with mitochondria-targeting abilities (Figure 7) [61]. The C=C bond was cleaved through oxidization by ONOO^-, and the π-conjugate effect of 33 was weakened at 742 nm, owing to the decrease in fluorescent intensity and enhanced at 487 nm. The fluorescence intensity ratio (F_{487 nm}/F_{742 nm}) was enhanced up to 436-fold. 33 could locate the mitochondria with a colocalization coefficient of 0.95. In addition, the authors elaborated on the influence of substituents on the emission wavelength of the probe. Furthermore, probe 33 could specifically target the mitochondria of living cells and was therefore used to assess the mitochondrial oxidative stress status in cells and mice. Also based on hemicyanine dye, James et al. synthesized fluorescent probe 34 (Figure 7) [62].

On the basis of the emission wavelength in the NIR region (610-800 nm), adding the ratiometric character can avoid the shortcoming of single-molecule probe to a greater extent. Lu et al. N-methyl benzothiazole and triphenylamine derivatives via vinyl to synthesize probe 35 (Figure 7) [63]. By destroying of the π coupling of the alkene moiety, 35 could quantitatively detect ONOO^- in the mitochondria with high selectivity. In the solution of water/glycerol (2/3, v/v), the fluorescence emission intensity ratio of F₄₈₅/F₆₅₀ was linearly related to the concentration of ONOO^-. 35 could also respond to viscosity due to the presence of C=C double bonds. Thus, the authors concluded that probe was ratiometrically sensitive to mitochondrial viscosity changes and successfully applied the probe to detect the ONOO^- in the mitochondria of living cells and rat tissue.

Wang et al. applied the Knoevenagel condensation reaction between boron dipyrromethene (BODIPY) and two trans-cinnamaldehyde molecules to prepared probe 36 (Figure 7) [64]. When 8.0-equal amount of ONOO^- was added to the solution of 36, the ratio of fluorescence emission intensity (F₅₁₀ /F₆₀₆) increased by about 50-fold, and the color changed from red to green, which relied on ONOO^- induced diene oxidation. The LOD of ONOO^- was calculated to be 150.54 nM. The ratiometric and long-wavelength-emitting feature of 36 enabled it to be successfully applied in the study of ONOO^- in immune-stimulated macrophages and ONOO^- generation in phagosomes was then quantified via high-throughput flow cytometry analysis. You et al. employed diene as the recognition unit to devise and synthesize probe 37 (Figure 7) [65]. 37 was based on the modified rhodamine as a fluorescent scaffold, and its emission wavelength extended to NIR region. Subsequently, by imaging of ONOO^- in acute inflammation mice model using probe 37, the authors investigated the fluctuations in ONOO^- levels in a rheumatoid arthritis (RA) model of mice and assessed the response of the RA treatment with methotrexate.

 Figure 7

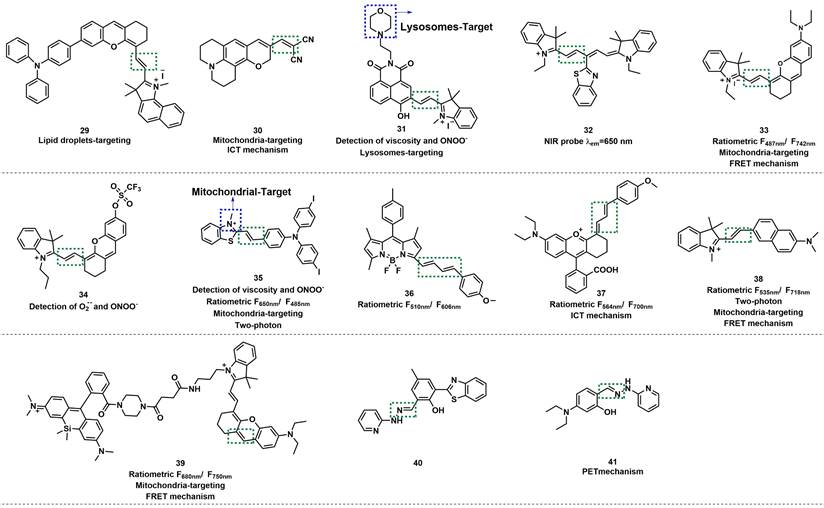

The structures of C=C/C=N-based fluorescent probes (29-41) for ONOO^- detection. The green boxes indicate the ONOO^- response unit, and the blue boxes indicate the targeting moiety.

By condensing fluorophore acedan and an indolium derivative, Lv et al. developed a coinstantaneous NIR- I window and ratiometric fluorescent probe 38 with both two-photon and mitochondria-targeting abilities (Figure 7) [66]. In the range of 5-50 μM, the ratio of fluorescence intensities (I₅₃₅/I₇₁₈) of 38 displayed a good linear relationship with the concentration of ONOO^- due to the cleavage of the C=C double bond. 38 exhibited high sensitivity to ONOO^- with an LOD of 85 nM. The authors further evaluated the imaging ability of 38. They observed that the probe had two-photon imaging capability, could target cellular mitochondria, and could determine the degree of idiopathic pulmonary fibrosis progression by tissue imaging.

Using an HD dye and silicon-based rhodamine form a donor -acceptor pair and linking by short flexible piperazine-containing carbon chains, Tan et al. synthesized FRET-based ratiometric fluorescent probe 39, with NIR and mitochondria-targeting ability (Figure 7) [67]. The fluorescent intensity ratio (F_{680 nm}/F_{750 nm}) was linearly related to the concentration of ONOO^- (0-10 µM), with a detection limit of 0.36 µM. In addition, co-localization experiments proved that 39 possessed the ability to selectively detect ONOO^- in the mitochondria. Based on the above results, the authors finally used 39 to detect cisplatin (CIS) -induced changes in ONOO^- levels in the kidney.

Due to the strong oxidation and nucleophilic ability of ONOO^-, the electron-rich conjugated C=C double bond in the probe was prone to oxidative cleavage, thereby realizing the detection of ONOO^-. The C=N double bond exhibits similar properties as the C=C double bond and could be used as a response site for ONOO^- detection. Zhang et al. developed probe 40 based on the conjugation of 2-hydrazyl pyridine and 3-(benzo [D] thiazole-2-yl) -2-hydroxy-5-methylbenzaldehyde (Figure 7) [68]. Before reacting with ONOO^-, the fluorescence intensity of 40 was extremely weak because of the decay process of excited states by C=N isomerization. After reaction with ONOO^-, the C=N bond was oxidized to an aldehyde, and a very strong fluorescence was observed at 524 nm. Furthermore, the probe had low cytotoxicity and high biocompatibility, which that enabled it to be used for the detection of intracellular ONOO^- in HeLa cells.

In recent years, ultrahigh-resolution microscopy techniques such as structured illumination microscopy (SIM) have received extensive attention. This technique can help visualize the dynamic changes in sub-organelles at the nanoscale. Wang et al. skillfully designed a novel “mine-sweeping” probe 41 based on the condensation of an aldehyde group with 2-hydrazine pyridine (Figure 8) [69]. 41 was “buried” in the cell matrix, and in the absence of ONOO^-, it displayed almost no fluorescence signal due to C=N isomerization and the presence of PET from secondary amine groups to fluorophores. The C=N bond was cleaved after 41 reaction with ONOO^-, and the fluorophore was released, resulting in a strong fluorescence being emitted at 525 nm. The use of 41 in SIM imaging of the exogenous and endogenous ONOO^- in HeLa cells was demonstrated (Figs. 8D, 8E). Furthermore, the method effectively solved the problem of non-specific staining of the probe and revealed for the first time that ONOO^- formation was bound to the crista of living cells by SIM imaging (Figure 8F).

Probes based on hydrazides

In recent years, a growing number of rhodamine-type dyes with good stability and long absorption/emission wavelength have been successfully applied to fluorescence probes and imaging for detection. Incorporation of the hydrazide group into rhodamine derivatives was an ideal strategy to create probes that could selectively detect ONOO^- over other ROS/RNS. Probes designed based on this strategy have almost no fluorescence or only weak fluorescence, which attribute to the inherent structure of a spironolactone. After reaction with ONOO^-, the non-conjugated form of spironolactone ring turned into the planar conjugated form, the functional group of hydrazide was converted to a carboxyl group, accompanied by a significant change about the fluorescence spectrum (Figure 9). Examples of this class of probes are depicted in Figure 10, and the spectroscopic properties of the end products are summarized in Table 3.

In 2017, Yoon et al. developed the far-red emissive probe 42 based on the above mechanism (Figure 10) [70]. 42 was colorless and almost nonfluorescent. After reaction with ONOO^-, which forced the spirolactam ring-opening, the fluorescence at 638 nm was discernibly enhanced. The authors noted a good linear relationship in the intensity of fluorescence at 638 nm and the concentration of ONOO^- in the range of 0-34 µM, and the LOD of the probe was 45 nM. The probe was successfully applied to imaging the exogenous and endogenous ONOO^- in living RAW264.7 cells and HeLa cells. More importantly, probe 42 was also used to detect endogenous ONOO^- generated in Pseudomonas aeruginosa-infected mouse bone marrowderived neutrophils. Likewise, probes 43-48 have been used for the same (Figure 10) [71-76].

 Figure 8

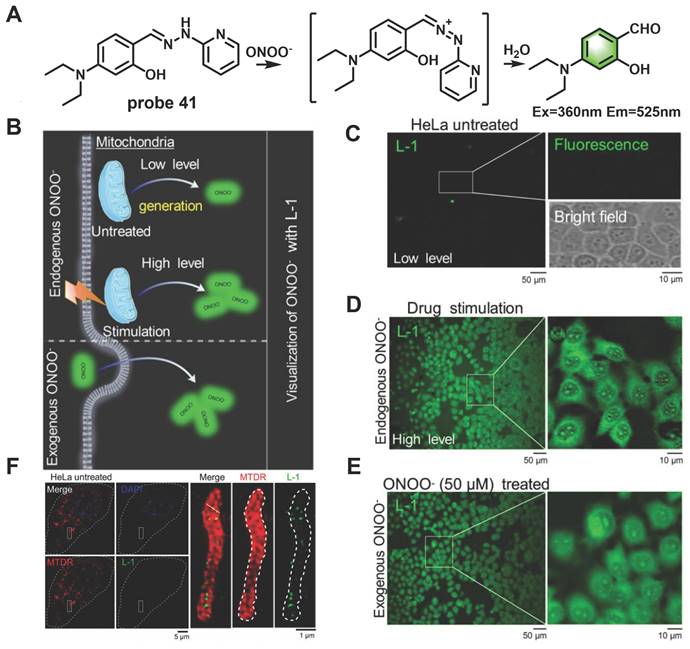

(A) The mechanism of probe 41 for sensing ONOO^-. (B) Proposed ONOO^- visualization mechanisms for probe 41 in living cells. (C) Confocal fluorescence images of HeLa cells incubated with probe 41 (10 μM) for 30 min at 37 ℃, Zoom-in images of the regions of interest are presented in white rectangles; the upper right includes a fluorescent image, and the lower right presents a bright-field transmission image. (D) Fluorescence images of HeLa cells incubated with lipopolysaccharide (LPS, 1 µg/mL) and interferon-γ (IFN-γ, 100 ng/mL) for 10 h. (E) Fluorescence images of HeLa cells incubated with probe 41 (10 μM) for 30 min, and then with exogenous ONOO^- (50 μM) for 30 min. (F) Overlapping images of probe 41-stained ONOO^-, Mito-tracker-deeper-red-stained mitochondria, DAPI-stained nucleus in untreated HeLa cells, zoom-in images of regions of interest in white rectangles representing the probe 41 and mitochondria. Adapted from [69] with permission.

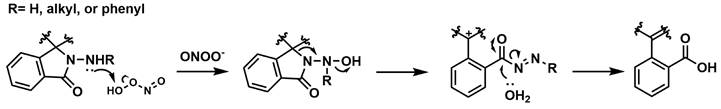

 Figure 9

The design strategies based on hydrazides.

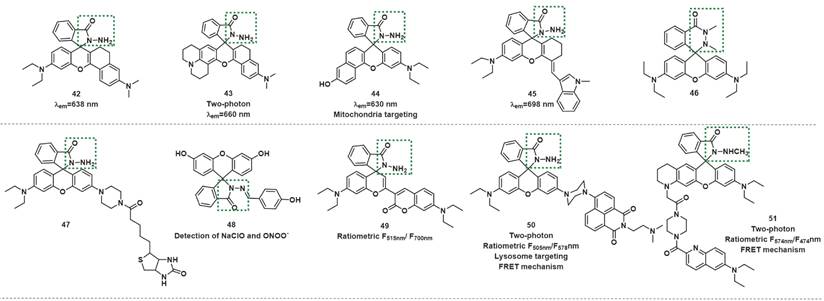

 Figure 10

The structures of hydrazides-based fluorescent probes (42-51) for ONOO^- detection. The green boxes indicate the ONOO^- response unit.

The next year, Feng et al. designed dual-channel NIR fluorescent probe 49 (Figure 10) [77]. 49 contains a semirhodamine structure and a coumarin fluorophore. The semirhodamine part used the same spirocyclization mechanism as a rhodamine dye. When 49 was in the spiro-opening form, it emitted fluorescence in the NIR region. However, because of the coumarin structure in the molecule, 49 still exhibited a strong visible fluorescence when the semirhodamine structure was in the spirocyclic form at 515 nm. Upon addition of ONOO^- into 49 solutions, the fluorescence intensity markedly decreased at 515 nm (λ_ex=430 nm) and significantly increased at 700 nm (λ_ex=640 nm) significantly increased with the emission color changing from green to red. 49 was found to have excellent selectivity and sensitivity to ONOO^- and demonstrated promising potential for in vitro and in vivo detection of ONOO^-.

Two-photon ratiometric fluorescent probes 50 and 51, based on the FRET mechanism were synthesized by Zhou et al. and James et al. respectively (Figure 10) [78, 79]. Which all selectively reacted with ONOO^- against other ROS including ClO^-. 50 and 51 chose naphthalimide and quinolone derivative as the two-photon fluorophore respectively. In addition, probe 50 introduce a dimethylamino as lysosome-targeting group, which could stain lysosomes specifically in living cells for ratiometric imaging. In these two probes, rhodamine derivatives act as energy acceptors. For a spiral ring structure, the absorption spectrum of acceptors was weak, which overlapped poorly with the emission spectrum of donors. Therefore, FRET was prohibited, and only the emission spectrum of donors was displayed. After reaction with ONOO^-, the fluorescence of rhodamine was released due to the recovery of spirocyclization opened-form. Both of the probes were found to have the capability of deep tissue penetration imaging and high-resolution ratio imaging.

Probes based on N-dearylation

The common ONOO^- response sites, various substituted p-aminophenols, such as 3-hydrogen/methoxy/methyl and 3, 5-dimethyl, were integrated into the fluorophore to form fluorescent probes with specific ONOO^- responses. Due to the highly electron-rich nature of the p-aminophenol group, the fluorescence of the fluorophore could be effectively quenched by the PET mechanism, as illustrated in Figure 11. When reacted with ONOO^-, strong fluorescence would be restored on account of cleavage of the p-aminophenols or p-aminophenol derivatives in the probes. Based on these, some excellent ONOO^- probes have been designed and synthesized. The examples of this class of probes are presented in Figure 12, and the spectroscopic properties of the oxidation products are summarized in Table 4.

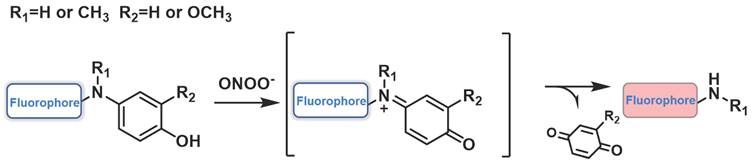

 Figure 11

The design strategies based on N-dearylation.

 Figure 12

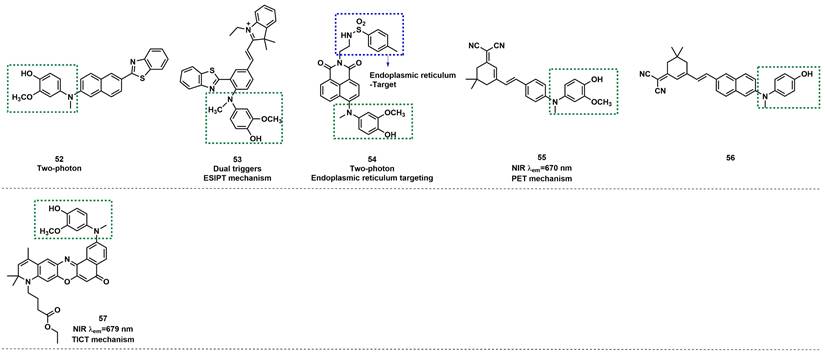

The structures of oxidative N-dearylation fluorescent probes (52-57) for ONOO^- detection. The green boxes indicate the ONOO^- response unit, and the blue boxes indicate the targeting moiety.

Based on naphthozothiazole skeleton as fluorophore, Yoon et al. reported a two-photon probe 52 with good sensitivity and selectivity for ONOO^- (Figure 12) [80]. 52 itself exhibited very weak fluorescence, but after reaction with ONOO^-, the fluorescence intensity at 500 nm was enhanced. 52 demonstrated excellent specificity and LOD as low as 35 nM. In addition, the probe was found to possess excellent two-photon properties and could be used to image ONOO^- in rat hippocampus slices, to a depth of up to 120 µm. Using phenylbenzothiazole as a skeleton, Li et al. synthesized a novel fluorescent probe 53 (Figure 12) [81]. The selectivity and specificity of 53 to ONOO^- were notably enhanced by introducing N-phenyl group and merocyanine group simultaneously on the fluorescent skeleton as two response sites. When the concentration of ONOO^- was small, the p-aminophenol would transform to a simple N-H group to restore the fluorescence. With the increase in ONOO^- concentration, the C=C double bond was oxidized and broken into carboxyl groups. Furthermore, the red emission was attenuated, whereas the green emission was enhanced.

Li et al. employed 1,8-nephthalimide as the fluorophore and integrated 4-amino-2-methoxyphenol to serve as the ONOO^- receptor p-toluenesulfonamide as the ER targeting group to synthesize probe 54 (Figure 12) [82]. Prior to contact with ONOO^-, 54 displayed weak fluorescence owing to the PET effect from the phenol group to the naphthalimide moiety. However, when different concentrations of ONOO^- were added, the fluorescence intensity of 54 at 540 nm gradually increased. 54 was found to have high selectivity and sensitivity to ONOO^- and an LOD as low as 8.3 nm. Furthermore, it had excellent endoplasmic reticulum (ER) targeting and revealed the changes in ONOO^- concentration levels in the ER of living cells and Caenorhabditis elegans by two-photon imaging. Most importantly, the probe was successfully applied for imaging the ONOO^- in Parkinson's disease models, indicating its potential application for revealing the fundamental roles of ONOO^- in ER stress-related diseases.

Based on the same response site and reaction mechanism, the research group also synthesized NIR probe 55 using a dicyanoisophorone as a fluorophore (Figure 12) [83]. With a similar type of fluorophore structure as 55, Li et al. designed probe 56 (Figure 12) [84]. Li et al. selected Nile red derivative, an inherently kidney-targeting NIR fluorophore to synthesize probe 57 (Figure 12) [85]. They found that the probe exhibited desirable kidney distribution after intravenous administration and was fluorescent only after activation by ONOO^-. Owing to these properties, the probe yielded excellent kidney contrast imaging results. As depicted in Figures. 13A and 13B, the mouse body and kidneys with AKI showed higher probe fluorescence than those without AKI. As evident in Figs.13g and 13h, compared with the sham group, probe fluorescence was significantly higher in ischemia-reperfusion (IR) 24 h mouse body and kidneys. The above evidence confirmed that probe 57 was capable of detecting both nephrotoxin-induced and IR injury- induced AKI in live mice.

Probes based on ketones

α-ketoamide was introduced as a recognition moiety to the probes for ONOO^--specific recognition. These probes displayed very weak fluorescence or no fluorescence because the electron-withdrawing properties of α-ketoamide moiety attenuated the electronic transfer effects such as intramolecular charge transfer (ICT) and photoinduced electron transfer (PET). When ONOO^- was present, the bridge of α-ketoamide was cleaved and released the fluorophore, thereby restoring fluorescence (Figure 14a). Trifluoromethyl ketone group, with a similar structure to α-ketoamide, could also be used as the specific response group of ONOO^- (Figure 14b). This class of probes is illustrated in Figure 15, and the spectroscopic properties of the detectable products are summarized in Table 5.

Due to the large rigid conjugated system and lipophilic cation moiety, Tang et al. selected TPNIR-NH₂ as the optical fluorophore to devise two-photon imaging and NIR-emissive fluorescent probe 58, which also had mitochondria-targeting characteristic (Figure 15) [86]. 58 exhibited good linearity in a plot of the intensity of fluorescence at 630 nm and the concentration of ONOO^- (0-5 equiv.). By using probe 58, the authors confirmed the ability to track the subtle concentration variations of mitochondrial ONOO^- in cardiomyocytes and cardiac tissues. Subsequently, the authors also demonstrated that ONOO^- burst emerged in the early stage after anthracycline administration and played a crucial role in initiating and promoting cardiomyocyte apoptosis. Using DCM-NH₂ as a fluorophore, Liu et al. designed far-red fluorescent probe 59 (Figure 13) [87]. After reaction with ONOO^-, 59 had a fluorescence maximum at 630 nm accompanied with color changes from light yellow to orange, which was detectable with the naked eye. 59 was successfully used to detect changes in endogenous ONOO^- levels in macrophage J774A.1 cells.

 Figure 13

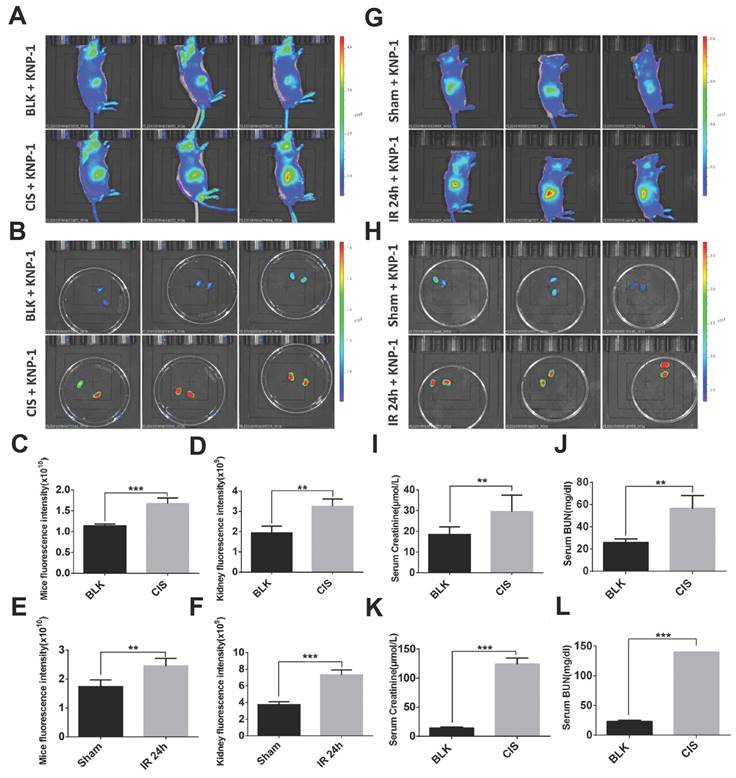

Imaging ONOO^- formation in CIS- or IR-induced AKI in live mice. Representative images of mouse (A) body and (B) kidney 48 h after treatment with CIS or saline, followed by KNP-1 (Probe 57 0.5 mg/kg) intravenously. Representative images of mouse (G) body and (H) kidney suffering from bilateral renal IR and sham operation (Sham), followed by Probe 57 (0.5 mg/kg) intravenously. The graphs of the fluorescence statistics of (A), (B), (G), and (H) are shown in (C), (D), (E), and (F). The statistical graphs of sCr/BUN of (A, B) and (G, H) are depicted in (I, J) and (K, L). Adapted from [85] with permission.

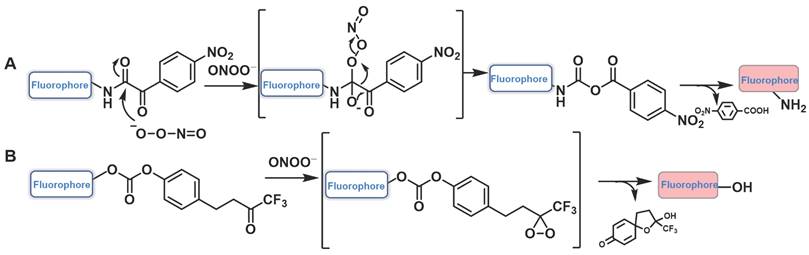

 Figure 14

The design strategies based on α-ketoamide.

To resolve the issue of false signal in the practical application of ONOO^- fluorescent probes and increase their sensitivity, Yuan et al. purchased or synthesized 60 kinds of NIR dyes and selected HD-NH₂ as the fluorophore with the most excellent properties among them. Probe 60 was synthesized by introducing a benzoic acid group and ketoammonia into HD-NH₂ (Figure 15) [88]. Benzoic acid group could improve the selectivity by preventing attack by other species. In PBS/EtOH (v/v, 8/2, pH 7.4) buffer solution, addition of ONOO^- (0-15 µM) to this probe led to a significant NIR fluorescent enhancement (seven-fold) and a red-shifted absorption from 611/661 to 627/678 nm. 60 was successfully used to monitor the effectiveness of remediation medicines for APAP-induced hepatotoxicity and to assess the liver protective effects of hepatoprotective medicine.

With trifluoromethyl ketone as the response site, a cascade oxidation-elimination reaction occurred after contacting with ONOO^-, which released the phenolic hydroxyl group in the fluorophore and enhanced the fluorescence. Pu et al. reported a new NIR fluorescent probe 61, composed of a water-soluble hemicyanine dye caged with a trifluoromethyl ketone moiety (Figure 15) [89]. The zwitterionic structure of the hemicyanine component in 61 ensured its good water solubility. In addition, the fluorescence at 712 nm was significantly enhanced by the addition of ONOO^- and was ~59 times compared with the initial state. A good linear correlation existed between the fluorescent intensity and ONOO^- concentration in the range of 0-8 µM with an LOD of 53 nM. Notably, probe 61 was systemically injected into living mice for NIR fluorescence and photoacoustic (PA) dual-modal imaging of ONOO^-. The same research group produced NIR fluorescent probe 62 for ONOO^- sensing by utilizing a similar strategy (Figure 15) [90].

Probes based on chalcogenides

The electron- rich characteristics of thioether enables it to react with ONOO^- rapidly, markedly changing the electron cloud density of sulfur atom. Therefore, upon the introduction of thioether groups into the probe, after the reaction with ONOO^-, the fluorescence intensity would lead to obviously changes. That was also one of the design strategies in the traditional ONOO^- detection fluorescent probe. Their structures and properties are summarized in Figure 16 and Table 6.

[3, 4-bis (phenylthiol)] was incorporated into maleimide-4-phenyl moiety which was, in turn, located in the meso-position of the BODIPY system. Based on this, Churchill et al. developed probe 63 (Figure 16) [91], which exhibited neligible fluorescence, owing to the occurrence of the PET mechanism. Addition of ONOO^- into 63 solution, resulted in an 18-fold fluorescence emission enhancement because the thioethers were oxidized to sulfones to block the PET process. High concentrations of O^2- were indeed a potential interferent for ONOO^-. In addition, owing to the thiophilic nature of Hg²⁺, the presence of Hg²⁺ in the detection of ONOO^- would interfere with the detection results.

 Figure 15

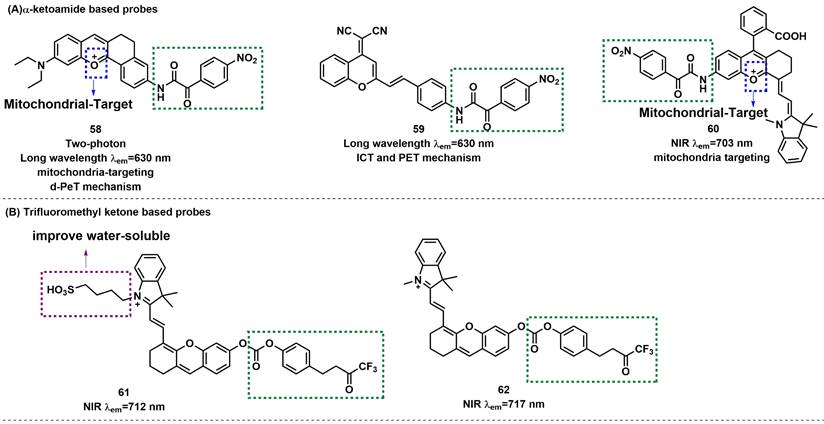

The structures of ketones-based fluorescent probes (58-62) for ONOO^- detection. (A) α-ketoamide-based fluorescent probes 58-60. (B) Trifluoromethyl ketone-based probes 61-62. The green boxes indicate the ONOO^- response unit, and the blue boxes indicate the targeting moiety.

 Figure 16

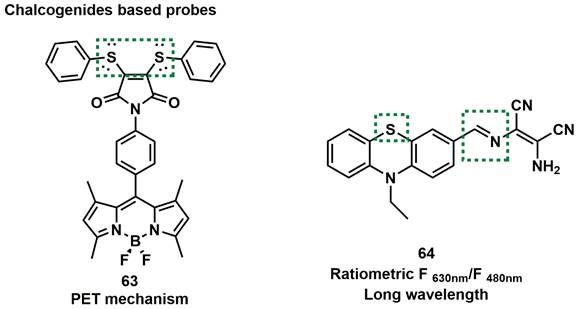

Chalcogenides based probes 63-64. The green boxes indicate the ONOO^- response unit.

Because phenothiazine has the reducibility of the sulfur atom, Shan et al. chose it as the fluorophore backbone and synthesized probe 64. They introduced a C=N double as another specificity response site to ONOO^- at the same time (Figure 16) [92]. After reaction with different amounts of ONOO^-, the changed of the changes in the two emission bands were not synchronized, which might be attributed to the multi-step oxidation of the probe by ONOO^-. The probe could be used to monitor the up-regulation of ONOO^- in cancer cells and normal cells during 5-fluorouracil treatment.

Other methods

As depicted in Figure 17, in addition to the methods listed above, several fluorescent probes have been developed for ONOO^- sensing based on other mechanisms. A comparison of the spectroscopic properties, sensitivity and applications of representative ONOO^- probes is presented in Table 7.

Hydroquinone was employed as a recognition receptor due to its excellent specificity to ONOO^-. Different research groups have designed and synthesized probes with this recognition receptor. After the probes reacted with ONOO^-, hydroquinone moiety was removed by oxidation, and the ICT effect from hydroxyl group to fluorophore occurred. Therefore, the fluorescence recovery of fluorophore, and could realize the detection of ONOO^-. At the same time, HClO and H₂O₂ did not interfere with the detection results. Based on this mechanism, Zhu et al. synthesized probe 65 (Figure 17) [93]. To optimize the structure of 65, the same research group synthesized probe 66 by introducing galactose as a hepatoma-specific targeting group and a hydrophilic group (Figure 17) [94]. 66 exhibited optical properties similar to 65 and was successfully utilized for hepatoma-selective imaging. Based on the same fluorophores, response sites, and detection mechanism, Tang et al. prepared another two-photon fluorescent probe 67 (Figure 17) [95]. Notably, utilizing probe 67, the authors proved that ONOO^- was significantly up-regulated in the livers of mice during ALI.

Generally, destroyed-type probes are one of the chief modes for ratiometric ONOO^- detection. The carbonyl group of the benzopyrylium fluorophore could react with ONOO^-, which could result in the breakage of the unsaturated bond and finally produce an olefine acid product to realize the purpose of detecting ONOO^- using a ratiometric probe. Based on this mechanism by combining dye-screening approach, Yuan et al. devised ratiometric fluorescent probes 68, 69 and 70 for ONOO^- detection (Figure 17) [96-98]. Benzopyrylium derivative and coumarin were combined in different forms to synthesize probes 68 and 69. The results of cell imaging experiments revealed that 68 and 69 could be used to detect endogenous ONOO^- production in cells by either by one or two-photon fluorescent confocal microscopy. Moreover, probe 68 was found to be capable of monitoring ONOO^- produced by LPS stimulation in the inflamed mouse model. After being injected with LPS to induce inflammation, probe 68 was injected. After that, the mice were anesthetized, and the leg skin was sectioned for the latter two-photon fluorescence imaging. As shown in Figure 18, discernibly enhanced fluorescence of blue channel (λ_em = 460-500 nm) and a relatively weak fluorescence signal of red channel (λ_em = 605-680 nm) were observed, upon excitation at 800 nm in the inflamed tissue. 70 was a combination of long-wavelength fluorophore NH₂-benzopyrylium dye and a short-wavelength fluorescence dye benzothiazole. It was developed to monitor ONOO^- in vivo by introducing the ester structure to enhance its membrane penetrability. In cell imaging experiments, 70 displayed outstanding selectivity and biocompatibility and enabled noninvasive visualization of ONOO^- generation in a different drug-induced ALI model.

Based on the same response mechanism, Li et al. designed hepatocyte-targeting ratiometric NIR fluorescent probe 71 for ONOO^- sensing. (Figure 17) [99]. 71 was developed by grafting galactose onto a coumarin-benzopyrylium-based fluorophore. The galactose group in 71 made the probe exhibit excellent hepatocyte-targeting ability. All four probes could target mitochondria in cells owing to their electropositive cation.

Isatin and its derivatives were found to be vulnerable to attack by ONOO^- after being linked to the electron-withdrawing fluorophores. ONOO^- nucleophilicity attacked the carbonyl of indoline-2, 3-dione, followed by intramolecular cyclization and rearrangement to afford 2-aminobenzoic acid derivatives, and then fluorophores were released through self-immolative 1, 6-elimination. By conjugating an isatin moiety with an electron-withdrawing tricyanofuran (TCF) moiety, Tian et al. designed probe 72 (Figure 17) [100]. Probe 72 reacts with ONOO^- through an oxidative decarbonylation reaction to initiate light emission that can be observed instantly with high sensitivity and selectivity. More specifically, addition of ONOO^- to the solution of 72 generated a 36-fold increase in the emission peak at around 606 nm. 72 was highly selective and sensitive for ONOO^- compared with other active sulfur, oxygen and nitrogen.

Tang et al. developed two-photon fluorescent probe 73 based on the benzothiazole-naphthalene derivatives (Figure 17) [101]. In this probe, the oxindole functionality could specifically react with ONOO^-, thereby achieving a highly sensitive and selective detection of ONOO^-. Meanwhile, 73 could achieve an independent spectral response to Aβ plaques. Two key events, namely, ONOO^- stress and Aβ aggregation, were found to amplify each other through a positive feedback mechanism and jointly promote the occurrence and development of Alzheimer's disease (AD). This observation enabled the identification and visualization of these two pathological factors in AD through two independent fluorescence channels.

Liu et al. developed another two-photon probe 74, which also contained indoline-2, 3-dione moiety as the recognition domain (Figure 17) [102]. Probe 74 was used to track the endogenously produced ONOO^- in living cells during the stress response to external stimulants. Furthermore, it could monitor the ONOO^- production in LPS-induced kidney injury of zebrafish. Benefiting from the two-photon excitable property of probe 74, a high-fidelity 3D reconstructed image of local mouse cerebral microvessels was presented by TP-CLSM. In particular, the probe was applied for in vivo visualization of the profile of ONOO^- in microvessels of mouse brains with ischemic and hemorrhagic strokes.

Diphenylphosphinate or diphenylphosphinamide as the recognition moiety, was incorporated with fluorophore to form turn-on-type fluorescent probes. The ester bond or amide bond was broken after the probe reacted with ONOO^-, and then the hydroxy or amino group was released and emitted strong fluorescence, owing to the restoration of the ICT progress.

Li et al. employed an isophorone derivative as the fluorescent group and pyridinium cation as the mitochondria targetable group to construct a ratiometric and long-wavelength fluorescent probe 75 by using the above strategy (Figure 17) [103]. The contact of 75 with ONOO^- resulted in the disappearance of the initial emission peak at 535 nm, while a new far-red emission appeared at 628 nm. The ratio of F_{6 nm} was linearly dependent on the ONOO^- concentration in the range of 0 to 10 μM, and the LOD was 13.3 nM. 75 was successfully applied for ratiometric fluorescent imaging of in mitochondria of living cells as well as visualization of ONOO^- in zebrafish. Based on the same mechanism, with benzothiazolyl derivative as the fluorophore and well meanwhile as the AIE-active luminogen, Tang et al. designed probe 76, composed of diphenylphosphinate as the recognition site (Figure 17) [104]. Furthermore, the authors applied this probe successfully to ONOO^- imaging in live mice. With dicyanomethylene-benzopyran as a NIR TP fluorophore, diphenylphosphinamide group as a specific reaction moiety, Yu et al. synthesized probe 77 (Figure 17) [105]. 77 was successfully applied to detect endogenous ONOO^- in live cells and in rat epileptic brain. The imaging results revealed that the increase in the ONOO^- level was closely related to severe neuronal damage in the brain under epilepsy and KA stimulation.

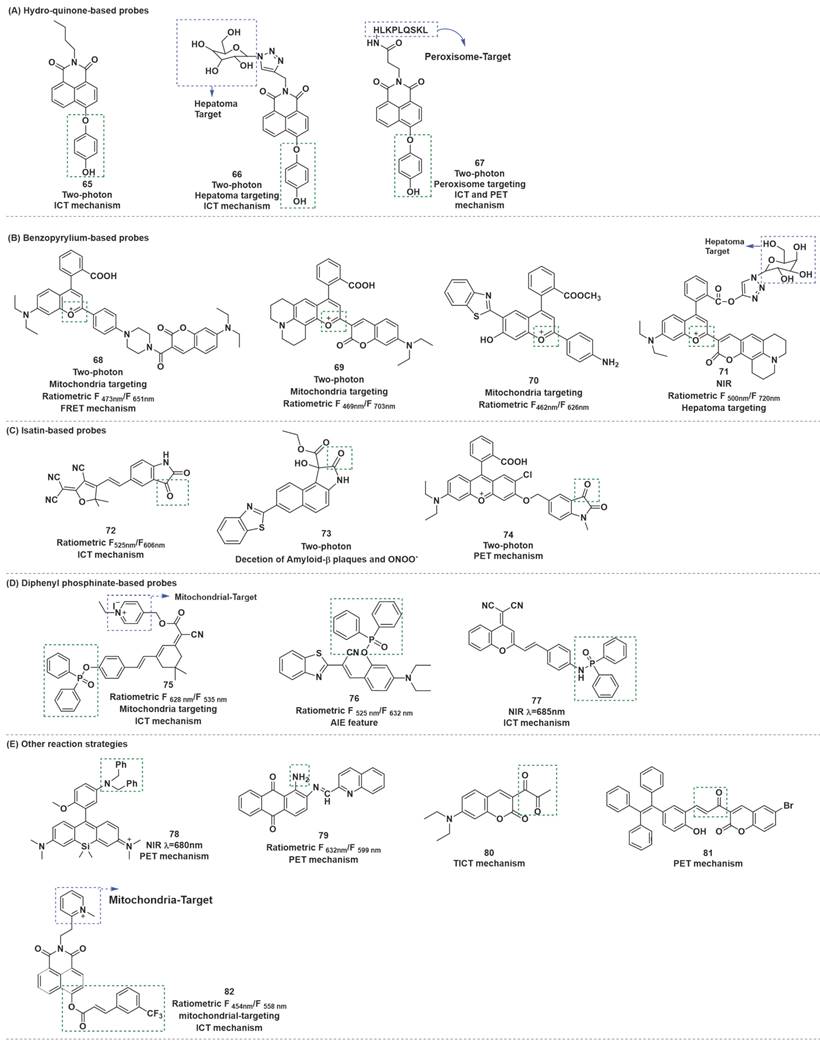

 Figure 17

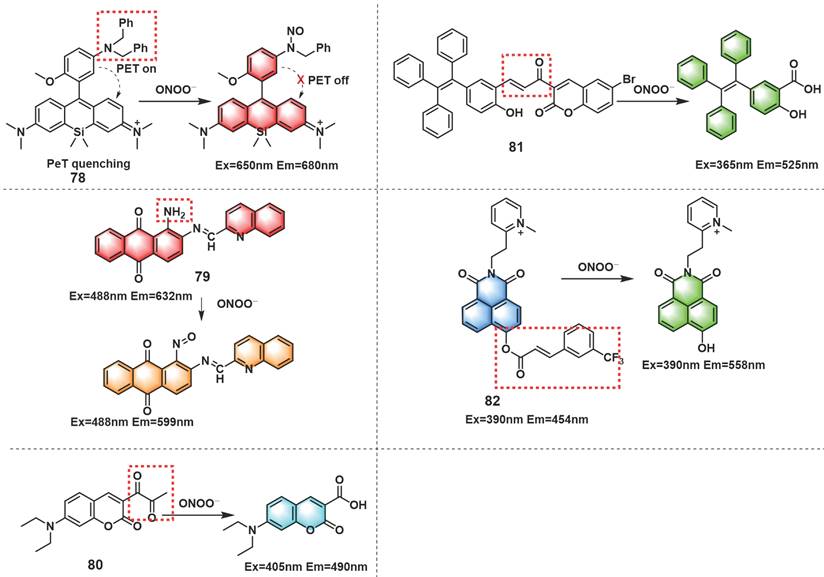

The structures of fluorescent probes based on other methods (65-83) for ONOO^- detection. (A) Hydro-quinone-based fluorescent probes 65-67. (B) Benzopyrylium-based probes 68-71. (C) Isatin-based probes 72-74. (D) Diphenyl phosphinate-based probes 75-77. (E) Probes based on other reaction strategies 78-82. The green boxes indicate the ONOO^- response unit, and the blue boxes indicate the targeting moiety.

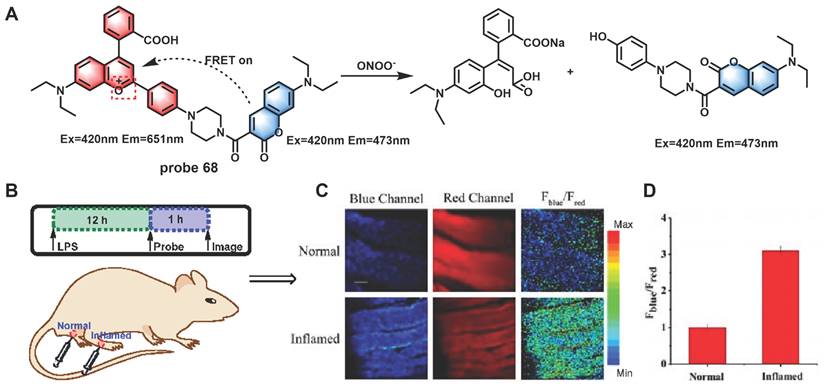

 Figure 18

(A) Reaction between probe 68 and ONOO^-. Two-photon confocal microscopic fluorescence images for detecting LPS-dependent ONOO^- generation in inflammation tissues via probe 68. (B) 200 μL of LPS (1 mg/mL) was subcutaneously injected into the right leg of mice to cause inflammation. After 12 h, 20 μL of 500 μM probe 68 was subcutaneously injected in situ. After 1 h, the leg skin of mice was sectioned after being anaesthetized. (C) Fluorescence images of probe 68 in the normal and inflamed tissues. (D) Average F_blue/F_red intensity ratios in panel B. Blue channel, λ_em = 460-500 nm; red channel, λ_em= 605-680 nm. λ_ex = 800 nm. Scale bar: 200 μm. Adapted from [96] with permission.

 Figure 19

Other novel strategies mechanism. The red boxes indicate the ONOO^- response moiety.

Besides the reaction strategies described above, certain other novel reaction strategies have also been considered by scientists. For instance, amido could be oxidized to generate nitroso by ONOO^-. Based on this, fluorescent probes with amino as recognition sites may have excellent selectivity and sensitivity to ONOO^-. Wei et al. introduced amido into Si-rhodamine to develop NIR fluorescent probe 78 (Figure 19) [106]. In the presence of ONOO^-, 78 displayed an emission maximum at 680 nm when excited at 650 nm, which was successfully applied to exogenous and endogenous ONOO^- imaging in cells. The authors further used 78 to evaluate the therapeutic effect of phenolic acid antioxidants on IR injury in EA.HY926 endothelial cells and the pathogenesis of diabetic nephropathy in activated pancreatic β-cells and diabetic rats. Dong et al. synthesized probe 79 with an extremely low background fluorescence using the same mechanism (Figure 19) [107].

The diketone group or α, β-unsaturated ketene of the synthesized fluorescent probes could be converted into their monoketone or carboxylic acid derivatives when contacted with ONOO^-, resulting in fluorescence recovery of the probe. According to this fluorescence turn-on strategy, probes that respond to ONOO^- could be designed. Li et al. described a turn-on fluorescent probe 80 for selective recognition of ONOO^- (Figure 19) [108]. Finally, the probe was employed in the imaging of ONOO^- induced by drug or heat shock in RAW 264.7 cells.

Using α, β-unsaturated ketene as a recognition site for ONOO^-, by linking a bromo-coumarin derivative to a tetraphenyl ethylene (TPE)-based motif, Tang et al. synthesized a turn-on fluorescent probe 81 (Figure 19) [109]. Upon reaction with ONOO^-, unsaturated ketene was rapidly oxidized and broken, and released TPE-COOH which presented aggregation-induced fluorescence. This chemical change resulted in a large enhancement of the fluorescence intensity at 525 nm. 81 evaluated and verified the protective effect of estrogen on myocardial cells during oxygen-glucose deprivation/reperfusion. Based on 3-(trifluoromethyl) cinnamic acid (3-TCA) as ONOO^- reaction site, Zhang et al. developed a highly selective and sensitive mitochondrial-targeted probe 82 (Figure 19) [110]. Although 82 also contained unsaturated ketene structures similar to those in 81, the response mechanisms of them were completely different. The ester bond between 3-TCA to the hydroxyl group of 1,8-naphthalimide was cleaved after 82 reacted with ONOO^-, accompanied by a large red-shift of fluorescence emission from 454 nm to 558 nm and manifested obvious ratiometric fluorescence changes (18-fold). 82 could be utilized to detect endogenous ONOO^- fluctuations in the mitochondria.

Nanoparticle (NP)-based fluorescent probes for ONOO^-

NPs refer to the specific materials of which at least one dimension lies in the range of 1-100 nm. Owing to their several unique features, such as enhanced permeability and retention effect, NPs have been widely used in the bioimaging field [111]. However, the reports of nanoprobes for detection of ONOO^- are relatively few, which can be divided into two types: nonemissive NPs and fluorescent NPs. The former can serve as carriers for molecular fluorescent dyes, while the latter alone can give optical signals toward for certain analytes. Molecular dyes are assembled as fluorescent couples for multi-channel detection. Herein, we dissuss them according to diverse nano-platforms, including polymeric NPs, quantum dots (QDs), upconversion NPs (UCNPs), and other NPs.

QDs

QDs are an important class of nanomaterials composed of semiconductors, which are usually spherical in shape. Owing to their small size, typically in the range of 2-10 nm, QDs can display quantum confinement effects, ultimately producing size-dependent tunable emission [112]. On the other hand, the emission wavelength of QDs can be altered by the choice of their compositions.

Zhao et al. developed a type of ratiometric fluorescent nanoprobe for ONOO^-, which was constructed by covalent coupling of graphene quantum dots (GQDs) with cyanine 5.5 (Cy5.5) [113]. This nanoprobe (GQD-Cy5.5) could selectively accumulate in the mitochondria, giving rise to two strong fluorescence emission peaks at 520 and 694 nm. In the presence of ONOO^-, the intensity of fluorescence emission peak at 520 nm increased, while the intensity of fluorescence emission peak at 694 nm decreased. The ratio of fluorescence intensity at two emission peaks (F_{520 nm}/F_{694 nm}) had a good linear relationship with the concentration of ONOO^- in the range of 0-6 μM. Furthermore, an apparent increase in the fluorescence was visualized in the nanoprobe-treated RAW264.7 cells stimulated by SIN-1, LPS, suggesting the ability of the nanoprobe to monitor exogenous and endogenous ONOO^- in living cells.

A notable shortcoming of the probes for ONOO^- detection described above is their short-wavelength emission, which hinders their application in bioimaging. Wang et al. used an activatable NIR-II nanoprobe was used for ONOO^- bioimaging [114]. The nanoprobe V&A@Ag₂S included three components: VCAM1 binding peptide (VHPKQHR), a NIR absorber A1094, and Ag₂S QD, in which the Ag₂S QD with emission at 1050 nm was employed as an energy donor and an ONOO^--responsive A1094 chromophore was used as the energy acceptor. Initially, the fluorescence of V&A@Ag₂S displayed an“off”state owing to energy transfer from Ag₂S to the A1094 chromophore. Upon intravenous injection, V&A@Ag₂S quickly accumulated in the inflamed vascular endothelium of TBI based on VCAM1-mediated endocytosis, after which the nanoprobe achieved rapid recovery of the NIR-II fluorescence of Ag₂S QDs owing to the bleaching of A1094 by the ONOO^-. Taking advantage of the unique optical properties of NIR-II Ag₂S QDs, the authors demonstrated the feasibility of such nanoprobes for in vivo ONOO^- detection in a traumatic brain injury (TBI) model. The same research group developed a NIR-II nanoprobe Cy7.5 fluorophore coordinate with PbS@Ag₂Se QDs for ONOO^- using the same strategy [115]. These results validated the capacity of the as-prepared V&C/PbS@Ag₂Se nanoprobes for ONOO^- detection in early ischemic stroke (Figure 20).

UCNPs

Although luminescent NPs, such as QDs, have achieved considerable development in the detection and bioimaging of ONOO^-, their practical applications are somewhat limited by short excitation wavelengths, which are deemed unsuitable for deeper imaging in tissues or in vivo. One of the methods to overcome this issue is the exploration of UCNPs, which can convert long-wavelength excitation (generally in the NIR region) to short-wavelength emission. This is because with different lanthanide doping, UCNPs can obtain multiple emissions with 980 nm excitation [116]. Thus, it can be used in the design and synthesis of ratiometric fluorescent probes for sensing and imaging in vivo.

In 2019, Yuan et al. developed two nanoprobes based on the energy transfer (ET) strategy. The UCNPs as donors modified with highly selective dye to ONOO^- as receptors through the polyethyleneimine (PEI) between the amino groups of PEI and carboxyl groups of the dyes [117]. Upon being modified with dyes E-CC and H-CC, the upconversion luminescence (UCL) of UCNPs at 540 and 660 nm was quenched, respectively. Upon the nanoprobes (UCNPs@PEI@E-CC or UCNPs@PEI@H-CC) recognition for ONOO^-, E-CC or H-CC would be destroyed, the ET was blocked, and the UCL at 540 or 660 nm was recovered. Thus, the ratio of intensities of UCNPs@PEI@E-CC at 540 and 660 nm (I₅₄₀/I₆₆₀) or ratio of UCNPs@PEI@H-CC at 660 and 810 nm (I₆₆₀/I₈₁₀) enabled the quantitative measurement of ONOO^-. A good selectivity of nanoprobes toward ONOO^- over other species was further confirmed. Finally, the ONOO^- fluctuations in CCl₄-induced hepatotoxicity in mice were successfully monitored using the nanoprobe.

Also based on the ET strategy, Yi et al. fabricated another nanoprobe for evaluating drug-induced hepatotoxicity by using heptamethine cyanine dye (P-cy7)-coordinated UCNPs [118]. Under the excitation of a 980 nm laser, the “off-on” luminescence at 656 nm and always “on” luminescence at 800 nm of UCNPs@P-cy7 were used as ratio-fluorescent nanoprobes for the quantitative detection and ratio-fluorescent imaging of ONOO^-. Furthermore, the authors noted that the absorption change in the nanoprobes in the presence of ONOO^- could lead to a change in the PA signals to achieve highly sensitive PA imaging. The authors discovered using dual-mode ratio-fluorescent imaging and PA imaging that the nanoprobes were applicable for accurately diagnosing different damage degrees of hepatotoxicity.

Other NPs

Zhou et al. developed a two-photon NIR ratiometric nanoprobe NTC for ONOO^-, which was constructed by self-assembling a small-molecule fluorescent probe (NR) grafted onto azide chitosan (natural polymeric nanomaterial) [119]. The free NTC exhibited a strong fluorescence intensity at 700 nm and a weaker characteristic band at 526 nm. In the presence of ONOO^-, the fluorescence intensities at 700 and 526 nm gradually decreased and increased, respectively. In addition, NTC exhibited a short response time (~10 s) and high selectivity and sensitivity toward ONOO^-, with an excellent LOD as low as 15.3 nM. Notably, NTC was successfully employed for ONOO^- detection and imaging in living HepG2 cells, liver injury mice tissues, and mice models.

 Figure 20

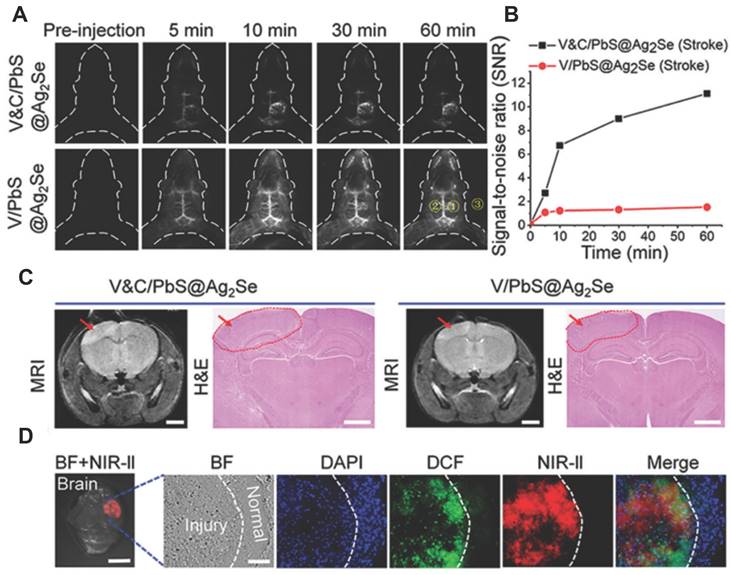

(A) Time course of NIR-II fluorescence in early ischemic stroke at different time points after injection of V&C/PbS@Ag₂Se and V/PbS@Ag₂Se. (B) Time-dependent SNR changes determined by the NIR-II fluorescence imaging of mice with different nanoprobes. SNR = [(mean fluorescence intensity of 1)-(mean fluorescence intensity of 3)]/[(mean fluorescence intensity of 2)-(mean fluorescence intensity of 3)]. (C) MRI and H&E staining detection of early ischemic stroke after illumination for 10 min. MRI scale bar: 2 mm, H&E scale bar:1 mm. (D) Fluorescence images of brain slice obtained from the excised brain tissue. Adapted from [115] with permission.

Another type of NPs, an energy transfer scaffold, was constructed by conjugation of a NIR xanthane fluorophore with a rhodamine B fluorophore, which was then grafted onto sodium chondroitin sulfate (CSNa) to form CSU-FT through self-assembly [120]. The nanoprobe exhibited bright emission at 707 nm. After the addition of ONOO^-, the fluorescence intensity of the nanoprobe increased significantly at 468 and 573 nm and decreased sharply at 706 nm. A good linearity was found between the fluorescence intensity ratios (I₄₆₈/I₅₇₃, I₄₆₈/I₇₀₆, and I₅₇₃/I₇₀₆) and the ONOO^- concentration in the range of 0-20 μM, and the LOD was calculated to be 11.7 nM. Finally, CSU-FT was successfully applied for the detection of ONOO^- in RAW 264.7 cells and rat, and its diagnostic and therapeutic efficiency for arthritis was demonstrated in rat experiments.

By coating with silica nanoparticle the Tb(DPA)₃ as reference dye and attaching the responsive dye (TD) to the surface, Liu et al. fabricated a nanoprobe for ONOO^- detection [121]. The hydrodynamic diameter of the spherical nanoprobe was measured as 30 nm. With the addition of ONOO^- (0-12 μM), the emission decreased apparently at 620 nm and enhanced distinctly at 547 nm. In addition, the response time was also considered a vital indicator for real-time detection. Subsequently, the ONOO^- in A-375 cells was visualized, indicating the ability of the nanoprobe to sense the ONOO^-.

A novel ONOO^- and environmental pH dual-responsive afterglow luminescent nanoprobe TPE-TV-CyP, synthesized by Ding's group, exhibited luminescence depends on the integrated influence of ONOO^- and pH dual-stimuli [122]. The probe selectively reacted with ONOO^- to afford a 553-fold fluorescence increase. Detection of ONOO^- further reveal the development process of acute skin inflammation including infiltration of first arrived neutrophils and acidification initiating time, make a fast and accurate discrimination between allergy and inflammation, and rapidly screen the antitumor drugs capable of inducing immunogenic cell death. The same group designed another nanoprobe Ppa-FFGYSA based upon successive oxidation of vinylene [123]. After addition of ONOO^- resulted in an intensity enhancement at 760 nm and decay half-lives of approximately 2-15 min. Interestingly, the novel probe could transform light-triggered function from photoacoustic imaging to persistent luminescence imaging permit advanced image-guided cancer surgery.

Conclusions and outlooks

In summary, we systemically introduce fluorescence probes for ONOO^- imaging in the last 5 years. We have classified the enumerated probes based on six different reaction mechanism, emphasize their response type (ratiometric type, two-photon type, long-wavelength/NIR type), and elaborated on their reaction mechanisms as well as bioimaging applications. Further, we also describe nanoparticle (NP)-based probes according to diverse nanoplatforms. In particular, details of their mechanism, response type, emission wavelengths, detection limits, detailed probe's bio-applications are listed in tables (Table 1-8).

According to Table 1-8, probes with NIR-II are really poorly, which limits their bio-imaging application. In addition, the ONOO^- probes constructed from responsive mechanism, such as oxidation of boronates, C=C cleavage mechanism, N-dearylation mechanism, have proven more profound in disease models. In contrast, probes constructed from hydrazide, ketones, and chalcogenides are relatively poorly applied in tissue imaging and disease models. Most probes responded to ONOO^- within seconds and the LOD reaches nM. Due to the ONOO^- chemical properties, low content (nM-µM) and short life (~ms) in the complicated biological environment, it is urgent to design “perfect” sensitivity and selectivity probes. In the meantime, the selectivity of some ONOO^- probes needs to be further improved. We hope that this review would help the researchers interested in discovering new probes for detecting ONOO^- or novel reaction mechanisms differing from the traditional ones.

The current reaction mechanism is primarily the oxidation reaction including oxidation of boronic acids and its ester derivatives, oxidation-induced cleavage of ethylenic bond, oxidation of α-ketoamide derivatives, and so on, which means simple sensing mechanism and probes may interfere with other active species such as H₂O₂. Based on the current research status of ONOO^- probes, in the next few years, the following (non-exhaustive) ways might be valuable: (1) The priority of research should be ''back to basic” to explore unique and creative reaction modes based on the deep exploration of chemical-physical properties of ONOO^-. (2) The function of ONOO^- in other organelles besides mitochondria such as the endoplasmic reticulum need to be explored. Additionally, more pathologies associated with ONOO^- will be certainly uncovered. (3) Some factors should be considered in the design of probes for biological systems, such as good solubility, good cell permeability, and low interference from biological environments. NIR and two-photon probes have great potential for bioimaging of ONOO^- because of their properties of low background interference and high penetrability of low energy light into tissues. (4) The diagnosis and treatment function of the probe should be further explored. After the probe reacts with ONOO^-, the concentration of ONOO^- is reduced to a certain extent. In other words, the probe acts as an ONOO^- scavenger. Therefore, how to use ONOO^- probes to realize the integration of diagnosis and treatment may be considered another important research-direction in the future. (5) To solve the difficulty for the imaging changes in the sub-organelles, researchers can combine the advanced super-resolution fluorescence microscopy techniques with fluorescent probes. This is anticipated to provide more precise information concerning ONOO^- variation in sub-organelles for better understanding of related physiological or pathological processes.

On the whole, we anticipate that this review will provide a comprehensive knowledge of the design of fluorescent probes for ONOO^- and their applications in bioimaging, and hope that the fluorometric imaging technique will offer more assistance in biomedical and clinical fields in the near future.

Acknowledgements

This work was supported by the Academy of Science and Technology Project of Shandong Academy of Medical Sciences (No. 2018-19), project of Haixi Science and Technology Bureau of Qinghai Province 2017-Q4, Academic Promotion Programme of Shandong First Medical University (nos. 2019LJ003).

Thanks to Dr. Edward C. Mignot, Shandong University, for linguistic advice.

Competing Interests

The authors have declared that no competing interest exists.
