Theranostics 2020; 10(12):5435-5488. doi:10.7150/thno.40068 This issue Cite


Graphene and other 2D materials: a multidisciplinary analysis to uncover the hidden potential as cancer theranostics

Laura Fusco1,2,3,#, Arianna Gazzi1,2,#, Guotao Peng4,#, Yuyoung Shin5, Sandra Vranic6, Davide Bedognetti3, Flavia Vitale7, Acelya Yilmazer8,9, Xinliang Feng10, Bengt Fadeel4, Corresponding address, Cinzia Casiraghi5, Corresponding address, Lucia Gemma Delogu2,10,11, Corresponding address

1. Department of Chemical and Pharmaceutical Sciences, University of Trieste, Trieste, Italy.
2. Fondazione Istituto di Ricerca Pediatrica, Città della Speranza, Padua, Italy.
3. Cancer Program, Sidra Medicine, Doha, Qatar.
4. Institute of Environmental Medicine, Karolinska Institutet, Stockholm, Sweden.
5. Department of Chemistry, University of Manchester, Manchester, UK.
6. Nanomedicine Lab, Faculty of Biology, Medicine and Health, University of Manchester, Manchester, UK.
7. Department of Neurology, Bioengineering, Physical Medicine & Rehabilitation, Center for Neuroengineering and Therapeutics, University of Pennsylvania, Philadelphia, USA; Center for Neurotrauma, Neurodegeneration, and Restoration, Corporal Michael J. Crescenz Veterans Affairs Medical Center, Philadelphia, USA.
8. Department of Biomedical Engineering, Ankara University, Ankara, Turkey.
9. Stem Cell Institute, Ankara University, Ankara, Turkey.
10. Faculty of Chemistry and Food Chemistry, School of Science, Technische Universität Dresden, Dresden, Germany.
11. Department of Biomedical Sciences, University of Padua, Padua, Italy.
#These authors contributed equally to the present work.

Fusco L, Gazzi A, Peng G, Shin Y, Vranic S, Bedognetti D, Vitale F, Yilmazer A, Feng X, Fadeel B, Casiraghi C, Delogu LG. Graphene and other 2D materials: a multidisciplinary analysis to uncover the hidden potential as cancer theranostics. Theranostics 2020; 10(12):5435-5488. doi:10.7150/thno.40068.
Other styles

File import instruction

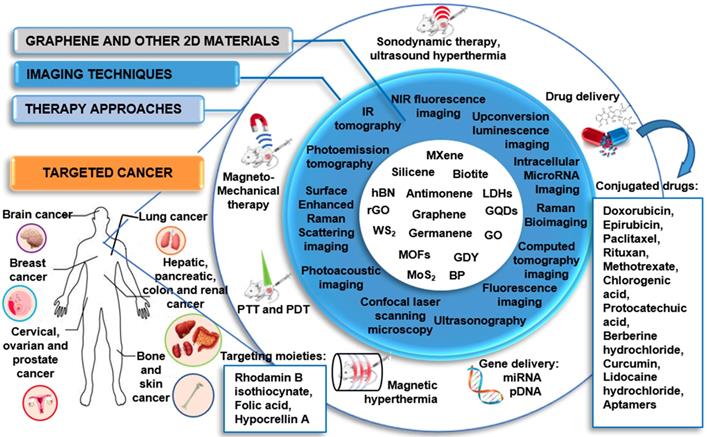

Graphic abstract

Cancer represents one of the main causes of death in the world; hence the development of more specific approaches for its diagnosis and treatment is urgently needed in clinical practice. Here we aim at providing a comprehensive review on the use of 2-dimensional materials (2DMs) in cancer theranostics. In particular, we focus on graphene-related materials (GRMs), graphene hybrids, and graphdiyne (GDY), as well as other emerging 2DMs, such as MXene, tungsten disulfide (WS2), molybdenum disulfide (MoS2), hexagonal boron nitride (h-BN), black phosphorus (BP), silicene, antimonene (AM), germanene, biotite (black mica), metal organic frameworks (MOFs), and others. The results reported in the scientific literature in the last ten years (>200 papers) are dissected here with respect to the wide variety of combinations of imaging methodologies and therapeutic approaches, including drug/gene delivery, photothermal/photodynamic therapy, sonodynamic therapy, and immunotherapy. We provide a unique multidisciplinary approach in discussing the literature, which also includes a detailed section on the characterization methods used to analyze the material properties, highlighting the merits and limitations of the different approaches. The aim of this review is to show the strong potential of 2DMs for use as cancer theranostics, as well as to highlight issues that prevent the clinical translation of these materials. Overall, we hope to shed light on the hidden potential of the vast panorama of new and emerging 2DMs as clinical cancer theranostics.

Keywords: 2D materials, cancer theranostics, future perspectives, graphene, nanomedicine.

1. Introduction

Graphene, a single layer of graphite, is undoubtedly the most famous 2-dimensional material (2DM), due to its outstanding properties that can be exploited in various applications, ranging from electronics to composites and biomedical applications [1-3]. Moreover, an entire family of graphene-related materials (GRMs), each with its own properties, is available - ranging from chemical derivatives of graphene, such as graphene oxide (GO), nano-graphene oxide (NGO), and reduced graphene oxide (rGO), to new 2DMs, such as graphdiyne (GDY). Furthermore, graphene hybrids can be easily obtained by combining single or few-layer graphene (FLG) or other GRMs with different types of nanomaterials (e.g., quantum dots (QDs), metallic and semiconducting nanomaterials, etc.). Although graphene quantum dots (GQDs) are not necessarily 2D, they have been used for biomedical applications, thus these are also included in this review for sake of completeness. In addition, the family of 2DMs is very large, and other materials have started to be used in nanomedicine, for instance the family of transition metal dichalcogenides (TMDs), such as tungstenum disulphide (WS2) and molybdenum disulfide (MoS2), hexagonal boron nitride (h-BN), nitrides and carbonitrides (MXenes), black phosphorus (BP) nanosheets, silicene, antimonene (AM), germanene, biotite, metal organic frameworks (MOF), and layered double hydroxide (LDH).

One of the main goals in modern oncology overlaps with that of nanomedicine: the development of alternative approaches through the combination of two or more forms of treatments and diagnostic techniques. To achieve this aim, advanced nanomaterials are extensively considered as they can be used as imaging components for cancer detection/visualization with customized therapeutic agents, as well as vectors for controlled-release mechanisms and targeting strategies, making nanomaterials promising nanotheranostic tools [4].

According to the traditional definition, a theranostic agent consists of a therapeutic and imaging (aimed at diagnosis) component combined within a single formulation. A more recent view expanded the definition of theranostics by including tools where imaging is performed to aid or guide the therapy and not necessarily to perform a diagnosis [5-9]. Theranostic nanomedicines offer the opportunity to combine into a single nanoplatform multiple imaging methodologies and therapeutic functions, such as passive and active targeting for cancer therapy (theranostics for drug delivery), and stimuli-responsive drug release (e.g., theranostics for temperature- and pH-dependent therapy) [10].

In general, 2DMs shows outstanding properties, such as remarkable light-weightness and flexibility, high surface-to-volume ratio, near-infrared (NIR) light absorption, and characteristic Raman spectrum, which make them very attractive from a biological perspective. Furthermore, these materials are suitable for multiple functionalizations, which is fundamental for the treatment and diagnosis of cancer, or both (theranostics), as we will discuss in more detail in this review.

In the present review, the state-of-the-art of graphene and 2DMs in cancer theranostics is presented by depicting the four main scenarios of nano-based approaches in cancer, namely: i) imaging methods, ii) drug and gene delivery, iii) photothermal therapy (PTT), and iv) photodynamic therapy (PDT).

i) Imaging in cancer. Cancer imaging is indispensable not only to enable the early detection of cancer, but also to determine the precise tumor location and stage, as well as to direct therapy and check for cancer recurrence after the treatment. Various imaging techniques, including positron emission tomography (PET), X-ray computed tomography (CT), magnetic resonance imaging (MRI) and ultrasonography, are available for clinical applications, while other methodologies that are attracting the interest of the biomedical research community, such as fluorescence molecular tomography (FMT), are still at the preclinical stage [11-14]. Since each technology has its unique strengths and limitations, hybrid imaging platforms, such as PET-CT, FMT-CT, FMT-MRI, and PET-MRI are being developed to improve data reconstruction and visualization. New nanotechnology-based agents may be beneficial when it comes to proposing new imaging tools that will help overcome the common issues of current agents (e.g., toxicity, such as the one related to X-ray contrast agent, and lack of specificity, common to both X-ray and MRI contrast agents, and increased hypersensitivity following chemotherapy). Some 2DMs show strong light-matter interaction effects, such as fluorescence, making them an ideal base to build experimental theranostic tools [15]. Moreover, the 2-dimensionality enables easy load of specific nanomaterials and molecules, which provide complementary properties to the selected 2DMs as a vector (e.g., electrochemical properties, magnetic functions, fluorescence, radioactivity, etc.), allowing to enhance and expand their potential use in oncology for imaging and diagnosis.

ii) Drug and gene delivery. Since 1995, when Doxil entered into the clinic for the delivery of the potent aromatic anticancer agent doxorubicin (DOX), several nanotools have been approved for drug delivery, and the list of nanodrugs in clinical trials is still growing [16]. The ability to multifunctionalize nanomaterials and nanoparticles (NPs), the high drug loading capacity, the possibility to reduce the drug exposure in the undesired tissue, and the improved drug solubility represent the main advantages of using nanosystems in cancer treatment. None of the cancer nanotherapeutics approved so far, mainly based on liposomal, silicon, gold, and iron particles, possess the same physical/chemical properties of graphene or other 2DMs [17,18]. Systems can be designed to localize at the target disease site, which would allow the early detection of tumors. An ideal material, in this case, may be able to achieve molecular targeting that can be imaged during its circulation in the body. Upon reaching its destination, it may have targeting moieties that associate with cell-surface receptors, internalize into the cytosol, reach an intracellular target if necessary, and release the active therapeutic [7,18,19]. The effectiveness of a drug conjugate is related to its ability to improve therapeutic index relative to free drug, generally by reducing toxicity and enhancing efficacy. Historically, a panel of nanosystems, including liposomes, metal NPs, and carbon-based materials, were modified via non-covalent or covalent modification in order to deliver chemotherapeutic agents, such as DOX and paclitaxel, or agents for gene therapy (e.g., short interfering RNA, siRNA) [20-23], in combination with imaging agents (encapsulated or intrinsic) to the tumor site [24-26].

iii) Photothermal therapy (PTT) is a type of localized treatment that relies on the presence of an optical absorbing agent, also known as photosensitizer (PS), which can absorb energy and convert it into heat upon stimulation by an electromagnetic radiation, such as radiofrequency, microwaves or NIR irradiation [27]. When compared to conventional radiotherapy or chemotherapy [28], the key advantages of PTT include the capability of deep tissue penetration and minimal nonselective cell death in the surrounding healthy tissue [27]. In the biological environment, overheating of the PS may lead to hyperthermia that may cause several hazardous effects, such as protein denaturation and aggregation, evaporation of cytosol, cell lysis, apoptosis, and necrosis. An ideal PS should possess a high selectivity towards the target tissue, together with large absorption cross-sections for optical wavelengths, low toxicity, easy functionalization capability, and high solubility in biocompatible solutions [29]. PTT has been widely used in nanomedicine alone or in combination with other therapies and imaging modalities, such as gene therapy [30] and photoacoustic imaging (PAI) [31], and many are the types of nanomaterials investigated in this direction such as gold nanoparticles and PEGylated silica-cored Au nanoshells, which are the first photothermal nanoparticles that have advanced into clinical trials.

iv) Photodynamic therapy (PDT) is now well established as a clinical treatment modality for various diseases, including cancer, and particularly for the treatment of superficial tumors (e.g., esophagus, bladder, and melanoma) [32,33]. Similar to PTT, also PDT mechanism relies on the presence of a PS; however, in this case, its activation is obtained through the illumination with visible light, instead of the local heat application. The combined action of the excited triplet photosensitizer and molecular oxygen results in the formation of singlet oxygen (1O2), which is thought to be the main mediator of cellular death induced by PDT.

To date, the most studied nanotheranostics for PTT and PDT involve organic NPs, such as polymeric NPs or liposomes and inorganic NPs including quantum dots (QDs) and silica NPs. Owing to their unique properties of high optical absorption capacity in the NIR region and photothermal conversion, carbon-based nanomaterials represent ideal candidates for PTT [34-37]. The ability of some 2DMs to respond to light is exploited in optical therapies, including PTT and PDT. Finally, thanks to the adsorption onto their surface of specific molecules and NPs, these nanotools can be endowed with additional magnetic, radioactive, or electrochemical properties.

2. Further considerations before exploring the potential of 2DMs as cancer theranostics

Based on the needs in oncology, and the available imaging techniques and innovative therapeutic treatments, the 2DMs family should demonstrate a list of properties before being introduced into the clinic:

a) Lack of toxicity/acceptable biocompatibility (i.e., are the 2DMs able to escape immune recognition?);

b) Selective toxicity to cancer cells (i.e., are 2DMs selective to all cancer cells or only specific types?) and personalized medicine (i.e., are different 2DMs needed for different patients?);

c) Appropriate biodistribution (e.g., in relation to the type of route of injection, are 2DMs degraded and/or excreted?);

d) When designed for drug/gene delivery, 2DMs must be able to protect the conjugated drugs from degradation, facilitate their solubilization, sustain their release, and selectively target cancer cells;

e) When designed for PTT, 2DMs must be stable and possess large absorption cross-sections at the specific excitation wavelengths;

f) When designed for PDT, the 2DM must be able to act as a PS, being activated by light of a specific wavelength and producing a form of singlet oxygen that kills nearby cells.

In addition to the above points, 2DMs performance in different application must also be benchmarked against other particles and materials in clinical trials (are they capable of competing with other particles already at the stage of clinical trials?).

In the present review, the theranostic use of 2DMs is dissected from a different perspective compared to the recent reviews published on this topic so far [9,38-46]. First, we discuss the studies carried out, from an oncological and biological point of view, highlighting the multifunctional complexity of the developed 2DMs in terms of different types of imaging approaches, therapeutic techniques, conjugated drugs/targeting moieties, as well as the relative targeted cancer. Our review also describes the material characterizations performed - as the properties of 2DMs change with functionalization and processing, a comprehensive characterization is necessary to ensure reproducibility and, therefore, envisage the use of 2DMs in nanomedicine. The first part of this review focuses on the most used 2DMs (i.e., graphene, and its chemical derivatives and hybrids) [47], and the multitude of characteristics exploited for therapy and diagnosis of cancer, highlighting multiple combined purposes: imaging, drug/gene delivery, PTT, and PDT. In contrast to previous reviews, a separate section is dedicated to 2DMs beyond graphene: each material is briefly introduced and theranostic works discussed taking into account of the design strategy, the type of cancer investigated, the working biological mechanisms (when reported), the model used, the techniques, and the resulting outcomes. We include also emerging 2DMs that did not prove their potentialities as theranostic tools yet, but have promising characteristics for their future development in this direction. Moreover, the present review provides an overview and a critical discussion on the characterization performed for each study reported. In addition, tables and graphics were generated to indicate the types of cancer investigated in relation to the different approaches, the nanodrugs, and the forms of imaging. Furthermore, schematic views to compare the materials are also specified. The information collected in this review will allow the readers to navigate among the 2DMs proposed for use in cancer theranostics, discriminate which material is more suitable for a specific theranostic aim, and understand the oncological gaps and the remaining open questions in 2D cancer theranostics.

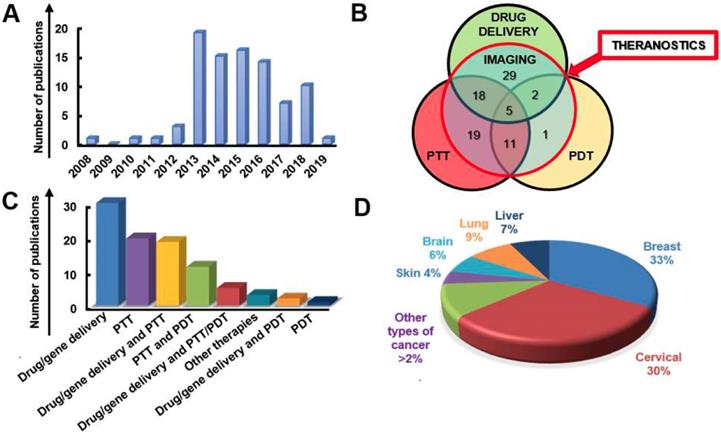

3. Literature review: looking back at ten years of 2DMs theranostic research

A systematic and critical review of the literature on graphene, GRMs, graphene hybrids, and new emerging 2DMs, studied in biomedicine as nanotools for cancer theranostic applications, was performed according to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines.

The search has been carried out using different electronic databases as data sources (PubMed, Scopus, and ToxLine); the following predetermined keywords, related with the selected nanomaterials and their application in cancer theranostics, were used in several different combinations: graphene, GRMs, GO, rGO, GQDs, NGO, GDY, MXene, WS2, MoS2, hBN, BP, silicene, AM, germanene, biotite, MOF or LDH and theranostics, 2DMs, drug delivery and cancer, gene delivery and cancer, imaging and cancer, PTT and cancer, PDT and cancer, cancer diagnosis, cancer therapy, theranostic nanomaterials, theranostic nanosystems, or theranostic nanoplatforms. As an additional tool, the research was extended by consulting the literature of relevant reviews and included studies in the field of nanotechnologies and theranostics. The list of reported studies includes all the retrieved publications from 2008 to July 2019. The adopted inclusion criteria were: (1) studies published in English; (2) full-text articles; (3) cancer as target disease; (4) the presence of at least one type of GRM or new emerging 2DMs in the considered nanosystem structure; (5) studies with at least one diagnostic method and one therapeutic strategy; (6) at least one of these strategies was due to the presence of GRMs or new emerging 2DMs; (7) in vitro or in vivo studies in appropriate animal models. The study selection required an initial stage in which the articles were selected, according to the eligibility criteria, based on their title, abstract, and keywords. In the second stage, the authors considered the full text of all the eligible studies, stating whether these met the eligibility criteria. Some of the first studies found in the literature were claiming possible theranostic applications, but only one application was experimentally demonstrated; these studies were excluded by the present review. According to these criteria, the selected works for discussion on graphene, GRMs, and graphene hybrids for imaging combined with gene/drug delivery, PTT/PDT, or gene/drug delivery in association with PTT/PDT are reported in Table 1, Table 2 and Table 3, respectively; Table 4 reports the published studies for the new 2DMs.

 Table 1

Characterization of all the studies using GRMs in cancer theranostics for combined imaging and drug delivery, on the basis of type of imaging, therapy, cancer, cell line, model, drug, gene, targeting moieties & other molecules, material and name of the nanotools.

Application TargetFunctionalization/coatingGraphene-related materialReference
ImagingTherapyCancer Cell lineModel Drug Gene Targeting moieties & other moleculesMaterialName
Imaging and drug/gene deliveryMRI, CLSMDrug deliveryBreast cancer4T1In vitro, in vivo DOXSuitable for gene deliverySPIONGOCAD-SPIONs@GOLuo Y. et al. Chem Comm (2019)
CLSMDrug deliveryBreast cancerMDA-MB 231 In vitro DOX, FA--rGOFA-rGO/ZnS:Mn QDsDiaz-Diestra D. et al. Nanomaterials (2018)
MRIDrug deliveryLiver cancerHepG2 In vitro CA-Gd, AuGOBITUsman M.S. et al. PLoS ONE (2018)
MRIDrug deliveryLiver cancerHepG2In vitroPA-Gd, AuGOGAGPAu (or GOTs)Usman M.S. et al. Molecules (2018)
CLSMDrug deliveryBreast cancerBT-474, MCF-7In vitroDOX-HER and beta-cyclodextrinGQDsGQD-NH2, GQD-βCD, and GQD-comp, DL-GQDKo N.R. et al. RSC Adv.(2017)
MRI, CLSMDrug deliveryCervical cancerHeLaIn vitro DOX--GQDsFe3O4@SiO2@GQD-FA/DOXSu X. et al Biosensors and Bioelectronics (2017)
CLSM, fluorescence imagingDrug deliveryBreast cancer4T1In vitro, in vivo DOX-CyGQDsDOX@GQD-P-CyDing H. et al. ACS Appl Mater Interfaces (2017)
Fluorescence microscopy, flow cytometryDrug deliveryBreast cancerMDA-MB-231, MCF-7In vitroApt--GOMUC1 aptamer-NAS-24 aptamer-GO, MUC1 aptamer-Cytochrome C aptamer-GOBahreyni A. et al. Int J Pharm (2017)
MRIDrug deliveryRenal cancer786-0In vitro, in vivoApt and DOX-Gd2O3, BSAGOGO/BSA-Gd2O3/AS1411-DOXLi J. et al. J Biomed Nanotechnol. (2016)
Fluorescence imagingDrug deliveryBone cancerMG-63In vitro, in vivo PTX-ICGNGONGO-PEG-ICG/PTXZhang C. et al. RSC Adv. (2016)
CLSM, flow cytometryDrug deliveryBreast, cervical cancerHeLa and MDA-MB-231In vitroBHC--GQDsGQDs@Cys-BHCThakur M. et al. Mater Sci Eng C Mater Biol Appl. (2016)
CLSMDrug deliveryLung, cervical, breast, liver cancerA549, HeLa, MCF-7, HepG-2In vitroApt--GQDsAS1411-GQDsWang X. et al. J. Mater. Chem. B (2015)
Intracellular microRNA imagingGene delieryCervical cancerHeLaIn vitro-miRNAs-21-GQDsf-GQDsDong H. et al ACS Appl Mater Interfaces. (2015)
MRI, CLSMDrug and gene deliveryBrain cancerU87In vitro, in vivo, ex vivoEPILet-7g miRNA.-NGOGd-NGO/Let-7g/EPIYang H.W. et al. Biomaterials. (2014)
Optical imagingDrug deliveryLiver cancerBel-7402, SMMC-7721, HepG2In vitroDOX--GOGO-RGD-ChitosanWang C. et al Colloids and Surfaces B: Biointerfaces (2014)
Fluorescence imaging PAIDrug deliveryLung cancerH1975In vivo DOX-Cy5.5GOGO-Cy5.5-DoxNie L. et al. ACS Nano (2014)
Fluorescence microscopyDrug deliveryColon cancerHCT116In vitro, in vivoCur--GQDsGQDs-CurSome S. et al. Scientific Reports (2014)
CLSMDrug deliveryCervical cancerHeLa and L02In vitroDOX-Lysotracker GreenGODOX@MSP-BA-GOFHe D. et al Langmuir (2014)
Fluorescence imagingDrug deliveryCervical cancerHeLaIn vitroDOX--graphene-HQDsDOX-graphene-HQDs-TrfChen M.L. et al. Bioconjugate Chem. (2013)
CLSM, Raman imagingDrug deliveryCervical cancerHeLaIn vitroDOX-AuGOAu@NGOMa X. et al. J. Mater. Chem. B, 2013
MRI, CT imagingDrug deliveryCancer-Not tested in biological models--Au/Fe3O4andBaTiO3/Fe3O4rGOrGO/Au/Fe3O, andrGO/BaTiO3/Fe3O4Chen Y. et al. ACS Nano. (2013)
MRIDrug deliveryLiver cancerHepG2In vitroDOX-Gd(III)GOGO-DTPA-GdZhang M. et al. ACS Appl. Mater. Interfaces (2013)
MRIDrug deliveryBrain cancerU251In vitroDOX-MGMSPIDGOMGMSPIWang Y. et al Small (2013)
Fluorescence imagingDrug and gene deliveryLung, prostate cancerA549, LLC1, PC3, C42bIn vitro, in vivoDOXpDNA-GODOX-CMG-GFP-DNAWang C. et al. J Mater Chem B Mater Biol Med. (2013)
PETDrug deliveryBreast cancerMCF-7In vitro, in vivo, ex vivoTRC105-64CurGO64Cu-NOTA-rGO-TRC105Shi S. et al. Biomaterials (2013)
MRI, fluorescence imagingDrug deliveryLiver cancerHepG2In vitroDOX-SiO2GOGO-SiO2Gao Y. et al. Colloids and Surf. B Biointerfaces (2013)
PETDrug deliveryBreast cancerMCF-7, 4T1In vitro, in vivoTRC105-64CuGO64Cu-NOTA-GO-TRC105Hong H. et al. ACS Nano (2012)
Fluorescence imagingGene deliveryCervical, prostate CancerHeLa and PC-3In vitro-pDNA (pCMV-Luc)BPEIGOGO-BPEIKim H. et al. Bioconjugate Chem. (2011)
Fluorescence imaging, NIR imagingDrug deliveryBurkitt's LymphomaRaji B-cellIn vitroDOX, Rituxan--NGONGO-PEG/DOX + RituxanSun X. et al. Nano Res. (2008)
 Table 2

Characterization of all the studies using GRMs in theranostics for combined imaging, PTT and PDT, on the basis of type of imaging, therapy, cancer, cell line, model, PS, targeting moieties, material and name of the nanotools.

ApplicationTargetFunctionalization/coatingGraphene-related materialReference
ImagingTherapyCancer Cell lineModel PSTargeting moietiesMaterialName
Imaging and PDT/PTTMRI, CLSM, UCL, CT, PAT, UCLMPTT, PDTCervical cancerHela, U14In vitro, in vivo --GOGO/ZnFe2O4/UCNPs (GZUC)Bi H. et al. ACS publications (2018)
UCL imagingPTT, PDTCervicalliver cancerHeLa, U14In vitro, in vivo, ex vivo -Ce6NGONGO-UCNP-Ce6 (NUC)Gulzar A. et al. Dalton Trans (2018)
X-ray CT imaging, PAIPTTCervical cancerHeLaIn vitro, in vivo --GOGO/Bi2Se3/PVPZhang Y. et al. J. Mater. Chem. B. (2017)
NIR imaging, PATPTTSkin cancerSCC7In vitro, in vivoAuCy5.5GOCPGAGao S. et al Biomaterials (2016)
Fluorescence imagingPTT, PDTSkin cancerB16F0In vivo--NGOGO-PEG-folate-mediated NmPDTKalluru P. et al. Biomaterials (2016)
PAIPTTBrain cancerU87MGIn vitro, in vivo--rGOPEG-rGO-GSPsLin L.S. et al. Nanoscale. (2016)
CLSM, NIR fluorescence and thermal imagingPTT, PDTLung cancerA549 and Lewis lung cancer cellsIn vitro, in vivo--NGONGO-808Luo S. et al. ACS Appl Mater Interfaces. (2016)
PAIPTTBreast cancer4T1In vitro, in vivo -ICGGOICG-PDA-rGOHu D. et al Theranostics. (2016)
MRI, fluorescence imaging, IR thomographyPTTSarcomaS180In vitro, in vivo IO-GOIO/GO-COOHHuang G. et al Nanoscale (2015)
RamanbioimagingPTT, PDTCervical cancerHeLaIn vitro-GOPEG-Au@GONKim Y.K. et al. Small. (2015)
PAIPTTBreast cancer4T1In vitro, in vivo --GOGO-PEG-CysCOOHRong P. et al. RSC Adv. (2015)
Fluorescence imaging, PAIPTT, PDTLung cancerPC9In vitro, in vivo-DVDMSGOGO-PEG-DVDMSYan X. et al. Nanoscale. (2015)
MRI, CT imagingPTTCervical cancerHeLaIn vitro, in vivoGd(III)-GOGO/BaGdF5/PEGZhang H. et al. Biomaterials. (2015)
Fluorescence imagingPDTCervical CancerHeLa, MDA MB-231In vitro--GQDsNGs-QDsGe J. et al Nature Communications (2014)
MRI, fluorescence imagingPTT, PDTCervical CancerHeLaIn vitroSiNc4-MGFMFGGollavelli G. et al Biomaterials (2014)
Fluorescence imagingPTT, PDTSkin cancerG361In vitro -ICGGOICG-FeCl3 @GOViraka Nellore et al. Faraday Discuss. (2014)
Raman imagingPTTBreast CancerSKBR-3In vitro--GOGO and GOAuNSNergiz S.Z. et al ACS Appl. Mater. Interfaces (2014)
CLSM, flow citometry, molecular imagingPTT, PDTBreast cancerMDA-MB231In vitro, in vivo --cGdotscGdotsNurunnabi M. et al. ACS Appl. Mater. Interfaces (2014)
MRIPTTPancreatic cancerBxPC-3In vitro, in vivoION-GOGO-ION-PEGWang S. et al Biomaterials (2014)
Fluorescence imaging, PETPTT, PDTBreast cancer4T1In vitro, in vivo, ex vivo-HPPHGOGO-PEG-HPPHRong P. et al. ADV Theranostics (2014)
NIR fluorescence imagingPTT, PDTLung cancerA549In vitro -Ce6GOGO-HA-Ce6Cho Y. et al. Chem Commun Camb (2013)
MRI, CLSMPTT, PDTCervical cancerKB, HeLaIn vitro, in vivo--NGOUCNPs-NGO/ZnPcWang Y. et al. Biomaterials. (2013)
MRI, X-ray CTPTTCervical, breast cancerKB, 4T1In vitro, in vivo IONP-Au-GOGO-IONP-Au-PEGShi X. et al. Biomaterials. (2013)
PAIPTTCervical cancerHelaIn vitro -ICGGOICG-GO-FAWang Y.W. et al. Journal of material chemistry B (2013)
PAIPTTBreast cancerMCF-7In vitro, in vivo--NrGONrGOSheng Z. et al Biomaterials (2013)
MRI, fluorescence imaging, PAIPTTBreast cancer4T1In vivoIONP-rGOrGO-IONP-PEGYang K. et al Advanced Materials (2012)
Fluorescence imagingPTTBreast, cervical cancerHeLa, MCF-7In vitro, in vivo--rGOrGO-QDHu S.H. et al Advanced Materials (2012)
Fluorescence imagingPTTBreast cancer4T1In vivo--NGSNGS-PEGYang K. et al Nanoletters (2010)

3.1. Graphene-related materials and hybrid nanosystems for cancer theranostics

The introduction of graphene and GRMs in the field of theranostics has allowed the combination of effective therapeutic procedures (e.g., relying on targeted drug/gene delivery, PTT, PDT, etc.) with a wide range of different imaging methods, such as MRI, PET, CT, fluorescent imaging, PAI, and photothermal imaging. The multiple functions of these materials arise from their intrinsic physicochemical properties and the possibility of conjugating them with a wide variety of molecules [48]. We here discuss the different approaches used, starting from less complex nanotools, with only two applications (e.g., imaging and gene/drug delivery), to more and more complex theranostic tools with several multiple functions, where imaging, gene/drug delivery, and PTT/PDT are combined in a unique nanotheranostic platform. All the works taken into consideration are reported in Table 1 (imaging and drug/gene delivery), Table 2 (imaging and PTT/PDT) and Table 3 (imaging and drug/gene delivery in association with PTT/PDT).

3.1.1. Imaging and drug/gene delivery

Ten years ago, Sun et al. introduced the use of a GRM in cancer theranostics, exploring a single-layer NGO-based platform for combined diagnosis and therapy [49]. The material, showing intrinsic photoluminescence (PL) exploitable for live cell imaging in the NIR, was coated by polyethylene glycol (PEG) to improve its solubility and biocompatibility. Moreover, NGO imaging properties were combined with its loading capability, resulting in a theranostic nanoplatform. To this end, the anticancer drug DOX was bound to NGO sheets, which were functionalized with the B cell specific antibody Rituxan (anti-CD20) for the in vitro selective binding and killing of Burkitt's lymphoma cells. A sustained Raji B cell growth inhibition (∼80%) was observed after 2-h incubation with the nanosystem at DOX concentration of 10 µmol/L followed by 48-h incubation in fresh cell medium.

This promising work paved the way for the subsequent explosion of graphene-related research for cancer theranostics. Several studies further involved the chemical functionalization of graphene, GRMs, and graphene hybrids to improve and expand their use for gene/drug delivery and imaging [49-77]. In particular, DOX represented the first-choice chemotherapeutic agent also for other authors. For example, GO was functionalized by magnetic/fluorescent SiO2 microsphere through an amidation process and loaded with DOX, creating an active fluorescent magnetic drug carrier and a potential optical imaging tool [75]. Similarly, Ma and co-authors successfully used Au-decorated GO NPs for combined DOX delivery and intracellular Raman imaging for cervical cancer (HeLa cells) [69,78]. Thanks to the quenching of DOX fluorescence induced by the attachment to the GO-nanosystem, it was possible to track the delivery of the drug that was able to emit only when released in the tumor cells. Theranostic GO-based DOX nanocarriers were also fabricated by Nie et al. for combined drug delivery and PAI in lung cancer cells (H1975 cells) and in vivo. The system was also linked to the Cy5.5 dye to allow fluorescence imaging. Moreover, thanks to the high loading capacity, the material was able to induce effective PAI-monitored chemotherapy in mice [65].

 Table 3

Characterization of all the studies using GRMs in theranostics for combined imaging, drug delivery, PTT and PDT, on the basis of type of imaging, therapy, cancer, cell line, model, drug, gene, PS, targeting moieties, material and name of the nanotools.

Application TargetFunctionalization/coatingGraphene-related materialReference
ImagingTherapyCancer Cell lineModel Drug Gene PSTargeting moietiesMaterialName
Imaging, drug delivery and PTT/PDTMRIDrug delivery, PTTBreast cancer4T1In vitro MTX-Mn(II)DTPArGOrGO-PDA-BSA-DTPA
Karimi Shervedani R. et al. Biosens Bioelectron. (2018)
MRI, PAIDrug delivery. PTTBreast cancer4T1In vitro, in vivoDOX-MnWO4-GOGO/MnWO4/PEGChang X. et al. Carbon (2018)
CLSM, UCL imagingDrug delivery, PTTCervical, liver cancerHela, U14In vitro, in vivoDOX--FITCNGOUCNPs-DPA-NGO-PEG-BPEI-DOXGulzar A. et al. Dalton Trans (2018)
CLSMGene delivery, PTT, PDTLung, breast cancerA549, MCF-7In vitro-miRNA--GQDsGQD-PEG-PCao Y. et al. ACS Appl. Mater. Interfaces (2017)
CLSM, thermal/PT imagingDrug delivery, PTT, PDT, sonodynamic therapyBreast cancerEMT6In vitro, in vivo---Ce6GOGO/AuNS-PEG and GO/AuNS-PEG/Ce6Wu C. et al. Acta Biomater. (2017)
CLSM, NIR fluorescence imagingDrug delivery PTT, PTTBreast cancerB16F10, MCF-7In vitro, in vivo ---PheoAGOPheoA + GO:FA-BSA-c-PheoA NCBattogtokh G. et al. Journal of Controlled Release (2016)
CLSMDrug delivery, PTTCervical cancerHeLaIn vitro LH---rGO, GQDsMGQDs-LHJustin R. et al. Carbon (2016)
Fluorescence imaging, CLSM, SERS imaging, Optical imaging, Raman imagingDrug delivery, PTTLung cancerA549In vitro anti‐EGFR SERS probes---rGOanti‐EGFR‐PEG‐rGO@CPSS‐Au‐R6GChen Y.W. et al. Small (2016)
NIR imaging, SERSDrug delivery, PTTBreast cancer4T1In vitro, in vivo DOX--PANIGOGO-Au@PANI/DOXChen H. et al. Theranostics (2016)
MRIDrug delivery, PTTBreast cancerMCF-7In vitro, in vivoDOX-Gd(III)-GOGO@Gd-PEG-FA/DOXShi J. et al. Pharm Res. (2016)
Molecular imaging, real-time IR thermal imagingDrug delivery, PTTCervical cancerKBIn vitro, in vivo---ICGrGOICG/HArGO and ICG/rGOMiao W. et al. J Control Release. (2015)
Fluorescence imagingDrug delivery, PTT, PDTOvarian cancerA2780/ADIn vitro, in vivo---PcLOGrLOGr-Pc-LHRHTaratula O. et al. Int. J. Nanomed (2015)
Fluorescence imagingDrug delivery, PDTBrain cancerU87MGIn vitro, in vivo, ex vivo---DVDMSGOGO-PEG-DVDMSYan X. et al. Biomaterials. (2015)
Fluorescence imaging, MRIDrug delivery, PTTCervical cancerHelaIn vitro DOX---rGODOX-rGO-Fe2O3@Au NPsChen H. et al. RCS Adv. (2015)
Fluorescence imagingDrug delivery, PDTCervical cancerHeLaIn vitro HA--GQDsHA-GQD-SiO2Zhou L. et al. Chem. Commun. (2015)
Photothermal imaging, optical imagingDrug delivery, PTTLung cancerA549In vitro, in vivo DOX---GrapheneGDHKhatun Z. et al. Nanoscale (2015)
MRIDrug delivery, PTTCervical cancerHeLaIn vitro, in vivo, ex vivoDOX-MnFe2O4-GOGO/MnFe2O4/DOXYang Y. et al. Journal of Biomaterials Applications (2015)
TPLDrug delivery, PTTBreast cancerMCF-7In vitroDOX-Au-grapheneNGsAu nanocrystalBian X. et al Scientific Reports (2014)
CLSMGene delivery, PTTBreast cancerMCF-7In vitroDOX--FITC and DAPINGOGO-PEG-DAFeng L. et al Adv Healthc Mater. (2014)
CLSMDrug delivery PTTBreast cancerMCF-7In vitro, in vivoDOX-Ag-GOGO-AgShi J. et al Biomaterials (2014)
Fluorescence imaging, X-ray CT imaging, US imagingDrug delivery, PTTCervical cancerHelaIn vitro, in vivo PLA---GOAu@PLA-(PAH/GO)nJin Y. et al. Biomaterials (2013)
CLSMDrug delivery, PTTBrain cancerU251In vitroDOX---GrapheneGSPIWang Y. et al J.Am.Chem.Soc. (2013)
UCL imagingDrug delivery, PTT, PDTBreast cancerKB, HeLaIn vitro, in vivo, ex vivoZnPc--ZnPcGOGO-UCNPs--ZnPcWang Y. et al Biomaterials (2013)
Molecular imagingDrug delivery, PTTSkin cancerSCC7In vitro, in vivoDOX--Ce6GOCe6/Dox/pGOMiao W. et al Biomaterials (2013)
 Table 4

Characterization of all the studies using 2DMs in cancer theranostics, on the basis of type of imaging, therapy, cancer type, cell line, model, drug, PS, targeting moieties, material, and name of the 2D tools.

ApplicationsTargetFunctionalization/coating2D materialsReference
ImagingTherapyCancerCell lineModelDrugOther molecules/
WS2PAI, MRI, fluorescence imagingPTT and radiotherapyBreast cancer4T1In vitro, in vivo-IONPs, MnO2WS2-IO/S@MO-PEGYang G. et al.Small (2018)
SPECT, IR thermal andfluorescent imagingPTT and radiotherapyBreast cancer4T1In vitro, in vivo-188Re188Re-WS2-PEGChao Y. et al.Small (Weinheim an der Bergstrasse, Germany, 2016)
CT, IR and fluorescence imagingPTT, PDTCervical cancerHeLaIn vitro, in vivo-Bovine serum albumin (BSA), methylene blueBSA-WS2@MBYong Y. et al.Nanoscale (2014)
PAT, CT, IR imagingPTTCervical and breast cancer4T1, HeLa and 293TIn vitro, in vivo-LA-PEGWS2-PEGCheng L. et al.Advanced Materials (2014)
MoS2MRI, CLSM, flow cytometryDrug delivery, PTTLung cancerA549, H1975In vitro, in vivoGefitinibHyaluronic acid (HA), gadolinium (Gd), DTPAMoS2-HA-DTPA-GdLiu J. et al.Journal of Colloid and Interface Science (2019)
NIR fluorescence imagingDrug delivery, PTTLiver cancerLO2, Hep3BIn vitroMETMn-doped Fe3O4, chitosanMn-doped Fe3O4@MoS2@CSJing X. et al. Bioconjugate Chemistry (2018)
Two-photon CLSM and fluorescence imagingPTT, PDTCervical cancerHeLaIn vitro-AuNBPsAuNBPs@MoS2Maji S. et al. ACS Applied Materials and Interfaces (2018)
IR, PET, FLIM, Flow cytometryDrug delivery, PTTBreast and lung cancerA549, MCF-7, MCF-7-ADRIn vitro, in vivoDOXPEI, HAMoS2-PEI-HADong X. et al. ACS Applied Materials and Interfaces (2018)
MRI, PAI, CLSMPTTBreast cancer4T1, RAW 264.7, L929In vitro, in vivo-Bovine serum albumin-gadolinium (BSA-Gd)MoS2-Gd-BSAChen L. et al. ACS Applied Materials and Interfaces (2017)
MR, IR, and PA imagingPTT, PDT and chemotherapyHepatoma and cervical cancerL929In vitro, in vivoMoS2@Fe3O4-ICG/Pt(IV) NanoflowersLiu B. et al. Advanced Science (2017)
MRI, CT, CLSM, UCLMPTT, PDTCervical cancerHeLa, L929In vitro, in vivo-chlorin e6 (Ce6), UCSMUCS-FAXu J. et al. Small (2017)
PAI, NIRPTTColorectal cancerHT29, L929In vitro, in vivo-PVPMoS2-PVPZhao J. et al. Oncotarget (2017)
IR and phase contrast imagingPTTBreast cancer4T1, L929In vitro, in vivo-Soybean phospholipidSP-MoS2Li X. et al. International Journal of Nanomedicine (2016)
MRI, PAT and fluorescence imagingPTTCervical and liver cancerHeLa, HepG2In vitro-Fe3O4, PEGMSIOsYu J. et al. Theranostics (2015)
PAI, CT, IRPTT and radiotherapyBreast cancer4T1In vivo-Bi2S3MoS2/Bi2S3Wang S. et al. Advanced Materials (2015)
PAT, MRI, IR, PETPTTBreast cancer4T1, RAW 264.7In vitro, in vivo-LA-PEG, IONPs, 64Cu64Cu-MoS2-IO-(d)PEGLiu T. et al. ACS Nano (2015)
CLSM, IR, flow cytometryPTT, PDTBreast cancer4T1In vitro, in vivo-Ce6, LA-PEGMoS2-PEGLiu T. et al. Nanoscale (2014)
BPPAI, fluorescence imagingPTTBreast and lung cancerA549, MCF-7, LO2In vitro, in vivo-RGDRP-p-BPNSsLi Z. et al. ACS Applied Materials and Interfaces (2019)
MR, IR, CLSMPTT, PDTCervical cancerHeLaIn vitro, in vivo-Fe3O4-CDs, GP, PGAGP-PGA-Fe3O4-CDs@BPQDsZhang M. et al. International Journal of Nanomedicine (2018)
MRI, fluorescence imaging, flow cytometryPDT and radiotherapyMelanomaA375In vitro, in vivo-Bi2O3BP/Bi2O3Huang H. et al. Biomaterials (2018)
IR thermal, CLSMPTTCervical cancerHeLaIn vitro, in vivo--BPQDsWang M. et al. Analyst (2018)
MRI, IR, CLSMDrug delivery, PTTBreast and lung cancerA549, MCF-7In vitro, in vivoDOXFe3O4@C, SiO2BPQDs@ss-Fe3O4@CZhang M. et al. Chemistry - A European Journal (2018)
IR thermal, fluorescence imagingDrug deliveryBreast cancerMDA-MB-231In vitro, in vivoDOX-BP@HydrogelQiu M. et al. Proceedings of the National Academy of Sciences (2018)
IR thermal, fluorescence imagingPTT, PDTCervical cancerHeLaIn vitro, in vivo-PEG, Ce6BP@PEG/Ce6 NSsYang X. et al. ACS Applied Materials and Interfaces (2018)
IR thermal, CLSMPTTOsteogenic sarcomaSaos-2In vitro, in vivo-Bioglass (BG)BP-BG scaffoldYang B. et al. Advanced Materials (2018)
IR thermal, fluorescence imagingDrug delivery, PTT, PDTBreast cancer4T1In vitro, in vivoDOX-BPChen W. et al. Advanced Materials (2017)
PAIPTT, PDTBreast cancerMCF-7In vitro, in vivo-TiL4TiL4@BPQDsSun Z. et al. Small (2017)
NIR, CLSMDrug delivery, PTTCervical cancerHeLaIn vitro, in vivoDOXPEG, Cy7BP-PEG-FA/Cy7 NSsTao W. et al. Advanced Materials (2017)
IR thermal, CLSMPTT, PDTLiver and breast cancerHepG2, 4T1In vitro, in vivo-RdB, PEGRdB/PEG-BPQDsLi Y. et al. ACS Applied Materials and Interfaces (2017)
IR thermal imagingPTTBreast cancer4T1In vitro, in vivo-AuBP-Au NSsYang G. et al. Biomaterials Science (2017)
PAI, IR thermal, and fluorescence imagingPTTBreast cancer4T1In vitro, in vivo-PEGPEGylated BPSun C. et al. Biomaterials (2016)
MXeneIR thermal, PAI, CLSM, fluorescence imaging, flow cytometryPTT and photonic thermodynamic therapyBreast cancer4T1In vitro, in vivo-AIPH, SiO2AIPH@Nb2C@mSiO2Xiang H. et al. ACS Nano (2019)
PAI, CT, CLSM, IR thermalPTT and radiotherapyBreast cancer4T1In vitro, in vivo-AuTi3C2@AuTang W. et al. ACS Nano (2019)
MRI, CT, CLSMPTTBreast cancer4T1In vitro, in vivo-Soybean phospholipid, IONPTa4C3-IONP-SPsLiu Z. et al.Theranostics (2018)
PAI, CLSM, IR, flow cytometryPTTBrain cancerU87In vitro, in vivo-CTAC, RGDCTAC@Nb2C-MSNHan X. et al.Theranostics (2018)
PAI, IR, CLSMDrug delivery, PTTLiver cancerHCC, SMMC-7721In vitro, in vivoDOXRGDTi3C2@mMSNsLi Z. et al. Advanced Materials (2018)
PAI, fluorescence imagingDrug delivery, PTTBreast cancer4T1In vitro, in vivoDOXSoybean phospholipidTi3C2-SPHan X. et al. Advanced Healthcare Materials (2018)
IR thermal, PAI and fluorescence imagingPTTBreast and brain cancer4T1, U87In vitro, in vivo-PVPNb2C-PVPLin H. et al. Journal of the American Chemical Society (2017)
IR thermal, PAIPTTCervical cancerHeLaIn vitro and in vivo--Ti3C2 QDsYu X. et al. Nanoscale (2017)
MRI, CT, PAI, CLSMPTTBreast cancer4T1In vitro and in vivo-MnOx, soybean phospholipidMnOx/Ta4C3-SPDai C. et al. ACS Nano (2017)
CLSM, IR thermal, fluorescencePTT, PDTColon cancerHCT-116In vitro and in vivoDOXHATi3C2-DOXLiu et al. AM&I (2017)

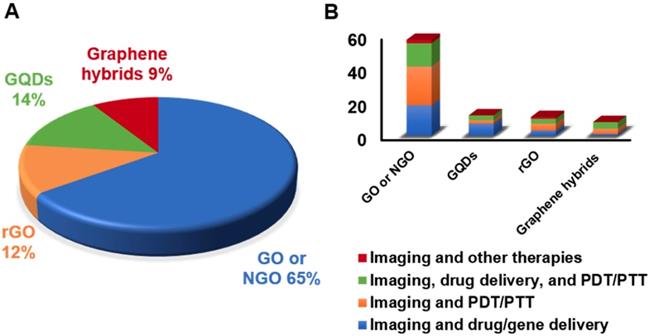

 Figure 1

Graphical representation of the theranostic applications of different GRMs and 2DMs beyond graphene.

Theranostics Image

(View in new window)

Different studies have succeeded in exploiting GQDs fluorescence for targeted cancer imaging and, at the same time, for tracking and monitoring drug delivery processes and cancer therapies. For example, GQDs have proven to be an optimal multifunctional nanovehicle for delivering DOX to targeted cancer cells, enabling the monitoring of the intracellular anticancer drug release as a dual-fluorescent nanoprobe [54,56,60-62,66,68,79]. It has been underlined how the drug-loaded stereochemistry can affect GQD imaging behavior [66]. In this case, anticancer drug curcumin (Cur) chelated the fluorescence of GQDs until the release into the tumor site, allowing restoring of the fluorescence of GQDs, hence acting as a bio-probe for tumor imaging. GQDs were also explored as efficient nucleic acid nanocarriers for the regulation of intracellular miRNAs and imaging [62]. In this case, the multiple gene probes loaded on GQDs, showed a combined effect for the enhancement of the therapeutic efficacy. The uptake of the GQDs by HeLa cells was monitored by exploiting the intrinsic PL of GQDs, while the fluorescence of the gene probe, produced by the recognition of the target, was used to monitor the regulation of the target gene.

Paclitaxel (PTX) was also explored for drug delivery by Zang et al., which used indocyanine green (ICG)-loaded NGO for combined PTX shuttle at the tumor site and fluorescence imaging [58]. In vivo data demonstrated that the system was highly biocompatible and able to induce a total cancer suppression in mice.

Moreover, graphene has attracted increasing attention in MRI-based theranostic protocols. As a non-invasive diagnostic technology, MRI has been widely used in the clinic; however, challenges associated to biocompatibility and sensitivity of the contrast agents used in MRI and in nanotechnology-based approaches still need to be solved [80]. In 2013, Zhang et al. developed a positive T1 MRI GO-contrast agent ⦋GO-DTPA-Gd/DOX⦌ based on GO-gadolinium (Gd) complexes. This nanocomplex offers a dual-modality: T1 MRI/fluorescence imaging and drug delivery functionalities, which exhibited low cytotoxicity. The developed MRI contrast agent can be internalized into cells, enabling cellular MR imaging.

Moreover, GO-DTPA-Gd allows a high capacity DOX loading, resulting in potent anti-cancer activity against HepG2 cells [71]. Li et al. fabricated a GO/BSA-Gd2O3/AS1411-DOX theranostic nanocomplex with BSA-Gd2O3 NPs intended to be used as an MRI contrast agent, where graphene oxide nanoplates (GONs) are used as both contrast agents and drug nanocarrier, conjugated with an aptamer, AS1411, which serves as the targeting molecule [57]. This theranostic nanocomplex has shown not only an increased MR contrast signal, but also a specific targeting and growth inhibition of human renal carcinoma 786-0 cells, demonstrating drug delivery ability both in vitro and in vivo. Working in a similar direction, in 2018, Usman et al. developed a bimodal theranostic nanodelivery system (BIT) suitable for combined and simultaneous MRI and drug delivery [52]. This nanoplatforms consisted of GO, chlorogenic acid as a chemotherapeutic agent, gadolinium (Gd), and gold nanoparticles (AuNPs) as contrast agents for MRI. The authors reported targeting and growth inhibition of hepatocellular carcinoma HepG2 cells, and the nanoplatform was shown to produce a stronger signal than the conventional MRI contrast agents (Gd(NO3)3). The obtained results portray this system as a promising future chemotherapeutic for cancer treatment with MRI diagnostic modalities [52]. The same group also developed another theranostic system for MRI, the so-called GOTS system, which consisted of GO, protocatechuic acid as an anticancer agent, Gd (III) nitrate hexahydrate combined with AuNPs as a diagnostic agent. The system was able to induce cancer cell HepG2 death at a concentration of 100 µg/mL. The T1 weighted image of GOTS showed increment in contrast to the nanocomposite to be higher than pure (Gd(NO3)3 and water reference. These initial in vitro outcomes suggest an upcoming solution to the highly toxic chemotherapy and diagnosis of cancer diseases [53]. In 2019, Yu Luo et al. developed ultrasmall and superparamagnetic iron oxide nanoparticles (IONPs), loaded on GO nanosheets [SPIONs@GO], for T1-MR imaging and pH-sensitive chemotherapy of tumors [50]. They showed a sensitive and modulable pH-responsive drug release behavior triggered by even subtle pH alterations. In vivo results further confirmed high-resolution T1-weighted MR imaging performance and high antitumor efficacy [50].

Functionalization with folic acid (FA) was introduced with the aim of both improving drug selectivity and reducing the material related toxicity towards healthy cells. For examples, He et al. designed a GO-capped mesoporous silica nanoplatform (MSP-BA-GO) for remote-controlled drug release, combined with DOX-loading and folic acid modification [67]. DOX@MSP-BA-GOF displayed a selective cellular internalization via receptor-mediated endocytosis and the subsequent release of DOX by remote illumination. In another study, Diaz-Diestra et al. demonstrated that the FA functionalization of rGO-based nanoplatform (FA-rGO/ZnS:Mn) improved targeting of the folate receptor-positive cancer cells and inhibited the toxicity exerted on non-tumor cells up to 72 h exposure [51]. This was due to the surface passivation of FA, which allowsto decrease the strong hydrophobic interaction between cell membrane wall and graphene flakes edges or corners, which are proven to induce toxic responses. The nanosystem killing efficiency was 50% at a concentration of 3 µg/mL of DOX, far below the values frequently reported in the literature (>10 µg/mL). Chen et al. developed a rGO-based nanoplatform based on rGO/Au/Fe3O4 hybrids, used as cargo-filled graphene nanosacks that when reintroduced into the aqueous environment can rapidly release soluble salt cargoes. These open structures can be adaptable to a drug-controlled release form by adding a polymeric filler. To apply the theranostic use on this system, the authors combined a magnetically responsive platform, deonstrating an optimal contrast enhancement as imaging probes in both MR imaging and X-ray computed tomography [70].

One of the most promising strategies for the treatment of cancer consists of combining chemotherapy with gene therapy. In this view, in the effort of creating a single platform, able to efficiently deliver genes, drugs and contrast agents to the cancer site, Wang et al. reported a functionalized chitosan magnetic graphene (CMG) system for the simultaneous delivery of gene/drugs and SPIO y to tumors. Ex vivo MRI demonstated the use of CMG as a strong T2 contrast-enhancing agent. As shown by biodistribution studies and MRI, CMGs selectively accumulated in tumors. The system has been reported to show an efficient drug loading capacity, pH-dependent drug/gene release and better cytotoxicity than free DOX. Moreover, DOX-CMG-GFP-DNA NPs were able to deliver both DOX and GFP coding pDNA to the tumor site in mice, serving as an integrated system of targeted imaging, drug/gene co-delivery and real-time monitoring of therapeutic effects [73].

3.1.2. Imaging and photothermal/photodynamic therapy

Compared to conventional treatment methods, PTT and PDT exert a selective and non-invasive anticancer action. The former refers to the use of electromagnetic radiation, such as NIR wavelengths, to excite a PS. The absorption of a specific band light leads the PS to an excited state. Coming back to the steady-state, it releases energy in the form of heat, leading to cancer cell photoablation. To gain this effect and to avoid nonspecific killing of healthy cells, PSs need to absorb in the NIR and be selectively uptaken into cancerous cells [81]. On the other hand, in PDT, PSs absorb light and transfer the energy to the oxygen present in the surrounding tissue. The production of highly reactive oxygen species (ROS), such as 1O2 and free radicals, oxidizes cellular and sub-cellular structures, such as plasma, lysosomal, mitochondrial, and nuclear membrane, leading to non-recoverable damage to tumor cells [82].

Currently, a large number of nanomaterials are being studied for PTT and PDT applications, thanks to their optical absorbance in the NIR, including AuNPs and GRMs [73,74,83-110]. From a theranostic point of view, photothermal agents (PTAs) are very appealing since they can also serve as contrast agents for PAI, representing a noninvasive imaging modality thanks to its high spatial resolution and outstanding soft-tissue contrast [111,112].

The creation of advanced graphene-based multi-modal nanosystems for combined diagnosis and therapy has paved the way for new theranostic protocols. In this perspective, graphene is very attractive as PS agent or as a carrier for PSs for a photothermal and photodynamic alternative approach in cancer therapy, due to its excellent thermal properties and electrical conductivity [113].

In 2010, Yang et al. assessed the in vivo effects of nanographene sheets (NGS) coated by PEG and labeled with a fluorescent method [110]. The fluorescence imaging showed a high NGS tumor uptake for several xenografted tumor mouse models. PEGylated NGS displayed an impressive in vivo behavior, including increased tumor targeting efficiency and low reticuloendothelial retention. The conjugation with PEG further improved the photothermal activity. The NGS strong optical absorbance in the NIR region allowed their use for PTT, achieving an optimal tumor ablation after their intravenous administration and tumor irradiation with low-power NIR laser.

The work of Li et al. represents a recent contribution for cancer diagnosis in combination with PTT, reporting the development of multifunctional NGO-based composite (UCNP@NGO), complexed with upconversion nanoparticle NaLuF4:Er3+, Yb3+, with high photothermal conversion efficiency in association with UCL imaging [84]. Both in vitro and in vivo data demonstrated UCNP@NGO excellent biocompatibility and high theranostic effectiveness inhibiting tumor growth.

Also, nano-reduced graphene oxide (NrGO) was explored for imaging in association with PTT. Compared to NGS and NGO, NrGO has a higher photothermal activity due to the intrinsic physicochemical properties and uniform dispersivity. In fact, NGO reduction to NrGO causes an increased degree of π conjugation, producing an amplified NIR absorption with enhanced photothermal activity. In 2013, Sheng et al. developed a new protein-based method for the fabrication of NrGO, demonstrating its ability as a highly integrated theranostic agent for photoacoustic (PAI)/ultrasonic (US) dual-modality imaging and PTT. Systematic administration of NrGO displayed an optimal photoacoustic signal enhancement in the tumor area, paving its possible use for passive tumor targeting and PAI. Cancer cells, in tumor-bearing mice, were efficiently ablated due to the photothermal effect of NrGO after continuous-wave NIR laser treatment [107].

Other studies selected GO as starting material for their theranostic platform for imaging in association with PTT/PDT [73,74,84-96,99,100,102-109]. For example, Wang et al. decorated the material with ICG as the photoresponsive imaging agent and FA as a targeting moiety [114]. The resulting complex (ICG-GO-FA) exhibited a high optical absorbance in the NIR region, endowing it with excellent photothermal properties. In vitro data demonstrated that 1 h incubation with ICG-GO-FA (20 µg/mL), followed by 808 nm NIR laser irradiation, could induce a targeted photothermal HeLa cervical cancer cell death (8% residual cell viability) in association with PAI. In another study exploring GO potential for cancer theranostics, the PAI signals as well as the GO NIR absorbance were dramatically enhanced by the functionalization of the material with the NIR fluorescence dye CySCOOH, showing a complete PTT-induced tumor ablation in vivo without any sign of recurrence in the next 60 days of follow up [93].

Another GO-based theranostic platform for combined PAI and PTT was developed by Gao et al. [80]. The authors studied a GO/gold-based probe (CPGA) with enhanced NIR absorbance and photoconversion efficiency applicable in multimodal fluorescence imaging and photoacoustic image-guided PTT of cancer. The intravenous administration of CPGA into tumor-bearing mice resulted in the observation of tumor localized high fluorescence and PA signals. Moreover, laser exposure caused tumors growth inhibition and ablation. One more successful procedure achieving total cancer elimination in mice after 808 nm laser irradiation was obtained by loading of Bi2Se3 NPs on GO in the presence of polyvinylpyrrolidone (PVP) [87]. The high biocompatible nanosystem served a as an outstanding bimodal imaging (CT and PAI) in association with PTT platform for imaging-guided therapy, without any sign of tumor re-growth up to 24 days. Impressive system imaging ability in association with phototherapy was also reported in the study of Bi et al., where the designed GO-based nanoplatform, supported by ZnFe2O4 and UCNPs, was able to perform a quad-model imaging-guided PTT/PDD, exploiting its MRI, CT, UCL and PAT capability and obtaining a sustained tumor reduction in mice [85].

Ray et al. explored GO for highly selective and ultra-sensitive melanoma cancer cell detection from blood samples [99]. To this end, an AGE-aptamer-conjugated magnetic hybrid GO-based assay was used as a multicolor luminescence system for tumor cells and attached with ICG for combined PTT/PDT using a 785 nm laser irradiation. In the presence of NIR light the system was highly effective, indicating good performances of the material in inhibiting tumor growth, while any reduction of cell viability was observed in the absence of the irradiation after 12 h exposure, demonstrating the biocompatibility of the nanoplatform. A novel photo-theranostic platform based on sinoporphyrin sodium (DVDMS) loaded PEGylated GO was studied in 2015 by Yan et al. The GO-PEG carrier improved the fluorescence of DVDMS through intramolecular charge transfer as well as the tumor accumulation of DVDMS. The NIR absorption of GO was enhanced by DVDMS, leading to improved PAI and PTT. In vivo results showed that systemic administration of the system could even result in total tumor eradication [94]. Kalluru et al. reported single-photon excitation wavelength-dependent photoluminescence in the visible and short NIR region [88]. When authors analyzed the formation of 1O2, it was shown that the system is suitable for the in vivo fluorescence imaging operated using inexpensive laser setups using low laser doses. By combining PEG and folate, nano-sized GO has been shown to effectively result in PDT and PTT in vitro and in vivo using NIR light at ultra-low doses. Yang and co-workers developed another promising gold-based GO/BaGdF5/ PEG usable as a T1-weighted MR and X-ray CT dual-mode contrast agent [96]. GO/BaGdF5/PEG demonstrated to be an optimal photothermal agent for in vivo PTT cancer treatment due to its strong NIR absorbance and an improved contrast agent providing MR/CT bimodal imaging-guided therapy. Other studies further inspired the application of GO/gold hybrid nanocomposites for image-guided enhanced PTT in biomedical applications. In 2014, Nergiz et al. validated a novel class of multifunctional graphene/gold hybrid nanopatches consisting of GO and gold nanostars (GO-AuNS) for an improved image-guided PTT [100], whereas Jin et al. (2013) developed Au@PLA-(PAH/GO)n microcapsules as multifunctional theranostic agent, acting as contrast agent for both ultrasound (US) imaging and X-ray CT imaging and showing exceptional photoablation effectiveness, as suggested by the photothermal experiments [115]. The use of US/CT bimodal imaging allowed to obtain an enhanced imaging contrast and specific tumor anatomic information. The contrast imaging was applied to identify the location and size of the tumor, while NIR laser-induced photothermal target therapy was carried out based on the diagnostic imaging results, avoiding damaging healthy tissues. To further improve the photothermal activity, Shi and collaborators exploited the conjugation with PEG, iron oxide and AuNPs developing GO-IONP-Au-PEG, as a powerful photothermal agent for in vitro cancer cell killing using molecular or magnetic targeting [116]. Thanks to the subsequent in vivo studies, they were able to demonstrate the efficacy of this dual model imaging-guided photothermal tumor destruction method, proving an excellent tumor ablation. The study suggested that the IONP and Au substituents in the GO-IONP-Au-PEG nanocomposite structure could be further exploited for MR and X-ray dual-modal imaging.

The adoption of iron oxide could be used in order to increase in T2 contrast enhancement. For this reason, many studies developed graphene-iron oxide NPs with improved imaging properties. Wang et al. developed GO-iron oxide NPs, as a nanotheranostic agent for the diagnosis and treatment of regional lymph node (RLN) metastasis of pancreatic cancer [102]. Intratumoral injection of GO-iron oxide NP resulted in its transportation to RLN via lymphatic vessels led to the regional lymphatic system dual-modality mapping through MRI and to efficient tumor ablation. PEGylation of the system allows achieving lower systematic toxicity, suggesting that these efficient theranostic nanoplatforms can be engineered to be safer for future clinical studies. Huang et al. tested iron oxide/GO-COOH nanocomposites with high photothermal conversion efficiency and enhanced contrast [91]. The authors reported an effective inhibition of tumor growth due to the improved photothermal effect.

Only three studies were based on the use of GQD-based nanoplatform for combined imaging and PTT/PDT [83,97,101]. For example, a theranostic probe based on SPIO and bismuth oxide (Bi2O3) with GQD coating was fabricated by the group of Mesbahi A for in vitro CT/MR dual-modal biomedical imaging and guided PTT [83]. A high inhibitory effect on cancer cells proliferation was reported after the co-treatment with GQDs-Fe/Bi NPs and NIR irradiation, demonstrating the exceptional performance of this theranostic nanoplatform for MR imaging, high-contrast CT imaging, and CT enhancement efficiency.

The use of graphene and GRMs in PDT directed theranostics have also been reported in various studies, however to a lesser extent compared to PTT involving applications. For what concerns the adoption of graphene in the PDT protocols, in 2014, Ge et al. exploited the intrinsic GQDs properties, such as a broad absorption from the visible to the NIR, deep-red emission, high photo- and pH-stability and biocompatibility, for imaging purposes in association with PDT [97]. GQDs exhibited a high 1O2 generation yield, enabling them to be used as in vivo multifunctional graphene-based nanoplatform for simultaneous imaging and extremely efficient PDT of different types of cancer, including skin melanoma and tumors located near the skin.

In cancer treatment, researchers are frequently motivated to combine different modalities to achieve an efficient cancer diagnosis and therapy. New advances have been made to establish a targeted protocol that covers the simultaneous application of imaging methods and PTT or PDT. The theranostic progress made by the previously cited studies led to the development of new combined protocols involving graphene or GRM-based nanoplatforms for simultaneous imaging, PTT, and PDT approach.

In 2013, a promising integrated probe was developed for upconversion luminescence (UCL) image-guided combinatorial PDT/PTT of cancer [102]. This NGO-based multifunctional nanoplatform, UCNPs-NGO/ZnPc, could be used as UCL high contrast imaging probing of cells and whole-body for diagnosis, as well as for PDT causing the formation of cytotoxic 1O2 under light excitation and for PTT by converting the 808 nm laser energy into thermal energy. Another platform for combined PTT/PDT is the one developed by Cho et al., in which HA-conjugated Ce6 was combined with GO in order to improve biocompatibility [104]. The resulting system (GO-HA-Ce6) was shown to be enzyme-activatable, which could be used for both NIR fluorescence imaging and photo-induced cancer therapy. The following year another group combined PEG-functionalized GO with the PS 2-(1-hexyloxyethyl)-2-divinyl pyropheophorbide-alpha (HPPH or Photochlor®), via supramolecular π-π stacking [103]. The system showed significant improvement in photodynamic cancer cell killing efficacy due to the increased tumor delivery of HPPH. Golavelli et al. developed a superparamagnetic graphene-based nanoplatform; the MFGeSiNc4, an excellent T2-weighted MRI contrast probe [98]. The graphene NIR absorption ability (600-1200 nm) and the presence of silicon phthalocyanine bis (trihexylsilyloxide) (SiNc4) facilitated the immobilization of various PSs for the achievement of both PTT and PDT effects using a single light source. In vitro studies have suggested that MFG-SiNc4 may thus be utilized as a potential theranostic nanocarrier for dual-modal imaging and phototherapy of cancer cells with a single light source for time and cost-effective treatments with a minimal therapy dose.

In 2015, Kim et al. engineered ZnPc-PEG-Au@GON NPs, in which the PS zinc phthalocyanine was loaded onto PEGylated Au@GON. The system showed promises for both combinational treatment of PTT and PDT and bioimaging. Results also suggested that ZnPc-PEG-Au@GON NPs resulted in low cytotoxicity [92]. Luo et al. combined the PS IR-808 with NGO and studied its PDT, PTT, and imaging capabilities [90]. Authors achieved high tumor accumulation by targeting organic-anion transporting polypeptides (OATPs) overexpressed in many cancer cells. Results suggested that this system (NGO-8080) can provide high-performance cancer phototherapy with minimal side effects through the synergistic PDT/PTT treatment and cancer-targeted accumulation. In 2018, Gulzar et al. covalently implanted upconversion NPs (UCNPs) with PEGylated NGO and loaded the system with the PS Ce6 [86]. The authors reported a significantly enhanced and synchronized therapeutic effect paralleled to the individual PTT or PDT. Therefore, this study showed that this multifunctional nanohybrid could be used as a potential theranostic probe for upconversion luminescence (UCL) imaging-guided combinatorial PDT/PTT.

3.1.3. Imaging, drug/gene delivery, and photodynamic/photothermal therapy

The real potential of the graphene-based nanoplatforms lies in the possibility of combining multiple strategies to fight cancer in a single platform. As reported by Gazzi et al. [117], the opportunity to associate imaging diagnostic methods, drug delivery, PTT with PDT opens the way to new approaches and enhances the efficacy of the single modalities.

A typical example of this enhancement is well represented by the work of Feng L et al., where the authors fabricated a pH-responsive nanocarrier. NGO was coated with two polymers, PEG and poly (allylamine hydrochloride) (PAH), modifying the latter with 2,3-dimethyl maleic anhydride (DA) in order to acquire pH-dependent charge reversibility. The nanocarrier was then loaded with DOX, to form the NGO-PEG-DA/DOX complex which showed responses to pH change, enhanced cellular uptake, augmented DOX release in the tumor microenvironment and inside cellular lysosomes. The slow efflux of DOX from NGO-PEG-DA/DOX offers an enhanced killing of drug-resistant cancer cells compared with free DOX. Moreover, NGO-PEG-DA/DOX has an excellent photothermal conversion ability; therefore, a synergistic therapeutic effect was realized combining chemo- and PTT [118]. Similarly, a pH-responsive nanoplatform for controlled drug release was developed by Battogtokh et al. where the author used a GO-based nanocarrier for pH-dependent release of the PS that was also used as a fluorescent imaging agent [119].

Five studies have used rGO as a starting material for combined therapy and imaging [120-124]. For example, Shervedani et al. developed, rGO-PDA-BSA-DTPA-Mn(II)/MTX, a high biocompatible system for breast cancer-selective PTT [120]. In this system, GO was partially reduced and functionalized with dopamine to obtain a reduced graphene oxide/polydopamine system (rGO-PDA). As a highly promising carrier in drug delivery, bovine serum albumin protein (BSA) was grafted onto the obtained system (rGO-PDA-BSA). Finally, the researchers adopted the decoration with diethylenetriaminepentaacetic acid (DTPA)-Mn(II) to achieve diagnosis and methotrexate for anticancer therapy.

A new functionalization strategy was proposed, where the photoresponsive imaging agent ICG has been loaded onto hyaluronic acid-anchored (HA) rGO nanosheets in order to enhance the photothermal properties of the system. Compared to rGO, HArGO resulted in enhanced tumor cell targeting in vitro and in vivo [123]. Moreover, the ICG/HArGO targeted delivery has been shown to guide authors to identify the most relevant area for NIR irradiation to achieve PTT. Exploiting another functionalization strategy, a Gd-functionalized GO nanoplatfom for MRI guided photothermal-chemotherapy was developed [125]. They have shown neglectable toxicity both in vitro and in vivo studies, GO@Gd-PEG-FA was able to kill cancer cells selectively demonstrating to be an excellent MRI guided photothermal-chemotherapeutic system with drug delivery and tumor-targeting properties. In 2012 a new system characterized by biocompatibility, high DOX loading capacity, NIR photothermal heating, facile magnetic separation, and large T2 relaxation rates (r2) was successfully developed [72]. A single system for image-guided glioma therapy with integration of MRI, dual-modal recognition (magnetic and receptor-mediated active targeting), and chemo-photothermal therapy was developed by Chen et al., based ongraphene-gold nanohybrids, GO-Au@PANI, with excellent NIR photothermal transduction efficiency and ultrahigh drug-loading capacity [126]. By using this ultrasensitive nanoprobe, cancer cells were analyzed through SERS-fluorescence dual-mode imaging, confirming optimal DOX-loading efficiency and delivery accompanied by an increased sensibility of NIR/pH-responsive release. The GO-Au NPs decorated with PANI, a new NIR PTT agent characterized by a strong NIR absorption, allowed the in vitro and in vivo chemo-photothermal ablation of breast cancer cells. Chang et al. produced a PEGylated GO/MnWO4 nanocomposite (GO/MnWO4/PEG) for dual imaging (MRI and PAI) and therapy (chemotherapy and PTT). In vivo data demonstrated that the nanosystem was an excellent bimodal contrast agent to aid the delivery and pH- and NIR-light dependent release of DOX in breast cancer [127]. Another study using DOX as antitumoral drug for combined drug delivery and PTT in an MRI-capable nanomediator (rGO-Fe2O3@Au NPs) was reported by Chen et al. The superparamagnetic nanoplatform showed a high photothermal conversion efficiency (under 808 NIR laser irradiation) and an excellent drug loading ability in cervical cancer in vitro (HeLa cells) [124]. The delivery of DOX in association with PTT was also evaluated by Khatun and co-workers [128]. Their graphene-based nanosystem conjugated with a hyaluronic acid nanogel for photothermal imaging was able to induce an effective killing of lung cancer cells (A549), while showing only minor toxicity in the non-tumor MDCK cells. Jin and co-workers combined Au NPs into poly(lactic acid) microcapsules for combined drug delivery and PTT in a GO-based nanosystem to enhance ultrasound imaging and X-ray CT imaging [115]. Thakur et al. developed a graphene-based nanoplatform for simultaneous imaging and combined drug delivery, PTT, and PDT. The nanosystem was able to perform as a NIR imaging agent and to induce the ablation on the tumor in vivo [60]. In 2014, Bian and collaborators fabricated another graphene-isolated-Au-nanocrystal (GIAN) for multimodal cellular imaging by means of Raman scattering and NIR two-photons luminescence [129]. Besides having an exploitable DOX loading capability, graphene-isolated-Au-nanocrystal (GIAN) showed NIR absorption that allowed using them also for PTT. Using NIR heating, they obtained a controlled release of DOX, drastically reducing the possibility of side effects in chemotherapy. In the same year, a GO-Au nanohybrid was fabricated by chemical deposition of Ag NPs onto GO through a hydrothermal reaction [106]. DOX was loaded to obtain an anticancer activity. Functionalization of GO@Ag-DOX nanohybrid with DSPE-PEG2000-NGR, resulted in GO@Ag-DOX-NGR, a particular theranostic nanoplatform with powerful tumor-targeting capability, excellent stability in physiological solutions and a much higher antitumor efficacy without toxic responses owing to the higher DOX uptake at the tumor site. Moreover, GO@Ag-DOX-NGR not only served as a diagnostic X-ray contrast probe, but also as a potential agent for chemo and photothermal therapy. GO@Ag-DOX-NGR was demonstrated to have an ideal tumor-targeting capability with NIR laser-controlled drug release and X-ray imaging ability, ensuring a significant chemo-photothermal therapeutic efficacy.

Three studies also explored GQDs for combined multiple therapies and imaging [121,130,131]. In the first study, a porous silica NPs-based nanosystem, encapsulated with the PS hypocrellin A and GQDs, allowed combining multicolor imaging and cervical cancer treatment [131]. In more recent work, porphyrin derivatives were conjugated to an aptamer-functionalized GQDs for miRNA delivery and simultaneous PTT /PDT, allowing CLSM of lung and breast cancer cells [130].

Finally, concerning the simultaneous use of imaging, PTT, and drug delivery strategies, Chen and co-workers used a valuable approach [121]. They fabricated biocompatible and photoluminescent GQDs which, in conjunction with superparamagnetic iron oxide nanoparticles, was exploited for both fluorescent and MR imaging without the use of any other fluorescent dyes. Thanks to the external magnetic stimulation, the drug has been continuously and slowly released by the GQDs in vitro. The NIR irradiation of HeLa cells and their consequent photothermal ablation confirmed their potential use for cancer PTT. Despite the few numbers of publications, we can highlight three different studies reporting methods based on PDT combined with imaging and drug delivery [132-134]. In 2015, Yan et al. validated the effects of GO-PEG DVDMS for drug delivery, in vivo imaging, and PDT [132]. Sinoporphyrin sodium (DVDMS), a novel photo-theranostic agent, was successfully loaded to PEGylated GO via intramolecular charge transfer, enhancing its fluorescent imaging and improving its tumor accumulation. In the same year, an MRI GO/MnFe2O4 nanohybrid was fabricated with very low cytotoxicity and negligible in vivo toxicity [133]. MRI experiments demonstrated that the large magnetic spin magnitude of manganese ferrite (MnFe2O4) NPs make them suitable as reliable T2 contrast enhancement agents. The GO/MnFe2O4 optical absorbance in the NIR region and the optimal photothermal stability resulted in the highly effective photothermal ablation of HeLa cancer cell lines. In this study, nanohybrids were further tested for chemotherapeutic purposes by combining with DOX-induced chemotherapy. An enhancement in cancer cell killing activity was achieved after GO/MnFe2O4/DOX irradiation with NIR light, when compared to free DOX. Finally, Wu et al. fabricated a graphene-Au nanostar hybridized system (denoted as GO/AuNS-PEG) in order to achieve single wavelength laser-induced synergistic PDT and PTT and active cancer photothermal/fluorescence multimode imaging [134]. The system was shown to be biocompatible in vitro and in vivo. Under the NIR laser irradiation, authors achieved high dual-enhanced photothermal efficiency, even for tumors found at deep locations. When the system was combined with the PS Ce6, both in vitro and in vivo data confirmed that efficient photoablation of tumors was achieved through the synergistic PDT and PTT effect under the activation of a single wavelength laser.

3.1.4. Imaging and other new therapies

Beyond drug delivery, PTT, and PDT, other non-conventional therapies, like sonodynamic therapy (SDT) and immunotherapy, can also be enhanced by the use of graphene, GRMs, and graphene hybrid nanosystems. The following sections give a short description of the recent advances of these materials used for these applications.

i) Sonodynamic therapy (SDT). Ultrasound-based therapies are opening new prospects in the oncological field; amongst them, SDT emerged very recently as a novel cancer treatment approach. Being more effective than PDT due to the higher tissue penetration depth [135,136], SDT consists in the use of ultraviolet light as an external stimulus in order to activate a sonosensitizer, a non-toxic and selective chemical agent that once activated is able to induce ROS synthesis and thermal effects.

Despite nanoparticle-assisted ultrasound therapy being still under development in the clinical field [137], different cell death pathways involved in the SDT process have been identified. To this end, Dai et al. have synthesised a novel nanoplatform for MRI-guided SDT and PTT by the functionalization of rGO with TiO2 NPs [135,138]. Graphene's high electrical conductivity enableds the separation of the sono-generated electron-hole pairs, leading to an increased in vitro ROS production.

Recently, Huang et al. translated SDT into a theranostic context, by developing a graphene-based nanoplatform for PAI-guided SDT in breast cancer cells and tissues, paving a new path toward targeted medicine [139].

ii) Immunotherapy. Immunotherapy is a new therapeutic approach that allows precise cancer treatment enhancing or restoring the patients' own immune system's ability to fight cancer [140]. The introduction of 2DMs in these fields is aimed at improving the patients' outcome expanding the combination of possible different therapeutic and imaging modalities in a single nanosystem.

For example, in 2014, GO was explored both for PTT and the delivery of CpG oligodeoxynucleotide [141]. The latter can be recognized by Toll-like receptor 9 leading to the secretion of proinflammatory cytokines, resulting in the activation of innate and adaptive immune responses [142]. The intracellular trafficking of nanocarriers was improved thanks to the local heating allowed by the optimal nanosystem NIR optical absorbance, leading to an efficient tumor reduction in vivo.

Recently, Wang et al. developed a PEGylated-rGO nanoplatform hybridized with Fe3O4 nanoparticles for breast cancer dual treatment based on PTT and immunotherapy [143]. Thanks to the incorporation of Fe3O4 nanoparticles, the resulting nanosystem induced the reduction of tumor-associated macrophages and the activation of dendritic cells in tumor draining lymph nodes in tumor-bearing mouse model. Moreover, the authors envisage the application of their smart nanocomposite for MRI-guided therapy. However, only recently the first attempt to apply GRMs for immunotherapy in the field of cancer theranostics was made by Wu and co-workers. In this study, polydopamine stabilized GQD PSs were integrated with immunostimulatory polycationic polymer/CpG oligodeoxynucleotide nanoparticles and Gd3+/Cy3 imaging probes, enabling dual imaging (i.e., MRI and fluorescence imaging)-guided photoimmunotherapy [144]. The resulting theranostic nanostystem allowed the effective eradication of tumor in a murine mammary cancer model, because of the combination of enhanced PDT and PTT exerted by GQDs, together with the simultaneous activation of endosomal Toll-like receptor 9 mediated by the polycationic polymer/CpG oligodeoxynucleotide. This immuno-stimulation resulted in the secretion of proinflammatory cytokines and dendritic cell maturation, ultimately triggering the activation and infiltration of T cells.

3.2. 2D materials beyond graphene for cancer theranostics

After the rise of graphene, the whole family of 2DMs has started to be investigated for several applications, including the fight of cancer. GDY and other emerging 2DMs, such as WS2, MoS2, hBN, BP, and MXene, are under consideration for their use as cancer theranostic tools [145]. All the reports present in the literature for these materials as theranostics are discussed and reported in Table 4. The following sections are dedicated to each type of material.

3.2.1. The 2D family of transition metal dichalcogenides

TMDs have the empirical formula MX2; where M is a Group 6 transition metal (usually Mo or W) and X is a group 16 calcogen (S, Se or Te). In bulk form, TMDs are layered compounds which can be exfoliated down to few and single layers. In particular, in the single-layer form, many TMDs show strong light-matter interaction, i.e., strong absorption of light in the visible-near IR range and emission of light. The TMDs investigated so far in theranostics are tungstenum disulfide and molybdenum disulfide.

i) Tungsten disulfide. Tungsten disulfide has received considerable attention in recent years, thanks to the fascinating physicochemical properties that the whole family of TMDs have in common. WS2 is a well-known solid lubricant for its tribological near-zero friction or superlubricity and possesses a lamellar structure similar to that of MoS2, allowing it to be exfoliated into nanosheets [146], which can be loaded with drugs as drug delivery carriers, exactly as done for graphene.

The capability of WS2 to serve as a cancer nanoteranostic tool mainly derives from its strong absorbance in the NIR region and X-ray attenuation ability, making it a suitable photothermal and contrast agent for PAT and CT bioimaging-guided diagnosis and therapy. Exploiting its strong absorbance in the NIR region, Cheng et al. reported for the first time the opportunity of using WS2 nanosheets as novel agents for PTT in association with multimodal bio-imaging, obtaining a highly effective photothermal ablation of tumor in a mouse model [147]. Their PEGylated WS2 nanosheets enabled an excellent NIR light-triggered tumor ablation after both intratumorally (low dose, 2 mg/kg) and intravenous injection (high dose, 20 mg/kg). Moreover, PEG-WS2 nanosheets demonstrated to serve as a bimodal contrast agent for CT and PAT imaging, due to their strong X-ray attenuation ability and the high NIR optical absorbance, respectively.

Another example of WS2 nanosheets-based theranostic application is represented by the work of Yong et al. [148]. In this case, the developed WS2 nanosheets were employed not only as NIR absorbing agents for PTT, but also as PS carriers for PDT. Moreover, the PSs release behavior from WS2 nanosheets could be controlled by NIR irradiation manipulating 1O2 generation of the PSs-WS2 complex.

WS2 was used for theranostic purposes as reported by the work of Yang et al., where IONPs were adsorbed on PEGylated WS2 nanoflakes, which were subsequently coated with silica and manganese dioxide [149]. The resulting nanoplatform (WS2-IO/S@MO-PEG) appeared to be highly sensitive to pH, enabling tumor pH-responsive MR imaging using IONPs and MnO2 as pH-inert T2 contrast probe and pH-sensitive T1 contrast probe, respectively. WS2-IO/S@MO-PEG allowed the synergistic combination of NIR light and X-ray absorbance of WS2 for PTT and cancer radiotherapy, resulting in remarkable tumor destruction.

Furthermore, with regards to cancer radiotherapy, Chao et al. have recently tested a WS2-based theranostic nanosystem functionalized with PEG and labeled with 188Re, a widely-used radioisotope for radioisotope therapy (RIT) [150]. The 188Re labeling of WS2-PEG nanoflakes enabled not only the enhancement of RIT, but also allowed the in vivo tracking of the nanoflakes after their administration into animals.

ii) Molybdenum disulfide. Molybdenum disulfide is another relevant member of the 2D family of TMDCs, with properties very similar to WS2. Thus, it has been investigated as a theranostic cancer nanoplatform with multiple highly integrated functionalities [151]. In particular, it has been explored as a photothermal agent for cancer PTT and as a nanocarrier for drug delivery-based therapeutic approaches. The principal limit for MoS2 application in biomedicine appears to be mainly related to its low stability in the biological milieu [152]. Therefore, in the majority of the studies, different water-soluble and biocompatible molecules were applied to functionalize MoS2 to overcome this issue. In 2014, Liu et al. have reported the first demonstration for the use of MoS2 in cancer theranostics, modifying the material to obtain a high biocompatible PEGylated MoS2 loaded with the photodynamic agent Ce6 (MoS2-PEG/Ce6). The nanocarrier was able to enhance the intracellular delivery of Ce6, dramatically increasing the PDT efficacy in vitro in breast cancer cells (471 cell line) exposed to 660 nm light irradiation. Moreover, it further increased after induction of a moderate hyperthermia (808 nm laser irradiation) to promote the cellular uptake. Moreover, both in vitro and in vivo data demonstrated the ability of MoS2-PEG/Ce6 to promote tumor ablation exploiting a combined PTT and PDT synergistic affect triggered by laser with wavelengths of 808 nm and 660 nm, respectively. Also, the PEGylated MoS2 nanosheets served as a contrast agent for photoacoustic tomography (PAT) allowing the in vivo tracking of the nanosystem, and the effective photothermal heating was confirmed by IR thermal imaging [153].

In their subsequent study, in addition to PAT, the imaging was also performed in association to MR and PET in mice, thanks to the superparamagnetic properties of PEGylated MoS2 decorated with iron oxide (MoS2-IO-PEG) and to the adsorption of the positron-emitting radioisotope 64Cu, respectively. The triple-modal imaging-guided tumor PTT by the 808 nm laser resulted in the complete elimination of 471 breast cancer tumors in vivo [154]. In the same year (2015), Wang et al. produced a MoS2/Bi2S3-PEG (MBP) composite, with enhanced colloidal stability and biocompatibility, for PTT combined with photoacoustic and CT imaging, demonstrating its therapeutic efficacy in vitro and tumor-bearing 4T1 mice [155]. In the meantime, Yu at al. created MoS2/Fe3O4-PEG (MSIOs) composite consisting of NIR-absorbing MoS2 flakes for PTT decorated with Fe3O4 nanoparticles as target moieties spatially/timely guided by an external magnetic field to cancer tissue [156]. Thanks to their superparamagnetic property and high NIR absorption, MSIOs nanosystem for magnetic targeted PTT was applied for MR and PAT imaging in vitro for cervical (HeLa cells) and liver cancer (HepG2 cells). Soon after, in 2016, Li et al. synthesized biocompatible soybean phospholipid-encapsulated MoS2 (SP-MoS2) nanosheets for in vitro and in vivo highly efficient breast cancer PTT using a laser with wavelengths of 808 nm and IR thermal imaging [157]. The encapsulation of the nanosystem with soybean phospholipids was used as an alternative to PEG functionalization to enhance its colloidal stability, allowing improving the therapeutic performance. The following study aimed at exploiting MoS2 proprieties for cancer theranostics was based on a different kind of material synthesis, where polyvinylpyrrolidone (PVP) was used not only to enhance the colloidal stability but also to direct the growth of MoS2 nanosheets to produce an ultra-small MoS2-PVP composite for in vitro and in vivo combined PTT and PAI [158].

In 2017, Xu et al. integrated MoS2 nanosheets with IR-808 sensitized upconversion nanoparticle (UCNP) loaded with Ce6 for synergistic PTT and PDT in vitro and in vivo, simultaneously achieving trimodal UCL, CT, and MR imaging under a single 808 nm wavelength laser excitation [159]. Similarly, Liu et al. designed a trimodal imaging (IR, PA, and MRI) Mo@Fe-ICG/Pt multifunctional nanocomposite, consisting of polyethyleneimine (PEI) functionalized MoS2 nanosheets ingeniously decorated with Fe3O4 nanoparticles and loaded with ICG molecules and platinum (IV) as PSs and prodrugs, respectively [160]. The resulting nanosystem showed a remarkable tumor cell killing ability both in vitro and in vivo by taking advantages of the synergistic PTT, PDT, and chemotherapy triggered by a single 808 nm NIR laser. In the same year, Cheng at al. conjugated bovine serum albumin-gadolinium (BSA-Gd) complexes with MoS2 nanoflakes (MoS2-Gd-BSA) for PTT and bimodal MR and PA imaging [161]. The MoS2-Gd-BSA biocompatible nanosystems presented excellent tumor cell inhibition effectiveness in vitro and could totally ablate cancer in vivo using 808 nm laser irradiation, without any sign of recurrence in the next two weeks of follow up. Maji at al. synthesized a hybrid gold nanobipyramid nanostructure coated with MoS2 (AuNBPs@MoS2) for enhanced photothermal conversion and ROS production-based cancer treatment and simultaneous two-photon luminescence imaging in HeLa cells [162]. Most recent works explored a therapeutic approach based on drug delivery to counteract drug-resistant cancer. In 2018, Dong et al. used a biodegradable hyaluronic acid (HA) and PEI-decorated MoS2 nanocarrier (MoS2-PEI-HA) loaded with DOX [163]. HA was used as a targeting moiety against CD44-overexpressing breast cancer cells (MCF-7-ADR) and, thanks to its localized biodegradation by hyaluronidase concentrated at the tumor site, it also served for controlled and faster DOX release. Moreover, the composite was labeled with 64Cu for PET imaging in vitro and in vivo. Another study also exploited drug delivery through the loading of chitosan and metformin on Mn-doped Fe3O4@MoS2 composites for combined PTT and MR imaging [164]. In vitro data demonstrated that the load with metformin led to hepatic cancer ablation (Hep3B cells) not affecting healthy cell viability (LO2 cells), while chitosan, besides enhancing the dispersibility and biocompatibility of the nanoplatform, and was able to improve the PTT efficiency. Finally, a similar approach was employed in a very recent publication concerning the use of MoS2 for cancer theranostics [165]. In this work, hyaluronic acid (HA)-functionalized MoS2 nanosystems were applied to deliver Gd and the anticancer drug gefitinib (Gef) for combined chemo-PPT and MR. This smart nanoplatform induced the inhibition of lung cancer in vitro and in vivo.

3.2.2. Black phosphorus

Phosphorous is one of the most abundant elements on Earth and can exist in various allotropes, namely white, red, black, and violet phosphorus. Bulk black phosphorus (BP), the thermodynamically most stable allotrope of phosphorus [166], is one of the emerging monoelemental materials, which have shown outstanding potential in biomedical applications [167,168]. It is a semiconductor 2DM with a tunable bandgap dependent on its thickness. In the single-layer form, each phosphorus atom is covalently bonded with the P atom on both sides of the same plane, and the other P atom is in the neighboring plane through the 3p orbitals. BP actively interacts with incident light, owing to its tunable bandgap ranging from UV to NIR, depending on the thickness. Thus, this opens the door for its possible applications in various fields, including bio-photonics, photocatalysis, and bioimaging [169]. In one of the earliest theranostic studies with BP, Sun et al. used PEGylated BP nanopartcles in order to have better stability (single and few-layers BP are unstable in the air), biocompatibility and long-blood circulation. Following PAI in vivo, BP nanoparticles were shown to accumulate in through the enhanced permeability retention effect. NIR light irradiation of these tumors after material injection resulted in photothermal ablation of tumor [170]. Later, other studies used PEGylated BP nanoparticles to improve their anti-cancer activity in theranostics by combining with AuNPs [171] or chemotherapeutic drug DOX [172]. Among the attempts to improve imaging properties, BP has been conjugated to other nanoplatforms for MR or PAI [173-177].

3.2.3. MXenes (carbides and nitrides)

MXenes are among the most recently discovered 2DMs [178]. The term MXenes comprehensively defines early-transition-metal carbides, carbonitrides, and nitrides characterized by structural formula Mn+1Xn, where M is an early transition metal, X is carbon, nitrogen, or both, and n = 1-3. MXenes are synthesized by selective etching the A-group element from the precursor ternary-layered carbides of MAX phases, where A is a group 12-16 elements of the periodic table (Figure 2A-C). MXenes contain abundant surface-terminating functional groups, such as hydroxyl (-OH), oxygen (-O), or fluorine (-F), which endow them with a hydrophilic nature and allow flexible surface modification, functionalization, and scalable processability. MXenes share a number of the advantageous properties of 2DMs for application in biomedicine stemming from their topology, including extreme thinness, high surface area, high surface-to-volume ratio, and mechanical toughness. Furthermore, they show remarkably high volumetric capacitance (1,500 F/cm3) [179] and metallic conductivity (~10,000 S/cm) [180], and rich surface chemistry for enzyme or drug functionalization. The field of cancer theranostics, however, is undoubtedly spearheading the field of biomedical applications of MXenes as they are increasingly attracting attention as PTAs for synergistic chemo/photothermal (PTT)/PDT and imaging, due to the early recognition of outstanding internal photothermal conversion efficiency and light absorption capability [181].

Han et al. demonstrated a platform for PTT, chemotherapy, and imaging-based on Ti3C2 nanosheets (NSs, Figure 2C) functionalized with soybean phospholipids (SP), which significantly improved the colloidal stability of Ti3C2 NSs in a physiological environment without affecting their photothermal properties (Figure 2A) [182]. UV-VIS-NIR absorption spectroscopy on aqueous Ti3C2 solutions showed a characteristic spectrum with peak absorption at ~800 nm, right within the first NIR absorption window. The abundant OH- surface terminations on in Ti3C2-SP MXenes were used to adsorb electrostatically cationic molecules such as DOX (Figure 2A) and achieve a drug-loading capability of up to 211%. Once the Ti3C2-SP-DOX NSs penetrated inside 4T1 breast cancer cells, DOX release was triggered endogenously by the acidic tumor microenvironment through the interference of H+ ions with the electrostatic interactions between DOX and Ti3C2-SP, or exogenously via NIR irradiation (Figure 2A). Compared to single therapeutic modalities, Ti3C2-SP-DOX synergistic chemotherapy and PTT led to enhanced inhibition of 4T1 cancer cell viability in vitro as well as to improved therapeutic and recurrence outcomes in vivo in 4T1 breast cancer-bearing mice. Furthermore, Ti3C2-SP showed significant contrast-enhancement for intratumor PAI up to 24h post-injection. In a similar system, Liu et al. first demonstrated the feasibility of Ti3C2 NSs as PSs for PDT in a synergistic platform for PTT/PDT/chemotherapy. The Ti3C2 NSs-mediated generation of reactive oxygen species (ROS) was investigated with 1,3-diphenyl-sobenzofuran (DPBF) as the singlet oxygen (1O2) detector. NIR irradiation of Ti3C2 NSs at 808 nm for 10 min, led to a ~80% decrease in DPBF absorbance at 420 nm, thus revealing the generation of 1O2. ROS production, although less pronounced, was also observed when Ti3C2-DOX NSs were exposed to the same irradiation protocol [183]. Proposed mechanisms for 1O2 generation in Ti3C2 attributes it to the energy transfer of photoexcited electrons from Ti3C2 to triplet oxygen (ground state oxygen, 1O2), similar to the photodynamic behavior of graphene quantum dots [184] and black phosphorous [185]. Synergistic PTT/PDT/chemotherapy with Ti3C2-DOX led to significant improvements in therapeutic efficacy and recurrence outcomes against human colon carcinoma (HCT-116) in vivo in tumor-bearing mice. The abundant surface terminations in the Ti3C2 NSs also enabled functionalization for specific tumor targeting, such as hyaluronic acid coatings which increased colloidal stability and enabled active targeting of the surface protein CD44+ overexpressed in cancer cells.

To expand the specific tumor-imaging capabilities and realize a theranostic platform integrating multimodal imaging, such as PA, magnetic resonance (MR) and X-ray computerized tomography (CT) imaging (Figure 2D) it is possible to substitute Ti in the M-phase with Ta, a transition metal with higher atomic number (Z=73) and X-ray attenuation coefficient (4.3 cm2 g-1 at 100 keV) [186]. Ta4C3 MXene displays concentration-dependent broadband light absorption in the UV-VIS-NIR [187,188] and high photothermal conversion efficiency (>30%). Ta4C3-SP MXene functionalized with MnOx [187] or superparamagnetic iron-oxide nanoparticles (IONP, Figure 2E-F) [188] realized a multimodal imaging and therapeutic platform where Ta enabled enhanced-contrast in situ CT imaging, MnOx or IONP were the contrast agents for MRI and Ta4C3 was the high-efficiency PTA for PAI and PTT.

The possibility of working with PTA with high conversion efficiency also in the NIR II biowindow (1000-1300 nm) offers several advantages, including higher tissue penetration depth and maximum permissible exposure limit (1 W cm-2) compared to 808 nm (0.33 W cm-2, ANSI Z136.1-2007, American National Standard for Safe Use of Lasers). Compared to Ti3C2 and Ta4C3, Nb2C MXene shows a strong and almost constant optical absorption in the NIR I and NIR II biowindows [189] (Figure 2G). Taking advantage of this favorable broadband absorption, Lin et al. demonstrated a theranostic platform for PTT and PAI in 4T1 breast cancer cells based on Nb2C NSs stabilized with biocompatible polyvinylpyrrolidone (PVP) with photothermal conversion efficiencies of 36.5% at 808 nm and 46.65% at 1064 nm, respectively [189]. In the attempt to extend the optical absorbance range of Ti3C2, Tang et al. proposed a Ti3C2-Au nanocomposite synthesized by seed-growing Au on the surface of the Ti3C2 NSs (Figure 2H), followed by PEGylation to achieve colloidal stability. The Au decorations significantly enhanced the photothermal conversion efficiency compared to Ti3C2 NSs of both at 808 nm (34.3% Vs. 30.7%) and 1064 nm (39.6 Vs. 28.3%, Figure 2I). Furthermore, the strong X-ray absorption capability enabled simultaneous CT and PAI up to 24-h post-injection (Figure 2J), as well as a synergistic PTT/radiotherapy platform. Interestingly, synergistic PTT/ radiotherapy appeared to most effectively inhibit breast cancer growth in vivo compared to PTT or radiotherapy alone [190].

Possible challenges when engineering 2DMs as drug-delivery carriers are the lack of a confined space for high loading of drugs, as well as achieving optimal drug release profiles. To enhance drug loading/release capabilities and tumor targeting Li et al. surface-engineered Ti3C2 MXene via sol-gel chemistry to create a mesoporous silica shell directly on the NSs (Ti3C2@mMSNs) using cetanecyltrimethylammonium chloride (CTAC) as the mesopore-directing agent and tetraethylorthosilicate (TEOS) as the silica precursor in an alkaline environment. The resulting Ti3C2@mMSNs showed a uniform structure with high pore volume (0.96 cm3 g-1) with an average size of 3.1 nm. The NSs were also functionalized with arginine-glycine-aspartic acid (RGD) for specific tumor targeting and DOX for chemotherapy. Drug delivery through the Ti3C2@mMSNs was triggered via combined pH modulation, with an enhanced release in an acidic environment, and local hyperthermia through NIR irradiation [191]. As the positively-charged surfactant, CTAC shows chemotherapeutic effects, Han et al. [192] proposed a similar surface-engineering scheme based on 2D Nb2C MXenes coated with mesoporous silica shells (CTAC@ Nb2C-MSN) and functionalized with RGD (Figure 2K).

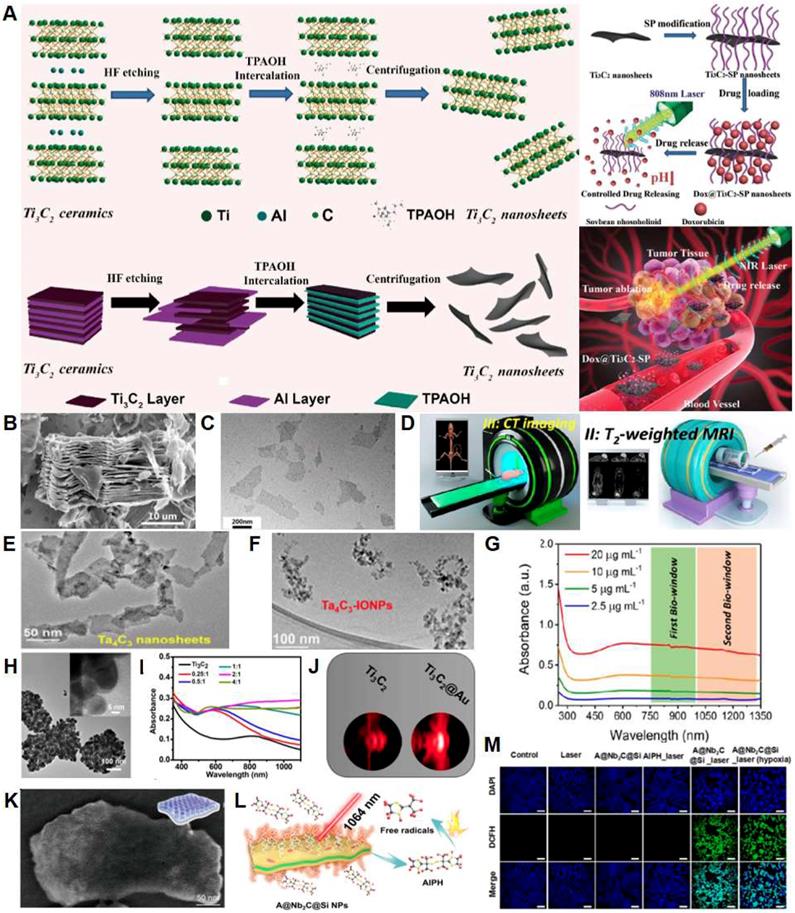

 Figure 2

Illustration of MXene properties. (A) Schematic representation of Ti3C2 MXene NSs synthesis, functionalization with SP and DOX for colloidal stability and multistimuli-triggered chemotherapy, and illustration of a synergistic platform for cancer therapy based on Ti3C2 MXene NSs. (B) Scanning electron microscopy (SEM) of Ti3C2 after HF etching of the A phase and (C) transmission electron microscopy (TEM) of Ti3C2 NSs after exfoliation. Adapted with permission from [182], copyright 2018 Advanced Healthcare Materials. (D) Dual-mode CT/MR imaging contrast-enhanced by Ta4C3. (E, F) TEM of Ta4C3 (E) before and (F) functionalization with IONPs. Adapted with permission from [188], copyright 2018 ACS Nano. (G) UV-VIS-NIR absorption spectra of Nb2C MXene NSs at different concentrations. Adapted with permission from [189], copyright 2018 Journal of the American Chemical Society. (H) TEM of Ti3C2@Au nanocomposites. (I) UV-VIS-NIR absorption spectra of Ti3C2@Au-PEG at varying Au/Ti ratios. (J) PAI enhancement with Ti3C2@Au compared to Ti3C2 at the same Ti3C2 concentration (0.5 mg/mL). Adapted with permission from [190], 2018 ACS Nano. (K) High-resolution SEM of CTAC@ Nb2C-MSN NSs. Reproduced with permission from [192], copyright 2018 Theranostics. (L) Schematic illustration of free-radical generation with AIPH@Nb2C@mSiO2 nanocomposites under NIR irradiation at 1064 nm. (M) Photo-thermodynamic free-radical generation with AIPH@Nb2C@mSiO2 in 4T1 breast cancer cells detected by dichlorodihydrofluorescein diacetate (DCFH-DA) fluorescence under normoxic and hypoxic conditions. Adapted with permission [193] from 2019 ACS Nano.

Theranostics Image

(View in new window)

Due to the mesoporous silica reservoir and the broadband absorption of Nb2C NSs, the CTAC@ Nb2C-MSN display a drug loading capacity of 32.7% and photo-triggered release upon irradiation at 1064 nm, although the photothermal conversion efficiency appears to be lower than unmodified Nb2C-PVP NSs [189]. Feasibility of CTAC@ Nb2C-MSN as PTA in a synergistic PTT-chemotherapy and PAI theranostic platform was demonstrated against U87 glioblastoma cell lines in vitro and in vivo on glioblastoma-bearing mice.

Effective generation of ROS is critical for PDT. ROS generation is controlled by local oxygen tensions, which affects PDT efficiency in the hypoxic tumor microenvironment. To circumvent this issue, Xiang et al. developed an alternative “thermodynamic” cancer treatment strategy based on the thermally-activated free-radical generator 2, 2′-Azobis[2-(2-imidazolin-2-yl)propane] dihydrochloride (AIPH) loaded into the mesopores on a silica-coated Nb2C MXene (AIPH@Nb2C@mSiO2, Figure 2L). AIPH is a hydrophilic and thermo-labile molecule that can generate ROS independent of oxygen concentration. Therapeutic efficacy of the synergistic PTT and free-radical generation via hyperthermia under NIR-II irradiation was demonstrated in vitro in both normoxic and hypoxic conditions (Figure 2M) and in vivo, resulting in complete tumor eradication in breast cancer-bearing mice. AIPH@Nb2C@mSiO2 was also demonstrated to be an effective multimodal imaging agent for real-time monitoring of the cancer therapeutic process via PAI, fluorescence and photothermal imaging [193].

The results obtained thus far on MXene-based theranostic platforms are encouraging. However, the field is still in its infancy and there is extensive work to be done in order to fully realize the potential of MXenes as nanoagents for multimodal cancer therapy and imaging. Future work is required to elucidate the fundamental principles controlling the photothermal conversion and ROS generation activity of MXenes, as well as to fully expand and explore the capabilities of the different species available in the library of MXenes. Most importantly, the long-term safety profiles of MXenes need to be thoroughly and extensively elucidated. They are being the first discovered and the most extensively characterized, many of the preliminary studies available focus on Ti3C2 biocompatibility. To date, there is no reported evidence of apoptosis or signs of cytotoxicity in vitro on cancer cells [182,194-196] and cultured neurons [197] from Ti3C2 exposure. Ti3C2 NSs injected in vivo in the bloodstream appear to be either excreted in the urine via physiologic renal clearance or retained in the tumor via the enhanced permeability and retention (EPR) effect, without evidence of accumulation in the major organs. Additional works report no sign of Ti3C2 NSs-induced red blood cell hemolysis in vitro [196], and similar findings have been reported for the cyto- and systemic biocompatibility for Ta4C3 [187,188] and Nb2C MXenes [189].

Finally, controlling the lifetime of the nanoagents in the body and mitigating the risks related to retention of nanomaterials and their byproducts, could significantly advance nanomaterial-based theranostic platforms in the translational pipeline. Recently, an active biodegradation scheme for Nb2C MXene NSs has been proposed [189]. This process leverages human myeloperoxidase (hMPO), a free-radical species generating enzyme expressed by neutrophils to carry out their antimicrobial activity. In the presence of H2O2, hMPO generates hypochlorous acid and reactive radical intermediates, which degrade polymers and carbon-based materials. The incubation of Nb2C NSs in hMPO and H2O2 enriched medium for 24 h caused the complete degradation and disappearance of NSs, thus demonstrating in vitro the feasibility of this enzyme-triggered degradation route for MXenes.

3.2.4. Other emerging 2D materials: graphdiyne, hexagonal boron nitride, silicene, antimonene, germanene, biotite, metal-organic frameworks, and layered double hydroxides

Beside the abovementioned 2DMs, it is worth considering other kind of emerging 2DMs with strong potential in the field of cancer theranostics. Considering the large number of 2DMs available, we have considered new 2DMs that are representative of less than the 6% of the works present into the literature: graphdiyne, hexagonal boron nitride, some members of the Xenes family such as silicene, antimonene (AM), and germanene [167], biotite, metal-organic frameworks (MOFs), and layered double hydroxides (LDHs).

i) Graphdiyne. Graphdiyne is a carbon allotrope made of a combination of sp- and sp2-hybridized carbon atoms, which was first synthesized in 2010 [198]. This particular structure gives these material different physicochemical properties when compared to graphene, which is only formed by sp2-bonded carbons. It is characterized by uniformly distributed subnanometer pores, making GDY a potential candidate for applications in the area of clean energy as a new system for gas separation [199]. From a biomedical point of view, GDY shows outstanding drug loading efficiency and high photothermal conversion ability, making it a promising tool for tumor-fighting. In this view, few recent works have started to explore its application for cancer treatment, such as the study of Jin et al., which applied GDY as a dual therapy platform for PTT and combined drug delivery of DOX in vitro and in mice [200]. A very recent study of Li et al. also designed a specific GDY nanoplatform for cancer diagnosis as a photoelectrochemical biosensor for ultralow levels of cancer marker detection (microRNA let-7a) in human serum [201]. In 2017, GDY was introduced in cancer theranostics as photothermal-acoustic wave nanotransducer for simultaneous PTT and PAI in vivo - this is the only study published in the field so far, to the best of our knowledge [202]. Thanks to the PEGylation-enhanced biocompatibility, GDY was simultaneously exploited as a safe PTT agent and a PAI probe. Owing to the high extinction coefficient in the NIR region and the excellent photothermal conversion efficiency (42%), the nanoplatform showed an outstanding photoacoustic response and an ideal photothermal capability, exhibiting an efficient photothermal ablation of tumor in vivo.

ii) Hexagonal boron nitride. Structurally, single-layer hexagonal boron nitride is an analog of graphene, where B and N atoms are bonded to form a hexagonal lattice. Despite the structural similarity, h-BN has very different properties compared to graphene: it is an insulator and has exceptional chemical and thermal stability, which make it an ideal encapsulating layer in 2DMs based devices [203,204]. In the biomedical field, a great deal of studies focused on applications of boron nitride nanotubes, since their biocompatibility profile was more favorable compared to carbon nanotube counterparts [205,206]. Thus, the interest in h-BN nanosheets for biomedical applications has emerged only in recent years, driven by the availability of highly concentrated h-BN dispersions in water [207]. Yang et al. [208] first reported exfoliation of h-BN using pyrene derivatives in order to synthesize water dispersible and stable dispersions of h-BN. The method was further improved by McManus et al., which demonstrated highly concentrated dispersions with excellent biocompatibility profile in different cell lines up to a concentration of 100 µg/mL [209]. Proof of concept studies reported the potential application of h-BN as a vector for the delivery of chemotherapeutic agents (e.g., DOX), oligonucleotides for immunotherapeutic purposes in cancers, and, recently, for the combined PTT and chemotherapy [210-213]. Application of h-BN nanosheets in the field of theranostics is still in its infancy, with only one work proposing h-BN for theranostic applications [214] so far, to the best of our knowledge. In detail, Liu et al. developed a multifunctional CuPc@HG@BN theranostic platform composed of hexagonal boron nitride nanosheets (h‐BNNS), conjugated DNA oligonucleotide, and copper (II) phthalocyanine (CuPc). CuPc molecule in this construct plays a double role as a PS for PDT as well as a diagnostic tool for in situ monitoring and imaging of miR‐21 by surface‐enhanced Raman spectroscopy (SERS). miR-21 was selected as a target miRNA with expression levels significantly elevated in a variety of cancers, especially in breast cancer [214]. The main reason for using h-BN nanosheets in this composite was to improve the SERS signal obtained from CuPc molecule. Interestingly, Raman signal of CuPc was negligible on the blank SiO2 while remarkable on h‐BN nanosheets and higher than the one on other 2DMs with the same number of layers, such as graphene and MoS2. The SERS signal enhancement was attributed to the interface dipole interaction between h‐BN nanosheets and CuPc induced by the highly polar B-N bond. Moreover, the intensity of CuPc was independent of the h‐BNNS thickness. Both in vitro and in vivo data demonstrated that this nanoplatform accumulates efficiently in tumor sites and has a remarkable therapeutic effect with minimized damage to healthy tissues [215].

iii) Silicene. Silicene has attracted increasing attention in the theranostic field. It belongs to the family of Xenes, which are 2DMs with X being Si, Ge, Sn, Sb, etc. This crystal is characterized by a hexagonal honeycomb lattice presenting a non-planar buckled configuration. Thanks to its dimensionaliy, silicene stands out due to its oustanding properties, which include superconductivity [216], quantum spin Hall magnetoresistance [217,218] and chirality [219], to name a few examples. In a recent work in cancer theranostics, silicene was used as biodegradable phototherapeutic agent [220]. In particular, the authors functionalized silicene with bovine serum albumin (SNSs-BSA) for cancer PTT and PAI of mice tumor xenografts. In vivo data demonstrated the efficiency of SNSs-BSA-based cancer PTT, due to the high photothermal conversion performances showed by the nanosystem and its resulting degradation accelerated by the photothermal activity. These outstanding properties, along with SNSs-BSA extraordinary photoacoustic contrast as well as intrinsic ambient degradability and biocompatibility, make silicene a promising multifunctional nanoplatform for photo-triggered therapeutics and diagnostic imaging.

iv) Antimonene. Antimonene is a member of the Xenes with X=Sb, which attracted strong interest in the community due to its changes in electrical properties with decreasing thickness, from semimetal into semiconductor at the single layer [221,222]. Indeed, AM is characterized by high thermal conductivity, superior stability, excellent carrier mobility, good strain-induced band transition, and unexpected spintronic properties [221-224].

In a recent study by Tao et al., antimonene was studied as a photothermal agent for minimal invasive and high selective PTT [225]. The strategy adopted by the authors relied on the application of novel 2D AM quantum dots for cancer treatment. The nanosystem, synthesized by liquid exfoliation method and functionalised with PEG to enhance its biocompatibility and stability, exhibited a rapid NIR-triggered degradability and a noteworthy NIR-triggered tumor ablation in vitro and in vivo. Encouraged by these promising results, in a more recent study, the same group further explored AM as an innovative photonic drug-delivery nanosystem for cancer theranostics [223]. PEGylated AM nanosheets have shown superior accumulation and penetration at tumor sites, but to their extraordinary photothermal properties, excellent DOX-loading capacity, controlled NIR light- and pH-triggered drug release, fully metabolic degradability, as well as multimodal-imaging properties (i.e., PAI/fluorescence imaging and PT imaging). The combination of these outstanding properties resulted in a noteworthy inhibition of tumor growth in vivo without recorded side effects and optimal clearance of the nanoplatform from the mouse body, suggesting promising applications in the field of cancer theranostics.

v) Germanene. Germanene belongs to the Xenes family and shows promising properties for application in electronics [226,227]. In the theranostic field, an innovative study has been successfully performed by Ouyang et al., leading to the development of functionalized 2D germanene quantum dots (GeQDs) [228]. GeQDs were assessed to be excellent PTAs owning an outstanding photothermal conversion efficacy (superior to graphene and BP-based QDs) [225], higher stability [167], and optimal biocompatibility [225]. Moreover, in order to define a complete multimodal nanosystem for cancer theranostics, beside the therapeutical aspects, GeQDs were proved to be useful also for multimodal diagnostic imaging (fluorescence/PAI /photothermal imaging-guided hyperpyrexia ablation of tumors).

vi) Biotite. Biotite, or black mica (BM), consists of sandwiched sheets of silicate minerals offering great potential in the theranostic field. The unique structure of BM lays the foundations for the design of a multiple ROS-mediated combined PDT and chemodynamic therapy (CDT). Indeed, the BM-PEG NSs recently introduced by Ji et al. [229] served as robust theranostic nanoplatform for multimodal imaging-guided chemodynamic therapy, PDT and PTT. Thanks to the presence of MgO, Fe2O3, and FeO in the PEGylated BM structure, this new engineered theranostic system emerged as an intelligent tool with unique features. The BM-PEG NSs can be activated by a 650 nm laser, in order to produce anion superoxide ·O2- from molecular oxygen (O2), or by a 808 nm laser to induce local hyperthermia. Moreover, PAI as well as fluorescent and photothermal imaging capabilities of the engineered nanosystem enabled the multimodal imaging-guided breast cancer treatment.

vii) Metal-organic frameworks. These materials are composed by coordinated metal cations or clusters, which are held together by organic bridging ligands, creating a porous structure [230-234]. Typically, MOFs have a 3D structure, but they can also be made in a layered form, bridging the field of 2DMs. In the theranostic field these materials have shown exceptional promise [8].

For example, in a recent study, Zhao et al. tested a new theranostic MOF-based nanoplatform, where the material is used as both magnetic resonance-contrast agent and DOX carrier, enabling an improved therapeutic outcome compared to the one obtained with DOX alone [235]. Following the same path, another group designed a MOF-based theranostic Fe3O4@UiO-66 core-shell for combined MRI and drug delivery [236], obtaining tumor eradication in both in vitro and in vivo studies. Another MOF-based tumor targeting drug delivery system with fluorescent properties was developed by Gao et al. allowing the guided-MRI of cancer [237]. Further works regarding the application of imaging-trackable MOFs into PDT [238,239] and PTT [240] were carried out with positive results, exploring also MRI as a diagnostic modality combined with multiple therapies (i.e., drug delivery and PTT) in a single MOF-based system [241].

viii) Layered double hydroxides. 2D structured layered double hydroxides have aroused extensive curiosity in the scientific community. New intercalative nanohybrids, such as inorganic-, organic- and bio-LDHs, have displayed extremely synergetic properties and complementary performances, being used first as antacid and anti-pepsin agent named “Talcid®” (Bayer) [242] and then as a biocompatible carrier/reservoir for drug and gene delivery [243]. LDH is a class of inorganic 2D nanolayers [244,245] and one of the most commonly used nano-carriers in drug delivery systems. In the theranostic field, LDH-based nanohybrids, found a place for multimodal imaging in combination with different anticancer therapeutic approaches in order to realize synergistic treatments. LDHs have been widely studied as delivery carriers for theranostic approaches in different therapies, including drug and gene delivery, phototherapy and even immunotherapy [246-251]. Following this line of research, Wang et al. [246] developed a Gd-doped layered double hydroxide (LDH)/Au nanocomposite for cancer bimodal imaging of and drug delivery. The new nanocomposite was shown to have a high DOX loading capacity and an interesting pH-responsive drug-release profile. Moreover, the nanosystem demonstrated a high performance in vitro and in vivo CT and T(1)-weighted MRI attitude without cytotoxicity or tissue damage. Another pH-responsive nanoplatform was tested by Huang et al. [247]. The new MnFe-LDH releases paramagnetic Mn2+ and Fe3+ ions when in contact with the acidic microenvironment of solid tumors producing the enhancement of the T1 MRI contrast. In addition, the layered structure enables the delivery of chemotherapeutic drugs in a pH-controlled manner, and therefore it can simultaneously inhibit the growth of solid tumors.

Interestingly, Peng et al. [250] studied a DOX&ICG/MLDH composite material showing both pH-controlled and NIR-irradiation-induced DOX release, which included in vivo dual-mode imaging consisting in NIR fluorescence and MRI.

A step forward has been taken by Zuo et al. [251] with the delivery of dsDNA/siRNAs to Neuro-2a cells, thanks to the development of innovative manganese-based layered double hydroxide nanoparticles, explored for anticancer drug/gene delivery system and T1-weighted MRI for brain cancer theranostics.

In addition to imaging and drug delivery, Guan et al. [248] developed a NIR-sensitive layered supramolecular nanovehicle for a chemo-photothermal synergistic therapeutic agent. The particular structure of Gd-LDH not only stabilized ICG, enhancing the photothermal capacity, but also improved the recombination between electron and holes, generating more ROS under NIR irradiation.

4. The importance of 2D material characterization for theranostics

Characterization of nanomaterials is of fundamental importance for the successful development of commercial applications [252], in particular in the context of human health and safety because the biological and toxicological properties of the nanomaterial are directly determined by its structure.

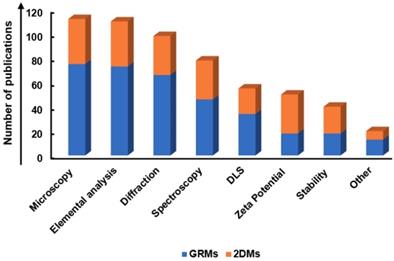

In the case of 2DMs, the importance of characterization has been recognized as a high priority by the community [253-256]: this is because different forms of graphene-based materials - each of them with its own properties - can be made, depending on the production method and processing used. For example, using graphene oxide provided by different commercial sources may give different results because it is produced using different protocols, giving rise to materials with a different structure (e.g., C/O content), which will behave differently in the biological environment (see stability, degree of functionalization, etc). A change in the exfoliation parameters used to produce graphene by liquid-phase exfoliation can provide graphene with different size, thickness or defects concentration [256]. Similar issues can be extended to other 2DMs. Thus, it is of primary importance to determine the nature of the material produced and how this changes during the processing. In the case of biomedical studies, as the nanomaterial is often functionalized to achieve improved stability or biocompatibility or it is loaded with NPs or drugs, used for imaging or to deliver the therapy, a careful analysis of the properties from synthesis to the final vector is of crucial importance.

Recently, the community has introduced some guidelines to establish universal practices to allow a better classification of solution-processed 2DMs, based on specific parameters, such as thickness, size, and surface chemistry [253]. However, characterization of solution-processed 2DMs is currently very challenging because dispersions typically contain nanosheets with a wide distribution in size and thickness, in contrast to traditional colloidal dispersions. Thus, a combination of different techniques (Table 5A, Table 5B), ranging from nanoscale to microscale resolution, must be used to characterize solution-processed 2DMs. Furthermore, due to the different nature and dimensionality of solution-processed 2DMs, characterization methods typically used for colloids may have limited validity, when applied to 2DMs. In this section, we provide an overview of the most used techniques for characterization of 2DMs used for theranostics (Table 5A, Table 5B). The following sections are dedicated to the different characterization methods (and refer to Figure 3 for an overview).

 Table 5A

Table summarizing the different methodologies for the characterization of GRMs.

RefMaterialCharacterisation Techniques
GRMsAcronymMicroscopyElemental Analysis/ DiffractionSpectroscopyZeta Potential/ DLS/Stability/Others
Luo et al. Chem Comm (2019)GOCAD-SPIONs@GOTEM: GO height= 0.5-1.1 nm & size= ~100 nm.XPS shows partial reduction.;
XRD confirmsGO
RS: confirm SPION growth on GO; FT-IR confirms functionalisation with CAD; 1H NMR confirms functionalisation of GO with CADZeta: GO = -52 mV & CAD-SPIONs@GO = +201 mV; DLS: GO = 127 nm & CAD-SPIONs@GO = 175 nm; TGA confirms functionalisation
Diaz-Diestra et al. Nanomaterials (2018)rGOFA-rGO/ZnS:Mn QDsTEM: GO size =200-500 nm; SEM: ZnS:Mn NPs well dispersed onto the surface of rGO.SAED confirms ZnS:Mn; XRD: peak at 10° for GO, which disappears for rGO/ZnS:MnRS: confirms reduction of GO & functionalisation with QD & ZnS; UV-Vis&FTIR: confirms reduction & functionalization.Zeta: increases from +5.5 mV to -18 mV with FA conjugation of rGO-ZnS:Mn in PBS; Stability: Stable for 24 h, in cellular media supplemented with FBS
Usman et al. PLoS ONE (2018)GOBITTEM: confirms formation of the hybrids; size= 200-500 nmICP‒ES & EDS: C & H % increase from GO to BIT. Gd & Au detected; XRD: peak @ 10° for GO, broadening & downshifts after functionalizationUV-Vis: confirms drug loading & release; RS(532nm): I(D)/I(G) = 0.84 for GO; =0.86 for GOGCA; = 0.94 for final BIT composite; FT-IR: confirms functionalization.TGA: confirms the composition of the hybrid
Usman et al. Molecules.(2018)GOGAGPAu (or GOTs)HRTEM: AuNPs have size of 2 nm, size of the NS (from pictures) ~500 nmXRD: peak @ 10° for GO, broadening & downshifts after functionalizationRS(532nm): I(D)/I(G) = 0.84 for GO; 0.86 for GOGCA; 0.94 for final composite; FT-IR: confirms functionalization.TGA: confirms the composition of the hybrid
Ko N.R. et al. RSC Adv.(2017)GQDsG2, GQD-βCD, & GQD-comp, DL-GQDFE-SEM&FE-TEM: GQD size= ~20-40 nm, GQD-comp height= 6-7 nmEDX: C, N, & O elementsUV-Vis&FT-IR: confirms surface functionalisationDLS: GQD- NH2 has size of 26 nm, GQD-comp has size of 222 nm; TGA confirms the composition of the hybrid
Bahreyni et al Int J Pharm. (2017)GOMUC1 aptamer-NAS-24 aptamer-GO, MUC1 aptamer-Cytochrome C aptamer-GOAFM: GO size= 195nm, slight increase after complexingFT-IR: confirms GO
Zhang C. et al. RSC Adv. (2016)NGONGO-PEG-ICG/PTXAFM & TEM: NGO size= 70 nm & NGO-PEG-ICG/PTX size= 95 nm. Height= ~1-2 nmFT-IR: confirms PEGylation; UV-vis: confirms conjugation with ICG & PTX.Zeta: -29 mV; DLS: ~100 nm, no change over time in PBS & FBS
Wang X. et al. J. Mater. Chem. B (2015)GQDsAS1411-GQDsAFM: GQD size= ~30 nm & height = ~1 nm.UV-Vis: confirms conjugationZeta: GQD = -21 mV
Dong et al ACS Appl Mater Interfaces.GQDsf-GQDsTEM&AFM: GQD size= ~17 nm & height= ~1.3 nm, f-GQDs size = 22 nm, height = 1.7 nm; HRTEM: d-spacing of 2.5 ÅXPS: confirms GOFT-IR: confirms functionalizationZeta: GQD = -30 mV, GQDs-PEG = -15 mV, f-GQDs = -5 mV.
Yang HW et al. Biomaterials. (2014)NGOGd-NGO/Let-7g/EPIAFM: NGO-COOH & Gd-NGO size=~150 nm & heights= ~1.8 nm &~3 nm.XPS: confirms oxidation & conjugation (22.8%).UV-Vis: EPI adsorption confirmedZeta: Gd-NGO= +48 mV & Gd-NGO/Let/EPI= +33 mV; TGA: conjugation confirmed.
Wang C. et al Colloids Surf B Biointerfaces (2014)GOGO-RGD-ChitosanAFM: RC-GO-DOX height= 2.3 nm, larger than height of GOFT-IR& UV-Vis: confirm loading of DOX & RC; 1H NMR: confirms RGD modification of CSZeta: GO= -33.6 mV, RC-GO-DOX=+31.6 mV
Nie L. et al. ACS Nano (2014)GOGO-Cy5.5-DoxAFM: GO-PEG size = ~10 nm, GO-PEG-Cy5.5-Dox size = ~30 nm & height= ~6 nm.UV-Vis: confirms successful conjugation of Cy5.5 & DOX.
Some S. et al Sci. Rep. (2014)GO, GDO & GQDsGO-Cur, DGO-Cur & GQD-CurSEM: confirms Cur loading. Cur NPs size = 120-150 nm; HRTEM: GQD size= 3-6 nm; AFM: GO & DGO size= 1-10 um.XPS: C/O ratio= 2.2 for GO; ~1 for DGO; < 1 for GQDsFT-IR &UV-Vis: confirm Cur functionalisation of GO, DGO & GQDStability: GQDs were readily water-dispersible
He D. et al (Langmuir) (2014)GOGO Capped Mesoporous SilicaTEM: MS- NH2 size= ~100 nm, capping of MS-BA by GO is confirmed.XRD: confirms uniform mesostructure of MS- NH2.FT-IR&UV-Vis: confirm BA functionalisation & PEGylationZeta: MS-BA-GO = -29 mV.
Chen M.L. et al (Bioconjugate Chem.) (2013)Gr-HQDsGr-HQDsTEM: Gr-PSS, Gr-HQD to show morphology of NS & uniform distribution of HQD on GrXPS: confirms reduction & functionalization; EDX: confirms conjugation,UV-Vis: confirms DOX loading & GO reduction & conjugation.; RS(633nm): I(D)/I(G) = 2 for GO & 1.36 for GO-PSS.Zeta: Gr-PSS= -38 mV; Gr-PSS-PAH-HQDs-Trf = +8.3 mV; Stability: Gr-HQDs stable in water & biological solution for 4 h at 37 °C
Ma X. et al. J. Mater. Chem. B, (2013)GOAu@NGOTEM & FE-SEM: Au@NGO size <100 nmXRD: confirms Au in the compositeRS (488 nm): confirms GO in the composite; FT-IR & UV-Vis: confirms conjugation of AuNPsZeta: Au@NGO = -28 mV; DLS: Au@NGO= 98 nm in water & 134 nm in DMEM.
Chen Y et al ACS Nano.(2013)rGOrGO/Au/Fe3O4&rGO/BaTiO3/Fe3O4HRTEM: Fe3O4 NP covered by thin layers of rGO (~2 nm height); SEM: NP-rGO size= 300-700 nm.XRD: rGO peak at ~18°RS: broad D & G peaks visible, confirming the presence of GO.Zeta: GO= -40 mV; GO/Fe3O4 system shows positive zeta for pH <7 & negative zeta for pH >7.
Zhang M. et al ACS Appl. Mater. Interfaces, (2013)GOGO-DTPA-GdAFM: GO size= 100-300 nm & height= ~1.0 nm.XPS: confirms DTPA conjugationFT-IR: confirms PEGylation; UV-Vis: conjugation with DOX confirmedZeta: GO-COOH= -47 mV, GO-PEG= -16 mV; Stability: no aggregation for 1 d in FBS & CCM
Wang Y. et al Small (2013)GOMGMSPISEM: MGMS size= ~200nm, smaller than GO; TEM: spherical NPs evenly distributed on GO; HRTEM: Fe3O4 NPs size= 4-15 nm.RS(633nm): D, G & 2D b& confirm GO presence. I(D)/I(G)>1; FT-IR&UV-Vis: confirms conjugation & reduction.TGA: confirms reduction of Gr when covered with MGMS
Wang C et al. J Mater Chem B Mater Biol Med. (2013)GODOX-CMG-GFP-DNATEM: CRGO size= ~150nmFTIR: confirms functionalisation; UV-Vis: confirms DOX loading.DLS: CRGO= 126 nm, DOX-CMG= 91 nm
Shi S. et al Biomaterials (2013)rGO64Cu-NOTA-RGO-TRC105SEM & AFM: size= 20- 80 nmZeta: RGO-PEG- NH2= -20 mV, NOTA-RGO-TRC105= -2 mV; DLS: RGO-PEG- NH2= 22 nm, NOTA-RGO-TRC105= 37 nm
Gao Y et al Colloids & Surf. B Biointerfaces (2013)GOGO-SiO2SEM & TEM: SiO2 size= 70-80 nm, GO of micron-size.FT-IR&UV-vis: confirm conjugation of GO & SiO2 as well as DOX loading.
Hong H. et al. ACS Nano (2012)GOGOAFM: GO-PEG- NH2, NOTA-GO & NOTA-GO-TRC105 have size= 0 - 50 nm.Zeta: GO-PEG- NH2= -4.8 mV, NOTA-GO-TRC105= -0.1 mV; DLS: GO-PEG- NH2= 22 nm, NOTA-GO-TRC105= 27 nm
Kim H. et al Bioconjugate Chem. (2011)GOGO-BPEIAFM: GO size= 500-600 nm & height= 0.6-1.3 nm, BPEI-GO/pDNA size= 300-400 nm & height=16-18 nm.FT-IR&UV-Vis: confirmation of BPEI functionalisationZeta: GO=-30 mV, GO-BPEI= +40 mV; Stability: stable in water, PBS & DMEM media for 1 hr
Sun X. et al Nano Res. (2008)NGOnGO-PEGAFM: GO size= 10-300 nm & height= ~1.0 nm, NGO-PEG mostly <20 nm.FT-IR: confirms PEG functionalisation; UV-Vis: confirms conjugation.
Li P. et al. Biomater. Sci. (2018)NGOUCNP@NGOTEM: UCNPs size= ~55 nm & NGO size= ~200 nmFT-IR: to confirm coordination of UCNP on NGO;DLS: NGO= ~100 nm & UCNP@NGO= ~200 nm; TGA: 5 wt% of OA & 34wt% of UCNPs on NGO.
Bi H. et al. ACS publications (2018)GOGO/ZnFe2O4/UCNPs (GZUC)AFM: GO height= 1-2 nm; TEM: UCNPs high monodispersity & size <10 nmICP-MS: mass ratio GO:UCNPs:ZnFe2O4 = ~1:2:2; XPS: Zn & Fe peaks; XRD: confirms ZnFe2O4 & hexagonal NaGdF4 in GZUCUV-Vis: strong absorption peak of GOZeta: UCNPs = ~-12 mV, GZUC-PEG = ~-18 mV; DLS: GZUC-PEG= ~400 nm.
Gulzar A et al. Dalton Trans (2018)NGONGO-UCNP-Ce6 (NUC)AFM&TEM: NGO-PEG size = ~100 nm, single layer.XRD: confirms UCNPsUV-Vis: confirms Ce6 loading on UCNPs-NGO; FT-IR: confirms PEGylation
Zhang Y. et al. J. Mater. Chem. B. (2017)GOGO/Bi2Se3/PVPAFM&TEM: GO size = 100-500 nm & height = ~1 nm; HRTEM: NPs size = ~3-9 nm.EDS: confirms C, Bi & Se in GO/Bi2Se3/PVP; XRD: GO peak @ 11.4°FT-IR: confirms GO & functionalisationZeta: GO= -18 mV; DLS: GO/Bi2Se3/PVP= ~ 149 nm
Gao S et al Biomaterials (2016)GOCPGATEM: CPGA size= ~230 nm, NP loading shown; AFM: CPGA height= ~15 nm.UV-Vis confirms composite formationZeta: CPGA= -25 mV; DLS: ~230 nm; Stability: 1 d storage (UV-vis-NIR).
Kalluru P et al. Biomaterials (2016)NGOGO-PEG-folate-mediated NmPDTAFM&TEM: ~100 nm sizeRS: D & G peak visible; FT-IR: confirms composite; UV-Vis: confirms functionalization of GODLS: ~100 nm
Lin LS et al. Nanoscale. (2016)rGOPEG-rGO-GSPsTEM & AFM: GO size= ~150 nm, GNPs= ~14 nmUV-Vis: confirms reduction of GO; RS: broad D & G peak visibleDLS: 3 GO-GSPs with size: 60 nm, 90 nm & 130 nm; Stability: stable in water, PBS, CCM & FBS for 3 d
Luo S et al. ACS Appl Mater Interfaces. (2016)NGONGO-808AFM&TEM: NGO size= 100-500 nm & height= 1 nm, NGO-808 size = 20 40 nm & height= ~3 nm.FT-IR: confirms functionalization; 1H NMR: confirms PEG functionalization
Hu D et al Theranostics. (2016)GOICG-PDA-rGOAFM: GO size <1 µm, height= ~0.86 nm, ICG-PDA-rGO no size change, height>2 nm.XPS: shows some GO reduction after functionalisation.UV-Vis: confirms conjugation with ICG
Huang G et al Nanoscale (2015)GOIO/GO-COOHAFM&TEM: GO-COOH = 300-600 nm size & height= ~2 nm, IO-13/GO-COOH similar size & height= ~25 nm.FT-IR: to show COOH functionalisation.Stability: no aggregation for 30d
Kim YK et al. Small. (2015)GOPEG-Au@GON NPsAFM&TEM: GON size= 10 -15 nm & height= 1.2 nm; TEM: spherical shape of Au@GON size= ~60 nm, NPs with 2-3 nm thick GON shell.Elemental analysis: C/O ratio=0.40; XPS: GO & Au peaks observed.FT-IR: confirms conjugation of Au; RS: I(D)/I(G) of GON= 0.79 & Au@GON =0.83.Zeta: Au@GON NPs= -58 mV, GON=-47 mV; Stability: PEGylated composite showed better stability after 20min storage (UV-Vis)
Rong P. et al. RSC Adv. (2015)GOGO-PEG-CysCOOHAFM: GO size = ~200 nm, GO-PEG size <~50 nm & height= ~1.5 nm, GO-PEG-CySCOOH height = ~2 nm.UV-Vis: Confirms successful functionalization;Stability: Good stability in water, PBS, cell medium, FBS
Yan X et al. Nanoscale. (2015)GOGO-PEG-DVDMSAFM: GO-PEG size= ~ 14 nm & height= 1.3 nm. GO-PEG-DVDMS size= ~ 20.5 nm & height= 1.5 nm.UV-Vis: confirms functionalization with DVDMS
Zhang H et al. Biomaterials. (2015)GOGO/BaGdF5/PEGTEM&AFM: GO size= ∼ 200 nm & height= ~1.0 nm, smaller size of GO/BaGdF5/PEG.XRD: confirms BaGdF5 formation; GO peak @ 11.3° disappearsFT-IR: confirms functionalization; UV-Vis: confirms reduction of GOZeta: GO= -20 mV; Stability: good stability in water, saline, PBS, RPMI-1640 & FBS; TGA: BaGdF5= ~42 wt%
Gollavelli G. et al Biomaterials (2014)MGFMFGAFM: size= ∼40 nmFT-IR: confirms functionalizationStability: MFG-SiNc4 stable in water & in biological media
Viraka Nellore et al. Faraday Discuss. (2014)GOICG-FeCl3 @GOTEM: NP size= ~40 nm, confirms conjugation.RS: confirms GOTGA: magnetic NPs= 30 wt% & GO= 70 wt %.
Nergiz S.Z. et al ACS Appl. Mater. Interfaces (2014)GOGO & GOAuNSAFM: GO size= ∼0.5 μm & height= 1 nm. No change after Au NPs formation.RS (785 nm): confirms Gr; no large changes after Au NPs formation.Zeta: GO= -35 mV, GOAu= -25 mV; stable @ ~-20 mV in 10% FBS; Stability: excellent stability in 10% FBS over a course of 10 d.
Wang S. et al Biomaterials (2014)GOGO-ION-PEGTEM: ION uniformly grew; AFM: NS size < 200 nm & height= 3-10 nm.ICP-AES: Fe =55.6 wt% in GO-IONP.RS: confirms GO & NPs; UV-Vis: confirms reduction of GO; FT-IR: confirms fucntionalization with PEGDLS: ~166 nm; Stability: good stability in water & physiological solutions for 72 h
Rong P et al. ADV Theranostics (2014)GOGO-PEG-HPPHAFM: GO-PEG size< 50 nm & height= ~1.5 nm; GO-PEG-HPPH height= ~2 nm.UV-Vis: confirms loading of HPPHStability: good stbaility in water, PBS, cell medium & serum
Cho Y et al. Chem Commun (Camb) (2013)GOGO-HA-Ce6SEM: 500-700nm size (one picture)DLS: GO complex= ~441 nm
Shi X et al. Biomaterials. (2013)GOGO-IONP-Au-PEGAFM: GO & GO-IONP size= ~200-600 nm.Zeta: GO-IONP= -35 mV, GO-IONP-Au-PEG= -5.6 mV; Stability: GO-IONP-Au-PEG stable in water, saline & serum solutions.
Wang Y.W. et al. J. Mater. Chem. B(2013)rGOICG-Rgo-FAAFM: GO size = ~200 nm & height = ~1 nm
Sheng Z. et al Biomaterials (2013)nano-rGOBSA/nano-rGOAFM: height=4 nm; size = ~70 nmXPS: confirms reductionUV-Vis: confirms BSA absorptionStability: BSA/nano-rGO stable in buffers & other biological solutions for one month's storage
Yang K. et al. Adv. Mat. (2012)rGORGO-IONP-PEGTEM: IONPs size= 8-10 nm, even distribution on RGO; AFM&DLS: RGO-ION size> 200 nm; RGO-IONP-PEG size= ~50 nmXPS: confirms reduction after IONPs growth; ICP-MS: RGO:IONP weight ratio= 1:1.99; XRD: confirms IONP formationFT-IR: confirms PEG functionalization; NMR: ~ 20% of carboxyl groups conjugated with PEGStability: RGO-IONP-PEG stable in water, saline & serum solutions
Hu S.H. et al Adv. Mat. (2012)rGOrGO-QDTEM: well‐ordered QDs (size= 3.6 nm) array separated by gaps of 1.7 nm.DLS: Three batches with different size: ~2.5 μm; ~260 nm; ~38 nm; Stability: QD‐rGO highly stable.
Yang K. et al Nano Lett. (2010)NGSNGS-PEGAFM: size= 10-50 nm & height= ~1 nmFT-IR: confirms functionalizationStability: good stability of functionalized GO
Karimi Shervedani R et al. Biosens Bioelectron. (2018)RGORGO-PDA-BSA-DTPA-Mn(II)/MTXAFM: GO NS height = 3.9 nm; RGO-PDA-BSA height= 17 nm. Smooth surface/good distribution of Mn(II)/MTX (height= ~0.9 nm).FT-IR: confirms functionalization; After functionalization of GO with PDA, reduction is confirmed.
Chang X. et al. Carbon (2018)GOGO/MnWO4/PEGTEM: GO size = ~130 nm, MnWO4 NPs size= ~12 nm; AFM: GO/MnWO4/PEG height=~16 nm, GO height= ~3.4 nm; SEM: confirms conjugated morphologyXPS: Mn, W, C, O, & N; XRD: confirms MnWO4FT-IR & UV-Vis-NIR: confirms GO & conjuataionZeta: GO = ~-42 mV, GO/MnWO4/PEG = ~-26 mV; TGA: 59.6 wt % of MnWO4 & 13.0 wt% of GO in GO/MnWO4/PEG.
Gulzar A et al. Dalton Trans (2018)NGOUCNPs-DPA-NGO-PEG-BPEI-DOXAFM: height= 30 nm; TEM: size= ~100 nmFT-IR: confirms PEG functionalization
Wu C et al. Acta Biomater. (2017)GOGO/AuNS-PEG & GO/AuNS-PEG/Ce6TEM: GO size = ~ 2 μm, Au NP coating (~40 nm in size)AFM: GO/AuNS-PEG/Ce6 height = ~18 nm & size= ~400 nm.UV-vis: confirms Au NPs on GOZeta: GO/AuNS-PEG/Ce6= -38 mV, GO/AuNS-PEG= -20 mV; Stability: GO/AuNS-PEG stable; TGA: content of PEG is ~40%
Battogtokh G. et al. J. Control. Resease(2016)GOPheoA + GO:FA-BSA-c-PheoA NCUV-Vis: confirms conjugation;Zeta: GO NP= -24 mV; DLS: GO = ~249 nm, PheoA+GO:FA-BSA-c-PheoA NC (0.5:1 w/w)= 182 nm
Justin R et al. Carbon (2016)GQDsMGQDs-LHTEM: Iron oxide coating on Gr surface; HRTEM: several layers rGO, wrinkles; AFM: flakes diameter= 45nm & height= 2.3 nm.RS (514.5 nm): very small & broad G peak, intense & very broad D peak; FT-IR: confirms Iron oxide formationDLS: ~61 nm
Chen Y.W. et al. Small (2016)rGOanti‐EGFR‐PEG‐rGO@CPSS‐Au‐R6GTEM: GO/silica NS height = ~44 nm. SEM: confirms morphology of rGO@CPSS-x, size = ~160 nmEDX: Si, O, & C in GO/silica. Au in rGO@CPSS-6-Au; XRD: confirms compositeUV-Vis & FT-IR: confirms conjugation with Au NPs.
Chen H et al Theranostics. (2016)GOGO-Au@PANI/DOXAFM: GO-PVP height= ~1.3 nm; TEM: unevent deposition on GORS (785 nm): GO peaks not visible due to polymerStability: GO-Au@PANI very stable in water, PBS & RPMI-1640
Shi J et al. Pharm Res. (2016)GOGO@Gd-PEG-FA/DOXTEM: GO@Gd-PEG-FA/DOX size is much smaller than GO@Gd.UV-Vis&FT-IR: both confirm functionalization with PEG & FAZeta: GO@Gd-PEG-FA/DOX =-6 mV; DLS: GO-Au@PANI= 120 nm; Stability: GO@Gd-PEG-FA very stable in water & physiological solutions; TGA: PEG in GO@Gd= 15.2 wt%
Miao W et al. J Control Release. (2015)rGOICG/HArGO & ICG/rGOTEM: shows four flakes with size ~ 100nm.Zeta: rGO= -30 mV; all hybrids= -50-60 mV; DLS: ~100 nm for all materials.
Yan X et al. Biomaterials. (2015)GOGO-PEG-DVDMSAFM: GO-PEG size <50 nm & height= ∼1.5 nm; GO-PEG-DVDMS height=∼2 nm & the size x2 larger.UV-Vis: shows a new peak for GO-PEG-DVDMS;
Chen H. et al. RCS Adv. (2015)rGODOX-rGO-Fe2O3@Au NPsTEM: NH2-PEG-Fe2O3@Au NPs = ~20 nm & rGO-COOH = ~1 µm. Conjugation morphology confirmed.UV-Vis: to confirm conjugation with NH2-PEG-Fe2O3@AuNP; RS: confirms GOZeta: rGO-COOH = -29.5 mV, rGO-Fe2O3@Au NPs = -21.1 mV; DLS: rGO-COOH= 616 nm, rGO-Fe2O3@Au NPs= 612 nm; Stability: Stable in DMEM + 10% (v/v) FBS for 5 h
Khatun Z. et al. Nanoscale (2015)GrGDHTEM: Gr size= ~5-10 nm, GDH nanogel size= ~100 nmFT-IR: confirms conjugationStability: stable in PBS, pH5 & 10% FBS solution for 7 d.
Yang Y et al. J. Biomater. Appl.(2015)GOGO/MnFe2O4/DOXTEM: GO size= 50-500 nm & height= 0.8-1.1 nm; GO/MnFe2O4 size= 70-310 nm.XRD: MnFe2O4 deposition confirmed.Stability: The hybrids can be well dispersed in water, physiological saline, & FBS
Bian X. et al Sci. Rep. (2014)GrNGsAu nanocrystalTEM: core-shell size= 65 nm. Few-layers Gr as uniform coating on the whole particle.RS (633 nm): I(D) ≈ I(G), indicating high defect concentration.Zeta: ~0 mV; DLS: confirms particles size; Stability: functionalization increases stability.
Feng L et al. Adv Healthc Mater. (2014)NGOGO-PEG-DAAFM: size of 50-100 nm.UV-Vis: confirms functionalizationZeta: GO= -40 mV; NGO-PEG-DA= -35 mV; DLS: confirms stability; Stability: all stable in physiological solutions; TGA: PEG content= ~ 25.3%
Shi J. et al Biomaterials (2014)GOGO-AgTEM: confirms presence of Ag NPs with diameters of 5-15 nmXRD: GO peak @ 10.9°, disappeared completely in GO-Ag.UV-Vis: confirms Ag NPs; FT-IR: decrease in O-H peak after activation; confirmed DOX conjugationZeta: GO-Ag-DOX-NGR= -30 mV
Jin Y. et al. Biomaterials (2013)GOAu@PLA-(PAH/GO)nTEM: GNP size = ~2.6 - 2.8 nm, TEM & SEM: microcapsule morphology, size = ~1 µmUV-Vis & FT-IR: confirm conjugation
Wang Y. et al J.Am.Chem.Soc (2013)GrGSPIAFM: GO size= ~50-250 nm; TEM: confirms mesopores with size of 50-150 nm; HRTEM: pore depth= ~25 nm.XRD: Gr is coated with a hexagonal array of pores with ordered structure.RS (633 nm): D peak indicates defective Gr; FT-IR: indicates GO reduction & confirms functionalization.Zeta: GO = -52 mV; GO-PEG = -38 mV; stability: GSPI retains water dispersion.
Wang Y. et al Biomaterials (2013)GOGO-UCNPs--ZnPcGO-PEG height= ∼1.2 nm, size = 100-250 nmFT-IR: confirms PEG functionalization
Miao W. et al Biomaterials (2013)GOCe6/Dox/pGOAFM: pGO NS height= ~1 nm & Ce6/Dox/pGO size = ~148nmFT-IR: confirms functionalization in pGOZeta: ~-41 mV for all complexes.Note: inconsistency between AFM & DLS size data of pGO.
Qin H et al. Small (2015)GO(GO-dye: GO-RhB, GO-Cy5, & GO-Cy7)GO-Abs/Cy7Stability: All stable in physiological solutions (but not NGO)
Hatamie S et al Colloids Surf B Biointerfaces. (2016)GOGr/cobalt nanocompositesTEM: confirms sheet decorated by the NPs.XPS: O/C ratio=0.9 for GO, 0.18 for composites; XRD: indicates GO reduction after hybrid formation.FT-IR&UV-vis: indicates GO reduction after hybrid formation; RS(532 nm): confirms reduction (although not complete)Zeta: ~ -18 mV (in PBS)
Chen L et al. Biomaterials (2015)RGO131I-RGO-PEGAFM: RGO-PEG size=∼40-60 nm & heights= 3-4 nm.Stability: GO-PEG is stable in water, saline, serum; 131I-RGO-PEG is stable in 9% NaCl, FBS, PBS, & RPMI-1640 for 7 d
 Table 5B

Table summarizing the different methodologies for the characterization of new 2DMs.

RefMaterialCharacterisation Techniques
2DMsAcronymMicroscopyElemental Analysis/ DiffractionSpectroscopyZeta Potential/ DLS/Stability/Others
Yang G. et al.Small (2018)WS2WS2-IO/S@MO-PEGTEM (HAADF-STEM): WS2 size= ~50 nm.Elemental mapping: Weight ratio of W:Si:Fe:Mn = 1:5.02:4.02:7.6UV-vis: confirms composite formationStability: WS2-IO@MO-PEG in water, PBS, FBS, CCM for 24hr shows good stability (DLS)
Chao Y. et al.Small (2016)WS2188Re-WS2-PEGTEM (DLS): WS2 -PEG size= 80-150 nmUV-Vis: WS2- PEG do not show any featureStability: PEGylated nanoflakes exhibit high stability in various physiological solutions
Yong Y. et al.Nanoscale (2014)WS2BSA-WS2TEM: WS2 size= 20-100 nm; AFM: WS2 height= ~ 1.6 nm, BSA-WS2 height= 4-5 nm.EDS: W, S, C; XRD: confirm hexagonal structure of WS2FT-IR: confirms functionalization with BSA; UV-Vis: sharp peak @ ~610 nm; RS: peaks are broader compared to bulk WS2.Stability: BSA-WS2 shows good stability in PBS
Cheng L. et al.Adv. Mater.
WS2WS2-PEGAFM: WS2 height= ~ 1.1 nm. WS2- PEG height = ∼1.6 nm.; TEM: WS2 -PEG size= 50-100 nmEDS: W & S; XRD: confirms hexagonal structure of WS2.UV-Vis: WS2-PEG NS show typical features observed for 2H-WS2 phase.Stability: WS2 PEG exhibits excellent stability in various physiological solutions
Liu J. et al.J. Colloid Interface Sci. (2019)MoS2MoS2-HA-DTPA-GdAFM(DLS): MoS2 & MoS2-HA- NH2 sheet-like morphology. MoS2 NS height= ∼1-2 nm. MoS2-HA height= ∼3-4 nm. MoS2= ~100 nm, MoS2-HA- NH2 size= ~200 nmEDS&XPS: confirms even distribution of Gd on the surface of the MoS2.FT-IR & UV-Vis: confirm functionalization with HA; UV-Vis: different from 2H MoS2 -no exciton peaks visible.Stability: MoS2-HA- NH2 exhibited enhanced stability in water, PBS & cell medium; TGA: HA-SS- NH2= ∼67.4 wt% in MoS2-HA- NH2.
Jing X. et al. Bioconjugate Chemistry (2018)MoS2Mn-doped Fe3O4@MoS2 nanoflowerTEM: Mn-Fe3O4@MoS2 has a petal shape, a rough & folded surface structure; DF-SEM: confirms Mn-doped Fe3O4 is located at the core of the flower-like MoS2 NS.XPS: confirms MoS2, & Fe3O4; confirms Mn doping; XRD: confirms magnetite Fe3O4 & MnFe2O4. Diffraction peaks of pristine 2H-MoS2 of Mn-doped Fe3O4.RS(514 nm): confirms heterojunctions between MoS2 & Mn-doped Fe3O4, MoS2 peaks. FT-IR& UV-vis: confirm functionalization.Zeta : Mn-doped Fe3O4= -26 mV; DLS: all hybrids = 200-1000 nm. Stability: all stable for 5 d in DI water. The composites are stable in DI water & PBS for 5 d.
Maji S. et al. ACS Appl. Mater. Interfaces(2018)MoS2AuNBPs@MoS2SEM: 1 NS of size= ~80 nm; TEM: thin layer of MoS2 with 1.5-2 nm observed on AuNP surface.EDX: confirms the formation of core@shell AuNBPs@MoS2.RS: MoS2 peaks visible in AuNBPs@MoS2; UV-Vis: no excitons peak observed.
Dong X. et al. ACS Appl. Mater. Interfaces (2018)MoS2MoS2-PEI-HAAFM: MoS2 height= ~0.8 nm, MoS2-PEI-HA height= 5-7 nm; TEM: MoS2 size= ~30-50 nm.RS (514 nm): a slight shift compared to the bare MoS2; FT-IR: confirms conjugation of PEI & HA; UV-Vis: exciton peaks of MoS2 visible in conjugated materialZeta: MoS2= ~-20 mV, MoS2-PEI-HA= -18 mV; Stability: improved stability after HA modification in water & other physiological solution.
Chen L. et al. ACS Appl. Mater. Interfaces (2017)MoS2MoS2-Gd-BSAMoS2 MoS2 & MoS2-Gd-BSA - composed of several lamellar structures, forming cluster.XPS: confirms MoS2.RS(633 nm): typical MoS2 peaks; FT-IR: confirms functionalisation.Zeta: MoS2= -30 mV, MoS2-Gd-BSA = -26.4 mV; DLS: MoS2= 205 nm, MoS2-Gd-BSA= 297 nm; Stability: MoS2-Gd-BSA in PBS & CCM; TGA: confirms functionalisation.
Liu B. et al. Adv. Sci.(2017)MoS2MoS2@Fe3O4-ICG/Pt(IV)NanoflowersSEM&TEM: composite size ~80 - 180 nm, no morphology change with functionalization. HRTEM&HAADF/ STEM-EDS: confirm Fe3O4.EDS: Mo, S, N, Fe & O. ICP-MS: 5.1 wt% of Pt; XRD: shows 2H-MoS2 phaseFT-IR&UV-Vis: confirm functionalization with ICGZeta: MoS2= -25 mV, MoS2-PEI= 27 mV; Stability: no aggregation for 2 d; TGA: 27.8wt% of PEI
Xu J. et al. Small (2017)MoS2MoS2SEM&TEM: bulk MoS2 flower structure & NS size=~500 nm, spherical UCS size= 48 nm & composite structure with UCS particles on NS are shown.EDS&XPS: confirm successful conjugation; XRD: confirms successful conjugationFT-IR&UV-Vis: confirms successful functionalisation & conjugationZeta: MoS2= -25 mV, MUCS = +5 mV; Stability: MUCS in DMEM for 1d (UV-Vis)
Zhao J. et al. Oncotarget (2017)MoS2MoS2-PVPTEM: MoS2 size= ~50 nm, MoS2-PVP size= 21 nm, height= ~ 1 nm, for higher PVP content size = ~15 nmXPS&EDS: confirms MoS2, EDS: Mo, S, C & O; XRD: confirms crystalline structure of MoS2FT-IR: confirms successful functionalisation.Stability: MoS2-PVP in water, saline, CCM, & FBS showed good stability for 3 d
Li X. et al. Int. J. Nanomed (2016)MoS2SP-MoS2TEM&FESEM: crumpled sheet structure of SP-MoS2 size= ~50 nmUV-Vis: SP-MoS2 peak ~ ~300nmStability: SP-MoS2 stable in water, saline, & RPMI-1640 for 2d (DLS)
Yu J. et al. Theranostics (2015)MoS2MoS2/Fe3O4SEM&TEM&AFM: MoS2 size= ~100 nm, & height= 8-12 nmEDX&XPS: show possible surface oxidation of MoS2FT-IR: confirms conjugation; RS: MoS2 peaks visibleZeta: MSIO= -22 mV, MoS2= -23 mV; DLS: MSIOs = ~190 nm in water& PBS for 2 d; Stability: MSIO in DMEM, FBS.
Wang S. et al. Adv. Mater.(2015)MoS2MoS2/Bi2S3FESEM&HRTEM: crumpled & defective MBP size= ~300 nm, MoS2 crystal lattice= 0.26 nmEDS: Mo, Bi, S, & O; XPS: confirms composite formation; XRD: confirms high purity of the composite.FT-IR: confrims PEG functionalisationTGA: 20.7 wt% of PEG (100-350°C)
Wang S. et al. Biomaterials
MoS2PEGylated MoS2FESEM&TEM: MoS2 NS size= ~50 nm & height= 0.25 nm, MD300-PEG size= ~297 nm & height= 0.42 nm.EDS: Mo & S for MoS2, additional C & O for PEGylated composites; XPS: confirm PEGylated composite; SAED: confirms crystallinity; XRD: confirms PEGylated composites.FT-IR: confirms PEGylationStability: No change in DLS in saline after 24hr storage
Liu T. et al. ACS Nano (2015)MoS2MoS2-IO-(d)PEGHRTEM: MoS2 NS size= 50-200 nm, confirms MoS2 hexagonal structure.EDS: Mo, S, Fe, & O; XRD: confirms MoS2 NS.Zeta: MoS2= -12 mV, MoS2-IO-(d)PEG = +2 mV; DLS: ~100 nm size for all composites; stability: good stability for MoS2-IO; TGA: confirms PEGylation
Liu T. et al. Nanoscale (2014)MoS2MoS2-PEGAFM: MoS2 size= ~100 nm & height= ~1 nm, MoS2-PEG height= ~2 - 10 nm.UV-Vis: confirms functionalisationDLS: ~200 nm; Stability: MoS2 & MoS2-PEG in water& PBS. MoS2 unstable in PBS, but the others stable.
Li Z. et al. ACS Appl. Mater. Interfaces (2019)BPRP-p-BPNSsTEM & AFM: p-BPNSs size <200 nm & height= ~1.3 nm; HRTEM: 0.22 nm lattice fringe; TEM: morphology change of BPNS after 7 d, no change of p-BPNS.XPS: confirms no oxidation in p-BPNSRS (633 nm): confirms BPNS; UV-Vis: confirms no degradation of p-BPNS; FT-IR: confirms conjugationZeta: p-BPNSs= -40 mV; DLS: p-BPNSs= ~200 nm; Stability: stable in water, PBS, RPMI & FBS.
Huang H. et al. Biomaterials (2018)BPBP/Bi2O3TEM & AFM: BP size= ~500 nm, Bi2O3 NPs size = 5 nm, BP/Bi2O3, size = 300 nm & height = 25 nm; HRTEM: 0.21 nm d-spacing of BPEDS: BP/Bi2O3 = P 36.8%, O 56.5%, & Bi 6.7; XPS: P ~35.51%, O ~54.99% &~Bi 9.5%.; XRD: confirms Bi2O3Zeta: BP is -27 mV, BP/Bi2O3 is +34 mV.; Stability: BP unstable but BP/Bi2O3 stable for 8 d (optical, absoprtion spectroscopy)
Qiu M. et al. Proc Natl Acad Sc (2018)BPBP@HydrogelTEM & AFM: BPNSs size = ~100-200 nm & height = 2.6 nm; HRTEM: d-spacing of BPNSs 0.34 & 0.42 nmXPS: confirms BPRS (514 nm): confirms BP in compositesZeta: BPNS= -28 mV & PEG-BPNSs= -17 mV; DLS: BPNSs =156 nm & PEG- BPNSs = 160 nm
Yang X. et al. ACS Appl. Mater. Interfaces (2018)BPBP@PEG/Ce6 NSsTEM &AFM: BP size= 90 nm, height= 14.3 nm, BP-PEG size= 100 nm, height= 15 nm.EDX: confirms mostly P & little oxidation; XRD: confirms BP crystallinityRS (633 nm): confirms BP; UV-Vis-NIR: confirms loading of Ce6Zeta: BP NSs = ~-17 mV, BP@PEG/Ce6 NSs = ~-8 mV; DLS: BP NSs & BP@PEG NSs= ~ 90 nm, BP@PEG/Ce6 NSs = 158 nm; stability: BP & composites in water & in PBS confirmed for 24 hr;
Yang B. et al. Adv. Mater.(2018)BPBP-BG scaffoldTEM &AFM: BP siz=e ~500 nm, height <10 nm, HRTEM: 0.32 nm d-spacing; TEM: morphology change after biomineralizaionXPS: shows very small amount of BP compared to P2O5, increased O & Ca% after biomineralization; SAED: confirms BP crystal; XRD: confirms SiO2 (cristobalite)RS & FT-IR: confirms biomineralizationStability: stability of BP in SBF after 4 d shows flocculation & biomineralisation
Chen W. et al. Adv. Mater. (2017)BPBPTEM & AFM: BP size= ~200 nm, height= ~5.5 nm.XPS: confirms BP with small oxidationUV-Vis & FT-IR: confirm drug loadingDLS: BP = 281 nm; Stability: stable in water for 24 hr
Tao W. et al. Adv. Mater.(2017)BPBP-PEG-FA/Cy7 NSsTEM&AFM: BP size =~120 nm & height =~1-2 nm, BP-PEG size = ~100 nm & height = ~2-3 nmXPS: P, C, & O in BP-PEG; STEM-EDS: C, O, N & P in BP-PEG-FA; XRD: confirms orthorhombic BP in BP-PEGFT-IR: confirms functionalisation; RS: confirms BP in compositesZeta: BP = -13 mV, BP-PEG-FA = -17 mV; Stability: BP-PEG stable in PBS & FBS (DLS= ~130 nm) for 7 d
Yang G. et al. Biomaterials Science (2017)BPBP-Au NSsTEM: AuNPs size= 26 nm & BP-Au size= 484 nm.UV-Vis: confirms conjugation with Au; RS (514.5 nm): confirms BP in compositeStability: stability of BP-Au & BP-Au-/PEG in PBS solution
Xiang H. et al. ACS Nano (2019)MxeneAIPH@Nb2C@mSiO2TEM: Nb2C size= 100-300 nm, morphology change observed with functionalisationXPS: confirms Nb (8.41%), C (25.96%), Si (25.96%), & O (52.68%) in Nb2C@mSiO2 NPs.; XRD: confirms amorphous SiO2FT-IR & UV-Vis: confirms AIPH functionalisationZeta: Nb2C = -39 mV, AIPH@Nb2C@mSiO2 = -10 mV; DLS: Nb2C = 219 nm, AIPH@Nb2C@mSiO2 = 308 nm.
Tang W. et al. ACS Nano (2019)MxeneTi3C2@AuTEM&SEM&AFM: Ti3C2 size = ~200 nm & height = ~2 nm; TEM: Au shell coating of ~30 nm heightEDS: confirms Au on Ti3C2; XRD: confirms Ti3C2 MxeneUV-Vis-NIR: confirms conjugation with Au.Zeta: Ti3C2 = -24 mV, Ti3C2-PAH-Au = -20 mv; DLS: Bi3C2= ~100 nm, Bi3C2@Au= 150 nm; Stability: Ti3C2@Au-PEG in water, PBS, FBS & RPMI confirmed.
Liu Z. et al.Theranostics (2018)MxeneTa4C3-IONP-SPsTEM: Ta4C3 NS size = ~50-200 nm, Ta4C3-IONPs size = ~50 - 200 nm; HRTEM: d-spacing Ta4C3= 0.26 nm, IONP = 0.30 nmEDS: confirms Ta, C, O, & Fe in Ta4C3-IONPs composite; XPS: confirms conjugation with IONPs; XRD: confirms Fe3O4FT-IR: confirms conjugationZeta: Ta4C3 =-24 mV & Ta4C3-IONP-SPs = -49 mV; Stability: Improved stability with surface modification in water, DMEM, PBS, saline, & SBF over 3 d; DLS: Ta4C3-IONP-SP = 255 nm, Ta4C3-IONP = 190 nm.
Han X. et al.Theranostics (2018)MxeneCTAC@Nb2C-MSNTEM: Nb2C NS size= several hundreds nm; SEM&TEM: CTAC@Nb2C-MSN composite of mesoporous morphologyEDS&XPS: confirms conjugation; SAED&XRD: confirms retained high crystallinityDLS: Nb2C = 91 nm, CTAC@Nb2C-MSN-PEG-RGD = ~220 nm; Stability: stable in water, DMEM, saline, SBF, & PBS (DLS)
Li Z. et al. Adv. Mater.(2018)MxeneTi3C2@mMSNsTEM&SEM: Ti3C2 NS size= 50-100 nm with mesoporous morphologyEDS&XPS: confirms conjugationFT-IR: confirms functionalization.Zeta: Ti3C2 = -20 mV, Ti3C2@mMSNs-RGD = 2 mV; DLS: Ti3C2 =92 nm, Ti3C2@mMSNs-RGD = 152.9 nm; BET: surface area 772 m2/g, pore size 3.1 nm
Han X. et al. Adv. Healthc. Mater.(2018)MxeneTi3C2-SPSEM&TEM&AGM: Ti3C2 NS size = ~120 nm & height =~0.9 nm; HRTEM: comfirms cyrstallinityEDS & EELS: confirms complete removal of AlZeta: Ti3C2 = -52 mV, Dox@Ti3C2-SP = -29 mV; DLS: Ti3C2 = 122 nm, Ti3C2-SP = 164 nm.
Liu et al. AM&I (2017)MxeneTi3C2@DOX@HATEM&AFM: Ti3C2 size = ~100 nm & height=1-2 nm.XPS: confirms Ti-C & Ti-O in Ti3C2; ICP: ratio of Al:Ti = 0.62:3; XRD: confirms Ti3C2 & conjugationUV-Vis: confirms conjugation of Al3+Zeta: Ti3C2 = -23 mV, Ti3C2@DOX@HA = -21 mV; DLS: Ti3C2 = 104 nm, Ti3C2@DOX@HA = 178 nm; Stability: Ti3C2 in water, PBS compared with surface modified Ti3C2
Lin H. et al. JACS (2017)MxeneNb2C-PVPSEM&TEM&AFM: Nb2C NSs size= ∼150 nm & height= ~0.3-0.8 nmEDS&EELS&XPS: confirms no Al & presence of Ni, C & O; XPS: confirms oxidation; SAED: confirms hexagonal symmetry; XRD: Nb2AlC MAX phaseRS: confirms elimination of Al layer; FT-IR & UV-Vis-NIR: confirms functionalisation with PVP;Zeta: Nb2c = -50 mV; TGA: PVP loading 20 wt%
Dai C. et al. ACS Nano (2017)MxeneMnOx/Ta4C3-SPSEM&TEM: Ta4C3 NS size= ~50 - 100 nmEDS&XPS: confirms Ta, Mn & O in MnOx/Ta3C3; XRD: confirms removal of Al & 2D crystallinity
 Figure 3

Analysis of the literature based on methods of material characterization for GRMs and other 2DMs.

Theranostics Image

(View in new window)

i) Microscopic techniques for morphology characterization: Microscopic techniques such as atomic force microscopy (AFM) and transmission electron microscopy (TEM) are typically used for size and thickness measurement of 2DMs. In case of AFM, by depositing the nanosheets on a flat substrate, such as on silicon wafer, the morphology of individual nanosheets can be directly measured in sub-nanometer scale resolution to obtain statistical analysis of size and thickness distribution of nanosheets. It is recommended to scan different area on the same sample in order to achieve a realistic distribution of the size and thickness of the flakes. However, in the case of solution-processed 2DMs, adsorption of solvent molecules or chemical modification of the surface of 2DM can lead to overestimation of the thickness (number of layers) of the nanosheets [256]. Thus, AFM can be used only as a qualitative method for thickness identification. TEM, on the other hand, can be used to directly count the number of layers by analyzing the flake edges and characterize the structure at sub-nanometer resolution in order to identify possible defects [257]. Low-resolution TEM can be used to look at the shape of the flakes and also to qualitatively identify the thickness by looking at the contrast. However, TEM is very time consuming and needs to be performed on at least 100 nanosheets. Many works show TEM pictures of 1-2 flakes, which may not be representative of the whole material in dispersion. Furthermore, TEM can damage the material during measurement due to the use of highly energetic electron beams (typically of a few hundred kV acceleration voltages) at high-pressure vacuum. These microscopic techniques are beneficial to study the morphology of 2D material hybrids, for example, in the case of QDs or other nanomaterials deposited or grown directly on the 2DM surface, due to their very high resolution. In this case, it is crucial to determine the coverage of the loaded drug or nanomaterial on the nanosheet, e.g., if there are isolated NPs or aggregates, and if the coverage is similar for all flakes. A few studies have used scanning electron microscopy (SEM) to characterize the nanosheets morphology, but the resolution of this technique is not as good as that of AFM or TEM. Thus, the smallest flakes cannot be resolved. Furthermore, SEM requires conductive samples. In the case of non-conductive nanomaterials, deposition of a metallic film is required, sometimes making more difficult to assess the morphology of individual flakes.

ii) Optical spectroscopic techniques: Several absorption/emission spectroscopies, such as Fourier Transform Infrared (FT-IR), UV-Visible, and Raman spectroscopy are often used as a simple, non-invasive technique to characterize the structure and changes in chemical composition and/or degree of conjugation in-situ. FT-IR is typically used to confirm functionalization with polyethylen glycol (PEG), which has been used in many works to improve water stability of the nanomaterial. In the case of graphene oxide, both FT-IR and UV-Vis can be used to confirm the reduction of the material: in the FT-IR spectrum, the intensity of the peaks associated to the carbonyl, carboxyl, hydroxyl and epoxy groups will decrease in intensity. In the case of UV-Vis spectroscopy, the absorption spectrum of graphene oxide shows a peak at ~250 nm, due to π-π* transitions, which moves to slightly higher wavenumbers for reduced-graphene oxide (rGO). However, this analysis is only qualitative and requires further characterization in order to measure the C/O ratio.

UV-Vis spectroscopy is also a potent technique for the structural characterization of semiconducting 2DMs, such as TMDs, due to their unique exciton's features, which sharply change depending on defects formation, functionalization or polymorph change. One can note that Li-intercalation has been used very often to produce TMDs dispersions: this method is well known to produce a substantial change in the structure of the material, which changes from 2H to 1T polymorph, leading to metallic properties. This fact should reflect in changes in the absorption spectrum and also changes in the photoluminescence and fluorescence of the hybrid material, which is of fundamental importance in theranostics. Recent studies have also proposed protocols based on absorption spectroscopy to identify size and thickness distribution of such materials [256]. It is noted that UV-Vis spectroscopy is of fundamental importance in theranostics as it is used to confirm strong absorption of light. Photoluminescence and fluorescence are also used for determining the theranostics effects - as such, we did not consider these features in the list of characterization techniques.

Raman spectroscopy is one of the most popular techniques to characterize graphene and other 2DMs [258]. It has been shown that Raman spectroscopy can be used to identify graphene [259], to determine type and concentration of defects [260-262], amount and type of doping [263] and many other properties. However, these studies have been conducted on a high-quality graphene nanosheet, produced by mechanical exfoliation. Solution-processed or chemically modified graphene materials, produced by different methods, do show very different Raman features because the spectrum (i.e. the intensity of the peaks, their full width and half maximum, FWHM, and positions) is strongly sensitive to the presence of adsorbed or intercalated molecules and to morphological changes, such as restacking of the flakes, wrinkles, folding, defects, strain, and so on. Thus, the Raman analysis typically performed on perfect and clean graphene flakes produced by mechanical exfoliation cannot be extended to solution-processed graphene. For example, the FWHM of the 2D peak is used as a fingerprint to identify single-layer graphene (~25 cm-1) [259]- however, the typical FWHM of the 2D peak of solution-processed graphene is around 50 cm-1.

Despite these limitations, Raman spectroscopy can still provide qualitative information on the thickness distribution of the flakes produced by liquid-phase exfoliation, as reported in [264-267], by using a protocol based on the quality of the 2D peak fitting. Note, however that this method is very time-consuming as it requires analyzing 50-100 isolated flakes, which could be hardly visible under the optical microscope, and cannot be applied to GO and rGO and solution-processed graphene produced by other methods. In the case of GO and rGO, these materials are defective, hence the Raman spectrum sharply changes and therefore Raman spectroscopy cannot be used to identify the number of layers. Despite this limitation, Raman spectroscopy can still provide useful information regarding number of defects and to confirm reduction of GO. Defects analysis is typically done by using the intensity ratio between D and G peaks (I(D)/I(G)). However, this analysis needs to be done with care: first, I(D)/I(G) can be compared to other values reported in literature only if measurements are performed at the same excitation wavelength, as this parameter strongly changes with the laser excitation [268]; second, I(D)/I(G) do not always increase for increasing defects concentration. Graphene shows a two-stage defects trajectory [262]: in Stage 1, starting from pristine graphene, the Raman spectrum evolves as follows: the D peak appears and I(D)/I(G) increases; the D', another defect activated peak located at ~1600 cm-1, appears; all the peaks broaden and G and D' begin to overlap. In this stage, I(D)/I(G) can be used to estimate the amount of defects [269,270], while I(D)/I(D') can be used to distinguish between different type of defects [270]. At the end of Stage 1, I(D)/I(G) starts decreasing. As the number of defects keeps increasing, the Raman spectrum enters Stage 2, showing a marked decrease in the G peak position and increase broadening of the peaks; I(D)/I(G) sharply decreases towards zero and second-order peaks are no longer well defined. Thus, I(D)/I(G) needs to be coupled with another Raman fit parameter, such as the FWHM of the D, G or 2D peak, in order to distinguish between the two-stages. Note that GO belongs to stage 2- defective graphene, so reduction of the material should lead to a decrease of the peaks FWHM and to an increase in I(D)/(IG), assuming rGO to remain in stage-2.

Similar mistakes done in the analysis of the Raman spectrum of graphene can be seen also for other 2DMs, where the Raman spectrum of a solution-processed nanosheet is compared to the Raman spectrum of a single-layer 2DM produced by mechanical exfoliation. Changes in FWHM and positions of the peaks in a spectrum from solution-processed material may not necessarily be related to changes in thickness.

Because of the limits and challenges with optical spectroscopic techniques, these measurements should always be complemented with microscopic techniques. Note that since the resolution of optical spectroscopic and microscopic techniques is very different, one should not expect to get exactly the same results. For example, if Raman spectroscopy shows that the dispersion contains mostly single and few layers graphene, this should be confirmed by TEM as well, although the numerical distribution may be slightly different.

It is pertinent to note that Raman spectroscopy, being so sensitive to changes in the structure, is an ideal technique to investigate the changes in the properties of the nanomaterial after each functionalization step. For example, if the Raman spectrum of the final vector does not show any G peak, this would possibly indicate the almost complete disappearance of graphene.

iii) X-ray diffraction (XRD): XRD is often used for qualitative identification of the crystal phases from the study of the diffraction angle [271]. For graphene and other 2DMs, XRD is often used to measure the d-spacing between the layers (2θ = 26.3° for graphite (002) peak and 2θ = ~10 - 11° for GO) [272,273], degree of oxidation of GO (decreasing 2θ value and peak broadening observed with increasing degree of oxidation) [274] or confirmation of conjugation with other materials. Note that XRD is a “bulk characterization technique”, providing average information on all material, while Raman spectroscopy can be used on individual nanosheets.

iv) X-ray photoelectron spectroscopy (XPS): XPS is a surface-sensitive, quantitative spectroscopic method that is often used to study the elemental and chemical composition of materials [275]. Oxygen species of GO and rGO, and other elemental peaks from functionalization can be quantitatively characterized by XPS to estimate the degree of oxidation, reduction and/or functionalization [276]. XPS can be a powerful technique to quantitatively determine the degree of oxidation or functionalization, but the measurement should be carefully carried out since it is highly surface-sensitive technique (measurement depth is usually a few nanometers). Moreover, possible contamination during the sample preparation and/or measurement should be carefully avoided, or possible adsorption of adventitious carbon from the atmosphere should be taken into account during analysis. Finally, XPS cannot be made on individual flakes, so it requires producing a film or a membrane. Thus, XPS provides average information on all material. A similar technique is given by Energy-dispersive X-ray spectroscopy (EDX, EDS or XEDS), which allows analyzing much smaller material size, but needs to be carried out in a scanning electron microscope.

v) Thermogravimetric analysis (TGA) is often used to determine the weight percentage of oxygen species, graphitic material, and/or degree of conjugation with additional materials.

vi) Zeta potential and Dynamic Light Scattering (DLS): the zeta potential is the measure of surface charge and potential distribution of a nanomaterial in solution. In some cases where the particles are electrostatically stabilized in a colloidal suspension, the zeta potential can be correlated to the sedimentation behavior [277]. For graphene-related materials, the zeta potential can be used to measure the degree of oxidation and functionalization, if the charge of the functionalized material is known. DLS is a simple and fast technique to measure the hydrodynamic size of nanomaterial dispersed in a solution by using light scattering. Correlative relationship between the size measured by DLS and microscopic techniques has been shown [278], but compared to microscopic techniques, DLS is a crude method to measure the size of 2DMs as the flakes will be always crumpled into arbitrary shape in solution. Moreover, since DLS technique depends on the intensity of scattering for size measurement, larger particles can have more influence on the calculated average than smaller particles, which can lead to overestimation of size measurement, especially for solutions involving wide distribution of particle sizes, such as in graphene dispersion [279].

5. Comparing theranostic approaches and results: a critical analysis

Through our review of the literature we found 84 publications concerning graphene, GRMs, and graphene hybrids (Figure 4A), which are summarized in Table 1, Table 2 and Table 3 according to the different type of combined applications, cancer, species of investigation, model as well as material and relative functionalization. Most of the cited studies implied the use of imaging (MRI, X-ray CT, fluorescent imaging, PAI, photothermal imaging, ultrasonography, and PET) as a diagnostic tool, combined to one or more therapeutic strategies at the same time as shown in the Venn diagram (Figure 4B). Focusing on the type of application, we found that, among the different theranostic protocols, the combined use of imaging and drug or gene delivery, represents the majority of the analyzed studies (31%). The second most commonly used method is represented by combined imaging, drug delivery and PTT (24%); followed by combined imaging and PTT (23%); imaging PTT and PDT (11%); imaging, PDT, PTT and drug delivery (5%); other therapies (3%); imaging, PDT and drug delivery (2%); and imaging and PDT (1%) (Figure 4C). From the analysis of the literature concerning the different types of cancer treated with GRMs as a theranostic tool, breast and cervical cancers appear the most studied (34% and 30% of the studies, respectively), followed by lung, liver and brain cancer, which appeared approximatively in the same number of publications (8%), and skin cancer (4%). Other types of cancer (renal, bone, hepatic, Burkitt's lymphoma, ovarian, pancreatic, sarcoma, colon, prostate) represented the focus for less than the 2% of the papers (Figure 4D). In particular, even by looking at the different types of therapeutic approaches and the combinations of strategies, the majority of the papers involving imaging and drug/gene delivery or PTT/PDT were carried on breast and cervical cancer models, independently from the type of approach (Figure 5). Focusing on the different molecules used for drug delivery applications of GRMs for cancer theranostic, DOX emerged as a first-choice drug to functionalize as a common therapeutic drug (Figure 6). This fact opens the window on the multitude of emerging new drugs never conjugated with 2DMs, therefore, offering the possibility of more innovative functionalizations perhaps able to reduce possible side effects and drug doses.

Comparing the reports present in the literature concerning the use of graphene for cancer theranostics, GO emerges as a first-choice material for the design of nanotheranostic tools in 65% of the studies, followed by GQDs (14%), and rGO (12%), while only 9% of the tested materials included graphene or other graphene hybrids (Figure 7A). This view is mainly due to GO superior biocompatibility, the ease of functionalization, due to the considerable presence of chemical polar groups, as well as high dispersibility in aqueous biological environments and prolonged blood circulation time compared to other GRMs [280]. In particular, the high surface-to-volume ratio allows the conjugation with different molecules able to improve and expand the range and effectiveness of simultaneous imaging methods and multiple therapies applicable in the same nanotheranostic tool. Indeed, the diagnostic and therapeutic capability can be improved by the conjugation of the material with PSs, genes, and drugs for enhanced hyperthermia, gene therapy, and anticancer drug effectiveness. Therefore, not surprisingly, a good portion of the studies, where GO or NGO have been exploited for imaging application, is associated with drug/gene delivery alone or in combination with PDT/PTT (Figure 7B).

 Figure 4

Analysis of the literature concerning GRMs. (A) The number of publications on graphene and GRMs in cancer theranostic (from 2008 to 2019). (B) Venn diagram based on the combination of imaging and the main therapeutic applications (drug delivery, PTT, and PDT) using GRMs as cancer nanotheranostic tools. (C) Histograms showing the numbers of publications concerning GRMs in cancer theranostics based on the different therapeutic approaches used in combination with imaging. (D) Overview on different types of cancer treated with GRMs as nanotheranostic tools (other types of cancer include: renal, bone, hepatic, Burkitt's lymphoma, ovarian, pancreatic, sarcoma, colon, and prostate).

Theranostics Image

(View in new window)

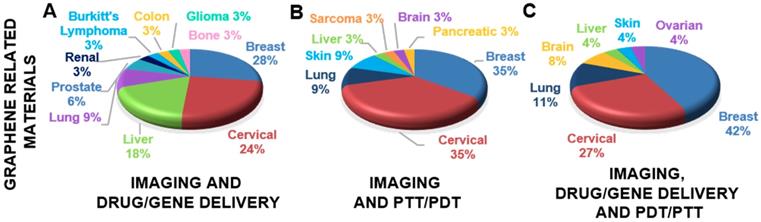

 Figure 5

Percentages of various types of cancer treated with different combinations of theranostic approaches using GRMs. (A) Overview of different types of cancer treated with imaging and drug/gene delivery. (B) Overview of different types of cancer treated with imaging and PTT/PDT. (C) Overview of different types of cancer treated with imaging, drug/gene delivery, and PTT/PDT.

Theranostics Image

(View in new window)

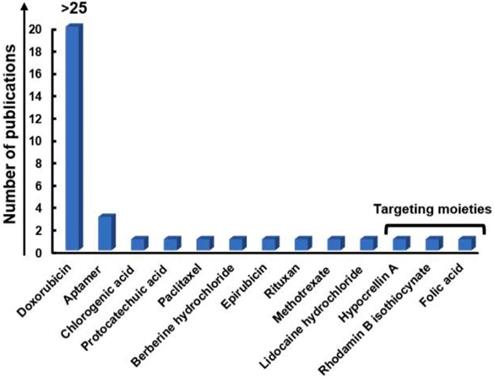

 Figure 6

Number of publications related to the different drugs used for drug delivery based on GRMs, including targeting moieties.

Theranostics Image

(View in new window)

However, rGO resulted in one of the most effective materials in terms of tumor reduction ability, demonstrating to be able to totally ablate the tumor in vivo [281]. This seems to be due to its physicochemical properties, such as the strong NIR absorbance capability compared to GO and other GRMs, endowing it with a high photothermal conversion efficiency for cancer thermal ablation [282]. The number of publications focusing on the use of rGO for imaging application associated to PDT /PTT, alone or in combination with drug/gene delivery, is much higher compared to the use of rGO for imaging and drug/gene delivery alone (Figure 7B). Indeed, in several studies, rGO has shown to be an appealing candidate for controlled irradiation-responsive nanoplatforms. Moreover, its therapeutic properties can be enhanced thanks to the association with noninvasive temperature-dependent drug release in response to illumination or pH-depended drug release in response to acidic conditions similar to those of cancer cells [51,283]. The ability of rGO to absorb NIR light and convert it into heat can also be exploited for PAI, due to the consequent ultrasonic emission, resulting in a theranostic nanoplatform with dual-enhanced photothermal conversion properties [89,114]. In addition, rGO displayed magnetic properties and was able to improve the contrast in both MRI and X-ray CT [284]. This scenario, is of particular interest in theranostics, since MRI represents the most powerful imaging method for tumor diagnosis and early detection [285].

Considering GQDs, they were mainly exploited for imaging properties, due to their intrinsic photoluminescence, making them ideal candidates for imaging purpose, but were also used in conjugated forms for drug/gene delivery (Figure 7B). However, better results with GQDs in terms of cancer ablation seems to be obtained through the association of imaging with PTT or PDT, alone or in combination, leading to considerable (53.4%) [83] or even total [97,171] tumor eradication. However, the effects showed different potency also dependently on the different cell ability to internalize the materials and their susceptibility to reactive oxygen species [121]. These results suggest that these aspects should be taken into account given future clinical translation, in accordance with the different type of cancer to be treated. In general, promising results were obtained by both in vitro and in vivo studies, however, animal models showed a more variable response, obtaining a total cancer eradication only in 20 treatments [74,80,84,87-90,93-97,123,281,286-291] out of 59. Of these successful studies, only two were carried out only using gene/drug delivery while all the others exploited PTT or PDT alone or in combination with gene/drug delivery. A summary of the advantages and disadvantages of GRMs for cancer theranostic applications emerged from the reported studies is illustrated in Table 6.

Concerning the analysis of 2DM beyond graphene, it is clear that they are rising increasing interest; as shown by the recently growing number of publications based on these promising tools for cancer theranostics (Figure 8A).

As shown in Figure 8B these materials were mainly employed for imaging in association with approaches involving PTT alone (41%) or in combination with drug/gene delivery (22%), and PDT (19%). By the analysis of the literature concerning the different types of cancer treated with 2DMs beyond graphene as a theranostic tool, breast and liver cancers appear the most studied (42 and 24% of the studies, respectively), followed by cervical (18%), lung (7%), brain (3%), while only a small portion of works involved colorectal, skin and bone cancer, which appeared approximatively in the same number of publications (2%) (Figure 8C).

 Figure 7

Analysis of the literature concerning the type of GRMs. (A) Percentages of the different types of GRMs used in theranostics. (B) Overview of different types of GRMs and their theranostic application.

Theranostics Image

(View in new window)

 Figure 8

Analysis of the literature concerning 2DMs beyond graphene. (A) The number of publications of 2DMs in cancer theranostics. (B) The number of publications concerning 2DMs in cancer theranostics based on the different therapeutic approaches used in combination with imaging. (C) Overview of different types of cancer treated with 2DMs.

Theranostics Image

(View in new window)

 Table 6

Table showing the main advantages and disadvantages of GRMs for cancer theranostics applications (Y=yes, N=no).

PropertyGOrGOGrapheneOther 2DMs
High surface areaYYYY
DefectiveY, highY, lowNDepends on the 2D material
FunctionalizationVery easyEasyPossible, but more difficult than GO or rGOSome functionalization routes existing, depending on the 2D material
Dispersibility in waterYNNNo, with the exception of few 2D materials (e.g. MXene)
Stability in airYYYSome 2D (e.g. phosphorene has limited stability in air)
Electronic propertiesGenerally small conductivity, but depends on the degree of oxidation.ConductiveHighly conductiveMetallic, semiconducting or insulating, depending on the 2D material
NIR AbsorptionGoodVery goodGoodDepends on the 2D material
PhotoluminescenceY, weakNNsome of the 2D materials (e.g. TMDs) show photoluminescence
BiocompatibilityDepends on the way of production, physicochemical properties and doses

Although the applications of new emerging 2DMs are still rare in the field of cancer theranostics and biomedicine in general, from the works here analyzed it is possible to comment on the merits and potential clinical translation of those new materias. Among new emerging 2DMs, antimonene QDs and GDY exhibit a photothermal conversion efficacy (45.5 and 42%, respectively) higher than traditional 2DMs, such as graphene, GO, MoS2, and BP [225]. This property makes these emerging nanomaterials particularly suitable for PTT. GDY has also shown to exceed pristine graphene nanosheets in terms of drug loading ability, with a DOX loading content equal to 38% [292], due to its structure, composed by both sp- and sp2-hybridized carbon atoms, allowing GDY to preserve its conjugated structure even after covalent functionalization. This ability shows promises in the field of nanotheranostic, since it could allow simultaneous covalent link of several molecules, including drugs and targeting, tracking or bioactive structures.

MXenes in general possess remarkable photothermal performance [194,293]. Ti3C2 nanosheets are characterized by an exceptional high extinction coefficient of 25.2 L g-1 cm-1, compared to that of GO nanosheets (3.6 L g-1 cm-1) [294]. However, their relatively low photothermal conversion efficiency could limit their future applications. The development of Ta4C3 allowed to obtain both optimal photoabsorpion properties and photothermal conversion efficiency (44.7%) thanks to the strong absorption band, similar to those of other conventional 2DMs, such as graphene [110] and MoS2 [152].

Compared to other types of 2DMs, such as MoS2 [147], BP [295], graphene [110,294], Ti3C2, and Ta4C3 [296], Nb2C exhibits a strong and almost constant optical absorption in the NIR I and NIR II windows. The possibility of employing PTA with high conversion efficiency also in the NIR II window (1000-1300 nm), such as Nb2C, is expected to attract increasing interest in the future of cancer therapy, allowing a higher tissue penetration depth.

It is clear that the physicochemical properties of 2DMs are urging their use in biomedicine [297]. For instance, thanks to the higher water dispersibility and colloidal stability, g-C3N4 and BP are supposed to be more advanced in the biomedical field, without the use of any surfactants. In contrast, despite their limited stability in aqueous dispersions [298], electrically inert h-BN sheets seem to be more biocompatible and better suited for the drug delivery. With the aim to improve the biocompatibility of 2DMs as well as to control their solubility and biodistribution, the development of new covalent functionalizations will be an interesting effort for future studies. Moreover, following this path, the syntheses for theranostic applications needs to focus on different parameters that could dramatically change the fate of the new synthetized 2DMs: dimensions, surface functionalities, and aqueous dispersibility.

Overall, Figure 9 shows a comparison among the percentage of different type of materials (GRMs and new 2DMs beyond graphene) used in cancer theranostics. On the whole, by an analysis of the imaging approaches, the most used imaging technique was CLSM (42 papers), followed by fluorescence imaging (41 papers), MRI (37 papers), and PAI (28 papers), while other imaging methods were less frequently used (Figure 10). As mentioned before, even if in several studies, the fluorescence properties are claimed as possible diagnosis strategies, it is important to mention that fluorescence imaging has not entered the clinic yet. Some outstanding examples are reported in Figure 11 which summarizes some of the most complex and multimodal applications of these nanotools available to date.

6. Conclusions: how to develop 2D materials for theranostics

6.1. Targeting and resolution: two historical limits to consider

The recent advances in new 2DM development were directed to overcome some of the persisting limitations of conventional cancer-fight modalities such as: i) the nonspecific targeting and ii) low resolution in imaging and difficulties in diagnosis.

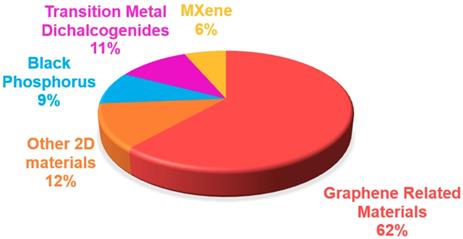

 Figure 9

Graphic representation of the discussed works concerning the use of GRMs and other 2DMs in cancer theranostics. “Other 2D materials” includes: graphdiyne, hexagonal boron nitride, silicene, antimonene, germanene, biotite, metal organic frameworks, and layered double hydroxide.

Theranostics Image

(View in new window)

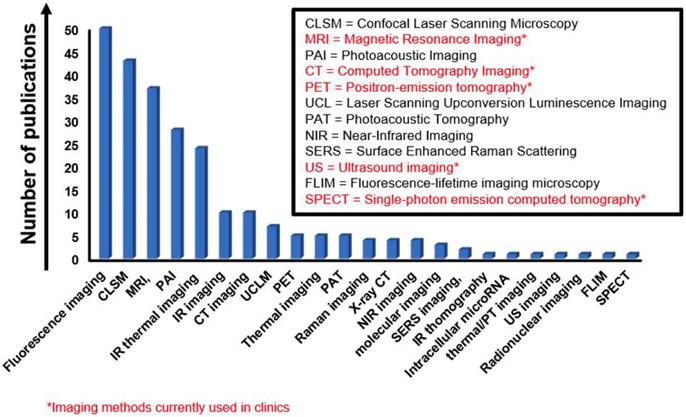

 Figure 10

Overview of different types of imaging modalities used for theranostic purposes (GRMs and 2DMs). Abbreviations: CLSM = Confocal Laser Scanning Microscopy, CT imaging = Computed Tomography Imaging, FLIM = Fluorescence-lifetime imaging microscopy, MRI = Magnetic Resonance Imaging, NIR imaging = Near-Infrared Imaging, PAI = Photoacoustic Imaging, PAT = Photoacoustic Tomography, PET = Positron-emission tomography, UCL = Laser Scanning Upconversion Luminescence Imaging, SERS imaging = Surface Enhanced Raman Scattering, SPECT = Single-photon emission computed tomography, US imaging = Ultrasound imaging.

Theranostics Image

(View in new window)

i) The nonspecific targeting. One of the main limitations of current chemotherapeutic drugs concerns non-specific targeting, which is especially relevant for drugs with a broad range of targets that could lead to severe organs damage [16]. On the other hand, the delivery of therapeutic molecules could be difficult for those drugs that can hardly penetrate tumor cells through the blood or showing a short circulation half-live [299].

The delivery of drugs at the requested site by nanomaterials is still challenging, even for FDA approved particles. Notably, it has been determined that less than 1% of NPs explored for anticancer drug delivery typically reach the tumor [300]. It is far too early to conclude if 2DMs have a chance of entering the clinic for drug delivery, and eventually to perform better than current clinically approved nanomedicines [301-304]. Undoubtedly, the high surface-to-volume ratio makes 2DMs very useful in this sense allowing a high load of drugs and the functionalization with specific ligands recognized by particular receptors overexpressed on specific tumor cells, facilitating the selective targeted process of internalization and the delivery of chemotherapeutic agents or genes up to the action site. Furthermore, the multiple functionalizations are not inside of the particles as it can happen with multistage vectors [305]. The drugs in the case of 2DMs may have an easier way of release. However, on the other hand, multistage anticancer vectors can incorporate several components, these components are activated sequentially in order to successively address transport barriers; this “multistage advantage” has not been reported yet for 2DMs. Microenvironmental priming strategies in the theranostics context of 2DMs are highly desired. Moreover, a polymer coating would allow the carrier to circulate unnoticed towards the immune system, while the cargo release could be programmed according to the presence of various stimuli, such as pH and temperature variations, that typically occur into the cancer tissues. To overcome the issue concerning the lack of target specificity, further information concerning the biodistribution of nanomaterials in the context of cancer theranostic research are also still needed. Indeed, toxicological studies concerning GRM biodistribution investigation have highlighted the impact of critical aspects on nanomaterial fate into the body, including physicochemical properties, such as dimension and functionalization, as well as the formation of protein corona [306-309]. Moreover, a key aspect still not considered in the studies analyzed here and that could influence the biodistribution of nanomaterials, is the difference between healthy and cancer blood vessels [310]. Indeed, the latter is characterized by slower blood flow and the presence of holes (fenestration) that should be taken into consideration in 2D design and production to predict the possible extravasation to reach the tumor region [302].

 Figure 11

Examples of GRM-based imaging and therapy for combined and multimodal applications in cancer theranostic. (A) Schematic illustration of drug delivery theranostic strategy based on GQD fluorescence for a programmatic monitoring of the anticancer drug delivery, release, and response. Adapted with permission from [56], copyright 2017 American Chemical Society. (B) Theranostic application of GQDs fluorescence; NIR fluorescence imaging of tumor-bearing mice intravenously injected with free IR780 or IR780/GQDs-FA up to 48 h. Adapted with permission from [288], copyright 2017 American Chemical Society. (C) Tumor photographs, histological images, tumor volume and body weight of mice trated with GO-based nanotheranostic tool. Adapted with permission from [85], copyright 2018 American Chemical Society.

Theranostics Image

(View in new window)

ii) Low resolution in imaging and difficulties in the diagnosis. The low-resolution performance in imaging represents one more hurdle for cancer theranostics development. The suitability of the promising 2DMs here discussed to serve as imaging tools for cancer nanotheranostic purpose mainly relies on their outstanding physicochemical characteristics useful for cancer diagnosis and guided therapy, as reported in all the studies analyzed. For example, GO exhibit fluorescence from the visible to NIR range and NIR fluorescent dyes to reduce the intrinsic graphene quenching effects. However, while some of the imaging opportunities offered by nanomaterials appear to be more easily and readily applicable to the clinic, such as the implementation of MRI- and CT imaging-based technologies, which interact mainly at the atomic level allowing the visual inspection at the organ length scale, other optical techniques exploitable at the molecular level by these nanosystems (e.g. fluorescence-based imaging for diagnosis and guided therapy) face hurdles for bench-to-bedside translation. Indeed, for instance, fluorescence imaging is being more an experimental approach and requires the development of new technologies before adoption into the clinic. Indeed, despite the in vivo promising results, optical imaging is usually tested in mouse xenograft models where the tumors are usually located superficially and therefore easily detectable. Moreover, fluorescent molecular imaging is affected by the biological tissue autofluorescence, photobleaching of fluorescent dyes, and significant spectra overlap between broadband molecules [311-313]. In general, the issue could be more easily overcome by the design of multi-modal nanoplatform integrating both a new optical modality and an already proven clinical methodology to extend its utility, aimed at improving and assisting a standard methodology rather than disrupt the common clinical workflow. One more point to consider is the fact that nanomedicine development has allowed rethinking the concept of nanotheranostics, expanding its notion beyond the classical meaning of physical entity that affords both diagnostic and therapeutic functions to a broad generic nano-enabled approach. In this view, a new theranostic concept is exploiting the molecular imaging functionalities not only for diagnosis but also to aid or guide a nanotherapeutic procedure [9]. It is therefore noteworthy that in some cases fluorescence can be used as optical imaging to aid or guide minimally invasive surgery, such as in the case of brain tumors [314] or for the detection of sentinel lymph nodes [315].

Concerning other imaging techniques, while radiolabeling-based nuclear imaging has been explored for 2DMs thanks to superior sensitivity and the possibility to obtain whole-body images compared to fluorescent labeling, there is still a lack of studies investigating nanomaterials for ultrasonography, an extreme safe imaging modality present in the every-day clinical practice [316].

The cardinal feature that renders 2DMs more suitable compared to other particles is undoubtedly their multiple imaging advantages, already proven by the analysis of the scientific literature [108,317]. The multiple imaging should, however, take into consideration the real cancer needs, the real translation into the clinic when it will come to the diagnosis of tumors in human patients, and the potential differences among mice and humans in terms of depth of tissues and, therefore, also in terms of sensitivity. Finally, for imaging as well as for the drug delivery aims, it is vital to analyze and, possibly, quantify the material distribution in each type of theranostic study, taking into account the different cancer models, since the distribution may vary depending also on the cancer tissues.

6.2. Necessary considerations before the design of nanomaterial theranostics

The first and most crucial aspect still requiring to be fully elucidated to develop and design theranostic tools, allowing their translational application into the clinic, are the assessment of their specific toxicity. In this view, their toxicological effects and the underlying mechanisms after entering the organism (both in cancer and healthy model at the same time and with the same material) need further investigation, in particular following intravenous injection, representing the main route of administration of nanomaterials in nanotheranostics [318].

The understanding of the larger picture depicting the relationship between the structure and the activity of the materials, from living systems to the molecular level, can be ensured through new systems biology approaches [319], designing robust and validated experimental methods [320].

The relationship mentioned above can be extended to the application level, designing the structure to modulate different physicochemical properties and potential biological impacts suitable for specific imaging and therapeutic procedures in consideration of the specific tissue and form of cancer taken into consideration. This correlation is not straightforward, and its clarification requires a multi-interdisciplinary approach, involving clinicians and scientists whose efforts rely on the field of material science, chemistry, physics, biology, and toxicology. However, it must be considered that the toxicological profile of nanomaterials presents Janus's double-face in the cancer fight. On the one hand, the potential systemic toxicity may cause harm. On the other hand, localized toxic effects can be useful for clinically controlled cancer ablation, when the mechanism of action is known.

The investigation of the toxicity should not overlook their impact on the immune system, since nanomaterials directly interact with the blood immune cells when entering the bloodstream during a medical procedure. In this view, several studies and different reviews have been reported to evaluate this interaction [280,321-328]. Indeed, the immune system governs every aspect of our health and plays a crucial role in the response of the organism to tumor eradication as well as to cancer therapy. In this view, immunotherapy is able to trigger the immune system of cancer patients to elicit a strong antitumor response. In view of their multifunctional properties, new 2DMs can serve as nanotheranostic tools for cancer immunotherapy thanks to their ability to modulate the immune system to eradicate cancer. Moreover, their functionalization with specific monoclonal antibodies, such as Rituxan, allows to specifically recognizing the cancer cells leading to tumor destruction [49]. The potentialities of 2DMs as immunotherapeutics need further investigations as done for other types of nanomaterials [329].

So far, in vivo oncological nanotheranostic research has been performed primarily in mice models, which are often not sufficiently adequate clinically relevant models. In these models, the tumor usually derives from immortalized human tumor cell lines after subcutaneous injection, which shows a variable success rate of cancer xenograft growth and not well represent the patient tumor heterogeneity offered by patient-derived xenograft models or accurate genetically engineered mouse models. To accelerate the advance to clinical implementation, adequate supportive data related at least to nanotool performance in terms of imaging, along with long-term assessment of their safety, stability and biodistribution, need to be acquired in larger animal models different from mice, which share more physiologic similarities with humans and present a longer life span, such as swine and non-human primates. In particular, these translational (preclinical) models (to human clinical trials) would provide a suitable step to evaluate the long-term destination of theranostic nanotools in the body, which is particularly relevant for slowly degradable or nondegradable nanomaterials, to assess whether and to what extent they can persist and accumulate in the organism for a long time, eventually leading to chronic inflammation. The possibility to control these aspects would allow mitigating the side effects and therefore improving the therapeutic efficacy.

As a critical step for the evaluation of their biocompatibility, the investigation of the in vivo impact of 2DMs applied to clinical application requires further toxicity and biodistribution analysis as well as metabolism studies that should be carried out applying the principles of reduction, refinement, and replacement. This long trial needs to be accomplished according to specific standardized procedures at an international level, such as the regulatory European guidelines EN ISO 10993.

Among these tests, the evaluation of irritation and sensitization reactions would be critical to determine the allergic response and the localized inflammatory response after, for instance, skin contact. This aspect is particularly relevant for topical application of biomedical nanotool, like PSs applied to the skin or nanosystems for wound healing [330]. Moreover, beside the assessment of systemic toxicity following a single or multiple dose during a short period (acute toxicity), it is crucial to evaluate the impact of repeated doses for a prolonged period (subacute, subchronic, and chronic systemic toxicity), since the latter represents the most common administration of 2DM-based medical devices. Mutagenicity, carcinogenicity, reproductive and development toxicity also need to be investigated, especially for materials destined to have a long-term exposure to the human body. In case of materials applied for therapy, such as in the case of cancer theranostics, it would be important to investigate the biocompatibility in healthy tissues by using experimental model developed to mimic pathological conditions of the surrounded organs/tissues, since the outcome of the nano-therapy will be influenced by the morbid condition [331].

The development of scalable nanotools is also a relevant need for their clinical translation. There are still critical issues related to the large-scale production of graphene, GRMs, graphene hybrids, and, even more, for that of the other 2DMs here discussed. These limits are mainly represented by the difficulties in obtaining a large number of high-quality products, dispersible in physiological solutions and at high concentrations, in a simple, low-budget, biocompatible, sterile and green-environmentally friendly manner. Indeed, for any nanomaterial toxicological evaluation and the subsequent medical application, there is a requirement to avoid chemical and biological impurities (e.g., endotoxin contamination) [332,333], which can derive from residual reagents used for their synthesis and the lack of sterile conditions during their production, respectively. Therefore, in studies concerning the investigation of theranostic tools, including the new 2DMs here presented, these aspects must be taken into consideration. Indeed, all the above-mentioned requirements are not easy and obvious to obtain for all the materials here analyzed for cancer theranostics.

In addition, defects and variability in size and thickness that can occur during production may affect the performance and the theranostic effectiveness of the material. It is crucial to deeply characterize the materials through well-established and standardized techniques to evaluate the impact of their properties (e.g., lateral size, number of layers, shape, surface charge, elasticity, chemical modification, etc.) [334]. Indeed, it has been highlighted the importance of considering the family of GRMs as composed by different individual materials with specific physicochemical characteristics, which in turn will affect their toxicity [253], and the same concept should be applied for their theranostic potentialities.

Moreover, a rational, systematic classification, allowing a scientific comparison among the different materials and their specific characteristics, is required to optimize and predict their possible theranostic applications. The current Food and Drug Administration (FDA) process to approve nanodrugs does not differ from that of any other drug or biologic [16,335-337], involving three phases of clinical trials, but a specific regulation of nanotechnology medical products is still missing and expected to be released [336]. To this end, it is essential to fully elucidate the biocompatibility of nanomaterials to draw conclusions on their toxicity and possible hazards in order to develop proper guidelines.

Altogether, these observations show a puzzling picture where many aspects still need to be further explored or improved. However, the growing research in the field highlights how the scientific community is becoming aware that cooperation and multi- and inter-disciplinary approaches are essential to address the abovementioned limits in designing cancer theranostics. We hope that our conclusions will help the community to reflect on the key considerations and open questions for 2D theranostics development. Overall, it is clear that the applications of graphene, graphene hybrids, and other novel 2DMs for cancer theranostics have the potentialities to offer a substantial contribution in the fight against cancer.

6.3. The future of 2D materials: clinical translation

2D materials represent a thriving field not least in cancer theranostics, due to the manifold advantages of these materials including their varied physicochemical properties, and low-cost production. The challenge of translating graphene and other 2DMs into the clinic is not a new undertaking. Similar concerns exist in every cutting-edge technology in the biomedical field, such as gene therapy, genome editing or stem cell therapeutics. In recent years, we have witnessed an exceptional accumulation of new knowledge on graphene and its applications in medicine. In terms of nanotechnologies applied to biology, graphene is represented by two different forms: as an engineered graphene-incorporating device, for use as sensors and implants, or as a highly oxygenated and structurally defective form of graphene oxide and its derivatives, stable in water and easy to functionalize. The latter formulations are currently explored in different drug delivery, photothermal, photodynamic, pharmacological, toxicological, and theranostical studies. The growing interest in the translation of graphene and other 2DMs into a range of application areas, including medicine, promoted, in part, by the Graphene Flagship project [2], is thus fueling great expectations. Graphene has been tested in vitro and in vivo obtaining promising results, which now allows us to look at the next phase of clinical studies and the safe translation of these materials into the clinic in the coming decades ahead.

Considering the fact that graphene has undergone such an incubation process over several years [338], in order to make this class of materials mature for the clinical translation, it is necessary to take a step back in order to ascertain the impact of other emerging 2DMs on human health and find the particular role that each material may play. Considering the entire panorama of 2DMs and taking into account their different properties it is impossible to say that a single type of material will be able to perform every type of biomedical applications; it is clearly more reasonable to select, optimize, and further develop each material for a specific purpose in order to provide solutions for unmet clinical needs.


LGD acknowledges the support of the Marie Skłodowska-Curie Actions Individual Fellowship IMM-GNR (grant agreement no. 797914), the European Union's Horizon 2020 research and innovation programme under the Marie Skłodowska-Curie grant agreement no. 734381 (CARBO-immap), and FLAG-ERA JTC Graphene 2015 (G-IMMUNOMICS project). BF acknowledges the support of the European Commission through the GRAPHENE Flagship Project (grant agreement no. 696656). YY and CC acknowledge the Engineering and Physical Sciences Research Council (EPSRC) for financial support in the framework of the 2DHealth project (EP/P00119X/1). AY is thankful to the Turkish Academy of Sciences (TUBA) for the financial support under TUBA-GEBIP 2018. FV acknowledges the support from the McCabe Fellow Award and the University of Pennsylvania Research Foundation.

Author Contributions

LGD proposed the topic of the review and coordinated the work. LGD, LF, AG, and GP conducted the literature review with assistance from all the authors. LGD, LF, AG, GP, FV, AY, SV, and CC, each wrote sections of the manuscript with input from all the other authors. LGD, LF, AG, and GP prepared the accompanying figures. All co-authors approved the final version of the present manuscript.

Competing Interests

The authors have declared that no competing interest exists.


1. Novoselov KS, Fal′ko VI, Colombo L, Gellert PR, Schwab MG, Kim K. A roadmap for graphene. Nature. 2012;490:192-200

2. Ferrari AC, Bonaccorso F, Fal'ko V. et al. Science and technology roadmap for graphene, related two-dimensional crystals, and hybrid systems. Nanoscale. 2015;7:4598-810

3. Shen H, Zhang L, Liu M, Zhang Z. Biomedical applications of graphene. Theranostics. 2012;2:283-94

4. Li L, Wang J, Kong H, Zeng Y, Liu G. Functional biomimetic nanoparticles for drug delivery and theranostic applications in cancer treatment. Science and Technology of Advanced Materials. 2018;19:771-90

5. Janib SM, Moses AS, MacKay JA. Imaging and drug delivery using theranostic nanoparticles. Adv Drug Deliv Rev. 2010;62:1052-63

6. Kiessling F, Mertens ME, Grimm J, Lammers T. Nanoparticles for Imaging: Top or Flop?. Radiology. 2014;273:10-28

7. Lammers T, Aime S, Hennink WE, Storm G, Kiessling F. Theranostic Nanomedicine. Acc Chem Res. 2011;44:1029-38

8. Lim E-K, Kim T, Paik S, Haam S, Huh Y-M, Lee K. Nanomaterials for Theranostics: Recent Advances and Future Challenges. Chem Rev. 2015;115:327-94

9. Chen H, Zhang W, Zhu G, Xie J, Chen X. Rethinking cancer nanotheranostics. Nat Rev Mater. 2017;2:17024

10. Wang X, Tang H, Wang C, Zhang J, Wu W, Jiang X. Phenylboronic Acid-Mediated Tumor Targeting of Chitosan Nanoparticles. Theranostics. 2016;6:1378-92

11. Stuker F, Ripoll J, Rudin M. Fluorescence molecular tomography: principles and potential for pharmaceutical research. Pharmaceutics. 2011;3:229-74

12. Epah J, Pálfi K, Dienst FL. et al. 3D Imaging and Quantitative Analysis of Vascular Networks: A Comparison of Ultramicroscopy and Micro-Computed Tomography. Theranostics. 2018;8:2117-33

13. Jacobson O, Weiss ID, Szajek LP. et al. PET imaging of CXCR4 using copper-64 labeled peptide antagonist. Theranostics. 2011;1:251-62

14. Zhu L, Guo N, Li Q. et al. Dynamic PET and Optical Imaging and Compartment Modeling using a Dual-labeled Cyclic RGD Peptide Probe. Theranostics. 2012;2:746-56

15. Han H-H, Qiu Y-J, Shi Y-Y. et al. Glypican-3-targeted precision diagnosis of hepatocellular carcinoma on clinical sections with a supramolecular 2D imaging probe. Theranostics. 2018;8:3268-74

16. Wolfram J, Ferrari M. Clinical cancer nanomedicine. Nano Today. 2019;25:85-98

17. Anselmo AC, Mitragotri S. Nanoparticles in the clinic. Bioeng Transl Med. 2016;1:10-29

18. Wicki A, Witzigmann D, Balasubramanian V, Huwyler J. Nanomedicine in cancer therapy: Challenges, opportunities, and clinical applications. Journal of Controlled Release. 2015;200:138-57

19. Wang AZ, Langer R, Farokhzad OC. Nanoparticle Delivery of Cancer Drugs. Annual Review of Medicine. 2012;63:185-98

20. Yin F, Hu K, Chen Y. et al. SiRNA Delivery with PEGylated Graphene Oxide Nanosheets for Combined Photothermal and Genetherapy for Pancreatic Cancer. Theranostics. 2017;7:1133-48

21. Wu X, Zhao Z, Bai H. et al. DNA Aptamer Selected against Pancreatic Ductal Adenocarcinoma for in vivo Imaging and Clinical Tissue Recognition. Theranostics. 2015;5:985-94

22. Jia Q, Yang F, Huang W. et al. Low Levels of Sox2 are required for Melanoma Tumor-Repopulating Cell Dormancy. Theranostics. 2019;9:424-35

23. Gao S, Hein S, Dagnæs-Hansen F. et al. Megalin-mediated specific uptake of chitosan/siRNA nanoparticles in mouse kidney proximal tubule epithelial cells enables AQP1 gene silencing. Theranostics. 2014;4:1039-51

24. Sanson C, Diou O, Thévenot J. et al. Doxorubicin Loaded Magnetic Polymersomes: Theranostic Nanocarriers for MR Imaging and Magneto-Chemotherapy. ACS Nano. 2011;5:1122-40

25. Tan A, Yildirimer L, Rajadas J, De La Peña H, Pastorin G, Seifalian A. Quantum dots and carbon nanotubes in oncology: a review on emerging theranostic applications in nanomedicine. Nanomedicine. 2011;6:1101-14

26. Liu Y, Gunda V, Zhu X. et al. Theranostic near-infrared fluorescent nanoplatform for imaging and systemic siRNA delivery to metastatic anaplastic thyroid cancer. PNAS. 2016;113:7750-5

27. Jaque D, Maestro LM, Rosal B del. et al. Nanoparticles for photothermal therapies. Nanoscale. 2014;6:9494-530

28. You R, Cao Y-S, Huang P-Y. et al. The Changing Therapeutic Role of Chemo-radiotherapy for Loco-regionally Advanced Nasopharyngeal Carcinoma from Two/Three-Dimensional Radiotherapy to Intensity-Modulated Radiotherapy: A Network Meta-Analysis. Theranostics. 2017;7:4825-35

29. Quintanilla M, García I, de Lázaro I. et al. Thermal monitoring during photothermia: hybrid probes for simultaneous plasmonic heating and near-infrared optical nanothermometry. Theranostics. 2019;9:7298-312

30. Kim J, Kim J, Jeong C, Kim WJ. Synergistic nanomedicine by combined gene and photothermal therapy. Advanced Drug Delivery Reviews. 2016;98:99-112

31. Liu Y, Bhattarai P, Dai Z, Chen X. Photothermal therapy and photoacoustic imaging via nanotheranostics in fighting cancer. Chem Soc Rev. 2019;48:2053-108

32. Bechet D, Couleaud P, Frochot C, Viriot M-L, Guillemin F, Barberi-Heyob M. Nanoparticles as vehicles for delivery of photodynamic therapy agents. Trends in Biotechnology. 2008;26:612-21

33. Yi G, Hong SH, Son J. et al. Recent advances in nanoparticle carriers for photodynamic therapy. Quant Imaging Med Surg. 2018;8:433-43

34. Modugno G, Ménard-Moyon C, Prato M, Bianco A. Carbon nanomaterials combined with metal nanoparticles for theranostic applications: Carbon nanomaterials for theranostic applications. British Journal of Pharmacology. 2015;172:975-91

35. Zhou L, Jing Y, Liu Y. et al. Mesoporous Carbon Nanospheres as a Multifunctional Carrier for Cancer Theranostics. Theranostics. 2018;8:663-75

36. Kostarelos K, Bianco A, Prato M. Promises, facts and challenges for carbon nanotubes in imaging and therapeutics. Nat Nanotechnol. 2009;4:627-33

37. Ke K, Yang W, Xie X. et al. Copper Manganese Sulfide Nanoplates: A New Two-Dimensional Theranostic Nanoplatform for MRI/MSOT Dual-Modal Imaging-Guided Photothermal Therapy in the Second Near-Infrared Window. Theranostics. 2017;7:4763-76

38. Yang B, Chen Y, Shi J. Material Chemistry of Two-Dimensional Inorganic Nanosheets in Cancer Theranostics. Chem. 2018;4:1284-313

39. Ji D-K, Ménard-Moyon C, Bianco A. Physically-triggered nanosystems based on two-dimensional materials for cancer theranostics. Advanced Drug Delivery Reviews. 2019;138:211-32

40. Wang Z, Liu Z, Su C. et al. Biodegradable Black Phosphorus-based Nanomaterials in Biomedicine: Theranostic Applications. Curr Med Chem. 2019;26:1788-805

41. Wang X, Cheng L. Multifunctional two-dimensional nanocomposites for photothermal-based combined cancer therapy. Nanoscale. 2019;11:15685-708

42. Murugan C, Sharma V, Murugan RK, Malaimegu G, Sundaramurthy A. Two-dimensional cancer theranostic nanomaterials: Synthesis, surface functionalization and applications in photothermal therapy. Journal of Controlled Release. 2019;299:1-20

43. Cheng L, Wang X, Gong F, Liu T, Liu Z. 2D Nanomaterials for Cancer Theranostic Applications. Advanced Materials. 2019 e1902333

44. Huang K, Li Z, Lin J, Han G, Huang P. Two-dimensional transition metal carbides and nitrides (MXenes) for biomedical applications. Chem Soc Rev. 2018;47:5109-24

45. Chen Y, Wu Y, Sun B, Liu S, Liu H. Two-Dimensional Nanomaterials for Cancer Nanotheranostics. Small. 2017;13:1603446

46. He X-P, Tian H. Photoluminescence Architectures for Disease Diagnosis: From Graphene to Thin-Layer Transition Metal Dichalcogenides and Oxides. Small. 2016;12:144-60

47. Sechi G, Bedognetti D, Sgarrella F. et al. The perception of nanotechnology and nanomedicine: a worldwide social media study. Nanomedicine (Lond). 2014;9:1475-86

48. Roy S, Jaiswal A. Graphene-Based Nanomaterials for Theranostic Applications. Rep Adv Phys Sci. 2017;1:1750011

49. Sun X, Liu Z, Welsher K. et al. Nano-Graphene Oxide for Cellular Imaging and Drug Delivery. Nano Res. 2008;1:203-12

50. Luo Y, Tang Y, Liu T. et al. Engineering graphene oxide with ultrasmall SPIONs and smart drug release for cancer theranostics. Chem Commun. 2019;55:1963-6

51. Diaz-Diestra D, Thapa B, Badillo-Diaz D, Beltran-Huarac J, Morell G, Weiner BR. Graphene Oxide/ZnS:Mn Nanocomposite Functionalized with Folic Acid as a Nontoxic and Effective Theranostic Platform for Breast Cancer Treatment. Nanomaterials (Basel). 2018;8:484

52. Usman MS, Hussein MZ, Fakurazi S, Masarudin MJ, Saad FFA. A bimodal theranostic nanodelivery system based on [graphene oxide-chlorogenic acid-gadolinium/gold] nanoparticles. PLOS ONE. 2018;13:e0200760

53. Usman MS, Hussein MZ, Kura AU, Fakurazi S, Masarudin MJ, Ahmad Saad FF. Graphene Oxide as a Nanocarrier for a Theranostics Delivery System of Protocatechuic Acid and Gadolinium/Gold Nanoparticles. Molecules. 2018 23

54. Ko NR, Nafiujjaman M, Lee JS, Lim H-N, Lee Y -k, Kwon IK. Graphene quantum dot-based theranostic agents for active targeting of breast cancer. RSC Adv. 2017;7:11420-7

55. Su X, Chan C, Shi J. et al. A graphene quantum dot@Fe3O4@SiO2 based nanoprobe for drug delivery sensing and dual-modal fluorescence and MRI imaging in cancer cells. Biosens Bioelectron. 2017;92:489-95

56. Ding H, Zhang F, Zhao C. et al. Beyond a Carrier: Graphene Quantum Dots as a Probe for Programmatically Monitoring Anti-Cancer Drug Delivery, Release, and Response. ACS Appl Mater Interfaces. 2017;9:27396-401

57. Li J, Wang J, Sun D. et al. Aptamer-Directed Specific Drug Delivery and Magnetic Resonance Imaging of Renal Carcinoma Cells In Vitro and In Vivo. J Biomed Nanotechnol. 2016;12:1604-16

58. Zhang C, Lu T, Tao J, Wan G, Zhao H. Co-delivery of paclitaxel and indocyanine green by PEGylated graphene oxide: A potential integrated nanoplatform for tumor theranostics. RSC Adv. 2016;6:15460-8

59. Bahreyni A, Yazdian-Robati R, Hashemitabar S. et al. A new chemotherapy agent-free theranostic system composed of graphene oxide nano-complex and aptamers for treatment of cancer cells. Int J Pharm. 2017;526:391-9

60. Thakur M, Mewada A, Pandey S. et al. Milk-derived multi-fluorescent graphene quantum dot-based cancer theranostic system. Mater Sci Eng C Mater Biol Appl. 2016;67:468-77

61. Wang X, Sun X, He H. et al. A two-component active targeting theranostic agent based on graphene quantum dots. J Mater Chem B. 2015;3:3583-90

62. Dong H, Dai W, Ju H. et al. Multifunctional Poly(L-lactide)-Polyethylene Glycol-Grafted Graphene Quantum Dots for Intracellular MicroRNA Imaging and Combined Specific-Gene-Targeting Agents Delivery for Improved Therapeutics. ACS Appl Mater Interfaces. 2015;7:11015-23

63. Yang H-W, Huang C-Y, Lin C-W. et al. Gadolinium-functionalized nanographene oxide for combined drug and microRNA delivery and magnetic resonance imaging. Biomaterials. 2014;35:6534-42

64. Wang C, Chen B, Zou M, Cheng G. Cyclic RGD-modified chitosan/graphene oxide polymers for drug delivery and cellular imaging. Colloids Surf B Biointerfaces. 2014;122:332-40

65. Nie L, Huang P, Li W. et al. Early-Stage Imaging of Nanocarrier-Enhanced Chemotherapy Response in Living Subjects by Scalable Photoacoustic Microscopy. ACS Nano. 2014;8:12141-50

66. Some S, Gwon A-R, Hwang E. et al. Cancer Therapy Using Ultrahigh Hydrophobic Drug-Loaded Graphene Derivatives. Scientific Reports. 2014;4:6314

67. He D, He X, Wang K, Zou Z, Yang X, Li X. Remote-Controlled Drug Release from Graphene Oxide-Capped Mesoporous Silica to Cancer Cells by Photoinduced pH-Jump Activation. Langmuir. 2014;30:7182-9

68. Chen M-L, He Y-J, Chen X-W, Wang J-H. Quantum-Dot-Conjugated Graphene as a Probe for Simultaneous Cancer-Targeted Fluorescent Imaging, Tracking, and Monitoring Drug Delivery. Bioconjugate Chem. 2013;24:387-97

69. Ma X, Qu Q, Zhao Y. et al. Graphene oxide wrapped gold nanoparticles for intracellular Raman imaging and drug delivery. J Mater Chem B. 2013;1:6495-500

70. Chen Y, Guo F, Qiu Y. et al. Encapsulation of Particle Ensembles in Graphene Nanosacks as a New Route to Multifunctional Materials. ACS Nano. 2013;7:3744-53

71. Zhang M, Cao Y, Chong Y. et al. Graphene Oxide Based Theranostic Platform for T1-Weighted Magnetic Resonance Imaging and Drug Delivery. ACS Appl Mater Interfaces. 2013;5:13325-32

72. Wang Y, Huang R, Liang G. et al. MRI-visualized, dual-targeting, combined tumor therapy using magnetic graphene-based mesoporous silica. Small. 2014;10:109-16

73. Wang C, Ravi S, Garapati US. et al. Multifunctional Chitosan Magnetic-Graphene (CMG) Nanoparticles: a Theranostic Platform for Tumor-targeted Co-delivery of Drugs, Genes and MRI Contrast Agents. J Mater Chem B. 2013;1:4396-405

74. Gao S, Zhang L, Wang G. et al. Hybrid graphene/Au activatable theranostic agent for multimodalities imaging guided enhanced photothermal therapy. Biomaterials. 2016;79:36-45

75. Gao Y, Zou X, Zhao JX, Li Y, Su X. Graphene oxide-based magnetic fluorescent hybrids for drug delivery and cellular imaging. Colloids Surf B Biointerfaces. 2013;112:128-33

76. Hong H, Yang K, Zhang Y. et al. In Vivo Targeting and Imaging of Tumor Vasculature with Radiolabeled, Antibody-Conjugated Nanographene. ACS Nano. 2012;6:2361-70

77. Kim H, Namgung R, Singha K, Oh I-K, Kim WJ. Graphene Oxide-Polyethylenimine Nanoconstruct as a Gene Delivery Vector and Bioimaging Tool. Bioconjugate Chem. 2011;22:2558-67

78. Bhirde AA, Liu G, Jin A. et al. Combining portable Raman probes with nanotubes for theranostic applications. Theranostics. 2011;1:310-21

79. Su YL, Yu TW, Chiang WH. et al. Hierarchically Targeted and Penetrated Delivery of Drugs to Tumors by Size-Changeable Graphene Quantum Dot Nanoaircrafts for Photolytic Therapy. Advanced Functional Materials. 2017;27:1700056

80. Gao Z, Ma T, Zhao E. et al. Small is Smarter: Nano MRI Contrast Agents - Advantages and Recent Achievements. Small. 2016;12:556-76

81. He Y, Laugesen K, Kamp D, Sultan SA, Oddershede LB, Jauffred L. Effects and side-effects of plasmonic photothermal therapy in brain tissue. Cancer Nanotechnology. 2019;10:8

82. Aioub M, Panikkanvalappil SR, El-Sayed MA. Platinum-Coated Gold Nanorods: Efficient Reactive Oxygen Scavengers That Prevent Oxidative Damage toward Healthy, Untreated Cells during Plasmonic Photothermal Therapy. ACS Nano. 2017;11:579-86

83. Badrigilan S, Shaabani B, Gharehaghaji N, Mesbahi A. Iron oxide/bismuth oxide nanocomposites coated by graphene quantum dots: 'Three-in-one' theranostic agents for simultaneous CT/MR imaging-guided in vitro photothermal therapy. Photodiagnosis Photodyn Ther. 2019;25:504-14

84. Li P, Yan Y, Chen B. et al. Lanthanide-doped upconversion nanoparticles complexed with nano-oxide graphene used for upconversion fluorescence imaging and photothermal therapy. Biomater Sci. 2018;6:877-84

85. Bi H, He F, Dai Y. et al. Quad-Model Imaging-Guided High-Efficiency Phototherapy Based on Upconversion Nanoparticles and ZnFe2O4 Integrated Graphene Oxide. Inorg Chem. 2018;57:9988-98

86. Gulzar A, Xu J, Yang D. et al. Nano-graphene oxide-UCNP-Ce6 covalently constructed nanocomposites for NIR-mediated bioimaging and PTT/PDT combinatorial therapy. Dalton Trans. 2018;47:3931-9

87. Zhang Y, Zhang H, Wang Y. et al. Hydrophilic graphene oxide/bismuth selenide nanocomposites for CT imaging, photoacoustic imaging, and photothermal therapy. J Mater Chem B. 2017;5:1846-55

88. Kalluru P, Vankayala R, Chiang C-S, Hwang KC. Nano-graphene oxide-mediated In vivo fluorescence imaging and bimodal photodynamic and photothermal destruction of tumors. Biomaterials. 2016;95:1-10

89. Lin L-S, Yang X, Niu G, Song J, Yang H-H, Chen X. Dual-enhanced photothermal conversion properties of reduced graphene oxide-coated gold superparticles for light-triggered acoustic and thermal theranostics. Nanoscale. 2016;8:2116-22

90. Luo S, Yang Z, Tan X. et al. A Multifunctional Photosensitizer Grafted on Polyethylene Glycol and Polyethylenimine Dual-Functionalized Nanographene Oxide for Cancer-Targeted Near-Infrared Imaging and Synergistic Phototherapy. ACS Applied Materials & Interfaces. 2016;8:17176-86

91. Huang G, Zhu XL, Li H. et al. Facile integration of multiple magnetite nanoparticles for theranostics combining efficient MRI and thermal therapy. Nanoscale. 2015;7:2667-75

92. Kim Y-K, Na H-K, Kim S, Jang H, Chang S-J, Min D-H. One-Pot Synthesis of Multifunctional Au@Graphene Oxide Nanocolloid Core@Shell Nanoparticles for Raman Bioimaging, Photothermal, and Photodynamic Therapy. Small. 2015;11:2527-35

93. Rong P, Wu J, Liu Z. et al. Fluorescence Dye Loaded Nano-graphene for Multimodal Imaging Guided Photothermal Therapy. RSC Adv. 2016;6:1894-901

94. Yan X, Hu H, Lin J. et al. Optical and photoacoustic dual-modality imaging guided synergistic photodynamic/photothermal therapies. Nanoscale. 2015;7:2520-6

95. Hu D, Zhang J, Gao G, Sheng Z, Cui H, Cai L. Indocyanine Green-Loaded Polydopamine-Reduced Graphene Oxide Nanocomposites with Amplifying Photoacoustic and Photothermal Effects for Cancer Theranostics. Theranostics. 2016;6:1043-52

96. Zhang H, Wu H, Wang J. et al. Graphene oxide-BaGdF5 nanocomposites for multi-modal imaging and photothermal therapy. Biomaterials. 2015;42:66-77

97. Ge J, Lan M, Zhou B. et al. A graphene quantum dot photodynamic therapy agent with high singlet oxygen generation. Nature Communications. 2014;5:4596

98. Gollavelli G, Ling Y-C. Magnetic and fluorescent graphene for dual modal imaging and single light induced photothermal and photodynamic therapy of cancer cells. Biomaterials. 2014;35:4499-507

99. Viraka Nellore BP, Pramanik A, Chavva SR. et al. Aptamer-conjugated theranostic hybrid graphene oxide with highly selective biosensing and combined therapy capability. Faraday Discuss. 2014;175:257-71

100. Nergiz SZ, Gandra N, Tadepalli S, Singamaneni S. Multifunctional Hybrid Nanopatches of Graphene Oxide and Gold Nanostars for Ultraefficient Photothermal Cancer Therapy. ACS Appl Mater Interfaces. 2014;6:16395-402

101. Nurunnabi M, Khatun Z, Reeck GR, Lee DY, Lee Y. Photoluminescent Graphene Nanoparticles for Cancer Phototherapy and Imaging. ACS Appl Mater Interfaces. 2014;6:12413-21

102. Wang S, Zhang Q, Luo XF. et al. Magnetic graphene-based nanotheranostic agent for dual-modality mapping guided photothermal therapy in regional lymph nodal metastasis of pancreatic cancer. Biomaterials. 2014;35:9473-83

103. Rong P, Yang K, Srivastan A. et al. Photosensitizer Loaded Nano-Graphene for Multimodality Imaging Guided Tumor Photodynamic Therapy. Theranostics. 2014;4:229-39

104. Cho Y, Kim H, Choi Y. A graphene oxide-photosensitizer complex as an enzyme-activatable theranostic agent. Chem Commun. 2013;49:1202-4

105. Wang Y, Wang H, Liu D, Song S, Wang X, Zhang H. Graphene oxide covalently grafted upconversion nanoparticles for combined NIR mediated imaging and photothermal/photodynamic cancer therapy. Biomaterials. 2013;34:7715-24

106. Shi J, Wang L, Zhang J. et al. A tumor-targeting near-infrared laser-triggered drug delivery system based on GO@Ag nanoparticles for chemo-photothermal therapy and X-ray imaging. Biomaterials. 2014;35:5847-61

107. Sheng Z, Song L, Zheng J. et al. Protein-assisted fabrication of nano-reduced graphene oxide for combined in vivo photoacoustic imaging and photothermal therapy. Biomaterials. 2013;34:5236-43

108. Yang K, Hu L, Ma X. et al. Multimodal imaging guided photothermal therapy using functionalized graphene nanosheets anchored with magnetic nanoparticles. Adv Mater Weinheim. 2012;24:1868-72

109. Hu S-H, Chen Y-W, Hung W-T, Chen I-W, Chen S-Y. Quantum-dot-tagged reduced graphene oxide nanocomposites for bright fluorescence bioimaging and photothermal therapy monitored in situ. Adv Mater Weinheim. 2012;24:1748-54

110. Yang K, Zhang S, Zhang G, Sun X, Lee S-T, Liu Z. Graphene in Mice: Ultrahigh In Vivo Tumor Uptake and Efficient Photothermal Therapy. Nano Lett. 2010;10:3318-23

111. Zha Z, Zhang S, Deng Z, Li Y, Li C, Dai Z. Enzyme-responsive copper sulphide nanoparticles for combined photoacoustic imaging, tumor-selective chemotherapy and photothermal therapy. Chem Commun. 2013;49:3455-7

112. Lu W, Melancon MP, Xiong C. et al. Effects of photoacoustic imaging and photothermal ablation therapy mediated by targeted hollow gold nanospheres in an orthotopic mouse xenograft model of glioma. Cancer Res. 2011;71:6116-21

113. Chen Y-W, Su Y-L, Hu S-H, Chen S-Y. Functionalized graphene nanocomposites for enhancing photothermal therapy in tumor treatment. Adv Drug Deliv Rev. 2016;105:190-204

114. Wang Y-W, Fu Y-Y, Peng Q. et al. Dye-enhanced graphene oxide for photothermal therapy and photoacoustic imaging. J Mater Chem B. 2013;1:5762-7

115. Jin Y, Wang J, Ke H, Wang S, Dai Z. Graphene oxide modified PLA microcapsules containing gold nanoparticles for ultrasonic/CT bimodal imaging guided photothermal tumor therapy. Biomaterials. 2013;34:4794-802

116. Shi X, Gong H, Li Y, Wang C, Cheng L, Liu Z. Graphene-based magnetic plasmonic nanocomposite for dual bioimaging and photothermal therapy. Biomaterials. 2013;34:4786-93

117. Gazzi A, Fusco L, Khan A. et al. Photodynamic Therapy Based on Graphene and MXene in Cancer Theranostics. Front Bioeng Biotechnol. 2019;7:295

118. Feng L, Li K, Shi X, Gao M, Liu J, Liu Z. Smart pH-responsive nanocarriers based on nano-graphene oxide for combined chemo- and photothermal therapy overcoming drug resistance. Adv Healthc Mater. 2014;3:1261-71

119. Battogtokh G, Ko YT. Graphene oxide-incorporated pH-responsive folate-albumin-photosensitizer nanocomplex as image-guided dual therapeutics. J Control Release. 2016;234:10-20

120. Karimi Shervedani R, Samiei Foroushani M, Kefayat A, Torabi M, Rahnemaye Rahsepar F. Construction and characterization of a theranostic system based on graphene/manganese chelate. Biosens Bioelectron. 2018;117:794-801

121. Justin R, Tao K, Román S. et al. Photoluminescent and superparamagnetic reduced graphene oxide-iron oxide quantum dots for dual-modality imaging, drug delivery and photothermal therapy. Carbon. 2016;97:54-70

122. Chen Y-W, Liu T-Y, Chen P-J, Chang P-H, Chen S-Y. A High-Sensitivity and Low-Power Theranostic Nanosystem for Cell SERS Imaging and Selectively Photothermal Therapy Using Anti-EGFR-Conjugated Reduced Graphene Oxide/Mesoporous Silica/AuNPs Nanosheets. Small. 2016;12:1458-68

123. Miao W, Shim G, Kim G. et al. Image-guided synergistic photothermal therapy using photoresponsive imaging agent-loaded graphene-based nanosheets. J Control Release. 2015;211:28-36

124. Chen H, Liu F, Lei Z, Ma L, Wang Z. Fe2O3@Au Core@Shell Nanoparticle-Graphene Nanocomposites as Theranostic Agents for Bioimaging and Chemo-Photothermal Synergistic Therapy. RSC Adv. 2015;5:84980-7

125. Shi J, Wang B, Chen Z. et al. A Multi-Functional Tumor Theranostic Nanoplatform for MRI Guided Photothermal-Chemotherapy. Pharm Res. 2016;33:1472-85

126. Chen H, Liu Z, Li S. et al. Fabrication of Graphene and AuNP Core Polyaniline Shell Nanocomposites as Multifunctional Theranostic Platforms for SERS Real-time Monitoring and Chemo-photothermal Therapy. Theranostics. 2016;6:1096-104

127. Chang X, Zhang Y, Xu P, Zhang M, Wu H, Yang S. Graphene oxide / MnWO4 nanocomposite for magnetic resonance / photoacoustic dual-model imaging and tumor photothermo-chemotherapy. Carbon. 2018;138:397-409

128. Khatun Z, Nurunnabi M, Nafiujjaman M. et al. A hyaluronic acid nanogel for photo-chemo theranostics of lung cancer with simultaneous light-responsive controlled release of doxorubicin. Nanoscale. 2015;7:10680-9

129. Bian X, Song Z-L, Qian Y. et al. Fabrication of Graphene-isolated-Au-nanocrystal Nanostructures for Multimodal Cell Imaging and Photothermal-enhanced Chemotherapy. Scientific Reports. 2014;4:6093

130. Cao Y, Dong H, Yang Z. et al. Aptamer-Conjugated Graphene Quantum Dots/Porphyrin Derivative Theranostic Agent for Intracellular Cancer-Related MicroRNA Detection and Fluorescence-Guided Photothermal/Photodynamic Synergetic Therapy. ACS Appl Mater Interfaces. 2017;9:159-66

131. Zhou L, Zhou L, Ge X, Zhou J, Wei S, Shen J. Multicolor imaging and the anticancer effect of a bifunctional silica nanosystem based on the complex of graphene quantum dots and hypocrellin A. Chem Commun. 2014;51:421-4

132. Yan X, Niu G, Lin J. et al. Enhanced fluorescence imaging guided photodynamic therapy of sinoporphyrin sodium loaded graphene oxide. Biomaterials. 2015;42:94-102

133. Yang Y, Shi H, Wang Y. et al. Graphene oxide/manganese ferrite nanohybrids for magnetic resonance imaging, photothermal therapy and drug delivery. J Biomater Appl. 2016;30:810-22

134. Wu C, Li D, Wang L. et al. Single wavelength light-mediated, synergistic bimodal cancer photoablation and amplified photothermal performance by graphene/gold nanostar/photosensitizer theranostics. Acta Biomater. 2017;53:631-42

135. Canavese G, Ancona A, Racca L. et al. Nanoparticle-assisted ultrasound: A special focus on sonodynamic therapy against cancer. Chemical Engineering Journal. 2018;340:155-72

136. Wan G-Y, Liu Y, Chen B-W, Liu Y-Y, Wang Y-S, Zhang N. Recent advances of sonodynamic therapy in cancer treatment. Cancer Biol Med. 2016;13:325-38

137. El Kaffas A, Sigrist RMS, Fisher G. et al. Quantitative Three-Dimensional Dynamic Contrast-Enhanced Ultrasound Imaging: First-In-Human Pilot Study in Patients with Liver Metastases. Theranostics. 2017;7:3745-58

138. Dai C, Zhang S, Liu Z, Wu R, Chen Y. Two-Dimensional Graphene Augments Nanosonosensitized Sonocatalytic Tumor Eradication. ACS Nano. 2017;11:9467-80

139. Huang J, Liu F, Han X. et al. Nanosonosensitizers for Highly Efficient Sonodynamic Cancer Theranostics. Theranostics. 2018;8:6178-94

140. Feng C, Bo B, Mao X, Shi H, Zhu X, Li G. From Interface to Solution: Integrating Immunoassay with Netlike Rolling Circle Amplification for Ultrasensitive Detection of Tumor Biomarker. Theranostics. 2017;7:31-9

141. Tao Y, Ju E, Ren J, Qu X. Immunostimulatory oligonucleotides-loaded cationic graphene oxide with photothermally enhanced immunogenicity for photothermal/immune cancer therapy. Biomaterials. 2014;35:9963-71

142. Boraschi D, Italiani P, Palomba R. et al. Nanoparticles and innate immunity: new perspectives on host defence. Semin Immunol. 2017;34:33-51

143. Wang L, Wang M, Zhou B. et al. PEGylated reduced-graphene oxide hybridized with Fe3O4 nanoparticles for cancer photothermal-immunotherapy. J Mater Chem B. 2019;7:7406-14

144. Wu C, Guan X, Xu J. et al. Highly efficient cascading synergy of cancer photo-immunotherapy enabled by engineered graphene quantum dots/photosensitizer/CpG oligonucleotides hybrid nanotheranostics. Biomaterials. 2019;205:106-19

145. Yang F, Song P, Ruan M, Xu W. Recent progress in two-dimensional nanomaterials: Synthesis, engineering, and applications. FlatChem. 2019;18:100133

146. Joly-Pottuz L, Iwaki M. Superlubricity of Tungsten Disulfide Coatings in Ultra High Vacuum. In: Erdemir A, Martin JM, Ed. Superlubricity. Elsevier Science B.V. 2007:227-36

147. Cheng L, Liu J, Gu X. et al. PEGylated WS2 Nanosheets as a Multifunctional Theranostic Agent for in vivo Dual-Modal CT/Photoacoustic Imaging Guided Photothermal Therapy. Advanced Materials. 2014;26:1886-93

148. Yong Y, Zhou L, Gu Z. et al. WS2 nanosheet as a new photosensitizer carrier for combined photodynamic and photothermal therapy of cancer cells. Nanoscale. 2014;6:10394-403

149. Yang G, Zhang R, Liang C. et al. Manganese Dioxide Coated WS2@Fe3O4/sSiO2 Nanocomposites for pH-Responsive MR Imaging and Oxygen-Elevated Synergetic Therapy. Small. 2018;14:1702664

150. Chao Y, Wang G, Liang C. et al. Rhenium-188 Labeled Tungsten Disulfide Nanoflakes for Self-Sensitized, Near-Infrared Enhanced Radioisotope Therapy. Small. 2016;12:3967-75

151. Yadav V, Roy S, Singh P, Khan Z, Jaiswal A. 2D MoS2-Based Nanomaterials for Therapeutic, Bioimaging, and Biosensing Applications. Small. 2019;15:1803706

152. Liu T, Wang C, Gu X. et al. Drug delivery with PEGylated MoS2 nano-sheets for combined photothermal and chemotherapy of cancer. Adv Mater Weinheim. 2014;26:3433-40

153. Liu T, Wang C, Cui W. et al. Combined photothermal and photodynamic therapy delivered by PEGylated MoS2 nanosheets. Nanoscale. 2014;6:11219-25

154. Liu T, Shi S, Liang C. et al. Iron oxide decorated MoS2 nanosheets with double PEGylation for chelator-free radiolabeling and multimodal imaging guided photothermal therapy. ACS Nano. 2015;9:950-60

155. Wang S, Li X, Chen Y. et al. A Facile One-Pot Synthesis of a Two-Dimensional MoS2 /Bi2S3 Composite Theranostic Nanosystem for Multi-Modality Tumor Imaging and Therapy. Adv Mater Weinheim. 2015;27:2775-82

156. Yu J, Yin W, Zheng X. et al. Smart MoS2/Fe3O4 Nanotheranostic for Magnetically Targeted Photothermal Therapy Guided by Magnetic Resonance/Photoacoustic Imaging. Theranostics. 2015;5:931-45

157. Li X, Gong Y, Zhou X. et al. Facile synthesis of soybean phospholipid-encapsulated MoS2 nanosheets for efficient in vitro and in vivo photothermal regression of breast tumor. Int J Nanomedicine. 2016;11:1819-33

158. Zhao J, Zhou C, Li M. et al. Bottom-up synthesis of ultra-small molybdenum disulfide-polyvinylpyrrolidone nanosheets for imaging-guided tumor regression. Oncotarget. 2017;8:106707-20

159. Xu J, Gulzar A, Liu Y. et al. Integration of IR-808 Sensitized Upconversion Nanostructure and MoS2 Nanosheet for 808 nm NIR Light Triggered Phototherapy and Bioimaging. Small. 2017;13:1701841

160. Liu B, Li C, Chen G. et al. Synthesis and Optimization of MoS2@Fe3O4-ICG/Pt(IV) Nanoflowers for MR/IR/PA Bioimaging and Combined PTT/PDT/Chemotherapy Triggered by 808 nm Laser. Adv Sci (Weinh). 2017;4:1600540

161. Chen L, Zhou X, Nie W. et al. Marriage of Albumin-Gadolinium Complexes and MoS2 Nanoflakes as Cancer Theranostics for Dual-Modality Magnetic Resonance/Photoacoustic Imaging and Photothermal Therapy. ACS Appl Mater Interfaces. 2017;9:17786-98

162. Maji SK, Yu S, Chung K. et al. Synergistic Nanozymetic Activity of Hybrid Gold Bipyramid-Molybdenum Disulfide Core@Shell Nanostructures for Two-Photon Imaging and Anticancer Therapy. ACS Appl Mater Interfaces. 2018;10:42068-76

163. Dong X, Yin W, Zhang X. et al. Intelligent MoS2 Nanotheranostic for Targeted and Enzyme-/pH-/NIR-Responsive Drug Delivery To Overcome Cancer Chemotherapy Resistance Guided by PET Imaging. ACS Appl Mater Interfaces. 2018;10:4271-84

164. Jing X, Zhi Z, Wang D, Liu J, Shao Y, Meng L. Multifunctional Nanoflowers for Simultaneous Multimodal Imaging and High-Sensitivity Chemo-Photothermal Treatment. Bioconjug Chem. 2018;29:559-70

165. Liu J, Zheng J, Nie H. et al. Molybdenum disulfide-based hyaluronic acid-guided multifunctional theranostic nanoplatform for magnetic resonance imaging and synergetic chemo-photothermal therapy. J Colloid Interface Sci. 2019;548:131-44

166. Gusmão R, Sofer Z, Pumera M. Black Phosphorus Rediscovered: From Bulk Material to Monolayers. Angewandte Chemie International Edition. 2017;56:8052-72

167. Tao W, Kong N, Ji X. et al. Emerging two-dimensional monoelemental materials (Xenes) for biomedical applications. Chem Soc Rev. 2019;48:2891-912

168. Choi JR, Yong KW, Choi JY. et al. Black Phosphorus and its Biomedical Applications. Theranostics. 2018;8:1005-26

169. Martín C, Kostarelos K, Prato M, Bianco A. Biocompatibility and biodegradability of 2D materials: graphene and beyond. Chem Commun. 2019;55:5540-6

170. Sun C, Wen L, Zeng J. et al. One-pot solventless preparation of PEGylated black phosphorus nanoparticles for photoacoustic imaging and photothermal therapy of cancer. Biomaterials. 2016;91:81-9

171. Li Y, Liu Z, Hou Y. et al. Multifunctional Nanoplatform Based on Black Phosphorus Quantum Dots for Bioimaging and Photodynamic/Photothermal Synergistic Cancer Therapy. ACS Appl Mater Interfaces. 2017;9:25098-106

172. Tao W, Zhu X, Yu X. et al. Black Phosphorus Nanosheets as a Robust Delivery Platform for Cancer Theranostics. Adv Mater Weinheim. 2017;29:1603276

173. Zhang M, Wang W, Cui Y, Zhou N, Shen J. Near-infrared light-mediated photodynamic/photothermal therapy nanoplatform by the assembly of Fe3O4 carbon dots with graphitic black phosphorus quantum dots. Int J Nanomedicine. 2018;13:2803-19

174. Li Z, Guo T, Hu Y. et al. A Highly Effective π-π Stacking Strategy To Modify Black Phosphorus with Aromatic Molecules for Cancer Theranostics. ACS Appl Mater Interfaces. 2019;11:9860-71

175. Huang H, He L, Zhou W. et al. Stable black phosphorus/Bi2O3 heterostructures for synergistic cancer radiotherapy. Biomaterials. 2018;171:12-22

176. Zhang M, Wang W, Wu F, Graveran K, Zhang J, Wu C. Black Phosphorus Quantum Dots Gated, Carbon-Coated Fe3 O4 Nanocapsules (BPQDs@ss-Fe3 O4 @C) with Low Premature Release Could Enable Imaging-Guided Cancer Combination Therapy. Chemistry. 2018;24:12890-901

177. Sun Z, Zhao Y, Li Z. et al. TiL4 -Coordinated Black Phosphorus Quantum Dots as an Efficient Contrast Agent for In Vivo Photoacoustic Imaging of Cancer. Small. 2017;13:1602896

178. Naguib M, Kurtoglu M, Presser V. et al. Two-Dimensional Nanocrystals Produced by Exfoliation of Ti3AlC2. Advanced Materials. 2011;23:4248-53

179. Lukatskaya MR, Kota S, Lin Z. et al. Ultra-high-rate pseudocapacitive energy storage in two-dimensional transition metal carbides. Nat Energy. 2017;2:1-6

180. Zhang CJ, Anasori B, Seral-Ascaso A. et al. Transparent, Flexible, and Conductive 2D Titanium Carbide (MXene) Films with High Volumetric Capacitance. Advanced Materials. 2017;29:1702678

181. Li R, Zhang L, Shi L, Wang P. MXene Ti3C2: An Effective 2D Light-to-Heat Conversion Material. ACS Nano. 2017;11:3752-9

182. Han X, Huang J, Lin H, Wang Z, Li P, Chen Y. 2D Ultrathin MXene-Based Drug-Delivery Nanoplatform for Synergistic Photothermal Ablation and Chemotherapy of Cancer. Advanced Healthcare Materials. 2018;306:1701313-94

183. Liu G, Zou J, Tang Q. et al. Surface Modified Ti3C2 MXene Nanosheets for Tumor Targeting Photothermal/Photodynamic/Chemo Synergistic Therapy. ACS Applied Materials & Interfaces. 2017;9:40077-86

184. Ge J, Lan M, Zhou B. et al. A graphene quantum dot photodynamic therapy agent with high singlet oxygen generation. Nature Communications. 2014;5:4596

185. Wang H, Yang X, Shao W. et al. Ultrathin Black Phosphorus Nanosheets for Efficient Singlet Oxygen Generation. Journal of the American Chemical Society. 2015;137:11376-82

186. Lee N, Choi SH, Hyeon T. Nano-Sized CT Contrast Agents. Advanced Materials. 2013;25:2641-60

187. Dai C, Chen Y, Jing X. et al. Two-Dimensional Tantalum Carbide (MXenes) Composite Nanosheets for Multiple Imaging-Guided Photothermal Tumor Ablation. ACS Nano. 2017;11:12696-712

188. Liu Z, Lin H, Zhao M. et al. 2D Superparamagnetic Tantalum Carbide Composite MXenes for Efficient Breast-Cancer Theranostics. Theranostics. 2018 8

189. Lin H, Gao S, Dai C, Chen Y, Shi J. A Two-Dimensional Biodegradable Niobium Carbide (MXene) for Photothermal Tumor Eradication in NIR-I and NIR-II Biowindows. Journal of the American Chemical Society. 2017;139:16235-47

190. Tang W, Dong Z, Zhang R. et al. Multifunctional Two-Dimensional Core-Shell MXene@Gold Nanocomposites for Enhanced Photo-Radio Combined Therapy in the Second Biological Window. ACS Nano. 2018;13:284-94

191. Li Z, Zhang H, Han J, Chen Y, Lin H, Yang T. Surface Nanopore Engineering of 2D MXenes for Targeted and Synergistic Multitherapies of Hepatocellular Carcinoma. Advanced Materials. 2018;30:1706911-81

192. Han X, Jing X, Yang D. et al. Therapeutic mesopore construction on 2D Nb 2C MXenes for targeted and enhanced chemo-photothermal cancer therapy in NIR-II biowindow. Theranostics. 2018;8:4491-508

193. Xiang H, Lin H, Yu L, Chen Y. Hypoxia-Irrelevant Photonic Thermodynamic Cancer Nanomedicine. ACS Nano. 2019;13:2223-35

194. Lin H, Wang X, Yu L, Chen Y, Shi J. Two-Dimensional Ultrathin MXene Ceramic Nanosheets for Photothermal Conversion. Nano Letters. 2016;17:384-91

195. Dai C, Lin H, Xu G, Liu Z, Wu R, Chen Y. Biocompatible 2D Titanium Carbide (MXenes) Composite Nanosheets for pH-Responsive MRI-Guided Tumor Hyperthermia. Chemistry of materials : a publication of the American Chemical Society. 2017;29:8637-52

196. Liu G, Zou J, Tang Q. et al. Surface Modified Ti3C2 MXene Nanosheets for Tumor Targeting Photothermal/Photodynamic/Chemo Synergistic Therapy. ACS Applied Materials & Interfaces. 2017;9:40077-86

197. Driscoll N, Richardson AG, Maleski K. et al. Two-Dimensional Ti3C2 MXene for High-Resolution Neural Interfaces. ACS Nano. 2018;12:10419-29

198. Li G, Li Y, Liu H, Guo Y, Li Y, Zhu D. Architecture of graphdiyne nanoscale films. Chem Commun. 2010;46:3256-8

199. Jiao Y, Du A, Hankel M, Zhu Z, Rudolph V, Smith SC. Graphdiyne: a versatile nanomaterial for electronics and hydrogen purification. Chem Commun. 2011;47:11843-5

200. Jin J, Guo M, Liu J. et al. Graphdiyne Nanosheet-Based Drug Delivery Platform for Photothermal/Chemotherapy Combination Treatment of Cancer. ACS Appl Mater Interfaces. 2018;10:8436-42

201. Li Y, Li X, Meng Y, Hun X. Photoelectrochemical platform for MicroRNA let-7a detection based on graphdiyne loaded with AuNPs modified electrode coupled with alkaline phosphatase. Biosensors and Bioelectronics. 2019;130:269-75

202. Li S, Chen Y, Liu H. et al. Graphdiyne Materials as Nanotransducer for in Vivo Photoacoustic Imaging and Photothermal Therapy of Tumor. Chem Mater. 2017;29:6087-94

203. Dean CR, Young AF, Meric I. et al. Boron nitride substrates for high-quality graphene electronics. Nature nanotechnology. 2010;5:722-6

204. Jessen BS, Gammelgaard L, Thomsen MR. et al. Lithographic band structure engineering of graphene. Nature Nanotechnology. 2019;14:340-6

205. Ciofani G, Danti S, Genchi GG, Mazzolai B, Mattoli V. Boron Nitride Nanotubes: Biocompatibility and Potential Spill-Over in Nanomedicine. Small. 2013;9:1672-85

206. Horváth L, Magrez A, Golberg D. et al. In Vitro Investigation of the Cellular Toxicity of Boron Nitride Nanotubes. ACS Nano. 2011;5:3800-10

207. Weng Q, Wang X, Wang X, Bando Y, Golberg D. Functionalized hexagonal boron nitride nanomaterials: emerging properties and applications. Chem Soc Rev. 2016;45:3989-4012

208. Yang H, Withers F, Gebremedhn E. et al. Dielectric nanosheets made by liquid-phase exfoliation in water and their use in graphene-based electronics. 2D Mater. 2014 1: 011012

209. McManus D, Vranic S, Withers F. et al. Water-based and biocompatible 2D crystal inks for all-inkjet-printed heterostructures. Nature Nanotechnology. 2017;12:343-50

210. Weng Q, Wang B, Wang X. et al. Highly Water-Soluble, Porous, and Biocompatible Boron Nitrides for Anticancer Drug Delivery. ACS Nano. 2014;8:6123-30

211. Li X, Zhi C, Hanagata N, Yamaguchi M, Bando Y, Golberg D. Boron nitride nanotubes functionalized with mesoporous silica for intracellular delivery of chemotherapy drugs. Chem Commun. 2013;49:7337-9

212. Zhang H, Yan T, Feng S, Huang D, Zhi C, Gao X-D. Mesoporous silica functionalized boron nitride nanospheres for enhancing the immunostimulatory and antitumor effects of CpG ODNs. Nanomedicine: Nanotechnology, Biology and Medicine. 2018;14:1823-4

213. Emanet M, Şen Ö, Çulha M. Evaluation of boron nitride nanotubes and hexagonal boron nitrides as nanocarriers for cancer drugs. Nanomedicine. 2017;12:797-810

214. Xu L, Gao Y, Kuang H, Liz-Marzán LM, Xu C. MicroRNA-Directed Intracellular Self-Assembly of Chiral Nanorod Dimers. Angewandte Chemie International Edition. 2018;57:10544-8

215. Liu J, Zheng T, Tian Y. Functionalized h-BN Nanosheets as a Theranostic Platform for SERS Real-Time Monitoring of MicroRNA and Photodynamic Therapy. Angewandte Chemie International Edition. 2019;58:7757-61

216. Liu F, Liu C-C, Wu K, Yang F, Yao Y. d+id' chiral superconductivity in bilayer silicene. Phys Rev Lett. 2013;111:066804

217. Xu C, Luo G, Liu Q. et al. Giant magnetoresistance in silicene nanoribbons. Nanoscale. 2012;4:3111-7

218. Liu C-C, Feng W, Yao Y. Quantum Spin Hall Effect in Silicene and Two-Dimensional Germanium. Phys Rev Lett. 2011;107:076802

219. Zhao H. Strain and chirality effects on the mechanical and electronic properties of silicene and silicane under uniaxial tension. Physics Letters A. 2012;376:3546-50

220. Lin H, Qiu W, Liu J. et al. Silicene: Wet-Chemical Exfoliation Synthesis and Biodegradable Tumor Nanomedicine. Advanced Materials. 2019;31:1903013

221. Gibaja C, Rodriguez-San-Miguel D, Ares P. et al. Few-Layer Antimonene by Liquid-Phase Exfoliation. Angew Chem Int Ed Engl. 2016;55:14345-9

222. Zhang S, Xie M, Li F. et al. Semiconducting Group 15 Monolayers: A Broad Range of Band Gaps and High Carrier Mobilities. Angew Chem Int Ed Engl. 2016;55:1666-9

223. Ji J, Song X, Liu J. et al. Two-dimensional antimonene single crystals grown by van der Waals epitaxy. Nat Commun. 2016;7:1-9

224. Wang G, Pandey R, Karna SP. Atomically Thin Group V Elemental Films: Theoretical Investigations of Antimonene Allotropes. ACS Appl Mater Interfaces. 2015;7:11490-6

225. Tao W, Ji X, Xu X. et al. Antimonene Quantum Dots: Synthesis and Application as Near-Infrared Photothermal Agents for Effective Cancer Therapy. Angew Chem Int Ed Engl. 2017;56:11896-900

226. Acun A, Zhang L, Bampoulis P. et al. Germanene: the germanium analogue of graphene. J Phys: Condens Matter. 2015;27:443002

227. Balendhran S, Walia S, Nili H, Sriram S, Bhaskaran M. Elemental analogues of graphene: silicene, germanene, stanene, and phosphorene. Small. 2015;11:640-52

228. Ouyang J, Feng C, Ji X. et al. 2D Monoelemental Germanene Quantum Dots: Synthesis as Robust Photothermal Agents for Photonic Cancer Nanomedicine. Angew Chem Int Ed Engl. 2019;58:13405-10

229. Ji X, Kang Y, Ouyang J. et al. Synthesis of Ultrathin Biotite Nanosheets as an Intelligent Theranostic Platform for Combination Cancer Therapy. Advanced Science. 2019;6:1901211

230. Stock N, Biswas S. Synthesis of metal-organic frameworks (MOFs): routes to various MOF topologies, morphologies, and composites. Chem Rev. 2012;112:933-69

231. Wang S, McGuirk CM, d'Aquino A, Mason JA, Mirkin CA. Metal-Organic Framework Nanoparticles. Adv Mater Weinheim. 2018;30:e1800202

232. Furukawa H, Cordova KE, O'Keeffe M, Yaghi OM. The chemistry and applications of metal-organic frameworks. Science. 2013;341:1230444

233. Zhou H-C, Long JR, Yaghi OM. Introduction to metal-organic frameworks. Chem Rev. 2012;112:673-4

234. Zhou H-CJ, Kitagawa S. Metal-organic frameworks (MOFs). Chem Soc Rev. 2014;43:5415-8

235. Zhao J, Yang Y, Han X. et al. Redox-Sensitive Nanoscale Coordination Polymers for Drug Delivery and Cancer Theranostics. ACS Appl Mater Interfaces. 2017;9:23555-63

236. Zhao H-X, Zou Q, Sun S-K. et al. Theranostic metal-organic framework core-shell composites for magnetic resonance imaging and drug delivery. Chem Sci. 2016;7:5294-301

237. Gao X, Zhai M, Guan W, Liu J, Liu Z, Damirin A. Controllable Synthesis of a Smart Multifunctional Nanoscale Metal-Organic Framework for Magnetic Resonance/Optical Imaging and Targeted Drug Delivery. ACS Appl Mater Interfaces. 2017;9:3455-62

238. Zhang L, Lei J, Ma F, Ling P, Liu J, Ju H. A porphyrin photosensitized metal-organic framework for cancer cell apoptosis and caspase responsive theranostics. Chem Commun (Camb). 2015;51:10831-4

239. Liu Y, Zhen W, Jin L. et al. All-in-One Theranostic Nanoagent with Enhanced Reactive Oxygen Species Generation and Modulating Tumor Microenvironment Ability for Effective Tumor Eradication. ACS Nano. 2018;12:4886-93

240. Cai W, Gao H, Chu C. et al. Engineering Phototheranostic Nanoscale Metal-Organic Frameworks for Multimodal Imaging-Guided Cancer Therapy. ACS Appl Mater Interfaces. 2017;9:2040-51

241. Zhang H, Tian X-T, Shang Y, Li Y-H, Yin X-B. Theranostic Mn-Porphyrin Metal-Organic Frameworks for Magnetic Resonance Imaging-Guided Nitric Oxide and Photothermal Synergistic Therapy. ACS Appl Mater Interfaces. 2018;10:28390-8

242. Simoneau G. Absence of rebound effect with calcium carbonate. Eur J Drug Metab Pharmacokinet. 1996;21:351-7

243. Choi G, Eom S, Vinu A, Choy J-H. 2D Nanostructured Metal Hydroxides with Gene Delivery and Theranostic Functions; A Comprehensive Review. The Chemical Record. 2018;18:1033-53

244. Saifullah B, Hussein MZB. Inorganic nanolayers: structure, preparation, and biomedical applications. Int J Nanomedicine. 2015;10:5609-33

245. Sun X, Neuperger E, Dey SK. Insights into the synthesis of layered double hydroxide (LDH) nanoparticles: Part 1. Optimization and controlled synthesis of chloride-intercalated LDH. J Colloid Interface Sci. 2015;459:264-72

246. Wang L, Xing H, Zhang S. et al. A Gd-doped Mg-Al-LDH/Au nanocomposite for CT/MR bimodal imagings and simultaneous drug delivery. Biomaterials. 2013;34:3390-401

247. Huang G, Zhang K-L, Chen S. et al. Manganese-iron layered double hydroxide: a theranostic nanoplatform with pH-responsive MRI contrast enhancement and drug release. J Mater Chem B. 2017;5:3629-33

248. Guan S, Weng Y, Li M. et al. An NIR-sensitive layered supramolecular nanovehicle for combined dual-modal imaging and synergistic therapy. Nanoscale. 2017;9:10367-74

249. Arratia-Quijada J, Sánchez Jiménez C, Gurinov A, Pérez Centeno A, Ceja Andrade I, Carbajal Arízaga GG. Dysprosium-containing layered double hydroxides nanoparticles intercalated with biologically active species as an approach for theranostic systems. 2015; 203: 7-12.

250. Peng L, Mei X, He J. et al. Monolayer Nanosheets with an Extremely High Drug Loading toward Controlled Delivery and Cancer Theranostics. Adv Mater Weinheim. 2018;30:e1707389

251. Zuo H, Chen W, Li B. et al. MnAl Layered Double Hydroxide Nanoparticles as a Dual-Functional Platform for Magnetic Resonance Imaging and siRNA Delivery. Chemistry. 2017;23:14299-306

252. The University of Manchester: The Good Practice Guide on Characterisation of Graphene. 2018; Available at: https://.

253. Wick P, Louw-Gaume AE, Kucki M. et al. Classification framework for graphene-based materials. Angew Chem Int Ed Engl. 2014;53:7714-8

254. Kostarelos K, Novoselov KS. Graphene devices for life. Nature Nanotechnology. 2014;9:744-5

255. Colombo L, Diebold A, Casiraghi C, Kim M, Wallace R, Venugopal A. Characterization and Metrology for Graphene Materials, Structures, and Devices. In: Ma Z and Seiler DG, Ed. Metrology and Diagnostic Techniques for Nanoelectronics. CRC Press. 2016:759-848

256. Backes C, Higgins TM, Kelly A. et al. Guidelines for Exfoliation, Characterization and Processing of Layered Materials Produced by Liquid Exfoliation. Chem Mater. 2017;29:243-55

257. Hernandez Y, Nicolosi V, Lotya M. et al. High-yield production of graphene by liquid-phase exfoliation of graphite. Nature Nanotechnology. 2008;3:563-8

258. Jorio A, Saito R, Dresselhaus G, Dresselhaus MS. The sp2 Nanocarbons: Prototypes for Nanoscience and Nanotechnology. Raman Spectroscopy in Graphene Related Systems. 2011:1-15

259. Ferrari AC, Meyer JC, Scardaci V. et al. Raman spectrum of graphene and graphene layers. Physical Review Letters. 2006;97:1-4

260. Eckmann A, Felten A, Mishchenko A. et al. Probing the Nature of Defects in Graphene by Raman Spectroscopy. Nano Lett. 2012;12:3925-30

261. Felten A, Eckmann A, Pireaux J-J, Krupke R, Casiraghi C. Controlled modification of mono- and bilayer graphene in O2, H2and CF4plasmas. Nanotechnology. 2013;24:355705

262. Cançado LG, Jorio A, Ferreira EHM. et al. Quantifying Defects in Graphene via Raman Spectroscopy at Different Excitation Energies. Nano Lett. 2011;11:3190-6

263. Pisana S, Lazzeri M, Casiraghi C. et al. Breakdown of the adiabatic Born-Oppenheimer approximation in graphene. Nature Materials. 2007;6:198-201

264. Shin Y, Prestat E, Zhou K-G. et al. Synthesis and characterization of composite membranes made of graphene and polymers of intrinsic microporosity. Carbon. 2016;102:357-66

265. Haar S, El Gemayel M, Shin Y. et al. Enhancing the Liquid-Phase Exfoliation of Graphene in Organic Solvents upon Addition of n-Octylbenzene. Scientific Reports. 2015;5:16684

266. Ciesielski A, Haar S, El Gemayel M. et al. Harnessing the Liquid-Phase Exfoliation of Graphene Using Aliphatic Compounds: A Supramolecular Approach. Angewandte Chemie International Edition. 2014;53:10355-61

267. Conti S, del Rosso MG, Ciesielski A. et al. Perchlorination of Coronene Enhances its Propensity for Self-Assembly on Graphene. ChemPhysChem. 2016;17:352-7

268. Eckmann A, Felten A, Verzhbitskiy I, Davey R, Casiraghi C. Raman study on defective graphene: Effect of the excitation energy, type, and amount of defects. Phys Rev B. 2013;88:035426

269. Cançado LG, Jorio A, Ferreira EHM. et al. Quantifying defects in graphene via Raman spectroscopy at different excitation energies. Nano Letters. 2011;11:3190-6

270. Eckmann A, Felten A, Mishchenko A. et al. Probing the nature of defects in graphene by Raman spectroscopy. Nano Letters. 2012;12:3925-30

271. Misture ST, Snyder RL. X-ray Diffraction. Ed. Encyclopedia of Materials: Science and Technology. 2001:9799-808

272. Dikin DA, Stankovich S, Zimney EJ. et al. Preparation and characterization of graphene oxide paper. Nature. 2007;448:457-60

273. Li ZQ, Lu CJ, Xia ZP, Zhou Y, Luo Z. X-ray diffraction patterns of graphite and turbostratic carbon. Carbon. 2007;45:1686-95

274. Krishnamoorthy K, Veerapandian M, Yun K, Kim S-J. The chemical and structural analysis of graphene oxide with different degrees of oxidation. Carbon. 2013;53:38-49

275. Chusuei CC, Goodman DW. X-Ray Photoelectron Spectroscopy. Ed. Reference Module in Chemistry, Molecular Sciences and Chemical Engineering. Vol. 17. Encyclopedia of physical science. 2013

276. Bagus PS, Ilton ES, Nelin CJ. The interpretation of XPS spectra: Insights into materials properties. Surface Science Reports. 2013;68:273-304

277. Hunter RJ. Zeta potential in colloid science: principles and applications. In: Ottewill RH, Rowell RL, Ed. Colloid science. Vol. 2. Academic Press. 1981

278. Lotya M, Rakovich A, Donegan JF, Coleman JN. Measuring the lateral size of liquid-exfoliated nanosheets with dynamic light scattering. Nanotechnology. 2013;24:265703

279. Bepete G, Anglaret E, Ortolani L. et al. Surfactant-free single-layer graphene in water. Nature Chemistry. 2017;9:347-52

280. Fadeel B, Bussy C, Merino S. et al. Safety Assessment of Graphene-Based Materials: Focus on Human Health and the Environment. ACS Nano. 2018;12:10582-620

281. Akhavan O, Ghaderi E. Graphene nanomesh promises extremely efficient in vivo photothermal therapy. Small. 2013;9:3593-601

282. Yang K, Wan J, Zhang S, Tian B, Zhang Y, Liu Z. The influence of surface chemistry and size of nanoscale graphene oxide on photothermal therapy of cancer using ultra-low laser power. Biomaterials. 2012;33:2206-14

283. Lokerse WJM, Bolkestein M, Ten Hagen TLM. et al. Investigation of Particle Accumulation, Chemosensitivity and Thermosensitivity for Effective Solid Tumor Therapy Using Thermosensitive Liposomes and Hyperthermia. Theranostics. 2016;6:1717-31

284. Enayati M, Nemati A, Zarrabi A, Shokrgozar MA. Reduced graphene oxide: An alternative for Magnetic Resonance Imaging contrast agent. Materials Letters. 2018;233:363-6

285. Haris M, Yadav SK, Rizwan A. et al. Molecular magnetic resonance imaging in cancer. Journal of Translational Medicine. 2015;13:313

286. Wu C, Li D, Wang L. et al. Single wavelength light-mediated, synergistic bimodal cancer photoablation and amplified photothermal performance by graphene/gold nanostar/photosensitizer theranostics. Acta Biomater. 2017;53:631-42

287. Hai L, He D, He X. et al. Facile fabrication of a resveratrol loaded phospholipid@reduced graphene oxide nanoassembly for targeted and near-infrared laser-triggered chemo/photothermal synergistic therapy of cancer in vivo. J Mater Chem B. 2017;5:5783-92

288. Li S, Zhou S, Li Y. et al. Exceptionally High Payload of the IR780 Iodide on Folic Acid-Functionalized Graphene Quantum Dots for Targeted Photothermal Therapy. ACS Appl Mater Interfaces. 2017;9:22332-41

289. Song J, Yang X, Jacobson O. et al. Sequential Drug Release and Enhanced Photothermal and Photoacoustic Effect of Hybrid Reduced Graphene Oxide-Loaded Ultrasmall Gold Nanorod Vesicles for Cancer Therapy. ACS Nano. 2015;9:9199-209

290. Yu J, Lin Y-H, Yang L. et al. Improved Anticancer Photothermal Therapy Using the Bystander Effect Enhanced by Antiarrhythmic Peptide Conjugated Dopamine-Modified Reduced Graphene Oxide Nanocomposite. Adv Healthc Mater. 2017;6:1600804

291. Chen L, Zhong X, Yi X. et al. Radionuclide (131)I labeled reduced graphene oxide for nuclear imaging guided combined radio- and photothermal therapy of cancer. Biomaterials. 2015;66:21-8

292. Tyagi N, Attia NF, Geckeler KE. Exfoliated graphene nanosheets: pH-sensitive drug carrier and anti-cancer activity. J Colloid Interface Sci. 2017;498:364-77

293. Xuan J, Wang Z, Chen Y. et al. Organic-Base-Driven Intercalation and Delamination for the Production of Functionalized Titanium Carbide Nanosheets with Superior Photothermal Therapeutic Performance. Angew Chem Int Ed Engl. 2016;55:14569-74

294. Robinson JT, Tabakman SM, Liang Y. et al. Ultrasmall reduced graphene oxide with high near-infrared absorbance for photothermal therapy. J Am Chem Soc. 2011;133:6825-31

295. Sun Z, Xie H, Tang S. et al. Ultrasmall Black Phosphorus Quantum Dots: Synthesis and Use as Photothermal Agents. Angew Chem Int Ed Engl. 2015;54:11526-30

296. Lin H, Chen Y, Shi J. Insights into 2D MXenes for Versatile Biomedical Applications: Current Advances and Challenges Ahead. Advanced Science. 2018;5:1800518

297. Kurapati R, Kostarelos K, Prato M, Bianco A. Biomedical Uses for 2D Materials Beyond Graphene: Current Advances and Challenges Ahead. Advanced Materials. 2016;28:6052-74

298. Roy AK, Park B, Lee KS, Park SY, In I. Boron nitride nanosheets decorated with silver nanoparticles through mussel-inspired chemistry of dopamine. Nanotechnology. 2014;25:445603

299. Lee J, Shin D, Roh J-L. Development of an in vitro cell-sheet cancer model for chemotherapeutic screening. Theranostics. 2018;8:3964-73

300. Wilhelm S, Tavares AJ, Dai Q. et al. Analysis of nanoparticle delivery to tumours. Nature Reviews Materials. 2016;1:16014

301. Shen J, Wolfram J, Ferrari M, Shen H. Taking the vehicle out of drug delivery. Mater Today (Kidlington). 2017;20:95-7

302. Blanco E, Shen H, Ferrari M. Principles of nanoparticle design for overcoming biological barriers to drug delivery. Nat Biotechnol. 2015;33:941-51

303. Kobayashi H, Watanabe R, Choyke PL. Improving conventional enhanced permeability and retention (EPR) effects; what is the appropriate target?. Theranostics. 2013;4:81-9

304. Prabhakar U, Maeda H, Jain RK. et al. Challenges and key considerations of the enhanced permeability and retention effect for nanomedicine drug delivery in oncology. Cancer Res. 2013;73:2412-7

305. Wolfram J, Shen H, Ferrari M. Multistage vector (MSV) therapeutics. J Control Release. 2015;219:406-15

306. Yang K, Gong H, Shi X, Wan J, Zhang Y, Liu Z. In vivo biodistribution and toxicology of functionalized nano-graphene oxide in mice after oral and intraperitoneal administration. Biomaterials. 2013;34:2787-95

307. Sydlik SA, Jhunjhunwala S, Webber MJ, Anderson DG, Langer R. In Vivo Compatibility of Graphene Oxide with Differing Oxidation States. ACS Nano. 2015;9:3866-74

308. Kurantowicz N, Strojny B, Sawosz E. et al. Biodistribution of a High Dose of Diamond, Graphite, and Graphene Oxide Nanoparticles After Multiple Intraperitoneal Injections in Rats. Nanoscale Res Lett. 2015;10:398

309. Syama S, Paul W, Sabareeswaran A, Mohanan PV. Raman spectroscopy for the detection of organ distribution and clearance of PEGylated reduced graphene oxide and biological consequences. Biomaterials. 2017;131:121-30

310. Jiang X, Wang C, Fitch S, Yang F. Targeting Tumor Hypoxia Using Nanoparticle-engineered CXCR4-overexpressing Adipose-derived Stem Cells. Theranostics. 2018;8:1350-60

311. Aubin JE. Autofluorescence of viable cultured mammalian cells. J Histochem Cytochem. 1979;27:36-43

312. Song L, Hennink EJ, Young IT, Tanke HJ. Photobleaching kinetics of fluorescein in quantitative fluorescence microscopy. Biophys J. 1995;68:2588-600

313. Haraguchi T, Shimi T, Koujin T, Hashiguchi N, Hiraoka Y. Spectral imaging fluorescence microscopy. Genes to Cells. 2002;7:881-7

314. Zhang DY, Singhal S, Lee JYK. Optical Principles of Fluorescence-Guided Brain Tumor Surgery: A Practical Primer for the Neurosurgeon. Neurosurgery. 2019;85:312-24

315. Jewell EL, Huang JJ, Abu-Rustum NR. et al. Detection of sentinel lymph nodes in minimally invasive surgery using indocyanine green and near-infrared fluorescence imaging for uterine and cervical malignancies. Gynecol Oncol. 2014;133:274-7

316. Delogu LG, Vidili G, Venturelli E. et al. Functionalized multiwalled carbon nanotubes as ultrasound contrast agents. PNAS. 2012;109:16612-7

317. Wang C, Li J, Amatore C, Chen Y, Jiang H, Wang X-M. Gold nanoclusters and graphene nanocomposites for drug delivery and imaging of cancer cells. Angew Chem Int Ed Engl. 2011;50:11644-8

318. Nichols JW, Bae YH. Odyssey of a cancer nanoparticle: from injection site to site of action. Nano Today. 2012;7:606-18

319. Costa PM, Fadeel B. Emerging systems biology approaches in nanotoxicology: Towards a mechanism-based understanding of nanomaterial hazard and risk. Toxicol Appl Pharmacol. 2016;299:101-11

320. Kostarelos K. Translating graphene and 2D materials into medicine. Nature Reviews Materials. 2016;1:16084

321. Fadeel B, Farcal L, Hardy B. et al. Advanced tools for the safety assessment of nanomaterials. Nat Nanotechnol. 2018;13:537-43

322. Orecchioni M, Bedognetti D, Sgarrella F, Marincola FM, Bianco A, Delogu LG. Impact of carbon nanotubes and graphene on immune cells. Journal of Translational Medicine. 2014;12:138

323. Orecchioni M, Bedognetti D, Newman L. et al. Single-cell mass cytometry and transcriptome profiling reveal the impact of graphene on human immune cells. Nat Commun. 2017;8:1109

324. Orecchioni M, Jasim DA, Pescatori M. et al. Molecular and Genomic Impact of Large and Small Lateral Dimension Graphene Oxide Sheets on Human Immune Cells from Healthy Donors. Advanced Healthcare Materials. 2016;5:276-87

325. Russier J, León V, Orecchioni M. et al. Few-Layer Graphene Kills Selectively Tumor Cells from Myelomonocytic Leukemia Patients. Angew Chem Int Ed Engl. 2017;56:3014-9

326. Orecchioni M, Ménard-Moyon C, Delogu LG, Bianco A. Graphene and the immune system: Challenges and potentiality. Adv Drug Deliv Rev. 2016;105:163-75

327. Avitabile E, Bedognetti D, Ciofani G, Bianco A, Delogu LG. How can nanotechnology help the fight against breast cancer?. Nanoscale. 2018;10:11719-31

328. Keshavan S, Calligari P, Stella L, Fusco L, Delogu LG, Fadeel B. Nano-bio interactions: a neutrophil-centric view. Cell Death Dis. 2019;10:569

329. Song W, Musetti SN, Huang L. Nanomaterials for cancer immunotherapy. Biomaterials. 2017;148:16-30

330. Li J, Zhou C, Luo C. et al. N-acetyl cysteine-loaded graphene oxide-collagen hybrid membrane for scarless wound healing. Theranostics. 2019;9:5839-53

331. Giardino R, Fini M, Aldini N, Parrilli A. Testing the in vivo biocompatibility of biocomposites. Biomedical Composites. 2009:385-410

332. Mukherjee SP, Kostarelos K, Fadeel B. Cytokine Profiling of Primary Human Macrophages Exposed to Endotoxin-Free Graphene Oxide: Size-Independent NLRP3 Inflammasome Activation. Adv Healthc Mater. 2018;7:1700815

333. Li Y, Boraschi D. Endotoxin contamination: a key element in the interpretation of nanosafety studies. Nanomedicine (Lond). 2016;11:269-87

334. Gao X, Lowry GV. Progress towards standardized and validated characterizations for measuring physicochemical properties of manufactured nanomaterials relevant to nano health and safety risks. NanoImpact. 2018;9:14-30

335. Bobo D, Robinson KJ, Islam J, Thurecht KJ, Corrie SR. Nanoparticle-Based Medicines: A Review of FDA-Approved Materials and Clinical Trials to Date. Pharm Res. 2016;33:2373-87

336. Havel H, Finch G, Strode P. et al. Nanomedicines: From Bench to Bedside and Beyond. AAPS J. 2016;18:1373-8

337. Sainz V, Conniot J, Matos AI. et al. Regulatory aspects on nanomedicines. Biochem Biophys Res Commun. 2015;468:504-10

338. Kong W, Kum H, Bae S-H. et al. Path towards graphene commercialization from lab to market. Nat Nanotechnol. 2019;14:927-38

Author Biographies

Theranostics inline graphic Dr. Lucia Gemma Delogu is Assistant Professor of Biochemistry at the University of Padua (Padua, Italy) ( She received her Ph.D. in Biochemistry in 2008. She integrated her Ph.D. research at the Sanford-Burnham Institute (La Jolla San Diego, USA) and then was postdoctoral fellow at the University of Southern California (Los Angeles, USA). She has worked as Visiting Professor at the University of Dresden, Germany (2016-2017). She has received several awards, including the “Marie S. Curie Individual Fellow” under Horizon 2020 by the European Commission (success rate about 10%), the “200 Young Best Talents of Italy 2011” by the Italian Ministry of Youth, and “Bedside to bench & Back Award” by the National Institutes of Health, Bethesda, USA. She has been the Scientific Coordinator of two interdisciplinary European Projects under horizon 2020 program on nanomedicine and nanomaterials immune interactions (2 M euros) . Her research focuses on immune/bio interaction and safety of carbon-based nanomaterials as well as on the development of biomedical applications for new carbon-based and 2D materials.

Theranostics inline graphic Prof. Cinzia Casiraghi Helds a Chair in Nanoscience at the Department of Chemistry, University of Manchester (UK). She received her B.Sc. and M.Sc. in Nuclear Engineering from Politecnico di Milano (Italy) and her Ph.D. in Electrical Engineering from the University of Cambridge (UK). In 2005, she was awarded with an Oppenheimer Early Career Research Fellowship, followed by the Humboldt Research Fellowship and the prestigious Kovalevskaja Award (1.5M Euro). Her current research work is focused on the development of biocompatible 2D inks and their use in printed electronics and biomedical applications. She is leading expert on Raman spectroscopy, used to characterize a wide range of carbon-based nanomaterials. She is recipient of the Leverhulme Award in Engineering (2016), the Marlow Award (2014), given by the Royal Society of Chemistry in recognition of her work on Raman spectroscopy, and an ERC Consolidator grant (2015).

Theranostics inline graphic Prof. Bengt Fadeel is a Full Professor of Medical Inflammation Research at Karolinska Institutet, Stockholm, Sweden, since 2010, and Head of the Division of Molecular Toxicology at the Institute of Environmental Medicine at Karolinska Institutet since 2009. He received his M.D. and Ph.D. from Karolinska Institutet in 1997 and 1999, respectively. He is a Fellow of the Academy of Toxicological Sciences. Dr. Fadeel has been engaged in several EU-funded nanosafety projects as he is currently a member of the 10-year GRAPHENE Flagship Project, focusing on safety assessment of graphene-based materials. His research interests span from cell death signaling to mechanisms of inflammation to toxicological investigations of engineered nanomaterials as well as medical applications of nanomaterials. He was awarded the national Environmental Medicine Prize in 2011 for his research on the opportunities and risks of the emerging nanotechnologies.

Theranostics inline graphic Dr. Laura Fusco received her B.Sc. in Medical Biotechnologies from the University of Milan (Italy) studying the bioeffects of ambient particulate matter. After receiving her M.Sc. in Medical Biotechnologies and Molecular Medicine from the University of Trieste (Italy), in 2018 she earned her Ph.D. in Chemistry from the same university (Prof. M. Prato), with a project on the toxicological effects of graphene at the skin level, supported by the European Union H2020 Programme, integrating her research at the Karolinska Institutet (Prof. B. Fadeel) as a visiting Ph.D. student. Currently, she is a Postdoctoral Fellow at the University of Trieste and a Visiting Scientist at Sidra Medicine (Qatar) in the framework of a H2020-MSCA-RISE project concerning the immune activity of carbon nanomaterials.

Theranostics inline graphic Arianna Gazzi received her M.Sc. in Pharmacy from the University of Trieste (Italy) studying the toxicological effects of graphene. She is currently a Ph.D. student in Nanotechnology at the same university (Prof. M. Prato), where she is integrating her research as a Visiting Ph.D. student at the Italian Institute of Technology and the University of Genoa (Italy). Her research is centered on the immunocompatibility and biomedical applications of new nanocarbons.

Theranostics inline graphic Dr. Guotao Peng received her B.Sc. in Environmental Science from Sichuan University (China). She obtained her Ph.D. in 2017 at Fudan University (China) focusing on the mechanistic understanding of toxic cyanobacterial blooms, integrating her research at University of Tennessee (USA) as a visiting Ph.D. student. She then worked as a postdoctoral fellow at Tongji University (China) focusing on environmental health and safety aspects of nanomaterials. Currently, she is a postdoctoral fellow at Karolinska Institutet in Stockholm in the frame of the GRAPHENE Flagship project; she focuses on immune interactions of graphene-related materials using in vitro and in vivo models.

Theranostics inline graphic Dr. Yuyoung Shin obtained her B.Sc. Honours degree in Chemistry from University of Sussex (UK) in 2010, then completed an MPhil in Chemistry from University of Cambridge in 2012. Following this, she undertook her Ph.D. in chemistry funded by the EPSRC, with Prof Cinzia Casiraghi at University of Manchester (UK), working on synthesis and characterisation of graphene-based membranes. After the completion of her Ph.D. in 2017, she joined the 2D-Health project as a post-doctoral research associate focusing on synthesis of graphene and other 2D crystal inks for biomedical imaging applications.

Theranostics inline graphicDr. Sandra Vranic obtained her B.Sc. Degree in Molecular Biology and Physiology at the University of Belgrade (Serbia) in 2007. After graduation, she completed MRes Degree in Toxicology at University Paris Diderot - Paris 7 (France), earning her Ph.D. in Toxicology from the same university. She focused on interactions of engineered nanoparticles with cells, especially on the mechanisms of their internalization and subsequent cellular effects. After her Ph.D., she obtained Japanese Society for Promotion of Science (JSPS) postdoctoral fellowship at Nagoya University and Tokyo University of Science in Japan, where she studied the effects of silica nanoparticles in mice and Zebra fish. In 2015, she joined the Nanomedicine Lab as a Marie Curie Research Fellow under the RADDEL ITN project studying nanocapsules filled with radiometals aimed for biomedical applications in the area of cancer diagnosis and therapy. She worked as a lead scientist in Graphene Flagship and 2D Health projects, and currently acts as a PI of EU funded Horizon 2020 project BIORIMA. In 2018, she was appointed as Lecturer in Nano-Cell Biology. Her team aims to investigate cellular and molecular biology of graphene and other 2D materials in order to discover new therapeutic applications of these materials.

Theranostics inline graphic Dr. Davide Bedognetti is the Director of the Cancer Program at Sidra Medicine (Qatar). Dr. Bedognetti received his M.D. and Ph.D. in Clinical and Experimental Oncology and Hematology from the University of Genoa (Italy). After completing his medical residency in Medical Oncology, he joined the Infectious Disease and Immunogenetics Section (IDIS) of the US National Institutes of Health (NIH) where he completed his post-doctoral fellowship. Dr. Bedognetti's team employs high-throughput approaches to de-convolute the molecular network of host-tumor interactions, and to understand its relationship with treatment effectiveness.

Theranostics inline graphic Dr. Flavia Vitale is an Assitant Professor in the Departments of Neurology, Bioengineering and Physical Medicine and Rehabilitation at the University of Pennsylvania (USA). She received her Ph.D. in Chemical Engineering at the Università di Roma "La Sapienza" (Italy), then completed her training in the Department of Chemical and Biomolecular Engineering a at Rice University (USA) in 2015, where she was a R. A. Welch Foundation Postdoctoral Fellow. Dr. Vitale has received a number of awards, including the Graduate Research Fellowship, University of Rome "La Sapienza", the Taking Flight Award from CURE and the McCabe Fellow Award. Dr. Vitale research focuses on application of carbon nanostructures and MXene to bioelectronic interfaces and biosensors.

Theranostics inline graphic Dr. Acelya Yilmazer is an Assistant Professor at the Department of Biomedical Engineering in Ankara University (Turkey) since 2015. In 2012, she obtained her Ph.D. in the Nanomedicine Lab based in the School of Pharmacy, University College London (Prof. K. Kostarelos). Later, she continued her postdoctoral work in the same lab on in vivo cell reprogramming. She has extensive experience on in vitro and in vivo preclinical evaluation of nanomaterials. Her research group is focusing on the use of nanomaterials and cell reprogramming technologies in cancer or regenerative medicine. She is coordinating the genotoxicity related work package of the Graphene Flagera project "G-IMMUNOMICS". She has been selected as the “Best Young Investigator” in Turkey by the Turkish Society of Medical Biology and Genetics in 2013 and given the “Young Scientist Award” by the Turkish Academy of Sciences in 2019.

Theranostics inline graphic Prof. Xinliang Feng is a full professor and the head of the Chair of Molecular Functional Materials at Technische Universität Dresden. He has published more than 450 research articles which have attracted more than 51000 citations with H-index of 108 (Google Scholar). He has been awarded several prestigious prizes such as IUPAC Prize for Young Chemists (2009), European Research Council (ERC) Starting Grant Award (2012), Journal of Materials Chemistry Lectureship Award (2013), ChemComm Emerging Investigator Lectureship (2014), Fellow of the Royal Society of Chemistry (FRSC, 2014), Highly Cited Researcher (Thomson Reuters, 2014-2018), Small Young Innovator Award (2017), Hamburg Science Award (2017), EU-40 Materials Prize (2018), ERC Consolidator Grant Award (2018), member of the European Academy of Sciences (2019) and member of the Academia Europaea (2019). He is an Advisory Board Member for Advanced Materials, Chemical Science, Journal of Materials Chemistry A, ChemNanoMat, Energy Storage Materials, Small Methods, Chemistry -An Asian Journal, Trends in Chemistry, etc. He is the Head of ESF Young Research Group "Graphene Center Dresden", and Working Package Leader of WP Functional Foams & Coatings for European Commission's pilot project “Graphene Flagship”.

Corresponding address Corresponding author: luciagemma.deloguit;; bengt.fadeelse

Received 2019-9-7
Accepted 2019-12-23
Published 2020-4-7

Citation styles

Fusco, L., Gazzi, A., Peng, G., Shin, Y., Vranic, S., Bedognetti, D., Vitale, F., Yilmazer, A., Feng, X., Fadeel, B., Casiraghi, C., Delogu, L.G. (2020). Graphene and other 2D materials: a multidisciplinary analysis to uncover the hidden potential as cancer theranostics. Theranostics, 10(12), 5435-5488.

Fusco, L.; Gazzi, A.; Peng, G.; Shin, Y.; Vranic, S.; Bedognetti, D.; Vitale, F.; Yilmazer, A.; Feng, X.; Fadeel, B.; Casiraghi, C.; Delogu, L.G. Graphene and other 2D materials: a multidisciplinary analysis to uncover the hidden potential as cancer theranostics. Theranostics 2020, 10 (12), 5435-5488. DOI: 10.7150/thno.40068.

Fusco L, Gazzi A, Peng G, Shin Y, Vranic S, Bedognetti D, Vitale F, Yilmazer A, Feng X, Fadeel B, Casiraghi C, Delogu LG. Graphene and other 2D materials: a multidisciplinary analysis to uncover the hidden potential as cancer theranostics. Theranostics 2020; 10(12):5435-5488. doi:10.7150/thno.40068.

Fusco L, Gazzi A, Peng G, Shin Y, Vranic S, Bedognetti D, Vitale F, Yilmazer A, Feng X, Fadeel B, Casiraghi C, Delogu LG. 2020. Graphene and other 2D materials: a multidisciplinary analysis to uncover the hidden potential as cancer theranostics. Theranostics. 10(12):5435-5488.

This is an open access article distributed under the terms of the Creative Commons Attribution License ( See for full terms and conditions.
