Theranostics 2017; 7(6):1531-1542. doi:10.7150/thno.17247 This issue Cite

Research Paper

A New Green Titania with Enhanced NIR Absorption for Mitochondria-Targeted Cancer Therapy

Juan Mou, Tianquan Lin, Fuqiang Huang, Jianlin Shi, Hangrong Chen

State Key Laboratory of High Performance Ceramics and Superfine Microstructure, Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, P. R. China.

✉ Corresponding author: hrchensic.ac.cn

Abstract

A new kind of green titania (G-TiO_2-x) with obvious green color was facilely synthesized from black titania (B-TiO_2-x) through subsequently strong ultrasonication. Comparatively, this stable G-TiO_2-x shows much enhanced near infrared (NIR) absorption, especially around 920 nm, which can be ascribed to the obvious change of TiO_2-x lattice order owing to the effect of ultrasonication. This feature enables G-TiO_2-x to be stimulated with 980 nm laser in the combined photodynamic therapy (PDT) and photothermal therapy (PTT), which is greatly beneficial for improving tissue penetration depth. Furthermore, since mitochondria are preferred subcellular organelles for PDT/PTT, G-TiO_2-x was further designed to conjugate with triphenylphosphonium (TPP) ligand for mitochondria-targeted PDT/PTT to obtain precise cancer treatment. Attributing to the high mitochondria-targeting efficiency and simultaneously synergistic PDT/PTT, high phototherapeutic efficacy and safety with a much lower laser power density (980 nm, 0.72 W cm^-2) and low materials dosage were achieved both in vitro and in vivo. In addition, negligible toxicity was found, indicating high biocompatibility. This novel G-TiO_2-x could provide new strategies for future precise minimal/non-invasive tumor treatment.

Keywords: green titania, NIR absorption, mitochondria, photodynamic therapy, photothermal therapy.

Introduction

Over the past decades, breakthroughs in phototherapy including photothermal therapy (PTT) [1] and photodynamic therapy (PDT)[2] have ushered new frontiers in cancer treatment. PTT involves the administration of photosensitizers to effectively convert light energy into hyperthermia inducing cancer cells death. While, PDT employs photosensitizers to produce toxic reactive oxygen species (ROS) for cancer cells destruction, which has emerged as a site specific treatment modality of disease. However, both of them still have many challenges or series of limitations, such as oxygen dependence, high administration dose and less efficient treatment efficacy of PDT, as well as non-selectivity, risk of damaging neighboring normal tissues and requirement of high laser power density of PTT, etc. Synergetic tumor phototherapy could be achieved if these two modalities are combined, due to the differences in cell-killing mechanism and overcoming respective limitation [3, 4]. Currently, a number of PTT agents such as gold nanostructures [5-7], nano-graphene oxide [8, 9], etc., conjugated with various PDT photosensitizers, such as Ce6, methylene blue, indocyanine green (ICG), and phthalocyanine, etc., have been administrated in the combinatorial phototherapy of PDT and PTT, and achieved synergistic cancer treatment. However, such nanocomposites generally suffer from the requirement of two lasers with different wavelengths to excite PDT and PTT, respectively, which is due to the absorption mismatch of different functional components. In addition, multicomponents may induce inevitable systemic side effects and toxicity. Therefore, it is highly desired but challenging to develop a single component nanomaterial and enable it to obtain the simultaneous PDT and PTT under the same single laser irradiation.

Titania, as one of the most common commercial and widely used functional materials, has triggered intensive interests in the fields of solar energy conversion, environmental remediation, and biomedical application [10-13]. Attributing to its excellent photocatalytic property, low toxicity and high photostability, titania is capable of generating various cytotoxic ROS (e.g., OH^•, O₂^•-, H₂O₂) [14-16], which can result in severe cancer cells death, and has been regarded as a favorable candidate for PDT [17]. However, its overall phototherapeutic efficacy for PDT is much limited by ultraviolet (UV) light (λ=275-390 nm), inducing side effects to healthy tissues and shallow penetration [18]. Comparatively, NIR laser (λ=700-1300 nm), locating in biological transparency window [19, 20], is preferable for phototherapy due to its lower energy and deeper tissue penetration. Therefore, many efforts have been proposed to extend the optical response of titania from UV to visible and NIR region, such as doping and introducing metal (e.g., Fe, Ag, Pt, Zr, etc.) [21], non-metal (e.g., B, C, N, F, P, S, etc.) elements [22, 23], and self-doping methods [24-26], etc.. For example, the recently discovered black titania nanoparticles [27-30] have opened new avenues to broaden their optical absorption from UV to NIR region to some extent, and triggered explosive interests in energy and biological fields. However, attributing to its limited absorption in NIR region, the laser power density generally used for PTT is as high as 2 W cm^-2 [31], which exceeds the conservative limit (i.e., 0.33 W cm^-2 with 808 nm laser irradiation [32]; 0.72 W cm^-2 with 980 nm laser irradiation [33]) and has potential damages to the neighboring normal tissues. Therefore, the therapeutic efficacy and safety of titania for PDT and PTT are needed to be improved.

Very recently, mitochondria-targeted PTT [34] and PDT [35, 36] have emerged as new strategies for improving therapeutic efficiency and safety, since mitochondria are vital energy-producing cellular organelles and highly susceptible to heat shock [37], generally resulting in apoptotic cell death through the generation of ROS [38]. Thus we believe the combination of mitochondria-targeted PDT and PTT will bring preferable outcomes regarding to circumventing their respect limitations, reducing laser power density and materials dosage.

Herein, we reported a simple and effective method to construct a new kind of self-doped green titania (G-TiO_2-x) with enhanced NIR absorption, and explored its potential biomedical application in cancer phototherapy. This stable G-TiO_2-x could be facilely and irreversibly synthesized from black titania (B-TiO_2-x) by subsequently strong ultrasonication. The aqueous solution containing G-TiO_2-x displayed an obvious green color and enhanced NIR absorption, especially around 920 nm. This significant enhancement in NIR absorption enables this new G-TiO_2-x to act as an excellent single NIR laser-induced photosensitizer for combined PDT and PTT. In order to further reduce the laser power density, minimize side effects, and improve the phototherapeutic efficacy, G-TiO_2-x was subsequently conjugated with triphenylphosphonium (TPP), which is a cation selectively accumulating within energized mitochondria [39], to construct a novel mitochondria-targeted nanoplatform for precise cancer treatment. Both in vitro and in vivo results well demonstrated the capability of G-TiO_2-x with TPP functionalization (G-TiO_2-x-TPP) for simultaneously mitochondria-targeting and synergistic PDT/PTT, under a single NIR laser irradiation at a much lower laser power density (980nm, 0.72 W cm^-2) and low dosage. This new G-TiO_2-x will open broad horizons for the explorations of titania-based and subcellular organelle-specific nanomaterials for further precise cancer treatment.

Materials and Methods

Chemicals and Reagents

All reagents were used without further purification. N-(3-Dimethylaminopropyl)-N-ethylcarbodiimide hydrochloride (EDC, 98%), N-(4-Chloro-3-trifluoromethyl-phenyl)-2-ethoxy-benzamide (CTPB, 98%), Rhodamine B isothiocyanate (RITC) were purchased from Sigma-Aldrich. Amine polyethylene glycol amine (H₂N-PEG₅₀₀₀-NH₂, MW=5000) was purchased from JenKem Technology Co., Ltd (Beijing, China). 1, 3-diphenylisobenzofuran (DPBF), 5, 5-Dimethyl-1-pyrroline-N-oxide (DMPO), 2, 7-dichloro-dihydro-fluorescien diacetate (DCFH-DA), Mito-Tracker Green were purchased from Beyotime Biotechnology Co., Ltd. Dulbecco Modified Eagle Medium (DMEM), Roswell Park Memorial Insitute medium (RPMI) 1640, fetal bovine serum (FBS), penicillin and streptomycin, and cell culture dishes were purchased from Thermo Fisher Scientific (shanghai) Co., Ltd. P25, Al, dimethyl sulfoxide (DMSO) and phosphate buffer solution (PBS) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China).

Preparation of G-TiO_2-x

Firstly, pristine B-TiO_2-x was mass-produced from P25 via an aluminum reduction according to previously reported [40]. In a typical procedure, P25 and aluminum were put in a two zone tube furnace, separately, and then vacuumized to a base pressure lower than 0.5 Pa. Following, aluminum and P25 were subjected to heating at 800 ºC and 600 ºC for 6 h, respectively. Then, the post-annealing treatment was performed by heating the obtained Al-TiO_2-x sample at 800 ºC in an argon atmosphere for 12 h. After that, B-TiO_2-x was prepared and then dispersed in water with ultrasonication at 400 W for 2 h at room temperature. Finally, highly dispersible aqueous solution of G-TiO_2-x was acquired through this robust and simple way.

PEG, TPP and RITC conjugation of G-TiO_2-x

In order to conjugate TPP ligand on the surface of G-TiO_2-x, H₂N-PEG₅₀₀₀-NH₂ was firstly linked to G-TiO_2-x for anchoring site. Briefly, to the aqueous solution of G-TiO_2-x (Ti concentration: 1 mg mL^-1), excess H₂N-PEG₅₀₀₀-NH₂ (5-10 mg) was added and the mixture was stirred at room temperature for 24 h. G-TiO_2-x-NH₂ was obtained after centrifugation (11000 rpm, 15 min) and freeze-dried for later use. As for TPP conjugation, EDC (50 mg) and CTPB (20 mg) were dissolved in 20 mL of methanol. Thereafter, G-TiO_2-x-NH₂ (1 mg mL^-1) was added to the abovementioned mixture solution and strirred at room temperature for 24 h. Finally, G-TiO_2-x-TPP was obtained after centrifugation (11000 rpm, 15 min) and washed for several times, then dispersed in water for later use (0.5 mg mL^-1).

RITC was conjugated on the surface of G-TiO_2-x-NH₂ and G-TiO_2-x-TPP for fluorescent labeling. Briefly, to the aqueous solutions of G-TiO_2-x-NH₂ and G-TiO_2-x-TPP (1 mg mL^-1), excess RITC (2-5 mg) was added and the mixtures were stirred at room temperature for 24 h. RITC can be attached on the surface of G-TiO_2-x-NH₂ and G-TiO_2-x-TPP by forming thiourea linkage between NH₂ originating from G-TiO_2-x-NH₂ and G-TiO_2-x-TPP and S=C=N group originating from RITC, respectively. RITC labeled G-TiO_2-x-NH₂ and G-TiO_2-x-TPP were obtained after centrifugation (11000 rpm, 15 min) and washed for several times, then dispersed in water for later use (0.5 mg mL^-1).

ROS detection by using DPBF

ROS prodcution of G-TiO_2-x (Ti concentration: 100 ppm) was measured by using the sensitive probe DPBF (25 μM) in acetonitrile. A UV-vis absorption spectrum was obtained after every 10 min of NIR (980 nm, 0.72 W cm^-2) laser irradiation. The experiment was performed in triplicate and data show as mean ±SD. The monitored absorption decrease of DPBF at 410 nm was ascribed to the consequence of ROS generation.

ESR measurements

5, 5-Dimethyl-1-pyrroline-N-oxide (DMPO, 100 mM, 40 μL), which was used for trapping hydroxyl radicals (OH^•), was added to the aqueous solotion of G-TiO_2-x (Ti concentration: 100 ppm). The mixture was irradiated with or without NIR (980 nm, 0.72 W cm^-2) laser and then poured into a quartz capillary for the ESR measurement.

Intracellular ROS generation by CLSM

In brief, HeLa cells were seeded on culture dishes (Gibco) at a density of 1 × 10⁴ cells mL^-1 in DMEM, containing 10% FBS and 1% antibiotic solution (penicillin and streptomycin). And incubated with G-TiO_2-x (Ti concentration: 50 ppm) for cell uptake after 12 h. Then the culture medium was removed and fresh medium containing DCFH-DA (20 μM), which can be transformed into highly fluorescent 2,7-dichlorofluorescein (DCF) in the presence of ROS, was added to the culture dishes for another 30 min incubation. Then the medium containing DCFH-DA was replaced with phosphate buffer solution (PBS) and the cells underwent laser irradiation (980 nm, 0.72 W cm^-2, 5 min) for confocal fluorescent imaging. The excitation and emission wavelengths of DCF (green fluorescence) are 485 nm and 530 nm, respectively.

Cell culture

HeLa cells, renal tubular duct epithelial cells of rat (NRK-52E), human glioblastoma cells (U87MG) and rat adrenal pheochromocytoma cell line (PC12) were cultured in a Dulbecco's modified Eagle's medium (DMEM), containing 10% fetal bovine serum and 1% antibiotic solution (penicillin and streptomycin), and maintained at 37 ºC under 5% CO₂. Rat liver cells (BRL) and brain capillary endothelial cells (BCECs) were suspended to a standard culture medium containing Roswell Park Memorial Insitute medium (RPMI) 1640, 10% fetal bovine serum, and 1% antibiotic solution and cultured at 37 ºC with atmosphere of humidified 5% CO₂.

Intracellular localization of G-TiO_2-x and G-TiO_2-x-TPP

HeLa cells were seeded on culuture dishes (Gibco) containing DMEM supplemented with 10% FBS and 1% antibiotic solution (penicillin and streptomycin) at a density of 1 × 10⁴ cells mL^-1, and incubated with RITC-labled G-TiO_2-x and G-TiO_2-x-TPP (Ti concentration: 50 ppm) for 1 and 4 h at 37 °C in the presence of 5% CO₂, respectively. Then cells were washed with PBS, Mito-Tracker green (0.1 mM) was added and incubated for another 30 min. Finally, the cells were washed with PBS for 3 times and imaged by CLSM. The excitation and emission wavelengths of RITC (red fluorescence) are 570 nm and 595 nm, respectively. The excitation and emission wavelengths of Mito-Tracker green (green fluorescence) are 490 nm and 516 nm, respectively.

Photothermal effect of G-TiO_2-x solution

To investigate the photothermal effect of G-TiO_2-x exposured to NIR irradiation, pure water and aqueous solutions (2 mL) containing G-TiO_2-x at various Ti concentrations (i.e., 6.25, 12.5, 25, 50 ppm) were put in quartz cuvettes and subjected to 980 nm laser irradiation for 5 min at different power densities (i.e., 0.175, 0.35, 0.53, 0.72, 0.89, 1.06 W cm^-2). A thermocouple microprobe was inserted into the aqueous solution of G-TiO_2-x to monitor the temperature change. Meanwhile, the photothermal stability study was performed by irradiating the same aqueous solution of G-TiO_2-x (2 mL, Ti concentration: 50 ppm) for 10 cycles (980 nm, 0.72 W cm^-2, 5 min).

Cytotoxicity evaluation of G-TiO_2-x

For the cytotoxicity assay (MTT), cells were seeded in a 96-well plate overnight. Then the original culture medium was repalced by fresh medium containg different Ti concentrations (i.e., 6.25, 12.5, 25, 50, 100 ppm) of G-TiO_2-x. Then the culture medium was removed and replaced by fresh medium supplement with MTT (8 mg/mL) after aditional 24 h incubation. MTT-formazan dye was formed after 4 h incubation and dissolved by DMSO (100 μL). Finally, the absorbance was measured at A₄₉₀ on an enzyme-linked immuno sorbent assay (ELISA) reader. The test was carried out independently for three times.

In vitro phototoxicity by MTT

Prior to investigate the photodestruction on cancer cells by MTT, HeLa cells were seeded in 96-well cell culture plates (1×10⁴ cells per well) for 24 h to adhere and then a series of concentrations of G-TiO_2-x solution were added for additional 4 h incubation. Following, each well of cells were exposured to 980 nm laser irradiation (0.72 W cm^-2, 5 min) and the photo-cytotoxicity study of G-TiO_2-x was evaluated by the standarded MTT viability assay.

In vitro phototoxicity by trypan blue stain

HeLa cells were seeded on a cell culture plates at 37 °C with 5% CO₂ until reaching 80-90% confluence. Then, original culture medium was replaced with culture medium containing G-TiO_2-x (Ti concentration: 50 ppm) and incubated for another 4 h. Then cells were illuminated with 980 nm laser (0.72 W cm^-2, 5 min). Finally, trypan blue (4%) was used to stain the cells for optical microscopic observation.

In vitro phototoxicity by CLSM

Generally, HeLa cells were incubated in culture dishes at 37 °C in the presence of humidified 5% CO₂ until reaching 80-90% confluence. Then the culture medium containing G-TiO_2-x (Ti concentration: 50 ppm) was added to replace the original medium for another 4 h incubation. Subsequently, the culture medium was removed and PBS solution was added and followed by 980 nm laser irradiation (0.72 W cm^-2, 5 min). After laser irradiation, the cells were co-stained with calcein-AM and PI for confocal fluorescence imaging. The excitation and emission wavelengths of calcein-AM (green fluorescence) are 495 nm and 516 nm, respectively. The excitation and emission wavelengths of PI (red fluorescence) are 535 nm and 617 nm, respectively.

In vivo phototherapeutic efficacy of G-TiO_2-x-TPP

In order to evaluate the simultaneous PTT/PDT therapeutic efficacy in vivo, nude mice bearing two HeLa tumors on each front flanks were randomly seperated into two groups (n=6): the first and the second groups were treated with saline and PBS solution containing G-TiO_2-x-TPP (8 mg Kg^-1) by tail-vein injection, respectively. Mice were anesthetized prior to 980 nm laser (0.72 W cm^-2, 5 min) irradiation on the left flank tumor. The temperature elevation of tumor center during laser irradiation was real-time monitored and recorded on an infrared thermal imaging instrument (FLIR sc325). The tumor size was measured by a digital caliper every 2 days until to 18 days. Tumor volume was calculated by the formula: tumor volume [mm³] = (length [mm]) × (width [mm])² × 0.5, *P < 0.05.

Animal experiments

All animals were purchased and raised at the animal laboratory of Tongji University. All animal experiments were carried out in accordance with the Guidelines for the Care and Use of Research Animals established by Tongji University Animal Studies Committee. HeLa tumor models were established by subcutaneous injection of 1 × 10⁵ cells in 100 µL of PBS into two front flanks of female nude mice. The nude mice bearing HeLa tumors were subjected to phototherapy when volume of tumors reached approximately 100 mm³. Physiological saline containing G-TiO_2-x-TPP was intravenously injected into mice.

Statistics

All results in this study are shown as the mean ± SD. Statistical significance with minimum level of P-value set as 0.05 was evaluated by unpaired two-tailed Student's t-test.

Results and Discussions

Synthesis and Characterization

The facile synthesis and rational strategy of such new kind of green titania (G-TiO_2-x) and TPP functionalized G-TiO_2-x (G-TiO_2-x-TPP) for mitochondria-targeted cancer phototherapy, was outlined in Scheme 1.

 Scheme 1

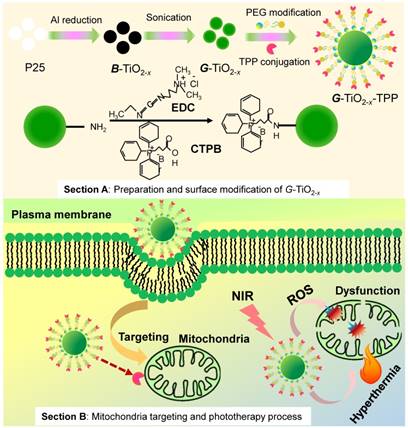

Schematic representation of the preparation and surface modification of green titania (G-TiO_2-x) (section A) for mitochondria-targeted cancer phototherapy (section B). Firstly, black titania (B-TiO_2-x) was synthesized from P25 (pristine titania) through an aluminum reduction method. Then G-TiO_2-x was prepared from B-TiO_2-x by strong ultrasonication. The TPP (triphenylphosphonium) was following conjugated to G-TiO_2-x (G-TiO_2-x-TPP) for mitochondria targeting strategy. Under the same single near infrared (NIR) laser irradiation, G-TiO_2-x was able to simultaneously generate reactive oxygen species (ROS) and hyperthermia for photodynamic therapy (PDT) and photothermal therapy (PTT), respectively.

Firstly, black titania (B-TiO_2-x) with an average particle size of 16 nm (±4 nm) was synthesized through an aluminum reduction method according to previously reported [40]. Then a new kind of G-TiO_2-x (12.2 ± 2.5 nm) was facilely and irreversibly prepared from B-TiO_2-x by strong ultrasonication. Both B-TiO_2-x and G-TiO_2-x show similar particle size and morphology, as verified by transmission electron microscopy (TEM) in Figure 1a and 1c. The size distribution histograms of B-TiO_2-x and G-TiO_2-x obtained from the TEM images were shown in Figure S1. All the elements (Ti and O) are obviously detected by energy dispersive spectrometer (EDS) analysis (Figure S2). When dispersed in water, B-TiO_2-x could quickly precipitate at the bottom of a quartz cuvette (Figure 1b), as the red arrow indicated, suggesting poor dispersity. Comparatively, after strong ultrasonication, the transformed G-TiO_2-x exhibits an obvious green color and displays excellent dispersity and high stability in water (Figure 1d), mainly attributing to the separation effect of agglomerated NPs induced by ultrasonication and potentially more hydrogen bonds formation between OH groups on the surface and water [41]. The microstructures of B-TiO_2-x and G-TiO_2-x were further investigated by high resolution-TEM (HR-TEM). As shown in Figure 1e-f, both B-TiO_2-x and G-TiO_2-x are comprised of a highly crystallized TiO₂ core, which shows a well-resolved lattice plane (101) with a typical anatase plane distance, and an amorphous TiO_2-x shell. Very interesting, it is noted that apparent thickness enhancement of the disordered outer-layer can be observed after strong ultrasonication (Figure 1e-f), which is attributed to obvious change of TiO₂ lattice order during ultrasonication, inducing the clear formation of amorphous shell around the granula edge [42]. Raman scattering was performed to further examine the structural changes of white TiO₂, B-TiO_2-x and G-TiO_2-x. As shown in Figure S3, the six Raman-active modes (3E_g + 2B_1g +A_1g) of anatase phase were detected in all samples. It is worth noting that the strongest E_g mode (140 cm^-1) of G-TiO_2-x exhibits a blue shift and peak broadening compared with that of B-TiO_2-x and white TiO₂ (Figure 1g). It is well-known that the presence of many disorders would result in photons confinement effects and finally blue-shift and broadening of E_g mode [43], which are ascribed to crystal domain size and nonstoichiometry [44]. Thus, compared with those of B-TiO_2-x and white TiO₂, it is believed that the blue shift and linewidth increasing of E_g mode at ~140 cm^-1 in G-TiO_2-x indicates the obvious change of TiO₂ lattice order during ultrasonication, which is in well agreement with HRTEM observation (Figure 1e-f). The chemical states of Ti and O atoms on the surface of G-TiO_2-x and B-TiO_2-x were further investigated by X-ray photoelectron spectroscopy (XPS). The shoulder peaks at ~457 eV in the Ti 2p_3/2 and at 463 eV in Ti 2p_1/2 XPS spectra, correlated with Ti³⁺[45], can be obviously detected in the surface layer of B-TiO_2-x and G-TiO_2-x (Figure S4).

It is found that, compared with aqueous solution of B-TiO_2-x, aqueous solution of G-TiO_2-x shows a much enhanced NIR absorption (Figure 1h), especially around 920 nm (Figure S5), with the same Ti concentration, which can be ascribed to the change of TiO_2-x lattice order in G-TiO_2-x, as previously reported[46, 47].

 Figure 1

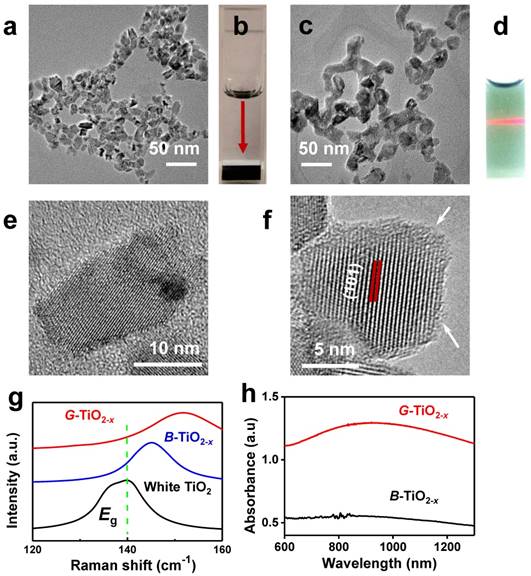

Representative TEM image of B-TiO_2-x (a) and its corresponding photograph of aqueous solution (b) (Ti concentration: 100 ppm). TEM image of G-TiO_2-x (c) and its corresponding photograph of aqueous solution (d) (Ti concentration: 100 ppm), the red beam of light came from a red laser pointer to indicate the excellent dispersity of G-TiO_2-x. HR-TEM images of B-TiO_2-x (e) and G-TiO_2-x (f), the arrows in (f) indicate the amorphous layer of TiO_2-x. (g) Raman spectra of white TiO₂, as-synthesized B-TiO_2-x and G-TiO_2-x at 140 cm^-1. (h) UV-vis absorbance spectra of aqueous solutions containing B-TiO_2-x and G-TiO_2-x at the same Ti concentration of 50 ppm.

PDT activity of G-TiO_2-x

The NIR laser-driven photocatalytic activity of G-TiO_2-x was further investigated by using 1,3-diphenylisobenzofuran (DPBF)[48], which is usually served as a singlet oxygen chemical probe for detection of ROS production. Basically, the optical absorption intensity of DPBF at 410 nm was measured by UV-Vis spectrum upon 980 nm laser irradiation, since the 980 nm continuous laser instrument is generally available and widely used than 920 nm laser instrument, and possesses lower energy and higher deep tissue penetration than that of 808 nm. The decay curves shown in Figure 2a clearly demonstrate that the groups of G-TiO_2-x alone, NIR laser irradiation alone and G-TiO_2-x+NIR are able to cause decrease in the absorption intensity of DBPF. Comparatively, much considerable decrease is observed in the presence of G-TiO_2-x+NIR, suggesting more ROS generation. To make more convincing, the ROS generation was further examined by electron spin resonance (ESR) methods [49], using 5,5-dimethyl-1-pyrolline-N-oxide (DMPO) as a spin trap agent. As shown in Figure 2b, the characteristic DMPO-OH spin adduct indicating the OH^• generation, is clearly found in the presence of G-TiO_2-x. More importantly, the intensity of DMPO-OH spin adduct significantly increases upon NIR laser irradiation, suggesting that G-TiO_2-x shows great potentials in NIR laser-driven PDT. Furthermore, confocal laser scanning microscopy (CLSM) was used to examine the photodynamic activity on HeLa cells. 2′,7′-dichlorodihydrofluorescein diacetate (DCFH-DA)[50], which is liable to be oxidized to strong green fluorescent 2′,7′-dichlorofluorescein (DCF) by ROS, was incubated with HeLa cells after different treatments. As expected, noticeable green fluorescence is observed in HeLa cells treated with G-TiO_2-x+NIR (Figure 2c₄), while could be hardly found in control cell groups including DMEM, G-TiO_2-x and NIR laser irradiation alone (Figure 2c₁-c₃). The quantified green fluorescent intensities of DCF from HeLa cell groups treated with G-TiO_2-x+NIR shows 6-7 folds higher than that of the aforementioned control cells groups (Figure 2d).

 Figure 2

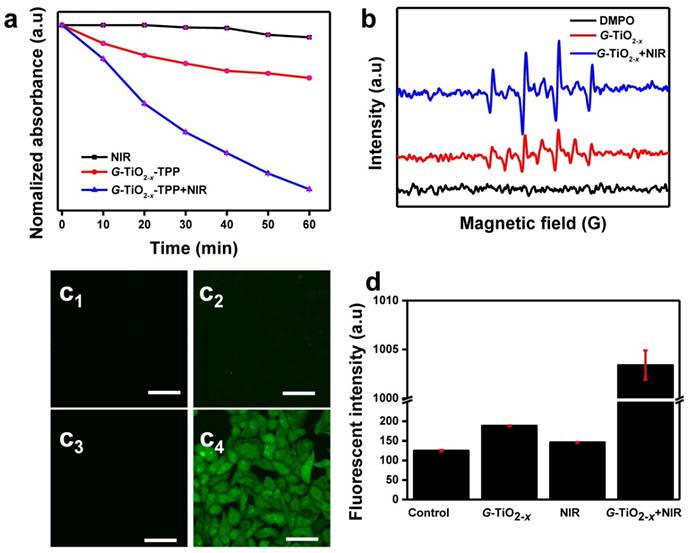

(a) Time-based absorption intensity (Mean±SD) reduction of DPBF after different treatments, monitored at 410 nm. (b) ESR spectra of different samples. (c)Confocal fluorescence images of HeLa cells stained by DCF-DA after different treatments: (c₁): without treatment as a control; (c₂): G-TiO_2-x incubation alone (Ti concentration: 50 ppm); (c₃): NIR laser irradiation alone for 5 min (980 nm, 0.72 W cm^-2); (c₄): G-TiO_2-x+NIR laser irradiation. All the scale bars in (c) are 50 μm. (d) The quantified green fluorescent intensities (Mean±SD) of ROS detection probe DCF from HeLa cell groups after aforementioned different treatments.

Photothermal effect of G-TiO_2-x

Encouragingly, upon 980 nm laser irradiation, the temperatures of solutions containing G-TiO_2-x gradually increase with concentrations (Figure 3a) and laser power densities (Figure S6a), whereas water as a control shows negligible temperature elevation, demonstrating G-TiO_2-x features an excellent photothermal effect and photostability (Figure S6b). To further explore the phototoxicity of G-TiO_2-x on HeLa cells, a standard 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) cell viability assay was performed on HeLa cells. After 24 h incubation without NIR laser irradiation, all the cell viabilities were over 85% even at a high concentration (the black histogram in Figure 3b), indicating G-TiO_2-x itself was nontoxic. However, upon 980 nm laser irradiation at a much lower power density of 0.72 W cm^-2, serve cell death occurred in the presence of G-TiO_2-x and the percentage of cell death shows dependence on concentrations (the red histogram in Figure 3b). In addition, the cells were stained by typan blue for visualization. As shown in Figure 3c, the dead cells are stained in blue (Figure 3c₄), whereas the control cell groups including cells treated with Dulbecco's Modified Eagle Medium (DMEM), G-TiO_2-x and NIR alone remain unchanged (Figure 3c₁-c₃). The phototoxicity of G-TiO_2-x could be further fluorescently visualized by CLSM. The cells treated with G-TiO_2-x+NIR show strong red fluorescence (Figure 3d₄), originating from propidium iodine (PI) for dead cells. Comparatively, the aforementioned control cell groups display distinct green fluorescence (Figure 3d₁-d₃), originating from calcein-AM (AM=acetoxymethyl) for live cells. All the results show that the G-TiO_2-x can serve as a single component photosensitizer for a single NIR laser-induced synergistic treatment of PDT and PTT.

Synthesis and characterization of G-TiO_2-x-TPP

It is well known that mitochondria are the vital energy center of cells and generally cause cell death through the generation of ROS, and the transportation of photosensitizers to mitochondria is unhindered, thus, mitochondria are preferred subcellular organelles for PDT. It is believed that the phototherapeutic efficacy could be highly improved by constructing mitochondria-targeting photosensitizers for in situ production of ROS, since ROS generally suffer from short half-life (<40 ns) and limited diffusion distance (<20 nm), which significantly impede its capability to damage central cellular counterparts[51]. Therefore, the combination of mitochondria-targeted PDT/PTT could enable low dosage and low laser exposure accompanying with high phototherapeutic efficacy. Under this consideration, G-TiO_2-x was subsequently conjugated with TPP, which is a lipophilic cation selectively targeting to mitochondria, for mitochondria-targeted PDT/PTT. PEG terminated with amines at both terminals (NH₂-PEG₅₀₀₀-NH₂) was used for the surface modification of G-TiO_2-x, thereinto, the formation of both the NH-O band[52] and the coordination bond between Ti atoms and amine groups [53] could improve the nanoparticles' dispersity and stability. Meanwhile, the other amine group terminal could be used for the TPP groups coupling through a carbodiimide reaction [54]. Aqueous solution of G-TiO_2-x-TPP shows a similar optical property in NIR region with G-TiO_2-x, and the absorbance around 920 nm is linearly enhanced with Ti concentrations (Figure S7). After surface modification, the hydrodynamic diameter of G-TiO_2-x increases from 59 to 135 nm after PEGylation, and to 196 nm after TPP conjugation (Figure S8a). The corresponding Zeta potential changes from -32.5 to -27 mV after PEGylation and 0.46 mV after TPP conjugation (Figure S8b). Besides the dynamic light scattering measurement, the Fourier Transform Infrared Spectroscopy (FTIR) was also characterized to indicate the successful PEG and TPP conjugation. In detail, the characteristic IR bands locating at 1384 cm^-1 assigned to Ti-N-O vibrating band[55], and the FTIR displays a typical signal increase of ester band at 1725 cm^-1 and benzene from 1600 to 1400 cm^-1[56] (Figure S9), respectively, confirming that PEG and TPP have been successfully conjugated onto the surface of G-TiO_2-x-TPP.

 Figure 3

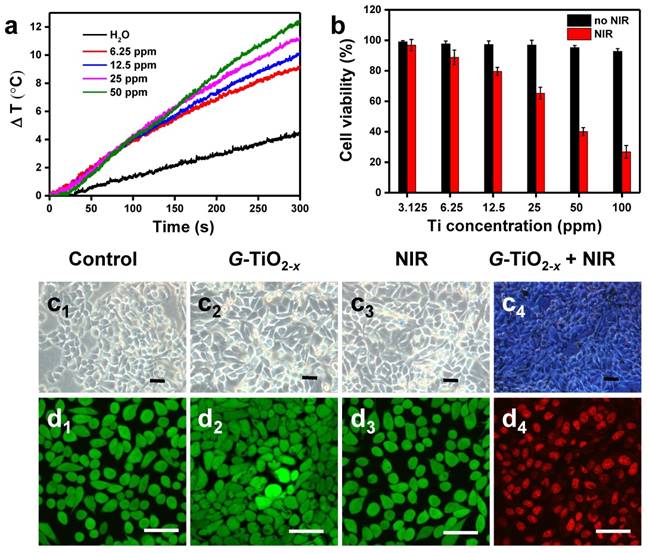

(a) Temperature evolution curves of pure water and aqueous solution containing G-TiO_2-x at different Ti concentrations under NIR laser irradiation for 5 min (980 nm, 0.72 W cm^-2). (b) In vitro cell viabilities (Mean±SD) of HeLa cells incubated with G-TiO_2-x at different Ti concentrations for 24 h without (the black histogram) and with NIR laser irradiation for 5 min (the red histogram, 980 nm, 0.72 W cm^-2). Optical microscopic images (c) of HeLa cells stained by trypan blue, and confocal fluorescence images of HeLa cells co-stained by calcein-AM and PI (d) after different treatments: (c₁-d₁): without treatment as a control; (c₂-d₂): G-TiO_2-x incubation alone (4 h, Ti concentration: 50 ppm); (c₃-d₃): NIR laser irradiation alone for 5 min (980 nm, 0.72 W cm^-2); (c₄-d₄): G-TiO_2-x+NIR laser irradiation (4 h, Ti concentration: 50 ppm, 980 nm, 0.72 W cm^-2). All the scale bars in (c-d) are 50 μm.

Intracellular localization of G-TiO_2-x and G-TiO_2-x-TPP

In order to evaluate the selective targeting efficacy of G-TiO_2-x-TPP to mitochondria, intracellular localization of G-TiO_2-x and G-TiO_2-x-TPP were investigated on HeLa cells by CLSM. After incubation with RITC-labeled G-TiO_2-x and G-TiO_2-x-TPP for 1 and 4 h, respectively, HeLa cells were stained with Mito-Tacker green (a mitochondria stain). It is found that both G-TiO_2-x and G-TiO_2-x-TPP can be taken up by HeLa cells, since the red channel is ascribed to the red fluorescence signal of RITC-labeled G-TiO_2-x and G-TiO_2-x-TPP (Figure 4a-b). Comparatively, much stronger red signals in HeLa cells incubated with G-TiO_2-x-TPP after 1 and 4 h indicate a higher cellular uptake efficiency of G-TiO_2-x-TPP than that of G-TiO_2-x, even after incubation with G-TiO_2-x for 4 h, which is further evidenced by the quantified red fluorescent intensities (Figure 4c). The green channel shows the location of mitochondria, and the yellow areas in merged pictures reveal the co-localization of green signal from Mito-Tracker green and red signal from FITC-labeled G-TiO_2-x and G-TiO_2-x-TPP. Negligible overlapping areas are observed in the cells incubated with G-TiO_2-x for 1 h, while weak yellow signals can be detected after incubation for 4 h, suggesting a part of G-TiO_2-x could be localized to mitochondria. Inspiringly, G-TiO_2-x-TPP is found to preferentially enter into mitochondria, which is revealed by the obvious and abundant yellow signals both after 1 and 4 h incubations, demonstrating G-TiO_2-x-TPP exhibits a higher selective localization to mitochondria than that of G-TiO_2-x, mainly attributing to the assistance of TPP ligand. The process of G-TiO_2-x-TPP targeting to mitochondria and subsequently inducing cell death are illustrated in Figure 4d.

In vivo blood circulation and biodistribution of G-TiO_2-x-TPP

Prior to in vivo cancer phototherapy, the blood circulation half-time and biodistribution of G-TiO_2-x-TPP was investigated. The Ti contents in blood and main tissues were determined by inductively coupled plasma-atomic emission spectrometry (ICP-AES) analysis. It is found that G-TiO_2-x-TPP exhibits a blood circulation half-life of 1 h (Figure S10a), which is considerably longer than organic molecules [57]. Similar to other nanoparticles, after 24 h intravenous injection, G-TiO_2-x-TPP was trend to be uptaken by reticuloendothelial system (RES) [58], including liver and spleen. About 2.6 ID%/g of G-TiO_2-x-TPP was accumulated within tumor mainly attributing to the enhanced permeability and retention (EPR) effect (Figure S10b) [59].

 Figure 4

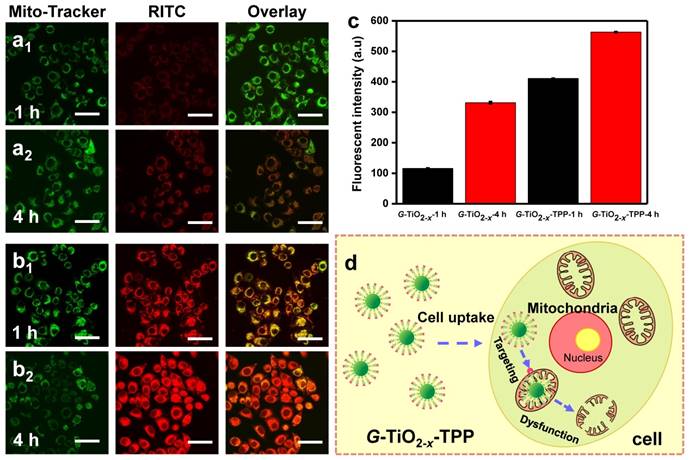

Confocal fluorescence microscopic images of HeLa cells treated with RITC-labeled G-TiO_2-x (a₁-a₂), and G-TiO_2-x-TPP (b₁-b₂) for 1 h and 4 h incubations, respectively, following by Mito-Tracker green stain. All the scale bars in (a-b) are 50 μm. The mitochondrial localization is evaluated by the co-localized fluorescence signal from Mito-Tracker green and RITC-labeled G-TiO_2-x and G-TiO_2-x-TPP. Yellow areas arising from the red and green signals denoted the co-localization of G-TiO_2-x and G-TiO_2-x-TPP within mitochondrial compartments. (c) The corresponding quantified fluorescent intensities (Mean±SD) of RITC-labeled G-TiO_2-x and G-TiO_2-x-TPP from HeLa cell groups after aforementioned different treatments. (d) Schematic illustration of the process of G-TiO_2-x-TPP targeting to mitochondria and subsequently inducing cell death.

In vivo PDT/PTT investigation

Furthermore, the in vivo phototherapeutic efficacy of G-TiO_2-x-TPP was investigated in detail. Mice bearing HeLa tumors on two flanks were randomly divided into two groups (n=6). Physiological saline containing G-TiO_2-x-TPP with a dosage of 8 mg kg^-1 per mouse, which is relatively lower than that of Au nanorods (20 mg kg^-1) [60], was intravenously injected into the second group of mice. Then the left tumors were illuminated with a NIR laser at a much lower laser power density (980 nm, 0.72 W cm^-2), which is significantly lower than that of previously reported (20 W cm^-2) [61]. The local temperature changes of tumor site were real-time monitored by near-infrared thermal imaging instrument. The temperature of tumor treated with NIR laser irradiation alone just elevates to 38.8 ºC (Figure 5a). Comparatively, the temperature of tumor treated with G-TiO_2-x-TPP+NIR elicits a faster and higher temperature elevation and increases to 55 ºC (Figure 5b), which is sufficient to cause irreversible damages to cancer cells, after identical level of NIR laser illumination. As is expected, large areas of severe tissue damages, such as cellular destruction and apoptosis, were found in the histopathological analysis of tumor treated with G-TiO_2-x-TPP+NIR (Figure 5c₄). However, no obvious changes were found in control mice treated with physiological saline, NIR alone, and G-TiO_2-x-TPP alone (Figure 5c₁-c₃). Since G-TiO_2-x-TPP shows enhanced NIR absorption and high mitochondria-targeting efficiency, which ensures production of hyperthermia and ROS in situ for mitochondria targeted PTT/PDT, it is believed the mitochondria undergoes the combination mechanisms of both apoptosis and necrosis [62]. The phototherapeutic efficacy was further evaluated by measuring tumor growth rates. The tumors of mice treated with G-TiO_2-x-TPP+NIR show complete tumor elimination in the second day and no recurrence in the subsequent 18 days (Figure 5d), whereas the tumors of mice treated with physiological saline, G-TiO_2-x-TPP and NIR alone display sustainable growth, which could be further confirmed by the photographs of mice after different treatments in 18 days (Figure 5e). It is worth noting that, excellent phototherapeutic efficacy is achieved even at the relatively low tumor accumulation of G-TiO_2-x-TPP with a much lower laser power density and low dosage of G-TiO_2-x-TPP, mainly attributing to the successful mitochondria targeting and simultaneous and highly synergistic effect of PDT/PTT. All these results well demonstrate that such new kind of G-TiO_2-x-TPP with enhanced NIR absorption and mitochondria-targeting property can be employed as a desired photosensitizer for mitochondria-targeted phototherapy.

 Figure 5

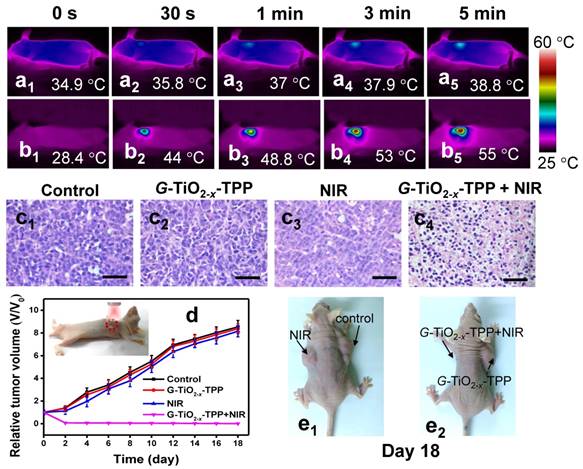

Infrared thermal images of nude mice bearing HeLa tumors after different treatments at varied time intervals: (a₁-a₅) NIR laser irradiation alone; (b₁-b₅) G-TiO_2-x-TPP+NIR laser irradiation for 5 min (980 nm, 0.72 W cm^-2). (c) H&E staining of tumor sections collected from the groups of mice upon different post treatments: (c₁) saline; (c₂) G-TiO_2-x-TPP alone (8 mg kg^-1, per mouse); (c₃) NIR laser irradiation alone; and (c₄) G-TiO_2-x-TPP+NIR laser irradiation. (d) Tumor growth curves of different groups of tumors-bearing mice. The inset shows photograph of cancer phototherapy. (e) Photographs of mice in 18 days post-treatment. All the scale bars in (c) are 50 μm.

In vitro and in vivo toxicity investigation

Since nanoparticles are liable to accumulate within liver, kidney and potential harmful to brain, three types of normal cells including rat liver cells (BRL), renal tubular duct epithelial cells of rat (NRK-52E) and brain capillary endothelial cells (BCECs) were incubated with G-TiO_2-x-TPP at varied Ti concentrations for the cytotoxicity investigation. The cell viability was assessed by a standard MTT assay. After 24 incubation, it is found that no obvious cytotoxicity of G-TiO_2-x-TPP is observed, which can be evidenced by the percentages of cell viabilities of all the three types were above 85% (Figure S11a) and no significant cells morphologies changes (Figure S11c-e), indicating G-TiO_2-x-TPP is biocompatible to liver, kidney and brain. In addition, two types of brain-related cancer cells, including human glioblastoma cells (U87MG) and rat adrenal pheochromocytoma cell line (PC12), which were generally used to study the diseases of brain, were further incubated with G-TiO_2-x-TPP for evaluating the cytotoxicity of G-TiO_2-x-TPP on brain in detail. As is expected, the results of MTT assays on these two types of cancer cells show that G-TiO_2-x-TPP exhibites negiligible cytoxicity (Figure S11b, f-g), demonstrating G-TiO_2-x-TPP is safe to brain.

Furthermore, in vivo biocompatibility investigation was conducted in detail. The mice after intravenous injection of G-TiO_2-x-TPP were euthanized at predetermined time points (i.e., 3, 15, 30 days). The blood and main organs were acquired for hemanalysis and histological analysis, respectively. No disorder is observed in the hematological and biochemical parameters (Figure S12a-p). And the main tissues (including heart, liver, spleen, lung, kidney) show no abnormity from the Hematoxylin and Eosin (H&E) staining results (Figure S13), indicaiting that G-TiO_2-x-TPP is hemo/histocompatible. Moreover, the brain tissue sections of cortex, hippocampus and striatum were also collected and stained with H&E to investigate the potential in vivo brain toxicity. It is found that the aforementioned brain tissues still retained the similar morphologies in 3, 15, 30 days after intravenous injection of G-TiO_2-x-TPP (Figure S14), which was compared with the control groups, demonstrating that G-TiO_2-x-TPP has negligible side effects to brain. All the results have shown that G-TiO_2-x-TPP is highly biocompatible for further biomedical application.

Conclusion

In this study, we have demonstrated a simple but effective approach to develop a new kind of stable G-TiO_2-x from B-TiO_2-x by a subsequently strong ultrasonication. The aqueous solution of G-TiO_2-x exhibits an obvious green color and enhanced NIR absorption, especially around 920 nm, which is mainly ascribed to the change of TiO_2-x lattice order, as can be found in the obvious thickness increasement of amorphous layer of G-TiO_2-x. Attributing to the significant enhancement in NIR absorption, excellent NIR laser-induced PDT and PTT activity of G-TiO_2-x has been obtained. In addition, in order to further reduce the laser power density to minimize potential damages to healthy tissues, G-TiO_2-x was subsequently conjugated with TPP ligand for mitochondria-targeted PDT/PTT. Both in vitro and in vivo results well demonstrated the excellent mitochondria-targeting capability and high phototherapeutic efficacy of G-TiO_2-x-TPP, under a single NIR laser irradiation at a much lower power density (980 nm, 0.72 W cm^-2) and low intravenous injection dosage (8 mg kg^-1 per mouse). Moreover, G-TiO_2-x is proved to have high hemo/histrocompatibility for further biological application. The successful construction of mitochondria-targeted simultaneous and synergistic PDT/PTT based on such a new kind of G-TiO_2-x overcomes the traditional drawbacks of combinatorial treatment of PTT/PDT, such as overdose of nanomaterials and UV light exposure, and exhibits highly improved phototherapeutic efficacy and safety as well as biocompatibility, providing new strategies for future precise minimal/non-invasive tumor treatment.
