Abdominal Aortic Aneurysms Targeted by Functionalized Polysaccharide Microparticles: a new Tool for SPECT Imaging

Thomas Bonnard1,2, Gonord Yang1, Anne Petiet3, Véronique Ollivier1, Oualid Haddad4, Denis Arnaud1, Liliane Louedec1, Laure Bachelet-Violette1, Sidi Mohammed Derkaoui1, Didier Letourneur1,2, Cedric Chauvierre1, Catherine Le Visage1 Corresponding address

1. Inserm, U698, Cardiovascular Bio-Engineering, X. Bichat hospital, 46 Rue H. Huchard, F-75018, Paris, France;
2. Institut Galilée, Université Paris 13, Sorbonne Paris Cité, F-93430, Villetaneuse, France;
3. IFR 02, UFR de Médecine, site Bichat, Université Paris Diderot, F-75018, Paris, France;
4. UFR SMBH, Université Paris 13, Sorbonne Paris Cité, F-93000, Bobigny, France.

This is an open access article distributed under the terms of the Creative Commons Attribution (CC BY-NC) License. See http://ivyspring.com/terms for full terms and conditions.
How to cite this article:
Bonnard T, Yang G, Petiet A, Ollivier V, Haddad O, Arnaud D, Louedec L, Bachelet-Violette L, Derkaoui SM, Letourneur D, Chauvierre C, Le Visage C. Abdominal Aortic Aneurysms Targeted by Functionalized Polysaccharide Microparticles: a new Tool for SPECT Imaging. Theranostics 2014; 4(6):592-603. doi:10.7150/thno.7757. Available from http://www.thno.org/v04p0592.htm

Abstract

Aneurysm diagnostic is nowadays limited by the lack of technology that enables early detection and rupture risk prediction. New non invasive tools for molecular imaging are still required. In the present study, we present an innovative SPECT diagnostic tool for abdominal aortic aneurysm (AAA) produced from injectable polysaccharide microparticles radiolabeled with technetium 99m (99mTc) and functionalized with fucoidan, a sulfated polysaccharide with the ability to target P-Selectin. P-Selectin is a cell adhesion molecule expressed on activated endothelial cells and platelets which can be found in the thrombus of aneurysms, as well as in other vascular pathologies.

Microparticles with a maximum hydrodynamic diameter of 4 µm were obtained by crosslinking the polysaccharides dextran and pullulan. They were functionalized with fucoidan. In vitro interactions with human activated platelets were assessed by flow cytometry that demonstrated a specific affinity of fucoidan functionalized microparticles for P-Selectin expressed by activated platelets. For in vivo AAA imaging, microparticles were radiolabeled with 99mTc and intravenously injected into healthy and AAA rats obtained by elastase perfusion through the aorta wall. Animals were scanned by SPECT imaging. A strong contrast enhancement located in the abdominal aorta of AAA rats was obtained, while no signal was obtained in healthy rats or in AAA rats after injection of non-functionalized control microparticles. Histological studies revealed that functionalized radiolabeled polysaccharide microparticles were localized in the AAA wall, in the same location where P-Selectin was expressed.

These microparticles therefore constitute a promising SPECT imaging tool for AAA and potentially for other vascular diseases characterized by P-Selectin expression. Future work will focus on validating the efficiency of the microparticles to diagnose these other pathologies and the different stages of AAA. Incorporation of a therapeutic molecule is also considered.

Keywords: Fucoidan, P-Selectin, 99mTc, Ligand, Radiolabeled.

Introduction

Abdominal aortic aneurysm (AAA) is a pathological dilatation of the abdominal aorta with a mortality associated to its rupture of approximately 90% [1, 2]. Nowadays, AAA is usually diagnosed by anatomical imaging techniques such as ultrasound, computed tomography and/or magnetic resonance imaging [3]. Limitations of these methods are that i) they only give anatomical and morphological information and ii) the arterial wall dilatation must be relatively advanced to clearly identify the pathology. Furthermore, it has been reported that the size measurement of the AAA is not sufficient for predicting its rupture [4]. Consequently, new non-invasive techniques enabling early identification and evaluation of the AAAs rupture risk are needed [5].

A recent strategy to fulfill these requirements is to produce injectable diagnostic tools that are able to target key molecules involved in early arterial process [3]. For this purpose, several biological markers of AAA development have been identified as potential targets of the pathology [6, 7]. Many molecular imaging probes of AAA are thus developed from various contrast agents targeted toward proteins such as elastin, collagen, matrix metalloproteinase or adhesion molecules like VCAM-1, ICAM and selectins [8-11].

In this work, we focused on adhesion molecules as they are expressed earlier in the inflammatory process than the other protein markers [12]. Among those, we selected P-Selectin which has the advantage to be present on platelets and endothelial cells on activation. The role of this key targeted molecule in AAA is not yet perfectly well established but it has been clearly identified to be involved in inflammatory cell recruitment in arterial diseases though the interaction with its counterreceptor P-Selectin Glycoprotein Ligand 1 [13, 14]. For this reason, it is related with the renewal and growth of biologically active arterial thrombus and with the expansion of AAA [15, 16]. Revealing the expression of P-Selectin with a molecular imaging tool is therefore a promising clinically relevant strategy for AAA early detection, growth prevision and rupture risk assessment. Besides, several spherical injectable polymeric particles have been developed to target P-Selectin with promising binding and/or diagnostic properties. PLGA nanoparticles conjugated with the external fraction of glycoprotein Ibα showed great affinity for P-Selectin coated surfaces and for activated endothelial cell layer [17]. Van Kasteren S. et al have imaged brain diseases with carbohydrate nanoparticles functionalized with natural complex glycan ligand of selectins [18]. McAteer et al. have developed microparticles of iron oxide conjugated with P-Selectin and VCAM-1 antibodies that revealed in vivo endothelial activation on MRI scans [19].

Molecular and functional imaging of AAA employs a wide variety of imaging modalities. A large amount of magnetic resonance imaging (MRI) dedicated functionalized contrast agent including ultrasmall superparamagnetic particle of iron oxide (USPIO) or gadolinium showed feasibility of AAA prone to rupture site identification [20]. All the other modalities are considered including ultrasound, computed tomography, optical imaging but the most promising seems to be nuclear imaging methods as they provides a highly sensitive detection of the injected radioactive imaging agent. 18F-fluoro-deoxy-glucose (18F-FDG) which reveals the metabolic cells on positron emission tomography (PET) enabled identification of focal inflammatory sites in AAA which may be correlated with AAA progression and rupture risk [21, 22]. However, this method as mean to predict AAA evolution is disputed [23]. Moreover, even if PET provides a better detection sensitivity than SPECT, 99mTc is the most widely used radioisotope in nuclear medicine because of its physical characteristics: optimal gamma energy for SPECT imaging (140 keV) and short physical half-life (T = 6.01 h), allowing a low radiation burden to patients [24]. Several diagnostic tools of the AAA have thus been developed using 99mTc detection by SPECT. In 1976, Ryo et al. published the use of 99mTc labeled red blood cells for AAA detection [25]. Iwasaki et al. have developed in 2001 a diagnostic method for non-invasive imaging of aortic dissection using 99mTc-labeled murine anti-smooth muscle myosin monoclonal antibody in rats [26]. In 2006, Sarda-Mantel et al. imaged luminal thrombi in murine AAA with radiolabeled annexin V that specifically bind to phosphatidylserine exposed to the surface of apoptic cells and activated platelets [27].

In our study, a particular interest was given to dextran and pullulan which are widely used in clinical applications [28]. An implantable biodegradable hydrogel for tissue engineering applications was obtained by crosslinking these polysaccharides [29, 30]. Since this hydrogel was not injectable, we herein developed a novel water-in-oil emulsification process combined to the crosslinking of dextran and pullulan in order to obtain injectable particles. Fucoidan, a sulfated polysaccharide derived from seaweed that happens to be an occurring mimic of sialyl Lewis X, the natural ligand of P-Selectin [31], was used to functionalize the particles. Our group previously demonstrated its ability to bind P-Selectin and developed a radiotracer by combining 99mTc to fucoidan [32, 33].

The aim of this study was to produce an efficient AAA diagnostic tool from an injectable polymeric device able to be combined with a contrast agent and to target the P-Selectin which is expressed in acute AAA. For this purpose, we have developed a microparticle system which is functionalized with fucoidan and radiolabeled with 99mTc. We demonstrate a strong SPECT contrast enhancement located in the abdominal aorta, revealing the presence of P-Selectin inside the aneurysm of an elastase induced AAA rat model. These microparticles could have clinical uses as a SPECT diagnostic tool for early detection and progression risk assessment of AAA and potentially other arterial diseases characterized by the expression of P-Selectin.

Material and Methods

Microparticles preparation

Polysaccharide microparticles (MP) were obtained from a previously described crosslinking protocol [34] coupled to a water-in-oil emulsification process.

Pullulan (9 g, MW 200,000 g/mol, Hayashibara Inc., Okayama, Japan), dextran (3 g, MW 500,000 g/mol, Sigma Aldrich, Fallavier, France) and FITC-dextran (100 mg, MW 500,000 g/mol, Sigma Aldrich) were solubilized in 40 mL of purified water. To prepare functionalized microparticles (MP-Fucoidan), 1.2 g of fucoidan (MW 57,000 g/mol, Sigma Aldrich) was blended into the mixture. Under alkaline condition (Na0H 2.3 M), 100 mg of this aqueous solution were mixed with 30 μl of trisodium trimetaphosphate (30% (w/v) in water, Sigma Aldrich). The whole aqueous phase was straight away slowly injected into 30 mL of cold (-5°C) colza oil containing 1.5 % (w/v) of a surfactant mixture of Span 80 (Sigma Aldrich) and Tween 80 (Fluka, Fallavier, France) with a ratio 75/25, and dispersed at 28,000 rpm for 2 min with a homogenizer (Polytron PT 3100, dispersing aggregate PT-DA 07/2EC-B101, Kinematica, Luzernerstrasse, Switzerland). Next, this emulsion was transferred to an oven (50°C) wherein the crosslinking step took place for 20 minutes. The oil phase was then removed by phase separation and resulting microparticles were rinsed in PBS.

The suspension was centrifuged (BR4i, JOUAN S.A., Saint Herblain, France) for 10 minutes at 3,000 g, then the supernatant was centrifuged for 10 minutes at 5,000 g. The resulting pellet was suspended at 10 mg/mL in saline buffer and stored at 4°C until use.

Microparticles characterization

The surface morphology of MP and MP-Fucoidan particles was imaged using scanning electron microscopy (SEM) (Philips XL 30 ESEM-FEG, Hilsboro, OR, USA) on dried samples coated with a thin gold layer. Mean diameter, size distribution and zeta potential were analyzed by dynamic light scattering method (NanoZS, Malvern Instruments S.A., Orsay, France). Surface sulfur presence was evidenced by energy dispersive X-ray spectroscopy (EDX) (Philips XL 30 ESEM-FEG, Hilsboro, OR, USA) and global sulfur content was quantified by UV fluorescence spectroscopy (THERMO TN-TS 3000, Thermo Fisher Scientific, Pittsburgh, PA, USA) on freeze-dried samples of MP, MP-Fucoidan and plain fucoidan. Fucoidan content in MP-Fucoidan was calculated from sulfur content in MP-Fucoidan and in fucoidan.

Hemolytic Toxicity Assay

Blood from healthy volunteers was collected in sodium citrate 3.8 % (w/v). Erythrocytes were separated from blood plasma by centrifugation (800 g, 5 min) and resuspended at 20 % (v/v) into distilled water, which was considered as producing 100 % hemolysis, and into normal saline producing no hemolysis, considered as a blank. To reproduce the in vivo parameters, the same microparticle suspensions were assessed in a corresponding amount of blood (rats of 400 g average weight was considered to have a total blood volume of 24 mL). 5 µL of MP and 5 µL of MP-Fucoidan (5 mg/mL) were mixed with 500 µL of erythrocytes suspensions diluted in normal saline. All preparations were incubated for 1h at 37°C and centrifuged (3000 g, 5 min). Supernatants were taken and absorbance was measured at 540 nm. The percentage of hemolysis was determined for red blood cell samples incubated with MP, MP-Fucoidan and saline by comparing to water as 100% hemolytic sample. Results were expressed as mean values ± SEM (n=3).

Microparticles radiolabeling

Technetium-99m (99mTc) labeling required the reduction of pertechnetate by a reducing agent. Labeling of MP or MP-Fucoidan was carried out by mixing 0.030 mL of a 5 mM stannous chloride solution (reducing agent), 0.5 mL of microparticle suspension (10 mg/mL), 0.2 mL of Na+, 99mTc04-corresponding to an activity of 370 MBq. After incubation for 1 h at room temperature, radiolabeled microparticles were separated from Na+, 99mTcO4- excess by centrifugation (5,000 g). In order to determine radiolabeling efficiency, microparticle pellet and supernatant activities were measured in an activimeter (Medi 40, Medisystem, Guyancourt, France) Labeling efficiency is expressed as percentage of the ratio between radioactivity associated with the microparticles and total radioactivity.

To assess the labeling stability, the radiolabeled microparticles (99mTc-MP or 99mTc-MP-Fucoidan ) were resuspended in 1 mL of 0.9 % NaCl or rat plasma, and incubated at room temperature for 3 hours. Every 60 minutes, microparticles suspension were centrifuged and radioactivity associated with particles and in the supernatant was measured (n=3). Stability was expressed as a percentage of the initial labeling.

For in vivo experiments, radiolabeled microparticles were resuspended in saline (5 mg/mL) and 200 µL, corresponding to an activity of about 37 MBq, were administrated intravenously to rats.

In Vitro Binding Assays

Affinity of soluble fucoidan for P-Selectin was assessed with a BIAcore X100 (GE Healthcare, Freïburg Germany). A CM5 sensorchip was coupled with recombinant human P-Selectin and fucoidan or dextran solutions was successively injected at 0 M, 100 nM, 300 nM, 1 µM and 3 µM at a flow rate of 30 µL/min. The response in resonance units (RU) was recorded as a function of time. The apparent binding affinities of fucoidan for P-Selectin were determined by analysis of the kinetic of the association assuming a 1:1 Langmuir model using BIAcore evaluation software, following a previously described protocol [33].

Affinity of fucoidan functionalized microparticles for P-Selectin expressed on the surface of activated human platelets was assessed by flow cytometry. Five mL of blood from healthy adult volunteers was collected in sodium citrate 3.8 % (w/v). Platelet-rich plasma (PRP) was obtained by centrifugation at 120 g for 15 min and platelet concentration was adjusted at 2.108/mL with autologous platelet-poor plasma (PPP). Activated PRP was obtained by stimulation of PRP with 20 µM of TRAP (thrombin receptor-activating-peptide). P-Selectin expression at the platelet surface was assessed using an anti-human CD62P-FITC (0.11 mg/mL, Ancell, Bayport, MN, USA) and its isotype-matched control. In some experiments, a non-labeled anti human CD62P (1 mg/mL, Ancell) was used to block P-Selectin in activated PRP. To evaluate the binding of microparticles to platelet P-Selectin, 5 µL of non-activated PRP, activated PRP or anti P-Selectin-treated activated PRP were incubated for 20 minutes with 5 µL of fluorescent (FITC) MP or MP-Fucoidan together with 5 µL of PE-Cy5 Mouse Anti-Human CD41a (BD Biosciences Pharmingen, Le Pont De Claix, France) to label platelets. In addition each PRP sample was incubated with an isotype-matched control antibody.

Samples were analyzed on a LSRII flow cytometer (BD Bioscience Pharmingen), with 10,000 events collected per sample with area of double positivity reflecting the affinity of microparticles (FITC) for platelets (PE-Cy5). The data were processed with FACS DiVa software and the mean FITC fluorescence intensity (MFI) was measured in the area of double positivity. Results were presented as a ratio of MFI to the control MFI (MP incubated with PRP).

In vivo arterial disease model

The ability of the radiolabeled functionalized microparticles to target P-Selectin expression in vivo was assessed in an abdominal aortic aneurysm (AAA) experimental model in rats. All experimental procedures involving the use of rats were approved by the Animal Care and Use Committee of the Claude Bernard Institute (Paris, France). The elastase model was performed on 8 male adult Wistar rats (7 weeks, CEJ) [35]. Animals were anesthetized with pentobarbital (1 µL/g body weight). Porcine pancreatic elastase (2.7 mg/mL, Sigma Aldrich) was perfused into the lumen of an isolated segment of the infrarenal abdominal aorta for 15 minutes at a rate of 2.5 mL/h.

Two weeks after the surgery, when the animals present biologically active abdominal aorta aneurysm, characterized by the presence of intraluminal thrombus [36] and the expression of P-Selectin [27, 32], rats were injected with the microparticles and imaged. Injections of 200 µL of 99mTc-MP or 99mTc-MP-Fucoidan (5 mg/mL) were performed slowly, to avoid aggregation, into the penis vein. Four healthy rats served as control experiments.

SPECT/CT Scan

Helical SPECT/CT scans were performed with 4-head camera multiplexing multipinhole camera (NanoSPECT/CT plus, Bioscan Inc, Paris, France).

Immediately, after injection of 99mTc-MP or 99mTc-MP-Fucoidan, CT acquisition focused on the abdomen was started and 15 minutes after injection, SPECT imaging was performed in the same abdomen range. The SPECT acquisition was performed with the following parameters: helical scan with 28 projections per rotation plus circular scan at the beginning and at the end of the scan range, matrix size=256x256, zoom 1.14 (pixel size: 1 mm2), correction for energy, linearity and uniformity CT data were reconstructed using filtered back projection algorithm with Ram-Lak filter in plane (voxel size 147 x 147 µm2) and slice thickness equal to 147 µm2. SPECT data were reconstructed using HiSPECT iterative reconstruction software on PC workstation. Images were visualized using the Bioscan InVivoScope software with co-registration of SPECT and CT images.

Reconstructed slices were visually assessed in 3 planes from same stereotaxic slices (sagittal slice, coronal slice 1 centered on abdominal aorta area and coronal slice 2 centered on AAA area) with and without CT coregistration to determine the presence of a focal uptake in the abdominal aorta according to the model. Quantification was performed on DICOM images with a DICOM processing software (OsiriX Imaging Software, Osirix, France) by calculating the ratio between the activity (mean counts) in the AAA area and in a normal region (background) on short-axis slices. The background activity was derived from a region of interest drawn over the renal aorta avoiding renal activity.

Autoradiography, histology and immunohistochemistry

Immediately after achievement of SPECT (60 minutes after injection) animals were sacrificed with pentobarbital overdose. Abdominal aorta aneurysms of AAA rats and healthy aorta of healthy control rats were removed, washed in 0.9 % saline and weighed. Radioactivity of AAA and healthy aorta was determined by gamma counting (COBRA II - Auto Gamma, Packard, Prospect, CT, USA) and the percentage of injected activity per gram was calculated. Then, aorta samples from AAA rats and control rats were frozen and cut into 20 µm thick frozen sections for autoradiography and 10 µm thick frozen sections for histology and immunochemistry studies. Autoradiographic images were obtained after 12 hours exposition of fifteen slides (corresponding to about 30 sections of AAA and 15 sections of healthy aorta) using a ß-imager (Beta ImagerTM, Biospace Lab, Paris, France). Signal intensity values of regions of interest were assessed using a quantification sofware (M3 Vision, Biospace Lab, Paris, France). The ratio between activity (mean counts/mm2 corrected for background) of the aneurysm sections and activity of the healthy abdominal aorta sections was calculated and compared statistically. These same sections were stained both with Masson trichrome to visualize cells, nuclei, and fibrin and with Alcian blue counter stained with nuclear red to reveal polysaccharide microparticles and cell nuclei. Immunohistochemistry studies were performed on 10 µm thick sections using goat mouse anti P-Selectin (4 µg/mL, Cruz Biotechnology Inc., Heidelberg, Germany) as a primary antibody and IgG rabbit anti goat as a secondary antibody (1 µg/mL, Dako, Les Ulis, France) revealed by DAB enhancer (Dako) and counterstained with hematoxylin. Control sections were obtained by omitting the primary antibody. Observations were performed using light and fluorescent microscopy (Nanozoomer, Hamamatsu Photonics France SARL, Massy, France).

Micro-autoradiography

Track of internal conversion electrons emitted during 99mTc deexcitation was revealed by microautoradiography method [37]. Briefly, 10 µm frozen sections of AAA and control rats were deposited on 1 µm thick gelatin-coated glass slides. Five hundred µl of nuclear emulsion K5 (Ilford photo Harman technology Ltd, Ilford, United Kingdom) were poured onto section slides to obtain a 25 µm thick coating. After 24 hours of exposition at 4°C, slides were developed for 20 minutes at 15 ± 1°C by Brussels formula developer (1.8 % (w/v) sodium sulphite, 0.08 % (w/v) potassium bromide, 0.45 % (w/v) amidol and 3.5 % boric acid) [38], rinsed in stop bath, fixed for 40 minutes, rinsed in tap water and finally dryed dust free, overnight at room temperature. Then, microautoradiographied slides were stained with Alcian blue in order to compare localizations of electron tracks and polysaccharide microparticles on the same sections. Observation of electrons tracks and microparticles was performed using light microscopy (Nanozoomer, Hamamatsu Photonics France SARL, Massy, France).

Statistical analysis

Flow cytometry results were analyzed statically with a one-way ANOVA with Bonferroni post tests to compare data obtained with MP-Fucoidan and a two-way ANOVA with Bonferroni post tests to compare data obtained with MP-Fucoidan and MP, performed with Graphpad Prism (GraphPad Software, San Diego, CA, USA). Other results were analyzed with unpaired Student's t-tests to compare 2 groups and one-way ANOVA with Bonferroni post test to compare 3 groups. A difference of p<0.05 was considered significant.

Results

1. Characterization of polysaccharide microparticles

Polysaccharide microparticles were prepared by a chemical crosslinking process with STMP combined with an emulsion step. Functionalized microparticles (MP-Fucoidan) were obtained by adding the sulfated polysaccharide fucoidan.

MP (Fig 1a) and MP-Fucoidan (Fig 1b) both exhibited a spherical morphology and a smooth surface as shown on scanning electronic microscopy images. Dynamic light scattering measurement revealed that all microparticles had a hydrodynamic diameter smaller than 4 µm and a mean hydrodynamic diameter of 503 ± 110 nm and 358 ± 60 nm for MP and MP-Fucoidan, respectively (Table 1). Zeta potential was measured and microparticles prepared with fucoidan had a significantly higher electronegativity than control microparticles (-16.2 ± 0.8 mV versus -9.1 ± 0.6 mV, respectively, p<0.05) (Table 1). Global sulfur content was quantified by UV fluorescence spectroscopy, using MP and plain fucoidan (in powder) as negative and positive controls, respectively. MP-Fucoidan contained 1100 ± 400 ppm of sulfur. Since plain fucoidan contained 6.92 % (w/w) of sulfur, we calculated the fucoidan content in MP-Fucoidan to be 1.64 ± 0.57 % (w/w). Energy-dispersive X-ray spectroscopy analysis showed the absence of sulfur at the surface of control MP and the presence of sulfur at the surface of the MP-Fucoidan (Table 1).

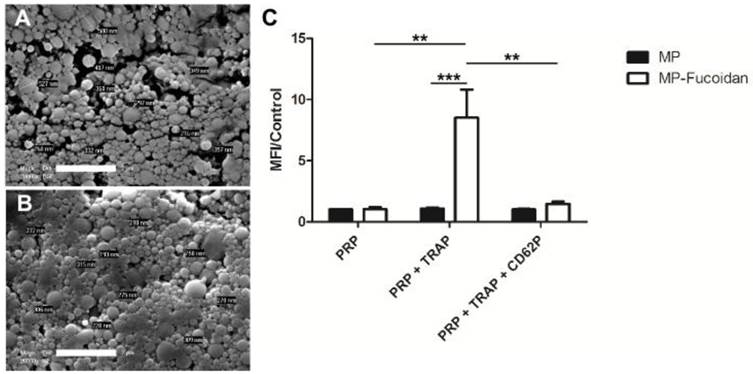

 Figure 1

Scanning Electron Microscopy observation of MP (a) and MP-Fucoidan (b) microparticles. Scale bar 2 µm. (c) Flow cytometry assessment of FITC fluorescent MP and FITC fluorescent MP-Fucoidan interaction with unactivated platelets rich plasma (PRP), platelets rich plasma activated with 20 µM TRAP (PRP + TRAP), and platelets rich plasma activated with TRAP then P-Selectin blocked with 100 µM anti-CD62P (PRP + TRAP + CD62P). The mean fluorescence intensity (MFI) was measured in the area of double positivity. Results are presented as a ratio of MFI to the control (MP incubated with PRP). Results are presented as mean values ± SEM (n=5, ** p<0.01, *** p<0.001).

Theranostics Image (Click on the image to enlarge.)
 Table 1

Characterization of microparticles. Particle size and zeta potential of polysaccharide microparticles (MP) and fucoidan functionalized microparticles (MP-Fucoidan) were measured by dynamic light scattering method (n=5). Global sulfur content and fucoidan content were determined by UV fluorescence spectroscopy (n=3) and surface sulfur presence was evidenced by EDX technique (n=3). Results are presented as mean values ± SEM (MP versus MP-Fucoidan; * p<0.05, ** p<0.01).

Particle sizeZeta potential (mV)sulfur content
(10-3 wt %)
fucoidan content
(wt %)
sulfur
(EDX)
Mean hydrodynamic diameter (nm)% < 1 µm% < 4 µm
MP503 ± 110*84 ± 9100 ± 0- 9.1 ± 0.6**< 2*< 0.03*-
MP-Fucoidan358 ± 6097 ± 2100 ± 0-16.2 ± 0.8113 ± 391.64 ± 0.57+

The possible toxicity induced by microparticles on red blood cells was assessed in vitro in the same conditions than in vivo administration. To reproduce these conditions, micro particle suspensions (5 µL at 5 mg/mL) were mixed with 500 µL of erythrocytes. Hemolytic toxicity assay revealed that the MP and MP-Fucoidan suspensions lead to similarly low red blood cell lysis than normal saline (2.00 ± 0.31 % for MP and 2.33 ± 0.28 % for MP versus 2.34 ± 0.22 % for normal saline, n=3, no significant differences).

2. In vitro affinity for P-Selectin

Binding of free fucoidan to P-Selectin was analyzed by Surface Plasmon Resonance. 57 kD fucoidan and 40 kD dextran, used as a non-sulfated polysaccharide control, were flowed on a sensorchip coated with recombinant human P-Selectin. The interaction sensorgrams revealed that fucoidan binds to P-Selectin but dextran does not (Supplementary Material: Fig. S1). Association (Ka), dissociation (Kd) and affinity (KD) constants of fucoidan for P-Selectin, calculated using a 1:1 Langmuir binding model, were 2.5 103 M, 3.2 10-5 M and 1.2 10-8 M, respectively.

Interaction of non-functionalized microparticles with non-activated platelets (PRP), activated platelets (PRP + TRAP) and P-Selectin blocked platelets (PRP + TRAP + CD62P) was assessed and compared to the interaction of fucoidan functionalized microparticles (Fig 1c). First, a weak binding of non-functionalized microparticles for platelets was observed, whether they were incubated with activated, unactivated, or activated then blocked platelets, as shown by low values of mean fluorescence intensity (MFI). A weak binding was also noticed for fucoidan functionalized microparticles when incubated with unactivated platelets or with activated platelets blocked with anti P-Selectin, with ratios of MFI to the control MFI (MP incubated with PRP) of 1.0 ± 0.2 and 1.5 ± 0.2 respectively. In contrast, MP-Fucoidan exhibited a significantly higher MFI ratio with activated platelets, as compared to unactivated platelets or activated then blocked platelets (p<0.01 in both cases). Interaction with platelets activated with TRAP was 8 times higher with fucoidan functionalized microparticles, as compared to non-functionalized microparticles (MFI ratio of 8.5 ± 2.3 versus 1.1 ± 0.1, respectively, p<0.001).

3. Radiolabeling of microparticles

The 99mTc radiolabeling yield was 90.2 ± 2.4 % on MP-Fucoidan and 91.7 ± 1.8 % on MP. It was measured after each radiolabeling and mean values were not significantly different (n=6). Concerning the labeling stability (Supplementary Material: Fig. S2), the measurements revealed that radioactivity was still associated to microparticles after three hours of incubation into saline (89 % of initial radioactivity for 99mTc-MP and 92 % for 99mTc-MP-Fucoidan). In plasma of rat, more than 75 % of radioactivity was still associated after 30 minutes of incubation and more than 50 % after 1 hour for both 99mTc-MP and 99mTc-MP-Fucoidan.

4. In vivo SPECT imaging

We evaluated the ability of the radiolabeled functionalized microparticles to target P-Selectin expression in vivo in an abdominal aortic aneurysm (AAA) experimental model in rats with SPECT-CT imaging (Fig 2a). While no enhancement was observed by SPECT 30 minutes after administration of 99mTc-MP to AAA rats or of 99mTc-MP-Fucoidan to healthy rats, administration of 99mTc-MP-Fucoidan to AAA rats showed a strong contrast enhancement in the area of the abdominal aorta (Fig 2a, arrow).

Uptake ratios were calculated from SPECT images by the ratio of the mean intensity value of the AAA region of interest (ROI) compared to the mean intensity value of the renal aorta ROI (Fig 2b). There was no uptake after administration of 99mTc-MP-Fucoidan to healthy rats (ratio 1.03 ± 0.06) or administration of 99mTc-MP to AAA rats (ratio 1.22 ± 0.10), while a significant increase of the ratio uptake with administration of 99mTc-MP-Fucoidan to AAA (ratio 3.49 ± 0.35, p<0.01 in both cases) was obtained.

Quantification of radioactivity was performed by gamma counting and results were expressed as a percentage of the injected activity per gram of tissue (Fig 2c). These results confirmed a significantly higher radioactivity accumulation after injection of 99mTc-MP-Fucoidan into AAA (0.12 ± 0.01 %) as compared to 99mTc-MP injected to AAA (0.04 ± 0.01 %, p<0.001) and 99mTc-MP-Fucoidan injected to healthy rats (0.03 ± 0.02 %, p<0.01)

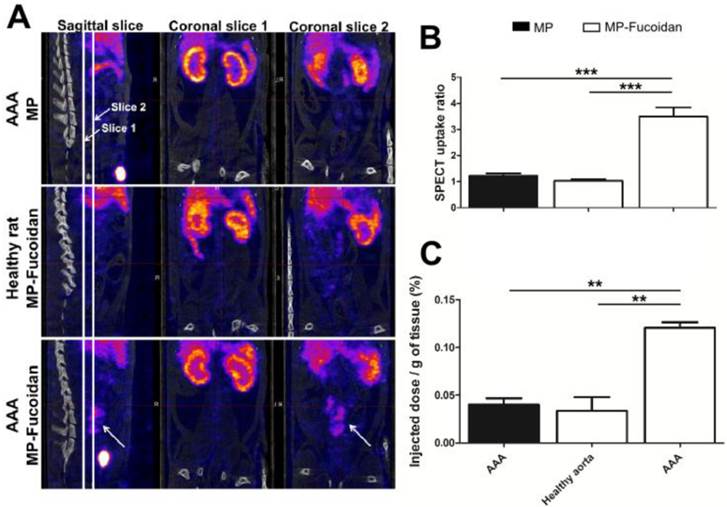

 Figure 2

(a) Representative SPECT/CT scans of an AAA of rat after intravenous injection of 99mTc-MP, of 99mTc-MP-Fucoidan in healthy rat, and of 99mTc-MP-Fucoidan in AAA. Coronal slices 1 were centered on abdominal aorta areas and coronal slices 2 were centered on AAA areas. An important uptake was only noticed in the AAA area after injection of 99mTc-MP-Fucoidan in sagittal slice and coronal slice 2 (white arrows). (b) SPECT uptake was calculated by the ratio of the mean intensity value of the AAA region of interest (ROI) compared to the mean intensity value of the infrarenal aorta ROI (n=3, SEM). (c) Accumulation of radiolabeled microparticles, expressed as a percentage of the injected dose per gram of tissue (n=3, SEM). (** p<0.01, *** p<0.001).

Theranostics Image (Click on the image to enlarge.)

5. Localization of 99mTc-MP-Fucoidan within the AAA wall

We performed cryosections of both AAA and healthy aorta samples to analyze the fate of the functionalized microparticles. Autoradiography analysis (Supplementary Material: Fig. S3) confirmed the presence of a radioactive signal 7 times stronger in the AAA wall as compared to healthy aorta wall 60 minutes after injection of 99mTc-MP-Fucoidan (0.36 ± 0.14 cpm/mm2 versus 0.05 ± 0.02 cpm/mm2, respectively, p<0.05, n=3 independent experiments). Histology staining was then performed on AAA cryosections. Masson trichrome staining (Fig 3a) confirmed the presence of a thrombus and a media layer of the degraded arterial wall. In inflamed areas where cells are activated and express P-Selectin (Fig 3b left image and negative control without primary antibody on the right), the presence of MP-Fucoidan was clearly identified in the arterial wall using Alcian blue staining (Fig 3c). This localization was confirmed by fluorescent microscopy, where green microparticles (prepared with FITC-dextran) were observed in the arterial wall, between the thrombus and the media layer (Fig 3d). Finally, micro-autoradiography coupled to Alcian blue and nuclear red staining (Fig 3e) showed electron tracks printed into the nuclear emulsion on the same blue polysaccharide spots, confirming colocalization of MP-Fucoidan with electron emission, i.e. radioactivity.

Discussion

In this study, we described polysaccharides microparticles functionalized with fucoidan and 99mTc radiolabeled.

Our group previously developed tools for diagnostic of the abdominal aortic aneurysm (AAA) intraluminal thrombus with SPECT scan, using 99mTc radiolabeled Annexin V and 99mTc radiolabeled Fucoidan [27, 32]. Besides their ability to image the pathology, both of these systems used small molecules and it has been reported that injectable systems that present a bigger hydrodynamic diameter have many advantages as targeting devices. Having a longer circulation time [39, 40] and presenting many ligands [41, 42] at the surface of each single object, the binding at the pathological site would improve. One other advantage working with a microparticle system instead of small molecule is that the purification steps are easy to perform by a density gradient separation method. We could thus easily remove several forms of colloid technetium and free 99mTc04- that tend to distort the biodistribution of the radiopharmaceuticals [43, 44]. For all these reasons we have decided to develop a microparticle type diagnostic tool.

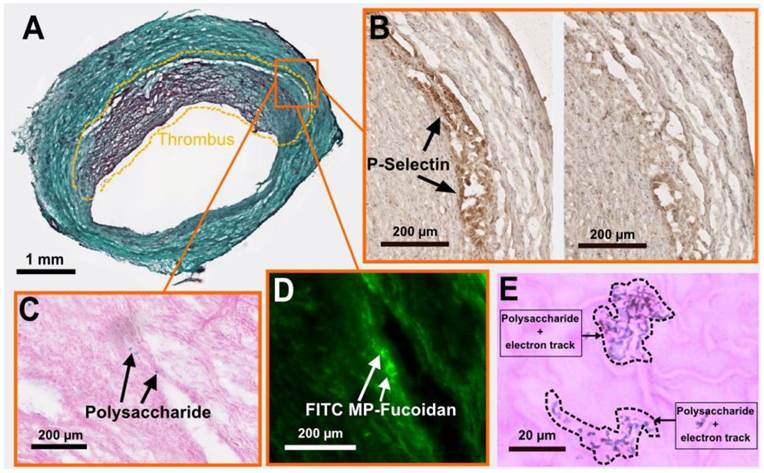

 Figure 3

Histological analysis of an AAA cryosection. (a) Masson trichrome staining highlighting the thrombus area (doted lines). (b) Immunostaining of P-selectin (black arrows, left), with control section without primary antibody shown on the right. (c) Alcian blue staining (with nuclear red counterstaining) showing polysaccharide MP-Fucoidan visualized in blue localized in the arterial wall (black arrows). (d) Fluorescence microscopy observation of FITC MP-Fucoidan microparticles in the arterial wall (white arrows). (e) Micro-autoradiography on the same sections than alcian blue staining demonstrated that electron dense signals were associated with polysaccharide microparticles (dotted lines). Scale bars: 1 µm (a), 200 µm (b,c,d) and 20 µm (e).

Theranostics Image (Click on the image to enlarge.)

A functionalized polymeric injectable vehicle

The water-in-oil emulsion crosslinking method produced a reproducible distribution of microparticle size. SEM images showed that the functionalization of the microparticles did not have significant effect on surface morphology since both type of microparticles exhibit smooth surfaces. All microparticles were below 4 µm, though, microparticles prepared with fucoidan present a smaller hydrodynamic diameter (358 ± 60 nm versus 503 ± 110 nm, p<0.05). We attribute this difference to the modification in the water-in-oil emulsion parameters due to the addition of fucoidan chains in the dispersed phase. First, it altered the total polysaccharide concentration in the water phase. Secondly, the fucoidan chains have a molecular weight of 57,000 g/mol which is small compared to dextran and pullulan chains that present a molecular weight of 500,000 g/mol and 200,000 g/mol respectively. It has been reported that decreasing the molecular weight of the polymers results in smaller particles for a water-in-oil emulsion process [45]. Finally, the fucoidan is a negatively charged polysaccharide and may modify the ionic strength of the system, known to have an influence on emulsions stability [46, 47]. The literature describes many other polymeric carriers also developed to target vascular diseases with sizes, from 100 nm to 5 µm of mean diameter [17, 48-51]. On the one hand, nanoscale vehicles offer lower risk of vascular occlusion and avoid phagocytosis [52, 53]. On the other hand, bigger vehicles over 500 nm would have a more adapted hemodynamic behaviour and have been reported as better candidates for targeting the wall in medium to large vessels relevant in several cardiovascular diseases [54-56]. Along these lines, the size distribution of our microparticles is well chosen as a compromise. They are not exclusively nanoscaled in order to improve the binding capacity and every single particle has a mean hydrodynamic diameter smaller than 4 µm to avoid vessel occlusion (the smallest human capillaries are about 5 microns). Moreover, hemolytic assay demonstrated that the developed polysaccharide microparticles are not toxic, at the described concentration, for red blood cells.

For targeting the AAA, we functionalized the microparticles with fucoidan polysaccharide chains. Before adding the ligand to the system, the binding capacity of the fucoidan used in this work was studied. The SPR analyses confirmed that plain fucoidan with a molecular weight of 57,000 g/mol, has a strong affinity for P-Selectin (KD = 12 nM). It exhibited a better affinity for P-Selectin than its natural ligand does (KD = 320 nM) [57].

Addition of fucoidan resulted in a significant decrease of the zeta potential (-9.1 ± 0.6 mV versus -16.2 ± 0.8 mV, p<0.01) and an increase of the global amount of sulfur (1.5 ± 0.5 10-3 % wt versus 113 ± 39 10-3 % wt, p<0.05). Furthermore, EDX analysis revealed sulfur presence at the surface of the microparticles. These results confirmed that fucoidan, which is an anionic sulfated polysaccharide [58], is present at the surface of the functionalized microparticles. We quantified the presence of fucoidan at 1.64 ± 0.57 % wt.

We then demonstrated that the functionalized microparticles have a strong affinity for human activated platelets. We measured by flow cytometry with functionalized microparticles a binding signal 7.7 higher than with non-functionalized control microparticles (8.5 ± 2.3 MFI ratio versus 1.1 ± 0.1 MFI ratio, p<0.001). For comparison, Modery et al. assessed by receptor-specific binding studies the affinity of liposomal nanoconstructs functionalized with EWVDV peptide for activated platelets and demonstrated a 5 times increase of binding magnitude versus control [59]. We also evidenced that this affinity is specific to the P-Selectin since we measured the same level of interaction with activated-then-P-Selectin-blocked platelets than with non-activated platelets.

An efficient diagnostic tool of abdominal aortic aneurysm

The radiolabeled functionalized microparticles enabled a strong signal uptake in the aneurysm area of the AAA rats on SPECT 30 minutes after intravenous injections. The mean SPECT signal measured in the AAA areas was more than three times higher than the mean signal measured on the renal aorta whereas no enhancement was observed on SPECT of healthy rats 30 minutes after injection of the same radiolabeled functionalized microparticles (3.49 ± 0.35 versus 1.03 ± 0.06, p<0.01). Rouzet et al. measured a median 99mTc-fucoidan SPECT uptake ratio of 3.6, which means that fucoidan functionalized microparticle systems show similar diagnostic efficiency to the free radiolabeled fucoidan [32]. However, it appears that the areas of contrast uptake obtained in the AAA are larger with 99mTc-MP-Fucoidan than with 99mTc-fucoidan. In fact, when we compared the autoradiography analysis of cryosections of the harvested AAAs obtained in both cases, we evidenced that 99mTc-fucoidan brought a radioactive signal limited to the intraluminal thrombus of the AAA whereas 99mTc-MP-Fucoidan brought a signal to the whole aneurysm. Indeed, Rouzet et al. have reported that 99mTc-fucoidan uptake and retention are more localized in the thrombus itself. The size of the diagnostic device could explain this difference. These results emphasized the reported advantages of micro and nanoscale carriers for targeting vessel walls. While free fucoidan molecules could not detect the injured endothelial cells which were not in the thrombus, this new SPECT diagnostic microtool would present an improved binding capacity, as compared to free fucoidan molecules, and an improved hemodynamic behavior that favors a contrast to the entire AAA injured wall. This strategy to develop a diagnostic tool of a higher hydrodynamic diameter seems therefore highly relevant.

Actually, this research seems relevant regarding the other molecular imaging tools of AAA. Indeed, our radiolabeled microparticles resulted in a higher signal uptake of AAA wall, in acute stages AAA rat models, than the 18F-FDG tool in symptomatic AAA patients; uptake ratios of 3.5 was obtained with 99mTc-MP-Fucoidan versus 2.5 with 18F-FDG [21]. Our technology therefore exhibited better displays than a molecular imaging method validated by clinical trials.

Moreover, certain techniques requires a long time before reaching their targets. For instance, in magnetic resonance molecular imaging, macrophages accumulation sites imaging with USPIO and collagen imaging with targeted micelles incorporating gadolinium provides excellent contrast uptake in aneurysms, but only more than 30 hours after administration [10, 60]. Our method with a diagnostic in the 30 minutes following the tracer injection is obviously more convenient for clinical application.

We herein validated a molecular imaging tool of P-Selectin highly effective on acute AAA, and we will, in future studies, assess its ability to detect different stages and to predict the pathology growth.

A biomimetic targeting device

Histological analysis revealed that fluorescent 99mTc-MP-Fucoidan localized inside the AAA wall. Light microscopy observation of Alcian blue stained sections and fluorescent microscopy observation of adjacent sections show microparticles in the media layer. Micro-autoradiography analysis coupled with Alcian blue staining demonstrated that the emission of electron was correlated with the presence of polysaccharide. Immunostaining revealed expression of P-Selectin in the same AAA area where 99mTc-MP-Fucoidan accumulated. One hour after injection, the functionalized microparticles developed in this study seem to be able to penetrate inside the wall of the AAA. Accumulation in the inner wall of the AAA is similar to monocyte infiltration in the inflammatory cell recruitment involved in the pathology development [61, 62]. Indeed the microparticles accumulate in the same area where macrophages have been observed on rats elastase induced AAA [63] or on mice angiotensin II induced AAA [64]. It should be noticed that leukocytes express PSGL-1 [65, 66] and our microparticles are functionalized with fucoidan chains that present sulfated sites that mimic the PSGL-1 anchor sites. Hence this technology could be considered as leukocyte mimetic microparticles. The property to migrate inside the arterial wall of the AAA could be a drawback for this technology and this should be taken into consideration for future work. Nevertheless, the number of microparticles seen on tissue sections is limited as compared to the quantity of leukocytes involved in the physiopathology [62]. Furthermore, this localization of the microparticles could be useful for future applications which will consist in associating a therapeutic molecule to this targeting device. Indeed, it is well known that the arterial wall degradation in aneurysm is due to a pathological proteolytic activity that occurs within the media layer and a promising strategy to treat AAA is aiming to inhibit this proteolytic activity [6]. For instance, Yoshimura et al. obtained regression of AAA with c-Jun N-terminal kinase inhibitors which reduce MMP proteolytic activity and enhance tissue repair [67]. Liao et al. demonstrated that angiotensin-converting enzyme inhibitors prohibited the degradation of medial elastin in AAA development [68]. The herein developed microparticles would act as a carrier that would bring the proteolytic inhibitor drug directly inside the AAA wall, where the therapeutic activity is needed. Besides, this targeted proteolytic action has been seriously considered for theranostic applications [69, 70]. Moreover, this functionalized system targeted toward P-Selectin will certainly exhibit a binding avidity reflecting the evolution of the pathology and therefore provide a mean to self-adjust the amount of therapeutic molecules according to the inflammation degree.

Future works will then consist in selecting the most adapted proteolytic inhibitor(s) and develop a method for its incorporation into the polysaccharide microparticles and its controlled release. As the microparticles developed are composed by reticulated polysaccharide chains, the biodegradability of a similar hydrogel being observed in a month on injured sites [71], we will propose a technology based on biodegradability for the release of the drug. Since many peptide of interest are hydrophilic and have amino groups, we can easily trap them into the microparticles or graft them with a chemical conjugation though amine bonds [72] in order to combine the therapeutic molecule of interest to the polysaccharide microparticles.

Conclusion

We hereby developed an efficient polysaccharide based SPECT diagnostic tool for the abdominal aorta aneurysm (AAA). In this work, we firstly described its fabrication with an emulsion-crosslinking process, confirmed its hydrodynamic diameter distribution and the presence of fucoidan ligand at the surface and characterized the radiolabeled product. We then demonstrated in vitro by flow cytometry that this fucoidan-functionalized system specifically binds to the P-Selectin expressed by human activated platelets. Finally, we showed in vivo on rats its ability to reveal AAA by SPECT imaging and we studied its fate in the AAA wall by histology experiments. Future works will consist in testing the ability of this diagnostic tool to detect the earliest stages of the AAA and in the incorporation of a therapeutic molecule.
