Theranostics 2013; 3(9):650-657. doi:10.7150/thno.6668

Research Paper

Label-Free Luminescent Mesoporous Silica Nanoparticles for Imaging and Drug Delivery

Hongmin Chen1*, Zipeng Zhen1*, Wei Tang1, Trever Todd1, Yen-Jun Chuang2, Lianchun Wang3, Zhengwei Pan2, Jin Xie1 Corresponding address

1. Department of Chemistry and Bio-Imaging Research Center (BIRC), University of Georgia, Athens, GA 30602, United States;
2. Faculty of Engineering, University of Georgia, Athens, GA 30602, United States;
3. Department of Biochemistry and Complex Carbohydrate Research Center (CCRC), University of Georgia, Athens, GA 30602, United States.
* These authors contributed equally to this work.

This is an open access article distributed under the terms of the Creative Commons Attribution (CC BY-NC) License. See http://ivyspring.com/terms for full terms and conditions.
How to cite this article:
Chen H, Zhen Z, Tang W, Todd T, Chuang YJ, Wang L, Pan Z, Xie J. Label-Free Luminescent Mesoporous Silica Nanoparticles for Imaging and Drug Delivery. Theranostics 2013; 3(9):650-657. doi:10.7150/thno.6668. Available from http://www.thno.org/v03p0650.htm

Abstract

We report herein a straightforward and label-free approach to prepare luminescent mesoporous silica nanoparticles. We found that calcination at 400 °C can grant mesoporous organosilica nanoparticles with strong fluorescence of great photo- and chemical stability. The luminescence is found to originate from the carbon dots generated from the calcination, rather than the defects in the silica matrix as was believed previously. The calcination does not impact the particles' abilities to load drugs and conjugate to biomolecules. In a proof-of-concept study, we demonstrated that doxorubicin (Dox) can be efficiently encapsulated into these fluorescent mesoporous silica nanoparticles. After coupled to c(RGDyK), the nanoconjugates can efficiently home to tumors through interactions with integrin αvβ3 overexpressed on the tumor vasculature. This calcination-induced luminescence is expected to find wide applications in silica-based drug delivery, nanoparticle coating, and immunofluorescence imaging.

Keywords: Silica nanoparticles, Drug delivery, Integrin αvβ3, Bioimaging, Doxorubicin.

Introduction

Mesoporous silica nanoparticles, due to their low toxicity and high loading capacity, have been widely used as a drug delivery vehicle [1-3]. Small molecule drugs, such as doxorubicin (Dox) and camptothecin, have been loaded onto mesoporous silica nanoparticles and studied for cancer treatment [4-7]. Mesoporous silica has also been widely used as a coating material [8, 9]. Nanoparticles made from a pyrolysis method, for instance, can be coated with a layer of silica and granted with good stability in aqueous solutions [3, 10-20]. Both applications can benefit from the facile surface chemistry of silica that allows easy coupling of targeting ligands onto the particles [6].

To facilitate the tracking of silica or silica-coated nanoparticles in a biological system, it is common to label silica particles with a fluorophore. This can be an organic dye molecule, which is loaded through either physical adsorption or chemical conjugation; alternatively, a nanoparticle fluorophore--for instance a quantum dot [21] or a upconversion nanoparticle [22, 23]--can be used, in which case the particles are encapsulated by a silica shell. These fluorophore-doping methods however, can be time-consuming and expensive, and are commonly associated with issues like high toxicity, increased particle size, and dye-leaking [21, 24, 25].

We report herein that a simple calcination at 400˚C can grant mesoporous silica nanoparticles luminescence (Scheme 1/Figure A). The mild treatment does not cause changes to the particles' size, shape, pore size, stability, and loading capacity. The resulting fluorescent mesoporous silica (FL-SiO2) nanoparticles possess strong fluorescence that is stable against photo-bleaching and environmental changes. The luminescence, interestingly, was found attributed to small carbon dots generated from the calcination (Scheme 1/Figure A). We demonstrated that these label-free silica fluorophores can be tracked both in vitro and in vivo, suggesting the great potential of this technology in drug delivery, nanoparticle coating, and immunofluorescence imaging.

Results

We first prepared 3-aminopropyl triethoxy silane (APTES)-containing mesoporous silica particles [26], and subjected the products to calcination at 400 °C for 2 h. Figure 1a and 1b are TEM images of 80 nm mesoporous silica nanoparticles before and after calcination, respectively. The treatment caused no nanoparticle aggregation and little change to the particles' appearances. The resulting FL-SiO2 nanoparticles retained their ordered mesoporous structures with a pore size of about 3 nm (Figure 1c) [27, 28].

While untreated mesoporous silica nanoparticles are transparent, FL-SiO2 nanoparticles displayed a broad absorption spectrum with a shoulder at ca. 360 nm (Figure 1d). When excited in the range of 320-360 nm, FL-SiO2 nanoparticles exhibited strong fluorescence (Figure 1d). Figure 1e is a photograph of FL-SiO2 nanoparticles in a powder and solution under excitation at 365 nm. Strong blue luminescence was visualized even by the naked eye. Increasing the excitation wavelength resulted in a red-shift of the emission; the shift, however, was at a cost of the luminescence intensity (Figure 1d). For instance, when excited at 460 nm, the emission peak was shifted to 520 nm, and the maximum intensity was ~50% of that excited at 380 nm. The same treatment also works for mesoporous nanoparticles of different sizes and even solid silica nanoparticles (Supplementary Material: Figure S1).

For conventional organic fluorophores, two primary drawbacks are the poor photostability and chemical stability. Figure 1f (red spots) shows that the emission intensity of Texas Red (a commonly used dye molecule, ex/em: 589/615 nm) dropped rapidly after exposure to excitation light, and was completed bleached within 120 s [29]. In contrast, FL-SiO2 nanoparticles exhibited no drop in fluorescent intensity under continual illumination for 10 min (Figure 1f, blue dots). In fact, we found no change of fluorescence intensity even after 24 h of UV irradiation (data not shown). The luminescence was also stable against environmental changes, as we found a constant fluorescence intensity at different pH (from 4 to 9) and in a strong reducing environment (100 mM dithiothreitol, or DTT) (Figure 1g).

 Figure A

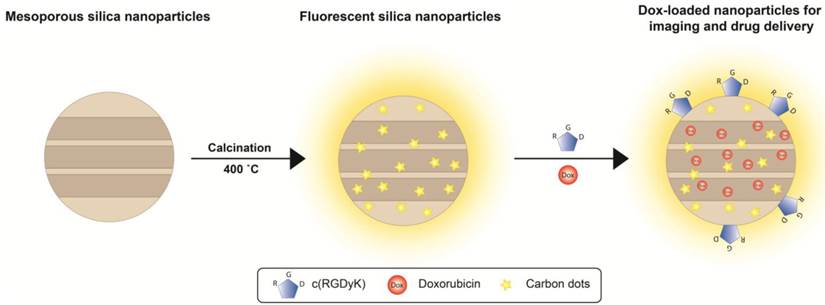

(Scheme 1). Schematic illustration of the particle formation and drug loading. After being calcinated at 400 ˚C, mesoporous organosilica nanoparticles are rendered fluorescent due to the generation of carbon dots in the matrix. These fluorescent silica nanoparticles can be loaded with drug molecules (e.g. Dox) and coupled with targeting motifs (e.g. RGD peptide) for simultaneous imaging and drug delivery.

Theranostics Image (Click on the image to enlarge.)

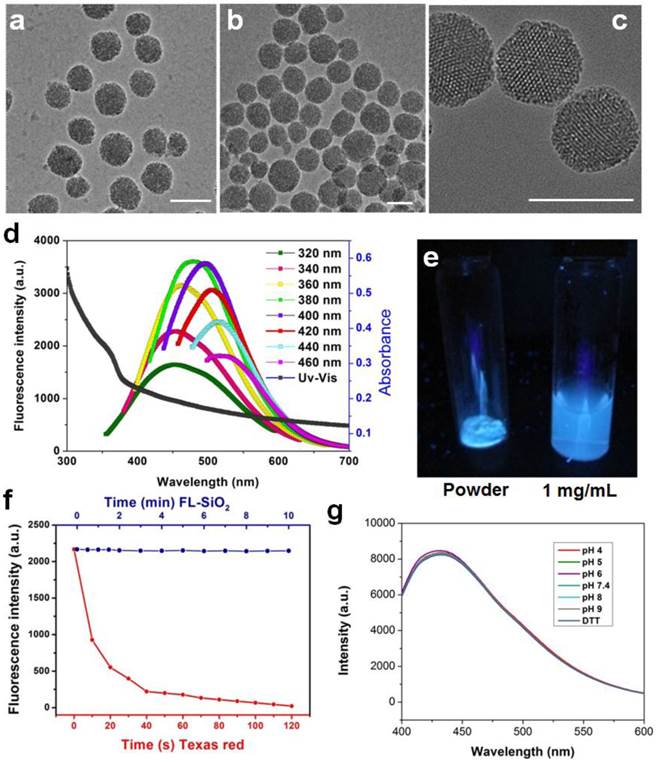

 Fig 1

TEM images of mesoporous silica nanoparticles before (a) and after (b&c) calcination. No obvious morphology change was observed. Scale bars: 100 nm. d) Absorption and emission spectra of FL-SiO2 nanoparticles. The fluorescence intensity was at the maximum when the particles were excited at ~380 nm. e) FL-SiO2 nanoparticles in powder and solution under excitation at 365 nm. f) Photostability of Texas Red (red dots) and FL-SiO2 nanoparticles (blue dots). When exposed to excitation light, Texas Red was quickly bleached. FL-SiO2 nanoparticles, on the other hand, showed robust photostability. g) The fluorescence intensities of FL-SiO2 nanoparticles remained constant at different pH (from 4 to 9), and in a highly reducing environment. The incubation was carried out at room temperature for 24 h.

Theranostics Image (Click on the image to enlarge.)

We next examined the impact of calcination on the particles' biocompatibility and drug loading efficiency. The cytotoxicity studies were performed with U87MG human glioblastoma cells by MTT assays, which found no toxicity of FL-SiO2 nanoparticles in the tested concentration range (0-100 μg/mL) (Figure 2a). Drug loading was studied with 80 nm FL-SiO2 nanoparticles using Dox as a model drug. After overnight incubation, we observed a high loading rate of ~70 wt% (i.e. ~ 0.7 g Dox/g FL-SiO2). This number is similar to what was reported previously with common mesoporous SiO2 nanoparticles [4-6, 26, 30], suggesting that the calcination causes no pore clogging. The loaded Dox can be gradually released (Figure 2b) [31]. When studied in a PBS buffer (pH 7.4), we found a cumulative release rate of ~20% in 50 h, which is also similar to the previous reports [32, 33]. When tested with U87MG cells, these Dox-loaded FL-SiO2 nanoparticles induced a concentration dependent viability drop (Figure 2a).

For bio-conjugation purposes, we coated FL-SiO2 nanoparticles with APTES. The resulting, aminated FL-SiO2 (NH2-FL-SiO2) nanoparticles were covalently coupled with c(RGDyK), which has a high affinity toward integrin αvβ3, a tumor biomarker overexpressed on tumor vasculature and tumor cells of various types [34-38]. The coupling had little impact on the particles' stability (Supplementary Material: Figure S2) and Dox loading rate (remained at 70 wt%). When incubated with U87MG cells, which overexpress αvβ3 on the surface, the RGD-conjugated FL-SiO2 (RGD-FL-SiO2) were efficiently internalized (Figure 2c). NH2-FL-SiO2 nanoparticles, on the other hand, showed little cellular uptake under the same conditions.

In vivo imaging studies were performed on U87MG subcutaneous tumor models. 0.14 mg of RGD-FL-SiO2 nanoparticles were intravenously (i.v.) injected (n = 3), and fluorescence images were acquired on a Maestro II scanner at different time points. We found good accumulation of fluorescence activities in the tumors at 4 and 24 h (Figure 3a). In addition to the tumors, activities were also found in the liver and backbone, which were attributed to particle uptake by the Kupffer cells in the liver and macrophages in the bone marrow, respectively [39, 40]. In the control group, NH2-FL-SiO2 nanoparticles at the same dose were injected (n = 3). Despite a certain degree of tumor accumulation, the intensity in the tumors was significantly lower than that in the RGD-FL-SiO2 group. After the 24 h imaging, the animals were sacrificed. The tumors as well as major organs were harvested for ex vivo imaging. The distribution pattern is similar to the in vivo results except a high level of activities in the intestine is seen (Figure 3a). The signals from intestine however, showed a spectrum that is different from that of RGD-FL-SiO2 nanoparticles (Supplementary Material: Figure S3). These signals were due to digested food, not the particles [31, 41, 42]. The relatively low intensity in the liver and spleen is attributed to the strong tissue absorption. The luminescence is the most intense in the region of 400-550 nm where body tissue is less transparent than in the NIR spectrum window.

We also studied the potential of FL-SiO2 nanoparticles in histology. In a separate study, we injected Dox loaded RGD-FL-SiO2 (Dox-RGD-FL-SiO2) nanoparticles into U87MG tumor models (5 mg Dox/kg mice, n = 3). In the control group, Dox loaded NH2-FL-SiO2 nanoparticles (Dox-FL-SiO2) at the same dose were injected. We sacrificed the animals after 24 h, and performed histology studies with the tumor sections. In the Dox-RGD-FL-SiO2 group, we observed strong fluorescence from both silica and Dox. The signals were well correlated (Figure 3b), and clearly delineated the shape of blood vessels, suggesting that most of the Dox-RGD-FL-SiO2 nanoparticles were retained within the blood vessels, presumably through interactions with integrin αvβ3 expressed on the tumor vasculature [43, 44]. This concept was supported by results from the control group, where few signals from either Dox or silica were observed.

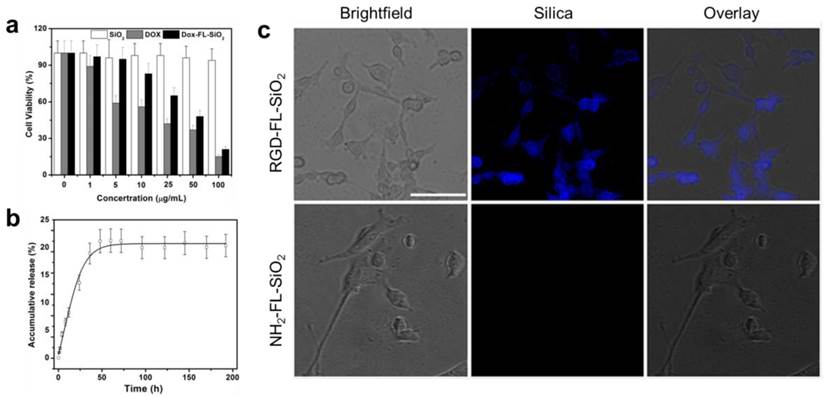

 Fig 2

a) Cytotoxicity studies. FL-SiO2 nanoparticles were not toxic to U87MG cells in the tested concentration range (0-100 µg/mL). On the other hand, Dox-FL-SiO2 nanoparticles showed concentration dependent toxicity against U87MG cells. b) Drug release study with Dox-FL-SiO2 nanoparticles in PBS. c) Cellular uptake studies. After being incubated with U87MG cells for 1 h, we observed good uptake with RGD-FL-SiO2 nanoparticles, but not with NH2-FL-SiO2 nanoparticles. The fluorescence signals are from the FL-SiO2 nanoparticles. Scale bar: 50 µm.

Theranostics Image (Click on the image to enlarge.)

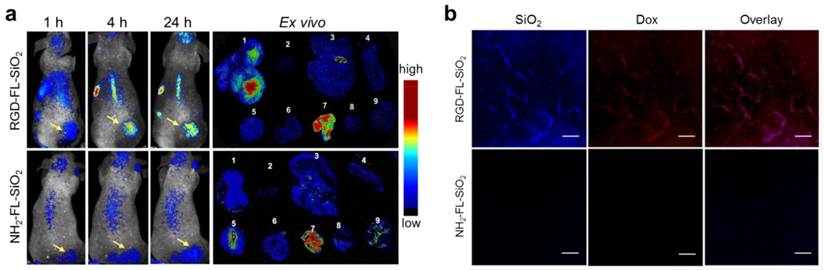

 Fig 3

a) In vivo and ex vivo imaging results. RGD-FL-SiO2 and NH2-FL-SiO2 nanoparticles were i.v. injected into U87MG tumor-bearing mice. The images were acquired at 1, 4 and 24 h post injection. After 24 h imaging, tumors and major organs were dissected and laid on a sheet of black paper for ex vivo imaging. The tissues were arranged by the following order: 1) tumor; 2) heart; 3) liver; 4) spleen; 5) lung; 6) kidneys; 7) intestine; 8) muscle; 9) brain. b) Microscopic fluorescence imaging studies with tumor sections that were taken from U87MG tumor-bearing mice injected with either Dox-RGD-FL-SiO2 or Dox-NH2-FL-SiO2 nanoparticles. Scale bars: 50 µm.

Theranostics Image (Click on the image to enlarge.)

Discussion and conclusions

Incorporating an organic functional group into the silica matrix, in this case amine (from APTES), is essential to the generation of luminescence. For mesoporous SiO2 nanoparticles made from pure TEOS, the calcination failed to render the particles fluorescent. The functional group, however, is not limited to amine. When a thiol-containing silane (e.g. 3-mercaptopropyltrimethoxysilane) was used as a precursor, the resulting SiO2 nanoparticles, after calcination, also showed strong luminescence (Supplementary Material: Figure S1g&1h). The luminescence is dependent on the calcination temperature. Calcination at 210 °C resulted in nanoparticles with moderate emission intensity (Supplementary Material: Figure S4 & S5), whereas calcination at a high temperature (600 °C) resulted in much weaker fluorescence (Supplementary Material: Figure S5).

Similar calcination-induced luminescence was observed by the Tan and Schmedake groups with solid silica nanoparticles [45, 46], and by Sailor et al. with silica sol-gels [47]. To our knowledge, however, there have been no reports on calcination-induced fluorescence of mesoporous silica nanoparticles, and no investigations on the potential of the fluorescence in bioimaging. In all the previous studies, the fluorescence was attributed to the defects in the silica matrix [45, 47]. Briefly, calcination-induced decomposition creates a C substitutional defect for Si, which is believed to be a luminescent species [47]. To test the theory, we incubated FL-SiO2 nanoparticles with hydrofluoric acid (HF, 37%) to decompose the silica matrix. Surprisingly, the resulting solution remained fluorescent with an almost unchanged intensity, suggesting that the previous hypothesis is untrue (Figure 4a&b). Further TEM studies with the HF-treated FL-SiO2 solution confirmed the complete destruction of the silica matrix (Figure 4c). Instead, we found many ca. 3 nm carbon dots (C-Dots) in the remaining solution (Figure 4c), which we believe are the true luminescence source. Indeed, previous studies with C-Dots showed a luminescence spectrum that is similar to ours [48-50]. It is noted, however, that synthesis of C-Dots was mostly achieved through harsh chemical synthesis and required post-synthesis surface passivation to be rendered strong fluorescence [51]. Our discovery suggests an alternative and milder synthetic approach for C-Dot preparation. Though not the direct source, the defects in the silica skeleton are critical to the generation of C-Dots, as calcination is unable to illuminate pure silica particles (data not shown). It is possible that these defects serve as the originating sites where C-Dots begin to grow. The porous silica structure is also believed to be essential, providing small nanoreactors for particle formation and preventing overgrowth. Further investigations on the formation of C-Dots and their differences from those made by the previous methods are ongoing.

Aside from rendering nanoparticles fluorescent, the calcination does not affect the particles' other characteristics, such as the size, shape, pore size, and biocompatibility. The resulting nanoparticles can be treated as uncalcined ones in terms of loading drugs and conjugation with biomolecules. In this study, we showed that Dox can be loaded onto FL-SiO2 nanoparticles with high efficiency. We expect that other small molecule-based drugs can be loaded via a similar mechanism. Different peptide sequences, as well as antibodies and aptamers, should also be able to be tethered onto the particle surface [52-54]. Integrin specific cytotoxicity and in vivo treatment were not studied with Dox-RGD-FL-SiO2 nanoparticles. But due to comparable drug loading and release, we expect that the therapeutic profiles are similar to the uncalcinated ones.

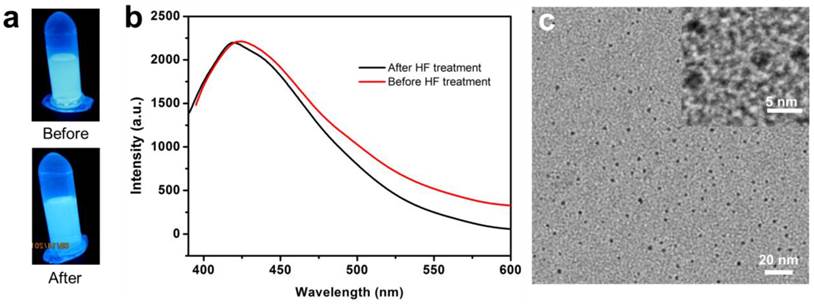

 Fig 4

a) Photographs taken before and after incubation of FL-SiO2 nanoparticle with HF. The solution remained luminescent after the treatment. b) Emission spectra of FL-SiO2 nanoparticles, taken before and after HF treatment. c) TEM image of FL-SiO2 nanoparticles after being treated with HF. Silica matrix was removed, leaving C-Dots with a diameter of ~3 nm.

Theranostics Image (Click on the image to enlarge.)

FL-SiO2 nanoparticles show exceptional photo-stability, exhibiting constant fluorescence even after hours of UV irradiation. The fluorescence was also proved stable against environmental changes, no matter at high/low pH or in a strong reducing environment (Figure 1g). This quality is important because chemical surroundings change drastically across cell membranes, and among different cellular organelles. For instance, glutathione (GSH), a thiol-containing reducing molecule, is at a level of 70 mM inside tumor cells, which is ~7 times higher than that in the circulation [55, 56]. And while pH stays neutral in most cell organelles, it drops to as low as 4.5 in endosomes/lysosomes [57, 58]. The chemical- and photo-stability ensures constant and enduring fluorescence output, which is critical for quantitative analyses.

The emission of FL-SiO2 nanoparticles is the most intense in the visible spectrum region. Such a short emission wavelength may limit their uses in in vivo imaging, as a high level of tissue autofluorescence may intervene. On the other hand, autofluorescence is less a concern in a histology setting. As demonstrated, the fluorescence of FL-SiO2 nanoparticles can benefit immunofluorescence investigations. And since FL-SiO2 nanoparticles are extremely stable in an acidic environment, it is also possible to harness the fluorescence for accurate biodistribution analysis.

Overall, we developed a straightforward and label-free method to grant mesoporous silica nanoparticles with strong and stable fluorescence. We identified the calcination-induced C-Dots, rather than the defects in the silica matrix, as the true source of luminescence. These findings are expected to have extensive and profound impact considering the wide use of silica in drug delivery and particle coating.

Methods and materials

Synthesis and characterizations of FL-SiO2 nanoparticle: Mesoporous silica nanoparticles were prepared following a previously published procedure [26]. Briefly, 0.2 g cetyltrimethylammonium bromide (CTAB) was dissolved in 96 mL water. With magnetic stirring, 0.7 mL of 2 M sodium hydroxide (NaOH) was added, and the resulting solution was heated up to 80 °C. Subsequently, 1.4 mL tetraethyl orthosilicate (TEOS), 3 mL ethylacetate, and desired amounts of organosilanes, (e.g. APTES, N-[3-(trimethoxysilyl)propyl]ethylenediamine, or 3-mercaptopropyltrimethoxysilane), were added, and the mixture was stirred at 80 °C for 2 h. The raw product was collected by centrifugation, washed 3 times with ethanol, and re-dispersed in ethanol. To remove CTAB, 40 µL saturated HCl was added to the particle suspension and the solution was stirred for 3 h at 60 °C. The particles were washed twice with ethanol, and dried at 60 °C overnight. The powders were first treated at low temperatures (< 200 °C), and then calcined in a muffle furnace at 400 °C for 2 h in the open air. The resulting particles were functionalized by APTES in dry toluene to obtain amine-functionalized FL-SiO2 (NH2-FL-SiO2) nanoparticles. Transmission electron microscopy (TEM) was carried out on a FEI Tecnai20 transmission electron microscope operating at 200 kV accelerating voltage. Fluorescence spectra were recorded on a Hitachi F-7000 fluorescence spectrophotometer. UV-Vis absorbance spectra were measured on a BioTek Synergy MX multi-mode microplate reader. Hydrodynamic size distribution was measured by dynamic light scattering (DLS) on a Malvern Zeta Nanosizer.

RGD conjugation: NH2-FL-SiO2 nanoparticles were dispersed in PBS buffer (pH = 7.4). Into the solution, bis(sulfosuccinimidyl) suberate (BS3) (100×) in DMSO was added. After incubation at room temperature for 30 min, the activated particles were collected by centrifugation, washed 3 times with PBS, and redispersed in PBS. c(RGDyK) (200×) in DMSO was added to the activated NH2-FL-SiO2 solution, and the mixture was incubated at room temperature for 2 h. The resulting RGD conjugated FL-SiO2 (RGD-FL-SiO2) nanoparticles were collected by centrifugation, washed, and redispersed in PBS (pH = 7.4).

Dox loading and release: NH2-FL-SiO2 or RGD-FL-SiO2 nanoparticles (1 mg/mL, 1 mL) and Dox (2 mg/mL, 0.5 mL) were mixed in PBS, and the solution was stirred overnight at room temperature. The products, Dox-loaded NH2-FL-SiO2 or RGD-FL-SiO2 nanoparticles (Dox-NH2-FL-SiO2 and Dox-RGD-FL-SiO2), were collected by centrifugation. The supernatant was collected for UV-Vis spectroscopic studies to determine the amount of Dox that was loaded. The drug release studies were performed at room temperature with a slide-A-lyzer dialysis device (10K MWCO, Pierce). Dox-NH2-FL-SiO2 and Dox-RGD-FL-SiO2 nanoparticles were loaded onto the device, and the device was immersed in 15 mL PBS (pH 7.4). At selective time points, 1 mL solution was taken from the tube and replaced with 1 mL fresh PBS. The Dox concentrations in the sample solutions were measured by fluorescence spectrometry and compared to a standard curve. Experiments were performed in triplicates.

In vitro cell uptake: U87MG human glioblastoma cells were cultured in MEM supplemented with 2 mM L-glutamine, 1.5 g/L sodium bicarbonate, 0.1 mM nonessential amino acids, 1.0 mM sodium pyruvate, and 10% fetal bovine serum at 37°C in a humidified atmosphere with 5% CO2. To study the cellular uptake, 105 U87MG cells were seeded onto each well of a 4-chamber slide (Lab-Tek) one day prior to the studies. Briefly, RGD-FL-SiO2 nanoparticles were added into the chambers to reach a final concentration of 25 µg/mL. In the control group, NH2-FL-SiO2 nanoparticles of the same amount were added. The incubation was stopped after 1 h, and the cells were rinsed 3 times with PBS (pH 7.4). The slides were mounted and imaged under an Olympus X71 fluorescence microscope. The cell viability was assessed by MTT assays using a gradient of Dox-RGD-FL-SiO2 nanoparticles (Dox concentrations of 1, 5, 10, 25, 50 and 100 μg/mL). For controls, free Dox and NH2-FL-SiO2 nanoparticles were studied.

Animal models: Animal studies were performed according to a protocol approved by the Institutional Animal Care and Use Committee (IACUC) of University of Georgia. The U87MG tumor models were generated by subcutaneously injecting 5 × 106 cells in 100 μL PBS into the right hindlimb of 4-6 week athymic nude mice (Harlan).

In vivo imaging studies: The imaging studies were performed on U87MG tumor-bearing mice when the tumors reached a size between 200 and 500 mm3. RGD-FL-SiO2 and NH2-FL-SiO2 nanoparticles at the same amount (7.1 mg/kg) were intravenously injected (n = 3). Whole body fluorescence images were acquired on a Maestro II imaging system (PerkinElmer) at 1, 4, and 24 h post injection using a 500-720 nm emission filter with exposure time of 0.3 sec. After the 24 h imaging, the animals were sacrificed. Tumors as well as major organs were harvested and subjected to ex vivo imaging. To evaluate FL-SiO2 nanoparticles in in vivo tracking, Dox-RGD-FL-SiO2 or Dox-NH2-FL-SiO2 at 5 mg Dox/kg were intravenously injected (n = 3). Animals were sacrificed after 24 h, and the tumors were collected, snap-frozen, and sectioned into 10 μm slices. Images were taken on an Olympus IX71 fluorescence microscope and analyzed by a software provided by the vendor.

Supplementary Material

Attachment

Fig.S1 - S5.

Acknowledgements

This work was supported by NIH grants 5R00CA153772 (J.X.) and RR005351/GM103390 (L.W.). T.T. was supported by a Philbrook scholarship. We thank Mackenzie Walls for the cover and illustration work.

Competing Interests

The authors have declared that no competing interest exists.
