Theranostics 2015; 5(4):371-377. doi:10.7150/thno.10760 This issue Cite

Research Paper

Kinetic Analysis of Dynamic 11C-Acetate PET/CT Imaging as a Potential Method for Differentiation of Hepatocellular Carcinoma and Benign Liver Lesions

Li Huo1, Jinxia Guo2, 3, Yonghong Dang1, Jinqiao Lv1, Youjing Zheng1, Fang Li1 Corresponding address, Qingguo Xie3, Xiaoyuan Chen2 Corresponding address

1. Department of Nuclear Medicine, Peking Union Medical College Hospital
2. Laboratory of Molecular Imaging and Nanomedicine (LOMIN), National Institute of Biomedical Imaging and Bioengineering, National Institutes of Health (NIBIB), Bethesda, Maryland, USA
3. Department of Biomedical Engineering, and Wuhan National Laboratory for Optoelectronics(WNLO), Huazhong University of Science and Technology, Wuhan, Hubei, China

Citation:
Huo L, Guo J, Dang Y, Lv J, Zheng Y, Li F, Xie Q, Chen X. Kinetic Analysis of Dynamic 11C-Acetate PET/CT Imaging as a Potential Method for Differentiation of Hepatocellular Carcinoma and Benign Liver Lesions. Theranostics 2015; 5(4):371-377. doi:10.7150/thno.10760. https://www.thno.org/v05p0371.htm
Other styles

File import instruction

Abstract

Objective: The kinetic analysis of 11C-acetate PET provides more information than routine one time-point static imaging. This study aims to investigate the potential of dynamic 11C-acetate hepatic PET imaging to improve the diagnosis of hepatocellular carcinoma (HCC) and benign liver lesions by using compartmental kinetic modeling and discriminant analysis.

Methods: Twenty-two patients were enrolled in this study, 6 cases were with well-differentiated HCCs, 7 with poorly-differentiated HCCs and 9 with benign pathologies. Following the CT scan, all patients underwent 11C-acetate dynamic PET imaging. A three-compartment irreversible dual-input model was applied to the lesion time activity curves (TACs) to estimate the kinetic rate constants K1-k3, vascular fraction (VB) and the coefficient α representing the relative hepatic artery (HA) contribution to the hepatic blood supply on lesions and non-lesion liver tissue. The parameter Ki (=K1×k3/(k2 + k3)) was calculated to evaluate the local hepatic metabolic rate of acetate (LHMAct). The lesions were further classified by discriminant analysis with all the above parameters.

Results: K1 and lesion to non-lesion standardized uptake value (SUV) ratio (T/L) were found to be the parameters best characterizing the differences among well-differentiated HCC, poorly-differentiated HCC and benign lesions in stepwise discriminant analysis. With discriminant functions consisting of these two parameters, the accuracy of lesion prediction was 87.5% for well-differentiated HCC, 50% for poorly-differentiated HCC and 66.7% for benign lesions. The classification was much better than that with SUV and T/L, where the corresponding classification accuracy of the three kinds of lesions was 57.1%, 33.3% and 44.4%.

Conclusion: 11C-acetate kinetic parameter K1 could improve the identification of HCC from benign lesions in combination with T/L in discriminant analysis. The discriminant analysis using static and kinetic parameters appears to be a very helpful method for clinical liver masses diagnosis and staging.

Keywords: 11C-Acetate, dynamic PET, hepatocellular carcinoma, kinetic modeling, discriminant analysis

INTRODUCTION

Reliable staging of liver lesions is the prerequisite to establish the optimal treatment and determine the prognosis [1-3]. Both 18F-FDG and 11C-acetate PET imaging have demonstrated the ability to detect and stage hepatocellular carcinoma (HCC) [4-6]. Due to the high expression of the glucose-6-phosphatase enzyme that prevents intracellular accumulation of 18F-FDG, about 40-50% of HCC are not sensitive to 18F-FDG PET [4]. In comparison, 11C-acetate, which is believed to mainly participate in fatty acid synthesis in the liver, has been considered as a more promising tracer than 18F-FDG in terms of detection sensitivity and specificity, especially for well-differentiated HCC [4, 6, 7].

However, the benign hepatic lesions, such as the focal nodular hyperplasia (FNH), hepatic adenoma and inflammation, with a much higher occurrence rate than the malignant tumors [8], also accumulate 11C-acetate. There have been reports that 11C-acetate PET is poor in differentiating HCC from benign lesions [6, 9, 10]. Dominique et al. [9] and Ho et al. [6] suggested in their studies that dynamic PET with kinetic modeling might improve the understanding of these lesions for separating benign hepatic tumors from HCC. The fast kinetics of acetate is an advantage of 11C-acetate over 18F-FDG, which makes the duration of dynamic imaging short and can be endured by the patients. Chen et al. applied an irreversible three-compartment model with dual input function from hepatic artery (HA) and hepatic portal vein (PV) to study the 11C-acetate kinetics in the liver [11]. In contrast to the routine one time-point static imaging, quantitative tracer transport rate K1-k3, the local hepatic metabolic rate constant of 11C-acetate (LHMRAct) and the fraction of HA blood supply from the dynamic modeling were calculated to characterize HCC and benign liver lesions in a more comprehensive manner.

There are limited studies investigating systematically acetate kinetics in liver HCC and benign lesions. In this study, we performed 11C-acetate dynamic PET on patients with liver lesions and conducted the kinetic modeling. The purpose is to explore the variance of quantitative parameters between HCC and benign lesions and investigate whether the differentiation can be improved when kinetic parameters is introduced in discriminant analysis [12-14].

MATERIALS AND METHODS

Patients

The study was approved by the Ethics Committee of Peking Union Medical College Hospital. The informed consent was obtained from all the patients prior to the study. Twenty-two patients suffered from liver lesion (16 males and 6 females; age range, 40-79 y; mean ± SD, 55.7 ± 11.9 y) were enrolled in the study. All the lesions including HCC and benign lesions were confirmed by surgical resection and pathological examination within two weeks after 11C-acetate PET/CT, and graded according to the well-known Edmondson-Steiner criteria [15, 16].

11C-Acetate Synthesis/Preparation

11C-acetate was synthesized by transferring the 11C-CO2 generated by Siemens RDS111 cyclotron into a fully automated radiochemistry module based on the procedure described by Mitterhauser et al. [17]. The chemical and radiochemical purities were both greater than 98%. The product was proved to be sterile by 24 h bacterial culture.

PET/CT and Enhanced CT Imaging

PET/CT scans were conducted on the Siemens Biography 64 True Point PET/CT scanner (Siemens Medical Solution, Inc.) for all patients. CT transmission scans were acquired first for anatomy observation and providing the data for PET attenuation and scatter correction. Subsequently, the patient was scanned over the left ventricle and the whole liver. About 7 MBq/kg (~ 0.19 mCi/kg) 11C-acetate was administered intravenously to each patient and the dynamic PET data were acquired simultaneously. Each PET scan lasted 10 min and the list mode data were reconstructed with 2D-OSEM [11, 18, 19]. The reconstruction frames consisted of 12×10s, 9×20s, 1×60s, and 2×120s. As a reference, the enhanced CT imaging was also done before the PET/CT scan and used for the blood supply observation in liver masses.

Image Analysis

Sequential CT and PET images were accurately registered on Inveon Research Workplace (IRW) 3.0 software (Siemens Preclinical Solution) for further quantification. The regions of interest (ROIs) were drawn over lesions and non-lesion regions slice-by-slice on PET/CT images of the last frame with the help of experienced clinicians. Final volume of interest (VOI) was created by combining all the ROIs (n = 5 ~ 8) for each patient. The average decay-corrected activities in the VOIs were converted to the standardized uptake value (SUV) using the following calculation: activity concentration (kBq/ml)/(injection dose (MBq)/body weight (kg)). To generate the lesion time-activity curves (TACs) for dynamic analysis, the VOIs on the last frame were superimposed to all the other frames in dynamic image sequences for each patient and the SUV at each time point was calculated. The partial-volume effect was ignored in the study since all the lesions had sizes (≥ 1 cm) that were more than three times the PET spatial resolution (~ 2 mm) [19, 20].

Since liver has blood supply from both hepatic artery (HA, with oxygenated blood) and portal vein (PV, with nutrient rich blood), both the HA and PV TACs were used as the input function in 11C-acetate kinetic modeling. HA TAC was obtained from the abdominal aorta near the liver [11] through a VOI defined on the image frame where the peak tracer accumulation was observed. The VOIs for PV were defined over the PV based on the aligned CT images.

11C-Acetate Kinetics Modeling and Parameters Estimation in Liver

11C-acetate can be quickly taken up by the cell and converted into the 11C-acetyl-CoA by acetate kinase. Then 11C-acetyl-CoA is converted to fatty acid or cholesterol, and participate in the formation of phosphatidylcholine membrane, or be metabolized to CO2 via the Kreb's cycle [21, 22]. Although the metabolism routes are not well understood, the former one is considered to be predominant in the liver and tumor cells [22-24]. Regarding the high 11C-acetate accumulation in lesions and dual blood supply from HA and PV in the liver tissue, an irreversible three-compartment model with dual input has been confirmed previously to be appropriate for 11C-acetate kinetics in tumor and non-tumor liver tissue [18, 22].

The model can be described by the following equations:

Theranostics inline graphic  (1)
Theranostics inline graphic  (2)
Theranostics inline graphic  (3)
Theranostics inline graphic  (4)

Where Cp is the tracer concentration in the first compartment and used as the input function which is contributed from both hepatic artery (CHA) and hepatic portal vein (CPV) as shown in Eq. 4 where α is the contribution ratio. Cf and Cm represent the tracer concentrations in the interstitial and the intracellular spaces - the second and third compartment, respectively. Ct is the tracer concentration in the entire tissue VOI including the Cf, Cm and part of Cp in Eq. 3. Vb in Eq. 3 is the fractional blood volume.

Kinetic rate constant K1 refers to the tracer perfusion rate from plasma to the tissue and k2 means the tracer clearance rate back to the plasma. k3 is associated with the rate of 11C-acetate metabolism. K1-k3, α and Vb are derived by fitting tumor or non-tumor tissue TACs with un-weighted least-squares optimization method according to Eq. 1- Eq. 4. An iterative method was used to adjust the estimated parameters to achieve the minimum least squares difference between the measured TACs and estimated TACs. The Akaike Information Criteria (AIC) was used to assess the fitting [18, 25]. In addition, the combined parameter K1(= K1×k3/(k2+k3)), was also calculated to estimate the local hepatic metabolic rate of 11C-acetate (LHMRAct) [11, 18].

Statistical Analysis

Unpaired Student t-test was applied to all the static and dynamic parameters that potentially characterize the tumor or non-tumor tissues. The parameters include: (a) SUV; (b) SUV tumor to non-tumor liver tissue ratio (T/L); (c) K1; (d) k2; (e) k3; (f) α; (g) LHMRAct (K1×k3/ (k2+k3)). P value less than 0.05 was considered statistically significant.

Discriminant Analysis

Discriminant analysis with stepwise method and Fisher criteria [26-28] was conducted with the R statistical software (www.r-project.org). To identify the appropriate parameters that can best differentiate between the HCC and benign lesions, the Wilks' Lambda test was used to examine the mean values in each group. The parameters entering and removing from the analysis were determined with the typical F probability value of < 0.05 and > 0.1, respectively. Finally, the linear discriminant functions were constructed by the Fisher criteria with the classification variables to classify the lesions. The classification variables were imported into the above discriminant functions to calculate the discriminant score. The lesion was classified into the group whose discriminant function has the highest score. The classification results were further validated with the leave-one-out cross-validation.

RESULTS

Patients

By surgery and pathological analysis, 7 patients were proved to have well-differentiated HCC, 6 with poorly-differentiated HCC. Benign lesions were found in the remaining 9 patients, (3 focal nodular hyperplasia (FNH), 1 hemangioma, 2 inflammation lesions, 1 lymphoid hyperplasia, 1 hepatic adenoma and 1 angiomyolipoma). In enhanced CT imaging, 4 well-differentiated HCC and 2 poorly-differentiated HCC lesions were regarded as benign lesions and all 10 benign lesions were diagnosed as well-differentiated HCC lesions due to their enhanced HA blood supply. An overview of the patients' information is summarized in Table 1.

 Table 1

The characteristics of all patients

GroupPatient No.Sex (F/M)Age
(year)
Tumor size (cm)Cirrhosis (yes/no)Final diagnosis*
I72/557.4±13.93.04±1.97/0Well-HCC
II60/661±13.61.55±0.604/2Poor-HCC
III94/552±8.91.93±1.160/9Benign tumor

*Well-HCC: Well-differentiated HCC; Poor-HCC: Poorly-differentiated HCC.

PET Images, SUV and Time Activity Curves

The transaxial 11C-acetate PET/CT co-registered images at early and late time points for one patient with well-differentiated HCC were shown in Figure 1A where aorta, hepatic portal vein and the HCC lesion can be clearly distinguished. The average SUV in the different groups of lesions and non-lesion liver tissue and the lesion to non-lesion liver tissue SUV ratio (T/L) were shown in Supplementary Material: Figure S1. Significant differences (P < 0.01) were found in average SUVs between benign lesions and non-lesion liver tissues, and between well-differentiated HCC and non-lesion liver tissues, as well as in the T/L between the poorly-differentiated HCC and non-lesion liver tissue, and between well-differentiated HCC and non-lesion liver tissue. However, there were significant overlaps of SUV values in different groups, as well as overlapping T/L between HCC and benign lesions, making the lesion differentiation difficult.

The corresponding TACs of the patient in Figure 1A were plotted in Figure 1 B. The TAC of PV showed slight delay in reaching maximum uptake as compared to HA [11, 29]. The TACs of aorta and portal vein had almost the same C-11 activity uptake values beyond 3 min post-injection, and a relative stable T/L was observed. For all the patients, the variance of T/L was less than 15% during this 'stable period' (3 ~ 10 min).

Kinetic Parameters

As shown in Supplementary Material: Figure S2, kinetic parameters K1-k3 and α in different types of lesions and non-lesion liver tissues were compared. There was a significant difference between: (1) well-differentiated HCC K1 and benign lesion K1 (P < 0.05); (2) poorly-differentiated HCC K1 and benign lesion K1 (P < 0.05); (3) well-differentiated HCC k3 and non-lesion liver tissue k3 (P < 0.01); (4) well-differentiated HCC α and non-lesion liver tissue α (P < 0.01); (5) poorly-differentiated HCC α and non-lesion liver tissue α (P < 0.01); and (6) benign lesion α and non-lesion liver tissue α (P < 0.05).

Moreover, statistical analysis was also conducted on the LHMRAct Ki (Supplementary Material: Figure S3). Significant difference was only found between well-differentiated HCC Ki and non-lesion liver tissue Ki.

Classification by Discriminant Analysis

With all the parameters derived from static and dynamic scans, Wilks' Lambda test was performed step by step as shown in Table 2 until there was no parameter with significant F value. K1 and T/L were finally identified as the classification variables with the minimal F value and Wilks' Lambda value. The linear Fisher discriminant function for well-differentiated HCC, poorly-differentiated HCC and benign lesions were defined as follows:

Theranostics inline graphic  (5)
Theranostics inline graphic  (6)
Theranostics inline graphic  (7)

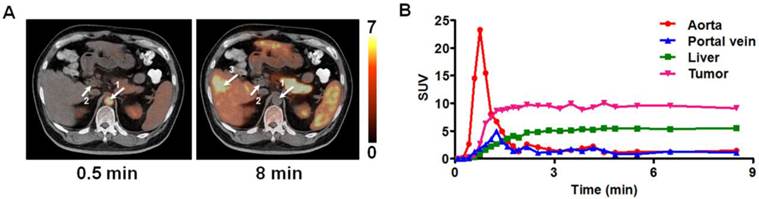

 Figure 1

(A) The co-registered transaxial PET/CT images at 0.5 min and 8 min after injection of 11C-acetate into the patient with HCC. Arrows display the ROIs for aorta (arrow 1), hepatic portal vein (arrow 2) and HCC (arrow 3). (B) The corresponding time activity curves (TACs) for ROIs defined over aorta, hepatic portal vein, liver and the HCC. Tumor uptake in each time point is represented by standardized uptake value (SUV).

Theranostics Image

The classification results for all the lesions were presented in Table 3. All but one patients with well-differentiated HCC were diagnosed correctly (1 patient was mis-diagnosed as benign lesion). The accuracy for poorly-differentiated HCC and benign lesions were 50% and 66.7%, respectively. With leave-one-out cross-validation (Table 4), the classification accuracy of benign lesions was decreased to 55.6%. Details of classification for each patient were displayed in Supplementary Material: Table S1.

To demonstrate the improvement of the classification with the kinetic parameters, we also conducted the discriminant analysis of the parameters from static imaging: SUV and the T/L. A worse classification was found with accuracy of 57.1% for well-differentiated HCC, 33.3% for poorly-differentiated HCC and 44.4% for benign lesions (Table 5).

 Table 2

The Wilks' Lambda test

StepsParametersFWilks Lambda
0K10.0170.649
k20.2210.853
k30.0880.775
HMRAct0.2090.848
α0.2050.846
SUV0.1380.812
(Lesion/Liver)suv0.0340.701
1k20.9660.647
k30.0910.498
HMRAct0.0820.492
α0.2630.560
SUV0.1570.529
(Lesion/Liver)suv0.0300.439
2k20.9490.436
k30.1720.357
HMRAct0.2190.367
α0.5700.411
SUV0.5820.412
 Table 3

The classification results of HCC and benign lesions with lesion to non-lesion SUV ratio and K1 in discriminant analysis

Classification results (Num. / probability)
TotalWell-HCCPoor-HCCBenign
Well-HCC (7)6 (85.7%)01 (14.3%)
Poor-HCC (6)1 (16.7%)3 (50.0%)2 (33.3%)
Benign (9)1 (11.1%)2 (22.2%)6 (66.7%)

*Well-HCC: Well-differentiated HCC; Poor-HCC: Poorly-differentiated HCC.

 Table 4

The classification results of HCC and benign lesions with leave-one-out cross-validation in discriminant analysis

Classification results (Num. / probability)
TotalWell-HCCPoor-HCCBenign
Well-HCC (7)6 (85.7%)01 (14.3%)
Poor-HCC (6)1 (16.7%)3 (50.0%)2 (33.3%)
Benign (9)2 (22.2%)2 (22.2%)5 (55.6%)

*Well-HCC: Well-differentiated HCC; Poor-HCC: Poorly-differentiated HCC.

 Table 5

The classification results of HCC and benign lesions with SUV and lesion to non-lesion SUV ratio in discriminant analysis

Classification results (Num. / probability)
TotalWell-HCCPoor-HCCBenign
Well-HCC (7)4 (57.1%)03 (42.9%)
Poor-HCC (6)0 (0.0%)2 (33.3%)4 (66.7%)
Benign (9)3 (33.3%)2 (22.2%)4 (44.4%)

*Well-HCC: Well-differentiated HCC; Poor-HCC: Poorly-differentiated HCC.

DISCUSSION

Our study confirmed that the irreversible three-compartment model with dual input is appropriate for analyzing dynamic 11C-acetate PET in the liver. Both static and kinetic parameters were imported into the stepwise discriminant analysis and it was found that K1 and T/L are the best classification variables to differentiate different types of lesions in the liver.

As reported in the study by Ho et al. [4], we also found hypo-metabolic foci of 11C-acetate in well differentiated HCC in which the tumor cells are more histologically similar to the normal liver cells. When the lesion is transformed to poorly differentiated HCC, 11C-acetate uptake is decreased. There is thus significant difference in T/L between these two types of lesions. For benign liver lesions, there is a large variation in the T/L ratio. Hence, T/L ratio can be a good indicator for HCC staging, but not for the identification of benign lesions.

K1 (ml blood/ml liver tissue/min) represents the tracer transport rate from blood to liver tissue. Kinetic analysis found that K1 value decreased with increased blood supply from HA for any ROI. Because 11C-acetate accumulation in HA is earlier and much higher than in PV at the beginning of tracer injection [29], HCC lesions with enhanced HA blood supply had lower K1 to reach the tracer concentration in the 'stable period' than benign lesions and non-lesion liver tissue. That the HCC with similar HA blood supply as the benign or non-lesion liver tissue yet had low K1 may result from the relative low tracer uptake. In general, K1 is a good reflection of HA and PV blood supply ratio and the tracer uptake in the liver tissue, allowing us to easily differentiate the HCC from benign lesions.

The fact that k2 and k3 did not appear significantly in the discriminant analysis may imply that the dynamic course in the 'stable period' in 11C-acetate dynamic imaging doesn't play an important role in differentiating HCC from benign lesions. The HA blood supply ratio was not good either for differentiation, because some HCC lesions did not show enhanced HA blood supply while some benign lesions were on the contrary, as found in studies of hepatic hemodynamics or perfusion [30-34], which explains why the benign lesions have been frequently mis-diagnosed as HCC in enhanced CT imaging.

LHMRAct Ki is a parameter regarded not to be affected by the tissue microenvironment, such as the heterogeneity of vascular permeability and variance of blood flow or perfusion, thus more sensitive than SUV to reflect the real 11C-acetate metabolism [35]. The significant difference of LHMRAct between well-differentiated HCC and non-lesion liver tissue further indicated the well-differentiated HCC lesions were 11C-acetate avid. The benign lesions presented significant higher value than non-lesion liver tissue in SUV but not in Ki. It can be inferred that the tracer concentration was mainly from the 11C-acetate retention in interstitial space contributed by the high perfusion (K1) in benign lesions, not the high 11C-acetate metabolism. Given the large overlapping value and the insignificant difference among the lesion groups, Ki was also unable to differentiate them.

Although the combination of the static and kinetic parameters could well characterize the liver lesions, it's difficult to differentiate the lesions by simple statistical analysis. The discriminant analysis was then introduced to do the lesions classification. The results with T/L and K1 outperform that with static parameters, and showed best sensitivity was obtained for well-differentiated HCC, then for benign lesions. Comparable classification accuracy in leave-one-out cross-validation demonstrated the robustness of the discriminant functions. Poorly-differentiated HCC was not well identified even when kinetics analysis was added. To avoid these unsatisfactory results, 18F-FDG imaging should be used for poorly-differentiated HCC diagnosis. Among the benign lesions in our patients, two inflammation lesions were regarded as the poorly-differentiated HCC, while 3 FNH lesions were correctly classified in the benign group. There is a possibility that our method is more useful for FNH lesions than for inflammation lesions. The angioma and benign lymphoid hyperplasia were classified correctly. The angiomyolipoma lesion, as well as the hepatic adenoma lesion, were mis-classified as the well-differentiated HCC in the leave-one-out-cross-validation. The small number of samples of each type of benign lesions was a limitation of our study (lack of statistical power). Study with more HCC and benign lesions are required in future.

Cirrhosis is usually thought to cause increased HA blood supply that makes the diagnosis of liver lesions more difficult [4, 36]. In this study, 11 patients with HCC were found to have cirrhosis in liver tissue, but the SUV and K1 in their non-lesion liver tissue ROI didn't show significant differences from normal liver tissue in other objects. Thus, it is reasonable to group all the non-lesion liver tissue together for comparison. Another point worth mentioning is the diameters of most lesions in our study were between 1 cm and 2 cm, a size with low diagnosis accuracy in dynamic CT and static PET [4, 37], which demonstrated the advantage of our method in differentiation of small liver lesions.

CONCLUSIONS

The ability of liver lesion differentiation and staging with parameters from static PET imaging analysis is limited. 11C-acetate kinetic modeling with a dual input provides a better view of the tracer behavior and more quantitative parameters to characterize the metabolism, perfusion and blood supply of liver lesion. The discriminant analysis with K1 and T/L improves the accuracy of the differentiation and staging of HCC and benign lesions, which potentiates clinical diagnosis and therapy of liver masses. For the future clinical application of our approach, a further study with larger patient group may be necessary. Also the computation efficiency needs to be addressed for the calculation of kinetic parameters in daily clinical practice.

SUPPLEMENTARY MATERIAL

Fig.S1 - Fig.S3, Table S1.

Attachment

Acknowledgements

This work was supported in part, by the National Natural Science Foundation of China (Grant No. 81071188, 81371596), by National Key Basic Research Program (973 Project) (2013CB733802), and by the Intramural Research Program of the National Institute of Biomedical Imaging and Bioengineering (NIBIB), National Institutes of Health (NIH).

COMPETING INTERESTS

The authors have declared that no competing interest exists.

References

1. Choi BY, Nguyen MH. The diagnosis and management of benign hepatic tumors. J Clin Gastroenterol. 2005;39:401-12

2. Terkivatan T, Hussain SM, De Man RA, Ijzermans JNM. Diagnosis and treatment of benign focal liver lesions. Scand J Gastroentero. 2006;41:102-15

3. Rampone B, Schiavone B, Martino A, Viviano C, Confuorto G. Current management strategy of hepatocellular carcinoma. World J Gastroenterol. 2009;15:3210-6

4. Ho CL, Yu SC, Yeung DW. 11C-acetate PET imaging in hepatocellular carcinoma and other liver masses. J Nucl Med. 2003;44:213-21

5. Delbeke D, Pinson CW. 11C-acetate: a new tracer for the evaluation of hepatocellular carcinoma. J Nucl Med. 2003;44:222-3

6. Park JW, Kim JH, Kim SK, Kang KW, Park KW, Choi JI. et al. A prospective evaluation of 18F-FDG and 11C-acetate PET/CT for detection of primary and metastatic hepatocellular carcinoma. J Nucl Med. 2008;49:1912-21

7. Sacks A, Peller PJ, Surasi DS, Chatburn L, Mercier G, Subramaniam RM. Value of PET/CT in the management of primary hepatobiliary tumors, part 2. AJR Am J Roentgenol. 2011;197:W260-5

8. Karhunen PJ. Benign hepatic tumours and tumour like conditions in men. J Clin Pathol. 1986;39:183-8

9. Delbeke D, Martin WH, Sandler MP, Chapman WC, Wright JK Jr, Pinson CW. Evaluation of benign vs malignant hepatic lesions with positron emission tomography. Arch Surg. 1998;133:510-5 discussion 5-6

10. Gibbs JF, Litwin AM, Kahlenberg MS. Contemporary management of benign liver tumors. Surg Clin North Am. 2004;84:463-80

11. Chen S, Ho C, Feng D, Chi Z. Tracer kinetic modeling of 11C-acetate applied in the liver with positron emission tomography. IEEE Trans Med Imaging. 2004;23:426-32

12. Paone G, De Angelis G, Munno R, Pallotta G, Bigioni D, Saltini C. et al. Discriminant analysis on small cell lung cancer and non-small cell lung cancer by means of NSE and CYFRA-21.1. Eur Respir J. 1995;8:1136-40

13. Huang D, Quan Y, He M, Zhou B. Comparison of linear discriminant analysis methods for the classification of cancer based on gene expression data. J Exp Clin Cancer Res. 2009;28:149

14. Su J, Yoon BJ, Dougherty ER. Accurate and reliable cancer classification based on probabilistic inference of pathway activity. PloS one. 2009;4:e8161

15. Edmondson HA, Steiner PE. Primary carcinoma of the liver - a study of 100 cases among 48,900 necropsies. Cancer. 1954;7:462-503

16. Zhou L, Rui JA, Ye DX, Wang SB, Chen SG, Qu Q. Edmondson-steiner grading increases the predictive efficiency of TNM staging for long-term survival of patients with hepatocellular carcinoma after curative resection. World J Surg. 2008;32:1748-56

17. Mitterhauser M, Wadsak W, Krcal A, Schmaljohann J, Bartosch E, Eidherr H. et al. New aspects on the preparation of [11C]acetate--a simple and fast approach via distillation. Applied radiation and isotopes: including data, instrumentation and methods for use in agriculture, industry and medicine. 2004;61:1147-50

18. Chen S, Feng D. Evaluation of hepatocellular carcinoma with dynamic 11C-acetate PET: A dual-modeling method. IEEE Trans Nucl Sci. 2008;55:999-1007

19. Soret M, Bacharach SL, Buvat I. Partial-volume effect in PET tumor imaging. J Nucl Med. 2007;48:932-45

20. http://www.activexray.com/pdf/Siemens_Biograph.pdf

21. Soloviev D, Fini A, Chierichetti F, Al-Nahhas A, Rubello D. PET imaging with 11C-acetate in prostate cancer: a biochemical, radiochemical and clinical perspective. Eur J Nucl Med Mol Imaging. 2008;35:942-9

22. Yoshimoto M, Waki A, Yonekura Y, Sadato N, Murata T, Omata N. et al. Characterization of acetate metabolism in tumor cells in relation to cell proliferation: acetate metabolism in tumor cells. Nucl Med Biol. 2001;28:117-22

23. Randle PJ, England PJ, Denton RM. Control of the tricarboxylate cycle and its interactions with glycolysis during acetate utilization in rat heart. Biochem J. 1970;117:677-95

24. Swinnen JV, Van Veldhoven PP, Timmermans L, De Schrijver E, Brusselmans K, Vanderhoydonc F. et al. Fatty acid synthase drives the synthesis of phospholipids partitioning into detergent-resistant membrane microdomains. Biochem Biophys Res Commun. 2003;302:898-903

25. Zheng X, Wen L, Yu SJ, Huang SC, Feng DD. A study of non-invasive Patlak quantification for whole-body dynamic FDG-PET studies of mice. Biomed Signal Process Control. 2012;7:438-46

26. Maroco J, Silva D, Rodrigues A, Guerreiro M, Santana I, de Mendonca A. Data mining methods in the prediction of Dementia: A real-data comparison of the accuracy, sensitivity and specificity of linear discriminant analysis, logistic regression, neural networks, support vector machines, classification trees and random forests. BMC Res Notes. 2011;4:299

27. Burn DJ, Sawle GV, Brooks DJ. Differential diagnosis of Parkinson's disease, multiple system atrophy, and Steele-Richardson-Olszewski syndrome: discriminant analysis of striatal 18F-DOPA PET data. J Neurol Neurosurg Psychiatry. 1994;57:278-84

28. Wardak M, Schiepers C, Dahlbom M, Cloughesy T, Chen W, Satyamurthy N. et al. Discriminant analysis of 18F-fluorothymidine kinetic parameters to predict survival in patients with recurrent high-grade glioma. Clin Cancer Res. 2011;17:6553-62

29. Winterdahl M, Keiding S, Sorensen M, Mortensen FV, Alstrup AK, Munk OL. Tracer input for kinetic modelling of liver physiology determined without sampling portal venous blood in pigs. Eur J Nucl Med Mol Imaging. 2011;38:263-70

30. Jakab F, Rath Z, Schmal F, Nagy P, Faller J. Changes in hepatic hemodynamics due to primary liver tumours. HPB Surg. 1996;9:245-8

31. Jakab F, Rath Z, Schmal F, Nagy P, Faller J. Blood flow measurement in patients with hepatocellular carcinomas. Acta Chir Hung. 1994;34:87-94

32. Moriyasu F. Doppler ultrasound in diagnosis of liver tumor and portal hypertension. Radiol Med. 1993;85:44-55

33. Asayama Y, Yoshimitsu K, Nishihara Y, Irie H, Aishima S, Taketomi A. et al. Arterial blood supply of hepatocellular carcinoma and histologic grading: radiologic-pathologic correlation. AJR Am J Roentgenol. 2008;190:W28-34

34. Liu YI, Shin LK, Jeffrey RB, Kamaya A. Quantitatively defining washout in hepatocellular carcinoma. AJR Am J Roentgenol. 2013;200:84-9

35. Tomasi G, Turkheimer F, Aboagye E. Importance of quantification for the analysis of PET data in oncology: review of current methods and trends for the future. Mol Imaging Biol. 2012;14:131-46

36. Coakley FV, Schwartz LH. Imaging of hepatocellular carcinoma: a practical approach. Semin Oncol. 2001;28:460-73

37. Tateishi Y. Diagnosis of 26 small hepatocellular carcinoma using incremental dynamic computed tomography. Kurume Med J. 1997;44:321-6
